Have we ever wished we could reliably charge a 24V LiFePO₄ battery from a 12V source without worrying about damaging either the battery or our power system?
Understanding What This DC‑DC LiFePO₄ Charger Actually Is
When we first look at the product name — “12v to 29.2v 10A 20A 30A 40A lifepo4 battery charger lithium 24v Voltage Supply Module DC DC Power Converter (29.2V 30A charger)” — it can feel like a mouthful. Underneath that long label, though, is a very practical device: a DC‑DC boost charger designed specifically to charge 24V LiFePO₄ batteries from a 12V DC source.
In other words, we’re not using an AC wall outlet here. We’re taking 12V DC input (often from a car, truck, RV, solar system, or other DC bus) and boosting it up to 29.2V, the proper full-charge voltage for a 24V LiFePO₄ battery.
This kind of charger is particularly interesting for off‑grid systems, vehicles, and mobile setups where we already have a 12V system but want to run or charge a 24V LiFePO₄ bank safely and efficiently.
Key Purpose of the 29.2V 30A LiFePO₄ DC‑DC Charger
We can think of this device as a bridge between our 12V power source and our 24V LiFePO₄ battery. It is not just a simple booster; it’s meant to function as a battery charger with a target output of 29.2V, matching the recommended charging voltage for a typical 8‑cell (8S) LiFePO₄ 24V pack.
Instead of directly wiring a 12V alternator or 12V battery bank to a 24V LiFePO₄ battery (which would be unsafe and ineffective), we let this unit manage the voltage conversion and controlled charging current. That way, we protect both our source and our LiFePO₄ battery.
Main Technical Characteristics and Ratings
Although the product listing we have is quite minimal, the name itself gives us some core specs. To make it easy to digest, we can break it down as follows:
Core Specs at a Glance
We’re dealing with the 29.2V 30A charger version. The broader family name suggests different current ratings (10A, 20A, 30A, 40A), but our focus is on the 30A model.
| Parameter | Value / Description |
|---|---|
| Input Voltage | 12V DC (nominal) |
| Output Voltage | 29.2V DC (fixed, for 24V LiFePO₄ charging) |
| Output Current (Rated) | 30A (maximum continuous charge current, model‑dependent) |
| Output Power (Approximate) | Up to around 875W (29.2V × 30A, theoretical maximum) |
| Battery Chemistry Target | LiFePO₄ (24V nominal, usually 8S pack) |
| Product Type | DC‑DC boost converter / LiFePO₄ battery charger |
| Use Case | Charging 24V LiFePO₄ batteries from 12V DC sources |
| Typical Applications | RVs, vans, boats, off‑grid systems, vehicle alternator charging, solar |
This is not a tiny trickle charger; a 30A unit is powerful enough to charge a mid‑sized LiFePO₄ pack at a fairly fast rate, especially in mobile setups.
Why 29.2V Matters for a 24V LiFePO₄ Battery
LiFePO₄ batteries have a different voltage profile than lead‑acid. For a 24V LiFePO₄ pack (8 cells in series), a common full‑charge voltage range is around 28.8V–29.2V. Many manufacturers recommend 29.2V as the upper charging limit for full capacity.
By having the output fixed at 29.2V, this charger aims to be fully compatible with most 24V LiFePO₄ battery packs, especially those that have their own Battery Management System (BMS) protection.
A properly matched voltage is critical. Over‑voltage can trigger BMS cut‑offs or even damage the pack, while under‑voltage charging leaves capacity unused and reduces performance. This product’s fixed 29.2V target is a strong indicator that it is designed specifically for LiFePO₄ rather than being a generic adjustable booster that we have to tune manually.
How the 12V to 29.2V Conversion Actually Helps Us
A raw 12V battery or alternator normally cannot charge a 24V battery directly. The voltage is too low, and the current flow would be insufficient or uncontrolled. That’s where this DC‑DC converter shines.
What the Converter Does
- Boosts Voltage: It steps up the 12V input to a stable 29.2V at the output.
- Controls Current: It limits the charging current to a maximum of 30A, protecting both the battery and the source.
- Supports Mobile and Off‑Grid Use: It allows us to charge a 24V LiFePO₄ system from a 12V alternator, 12V house battery, or 12V solar‑buffered bus.
In Real‑world terms, this means we can run a 24V inverter, 24V motor, or 24V electronics in our RV or van while only having a 12V vehicle alternator as the main charging engine. The converter becomes the middleman that makes that dual‑voltage life possible without complicated rewiring.
Ideal Use Cases and Scenarios
Having a dedicated LiFePO₄ DC‑DC charger becomes particularly useful in specific setups. Let’s walk through some realistic scenarios where this 29.2V 30A unit makes sense for us.
In an RV or Camper Van
In a typical van conversion or RV, we may have:
- A 12V chassis/starting battery charged by the alternator
- A desire to run a 24V LiFePO₄ house battery for better inverter efficiency or lower current draw
In that case, we can:
- Connect the input of this charger to the 12V system (through appropriate fuses and possibly an ignition trigger or relay)
- Connect the output to the 24V LiFePO₄ battery bank
Now, whenever the engine runs, the alternator feeds the 12V system, and this DC‑DC charger safely pushes energy into the 24V LiFePO₄ pack at 29.2V, up to 30A.
On a Boat or Marine System
Boats often start with 12V systems for engines and low‑voltage electronics. But adding a 24V LiFePO₄ bank can be attractive for running powerful inverters, thrusters, or other high‑load equipment more efficiently.
Here, again, this product allows us to charge a 24V LiFePO₄ pack from a 12V alternator. It can help isolate the two systems while ensuring the LiFePO₄ bank gets an appropriate charge profile.
In Off‑Grid or Hybrid Solar Systems
In a small off‑grid cabin or mobile solar trailer, perhaps we have:
- A 12V battery bank from existing hardware
- A new 24V LiFePO₄ pack we want to incorporate for heavy loads
We can use this DC‑DC charger as part of a step‑up path: 12V solar‑charged bank feeds the charger; the charger fills the 24V LiFePO₄ battery during times of surplus energy. It becomes a flexible piece of power routing hardware that helps us get more utility out of differing battery systems.
Performance: What We Can Expect in Real Use
Without detailed manufacturer test curves, we have to judge performance mostly by the ratings and typical behavior of DC‑DC LiFePO₄ chargers.
Charging Speed and Power
At 30A and 29.2V, the theoretical output power is around 875W. In practice, we’ll see:
- Slightly lower effective power due to conversion losses
- Current tapering as the LiFePO₄ pack approaches full charge (especially if the charger implements a constant‑current / constant‑voltage profile)
Assuming we had, for example, a 24V 200Ah LiFePO₄ battery (about 5.1 kWh), a 30A charge rate represents about 0.15C (30A ÷ 200Ah). That’s a comfortable, battery‑friendly rate that can still meaningfully charge the pack in several hours, depending on state of charge and how long we keep the alternator or 12V source running.
Effect on the 12V Source
We also have to consider the input current from the 12V side. Because power in ≈ power out + losses, when we boost from 12V to ~29.2V:
- At 875W out, we might see over 70A drawn from the 12V source, depending on efficiency
- This load is substantial for a vehicle alternator or 12V battery system
So, we should be sure that our 12V alternator, wiring, and fusing can handle the current we’re demanding. This is not a “light” load; it’s a heavy, sustained draw, especially at full 30A output on the 24V side.
Build Quality and Hardware Considerations
Even though our product details are limited to the name and a short note (“ConvertersConverters Converter › See more product details”), we can make some reasonable observations based on what such a device typically looks like and how it is usually built.

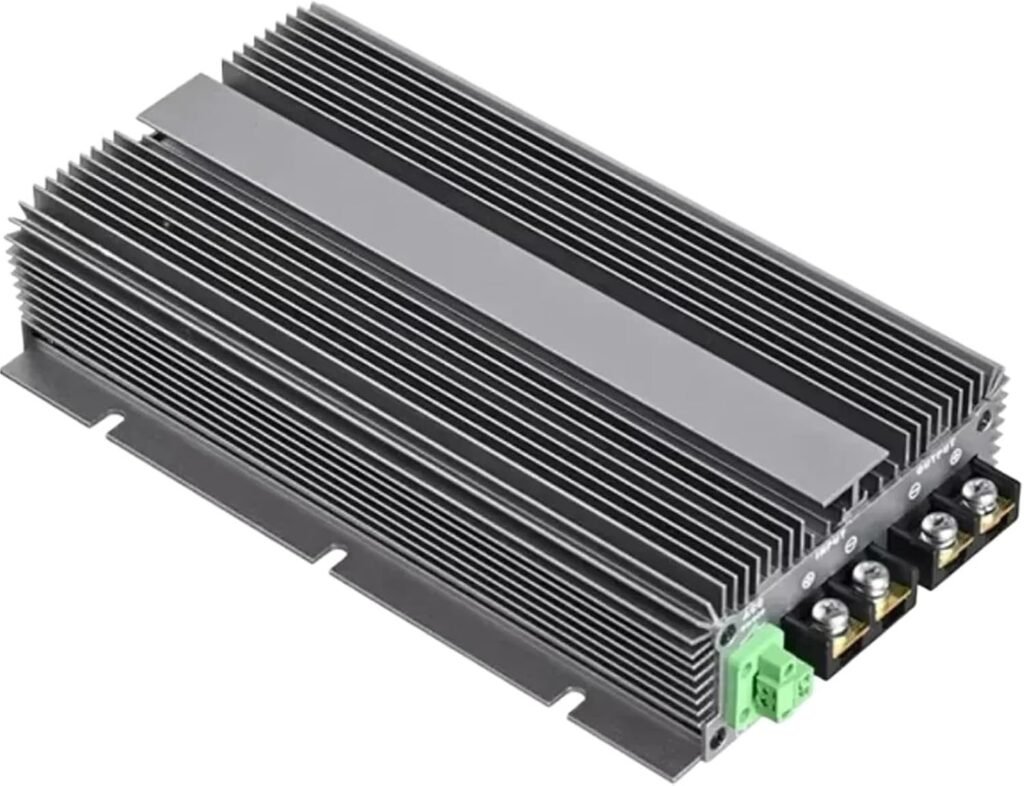

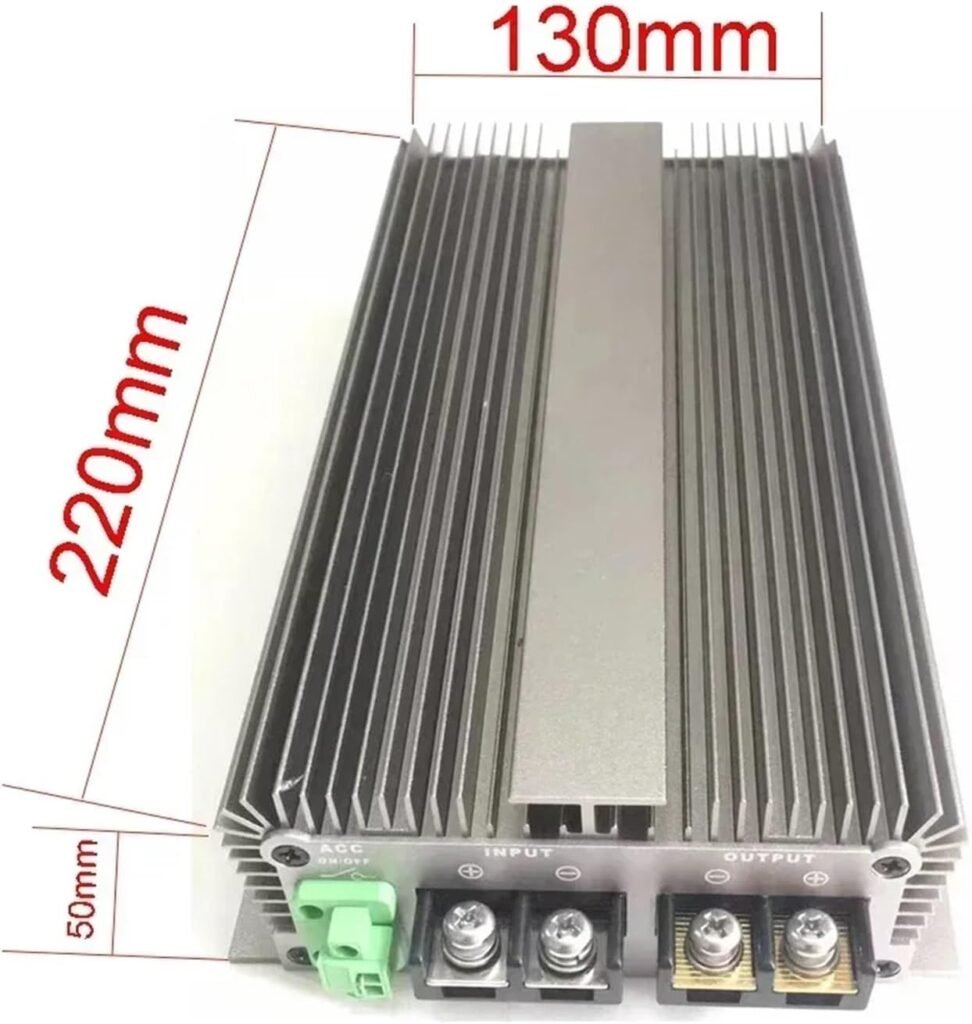

Physical Form Factor
Most 30A DC‑DC boost chargers for 24V LiFePO₄ are:
- Built as rectangular modules with an aluminum or metal heatsink body
- Equipped with screw terminals or heavy‑gauge cables for input and output
- Sometimes fan‑cooled, depending on design and expected continuous load
We should expect this to be a module that we mount inside a dry, ventilated compartment rather than a sealed, weather‑proof brick that can sit exposed to the elements. For marine or dusty environments, extra protection or enclosure might be wise.

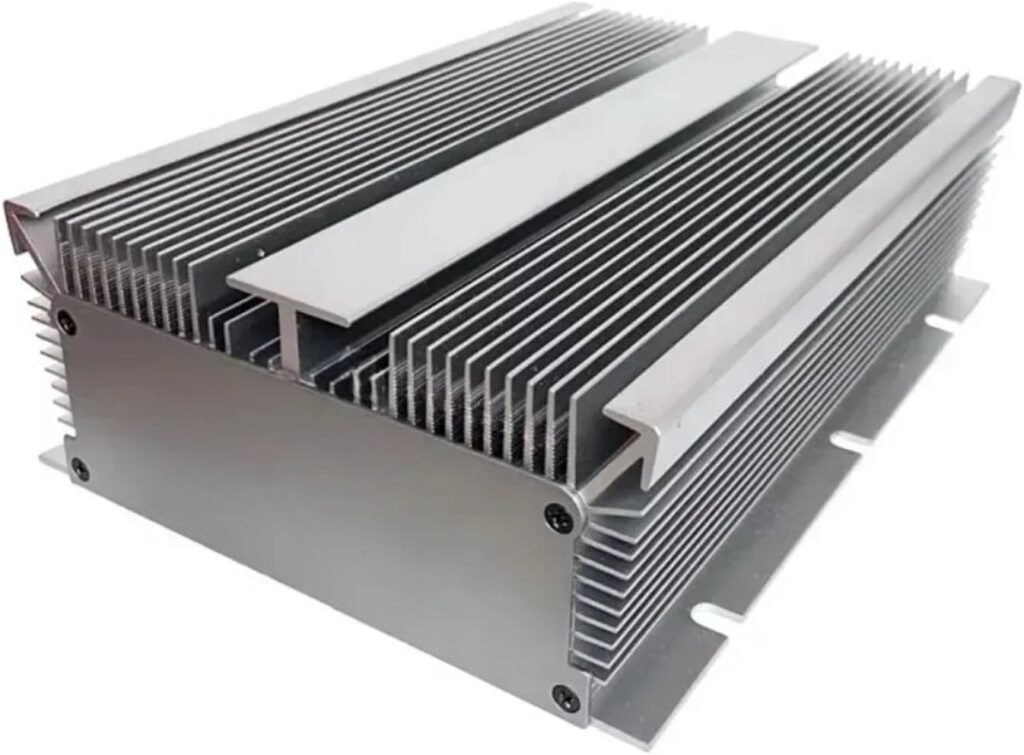

Thermal Management
At several hundred watts of power throughput, heat is inevitable. A well‑designed unit should include:
- Large heat‑dissipating surfaces or fins
- Possibly active cooling (fans) at higher current versions like 30A or 40A
- Thermal shutdown or derating behavior if the unit overheats
We should plan to install this charger in a location with good airflow and avoid burying it in insulation or confined spaces without ventilation.
Safety, Protections, and Battery Friendliness
Because we’re dealing with both voltage boosting and battery charging, we should consider what kinds of protections a device like this needs. While we do not see a full specification sheet here, most DC‑DC LiFePO₄ chargers typically include several standard safety features.
Typical Protection Features (What We Should Expect)
Even though not explicitly listed in the snippet we have, proper LiFePO₄ chargers of this type usually offer:
- Over‑current protection on output
- Short‑circuit protection
- Over‑temperature shutdown or derating
- Input under‑voltage protection, preventing excessive drain on the 12V source
- Reverse polarity protection (sometimes via fuses or diode arrangements)
Our LiFePO₄ battery’s BMS also adds another layer of protection, such as over‑voltage and over‑temperature cut‑off. For overall system safety, the BMS and the converter should work together so that if any condition becomes unsafe, charging ceases rather than causing damage.
Importance of Proper Wiring and Fusing
No matter how many protections are built into the charger, we still need to:
- Use appropriately sized cables for the currents involved
- Install proper fuses or breakers on both input and output lines
- Ensure tight, corrosion‑free connections
With up to ~70–80A potentially on the 12V side (at full output) and 30A on the 24V side, sloppy wiring becomes a fire hazard. This is not the place to reuse thin automotive speaker wire.
Installation Considerations and Best Practices
When we install a 12V to 29.2V, 30A LiFePO₄ charger, we want to think through both mechanical placement and electrical connections.
Where to Physically Mount the Charger
We should look for:
- A dry, protected location away from direct water spray or condensation
- Adequate air circulation around the heatsink and any fans
- Proximity to both the 12V source and the 24V LiFePO₄ battery, to minimize cable lengths and voltage drop
Ideally, we mount it on a solid surface (like a metal bulkhead or wall panel) that can help dissipate heat. We want room around the wiring points so we can make secure terminations and check them over time.

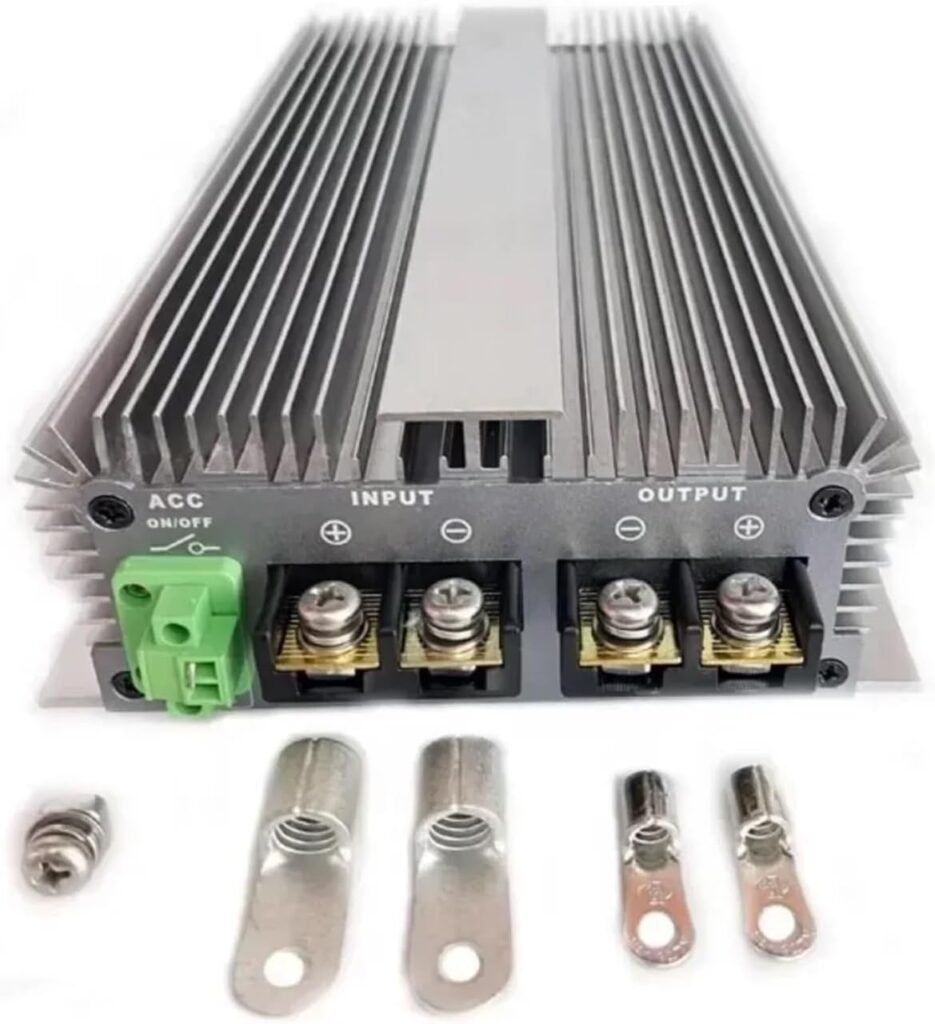

Electrical Connection Basics
On the input side (12V), we typically:
- Connect to the positive bus through a fuse or breaker sized for expected current
- Connect the negative to the common ground or negative bus
- Optionally use an ignition‑controlled relay or manual switch to control when the charger is active
On the output side (24V), we:
- Run positive and negative cables directly to the 24V LiFePO₄ battery bank (or to a short, low‑resistance bus closely connected to it)
- Use an appropriately sized fuse or breaker near the battery’s positive terminal
Careful polarity checking is vital before powering the system for the first time. A mistake here could damage both the charger and our batteries.
Compatibility With Different LiFePO₄ Battery Packs
One strength of a fixed‑voltage LiFePO₄ charger is that it can theoretically be used with many different 24V packs, as long as they share similar requirements. Still, we should verify a few points.
Voltage and BMS Settings
We want to check our LiFePO₄ battery’s documentation and confirm:
- Recommended charge voltage: many 24V LiFePO₄ banks call for 28.8–29.2V, so 29.2V is usually within spec
- Maximum charge current: ensure our battery’s rated maximum charging current is at least 30A, or that we’re using enough capacity (Ah) that 30A is a safe C‑rate
For example, if our 24V battery is 24V 50Ah (small pack), 30A would be 0.6C — still acceptable for many LiFePO₄ packs, but we want to confirm with our manufacturer. If instead we have 24V 100Ah or 200Ah, 30A is quite gentle.
Parallel and Series Configurations
The charger is designed for a single 24V bank, which might be:
- One large 24V LiFePO₄ battery
- Several 12V LiFePO₄ batteries wired in series to form 24V, possibly with additional parallel strings
As long as the overall configuration is a properly managed 24V system with a functional BMS, the charger sees it as a single battery bank. The key is that the BMS and wiring are set up correctly before we connect the charger.
Pros: What We Might Like About This Product
Although the listing text is short, the design intent and ratings suggest several clear benefits.
Dedicated 24V LiFePO₄ Charging From 12V
We get a straightforward way to charge a 24V LiFePO₄ bank in a system that already revolves around 12V. That’s handy for:
- Van conversions
- RVs and campers
- Boats with 12V main systems
- Hybrid or experimental off‑grid systems
We avoid the complexity of redesigning our entire system around 24V just to run a certain set of equipment.
High Charging Current (30A Version)
The 30A rating gives us enough charging power to actually make a difference in realistic time frames. It’s not just a trickle or emergency unit; at 30A, we can recharge a sizeable portion of our 24V battery bank while we drive or run a generator.
For moderate‑size batteries, this current offers a solid balance between speed and long‑term battery health.
LiFePO₄‑Friendly Voltage
Because the output is fixed at 29.2V, the charger lines up nicely with common LiFePO₄ specs. This reduces guesswork and the risk of misconfiguration that often come with variable‑output generic boosters.
Cons and Limitations We Should Keep in Mind
No product is perfect for every situation, and this DC‑DC charger is no exception. There are a few conditions and trade‑offs we need to consider.
Heavy Load on the 12V System
To produce 29.2V at 30A, the unit must pull a lot of current from the 12V source. If we’re running this at full output, we might be asking:
- More than 70A from our alternator or 12V battery in continuous operation
- Even more momentary draw during start‑up or transient conditions
This means we should only use this charger if we’re confident that our alternator and 12V wiring can support such a load without overheating or overtaxing the system. In some cases, we might want to choose a lower‑current version (e.g., 10A or 20A model) if available.
Fixed Output Voltage and Profile
While 29.2V is perfect for many LiFePO₄ packs, it is not adjustable in most modules of this type. If our specific battery manufacturer recommends a slightly different maximum voltage (e.g., 28.8V or 29.0V), we cannot change the setpoint here unless the design explicitly supports it.
For most mainstream LiFePO₄ batteries, that’s not a deal‑breaker, but it is something we should confirm before purchase.
Limited Documentation in the Listing
The snippet we have — “ConvertersConverters Converter › See more product details” — implies that more information is probably present on the full product page, but from the fragment alone, we lack:
- Exact efficiency data
- Detailed protection feature lists
- Specific wiring diagrams and installation instructions
So, to be fully confident, we would want to review the complete product listing, any datasheets, and user feedback to fill in these gaps before committing to complex system integration.
How This Charger Fits Into a Larger System
To truly understand a product like this, it helps to picture it inside a typical power ecosystem. Let’s imagine we’re building or upgrading an RV electrical system.
Example: 12V Alternator + 24V LiFePO₄ House Bank
We might have:
- A 12V alternator charging our starter battery
- A 12V distribution panel for lights, fans, and small 12V loads
- A new 24V LiFePO₄ bank powering a 24V inverter for AC loads (like a microwave, laptops, tools, or an induction cooktop)
The DC‑DC LiFePO₄ charger becomes a central component:
-
Input Side
- Connected to the 12V system near the alternator or starter battery
- Protected by an appropriate fuse or breaker
- Possibly switched by ignition or a manual control
-
Output Side
- Connected to the 24V LiFePO₄ battery bank
- Protected by another fuse or breaker near the 24V battery
-
Operation
- When we drive, the alternator powers the 12V system
- The charger boosts 12V to 29.2V and charges the 24V LiFePO₄ at up to 30A
- Our 24V inverter uses that energy to run AC loads
This pattern repeats on boats, trucks, and mobile workstations, making such a charger a key tool for mixed‑voltage power designs.
Practical Tips for Getting the Most Out of This Charger
Once we choose to implement a unit like the 29.2V 30A 12V‑to‑24V LiFePO₄ charger, a few simple practices can help ensure smooth operation and long life.
Match the Charger to the Battery Size
We want our LiFePO₄ bank to be large enough that 30A is within the recommended C‑rate. For many LiFePO₄ batteries, a maximum charge current of 0.5C–1C is considered acceptable. That means:
- For 100Ah 24V, 30A is 0.3C (well within typical spec)
- For 200Ah 24V, 30A is 0.15C (very gentle, ideal for longevity)
If our battery is smaller than 100Ah, we might want to check manufacturer limits more carefully, or consider reducing the charge current (if the unit supports adjustment) or using a lower‑amp model from the same series.
Ensure Adequate Alternator Capacity
If our alternator is already heavily loaded (perhaps running air conditioning, lights, and other accessories), adding a 70+ amp draw equivalent on the 12V side can push it beyond its safe limit.
It’s wise to:
- Check our alternator’s rated output
- Consider whether we need to lower the charger’s max current (if adjustable)
- Monitor alternator temperature and voltage behavior under real‑world loads
In some setups, running the charger at full 30A output continuously may not be sustainable. Using it intermittently or at partial load may be the best balance.
Watch Temperatures and Ventilation
After installing the charger:
- We can run a long charging session and periodically touch the casing (carefully) to gauge how hot it gets
- If it becomes uncomfortably hot to the touch or if we hear fans constantly running at maximum speed, we may need to improve cooling
Ensuring cool intake air and a path for hot air to exit can significantly increase longevity and reliability.
How This Product Compares Conceptually to Alternatives
While we are focusing on this specific “12v to 29.2v 10A 20A 30A 40A lifepo4 battery charger lithium 24v Voltage Supply Module DC DC Power Converter (29.2V 30A charger)”, it’s helpful for us to understand what the main alternatives would be.
Alternative 1: AC Charger Only
We could simply use a 29.2V LiFePO₄ AC charger that plugs into mains power. That works fine when shore power or grid power is available, but:
- It doesn’t help us charge from a vehicle alternator or pure DC solar setups
- It’s not as useful for mobile or off‑grid use where DC sources dominate
Alternative 2: No DC‑DC, Direct Alternator Hacks
Some people attempt to run 24V alternators or tap into mixed‑voltage systems directly. While this can work in highly customized setups, it often involves:
- More complex and expensive hardware changes
- Potentially greater risk to existing vehicle electrical systems
- Less controlled charging profiles for LiFePO₄ batteries
The DC‑DC converter approach is usually simpler, safer, and more modular. It allows us to keep the factory 12V system intact and just add a dedicated “charging bridge” to the new 24V bank.
Alternative 3: Solar‑Only Charging at 24V
If we have abundant solar and a dedicated 24V MPPT controller, we may not need DC‑DC charging from 12V at all. But in that case:
- Charging depends on sun conditions
- We miss the convenience of charging while driving or idling
For many of us, combining solar with this DC‑DC alternator‑based charger gives the best balance of reliability and flexibility.
Long‑Term Reliability Considerations
Longevity is always a major concern with power electronics, especially in mobile or vibration‑rich environments. While we cannot see the internal components of this specific charger, we can outline general factors that affect lifetime.
Factors That Help Reliability
- Running below maximum rating for most of the time (e.g., average output below 30A)
- Good airflow and moderate operating temperatures
- Stable input voltage without extreme spikes or dropouts
- Proper strain relief on cables to avoid mechanical stress on connectors
If we treat the charger as a carefully installed, cooled, and fused part of our system rather than a throw‑in afterthought, we greatly increase the odds that it will give us years of reliable performance.
Factors That Can Hurt Reliability
- Constant operation at or near maximum current in hot environments
- Installing the unit near engine exhaust or in sealed compartments
- Allowing dust, moisture, or oil to accumulate on the heatsinks or inside the casing
- Using undersized wiring, causing resistive heating and brown‑outs
By paying attention to these, we can reduce the chance of premature failure and annoying downtime.
Who This 29.2V 30A DC‑DC LiFePO₄ Charger Is Best For
Putting it all together, we can define the kind of user and system where this product shines.
Great Fit For
- Van‑lifers and RV owners who want a 24V LiFePO₄ house bank but still rely on a 12V alternator
- Boat owners upgrading to a 24V LiFePO₄ system for high‑power loads while keeping existing 12V infrastructure
- Off‑grid enthusiasts who mix 12V and 24V systems and need a flexible way to route energy between them
- DIY power system builders who appreciate a dedicated LiFePO₄ charging voltage (29.2V) from a widely available 12V source
Less Ideal For
- People who only occasionally need to charge their 24V battery and mostly have access to AC shore power; an AC‑only charger might be simpler.
- Systems where the 12V alternator or wiring is too weak to handle high DC‑DC loads at 30A output.
- Users needing adjustable output voltage to fine‑tune for unusual chemistries or custom BMS settings.
Final Thoughts on the 12V to 29.2V 30A LiFePO₄ DC‑DC Charger
As a purpose‑built DC‑DC LiFePO₄ charger, the “12v to 29.2v 10A 20A 30A 40A lifepo4 battery charger lithium 24v Voltage Supply Module DC DC Power Converter (29.2V 30A charger)” fills a very practical gap in modern mobile and off‑grid power systems. It gives us a straightforward, high‑current pathway to charge a 24V LiFePO₄ bank from a 12V source, doing the heavy lifting of boosting and regulating voltage to a LiFePO₄‑friendly 29.2V.
We should approach installation carefully, respecting the significant currents on both sides, and we should treat cooling and wiring as non‑negotiable priorities. Provided we match the charger to our battery capacity and alternator capabilities, this module can become a central and reliable part of our energy system.
For those of us building or upgrading mixed‑voltage setups in vans, RVs, boats, or off‑grid cabins, this kind of DC‑DC LiFePO₄ charger is not just a convenience — it can be the key element that lets our 12V and 24V worlds work together smoothly.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
