Have we finally found a 24V battery that is both powerful enough for serious projects and simple enough for everyday users?
What Makes This 24V LiFePO4 Battery Stand Out?

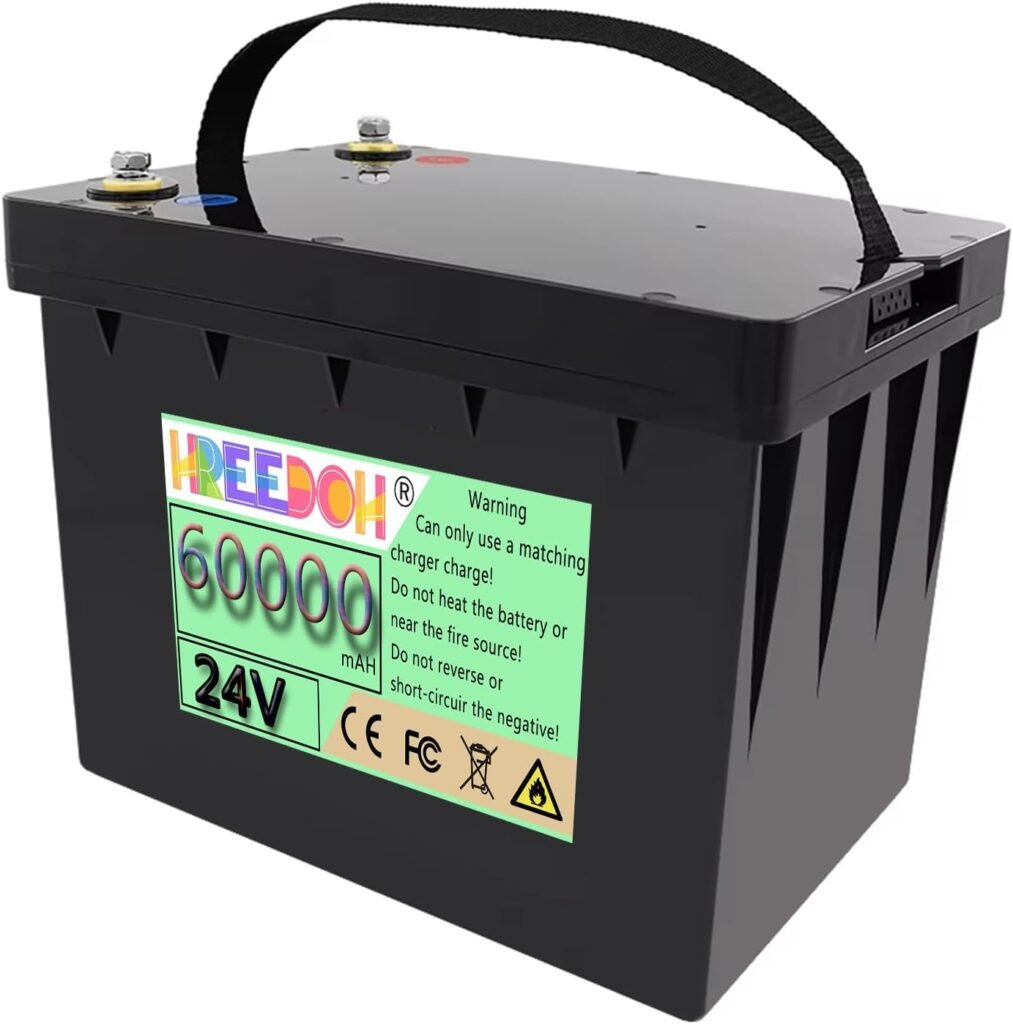

When we look at the “24V Energy Storage Battery 24V LiFePO4 Battery 60Ah Batteries with BMS Protection Board for 0-1440W Motor,” we are not just looking at another generic lithium pack. We are looking at a compact power solution that tries to balance capacity, safety, and practicality for a wide range of 24V applications.
We want to walk through exactly what this battery offers, where it shines, and where we should manage expectations before we build a system around it.
Core Specifications at a Glance
Understanding the main specifications helps us quickly decide if this battery fits our needs or not. Here is a quick breakdown of the most important details.
| Feature | Specification |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 24V |
| Capacity | 60Ah |
| Suitable Motor Power | 0–1440W |
| Recommended Charging Voltage | 29.2V |
| Max Charging Current | 20A |
| Size | 295 × 203 × 225 mm |
| Approx. Weight | 11 kg |
| Operating Temperature (Discharge) | -20°C to 60°C |
| Discharge Efficiency | Up to 95% |
| Self-Discharge Rate | ≤ 3% when not in use |
| Cycle Life | ~4000 cycles |
| Expected Service Life | Around 5 years (under proper use) |
| Built-In Protection | BMS (overcharge, overdischarge, overcurrent, short) |
| Portability Feature | Integrated carry handle |
We can see straight away that this battery is designed as a fairly robust 24V power source with long cycle life, decent energy storage, and essential electronic protections.
Design and Build Quality
Compact yet Substantial Form Factor
At 295 × 203 × 225 mm and about 11 kg, this battery is relatively compact for a 24V 60Ah LiFePO4 pack. It is not ultra-light compared with smaller capacities, but for 24V systems, the weight and dimensions are quite reasonable.
We can comfortably fit it into many standard battery compartments, DIY enclosures, or equipment bays. For applications like small solar setups or mobility devices, the dimensions are manageable, especially with some planning during installation.

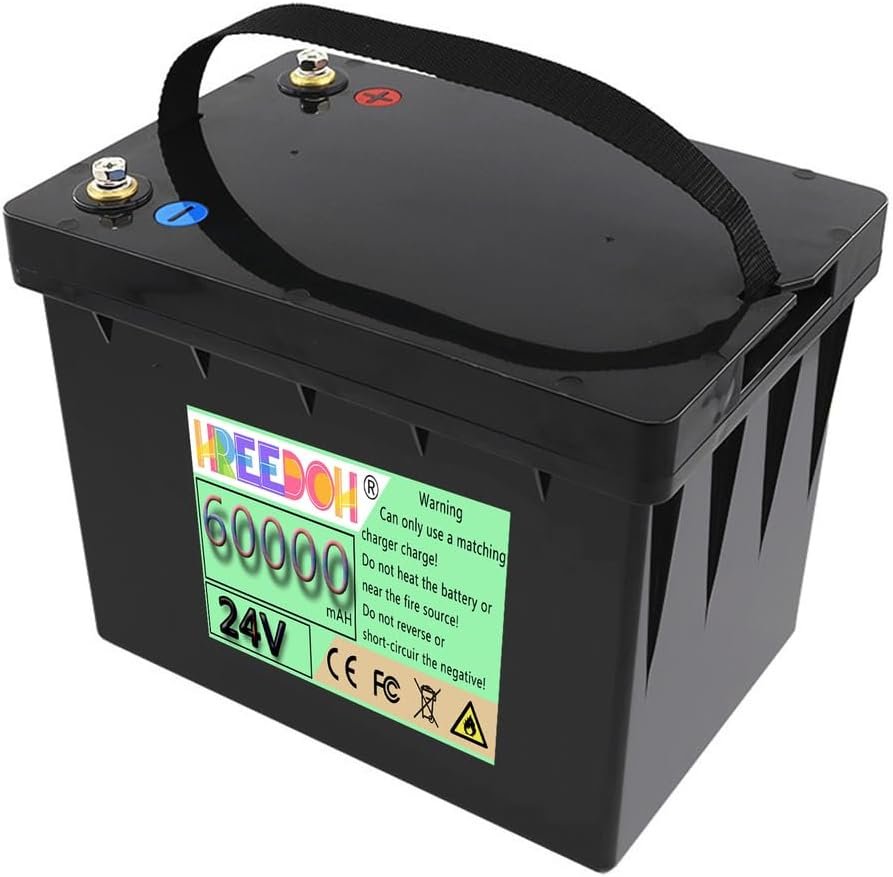

Durable Casing and Practical Handle
The integrated carrying handle is one of those simple things that we appreciate more and more over time. We can pick up the battery, move it between vehicles, or take it indoors for charging without struggling with straps or makeshift grips.
The casing appears to be designed for everyday handling. While we still want to avoid hard impacts or dropping, the overall build gives us confidence that it can handle typical use, transport, and occasional rough handling in workshops or garages.
Capacity and Performance
60Ah at 24V: What That Means for Real Use
With 60Ah at 24V, we get a usable energy capacity of roughly:
- 24V × 60Ah ≈ 1440Wh (1.44 kWh)
That means, in theory, we can run a 100W device for around 14 hours, or a 500W device for close to 3 hours, assuming ideal conditions and high efficiency. Of course, real-world runtime depends on inverter losses, cable quality, and temperature, but it gives us a good ballpark.
Up to 1440W Motor Support
The manufacturer states suitability for 0–1440W motors. This tells us the battery is aimed at moderate power systems, for example:
- Electric trolling motors
- Small electric carts or mobility devices
- 24V scooter conversions
- Light-duty e-bikes or trikes with 24V systems
- Small 24V winches or pumps (within rated power)
We still want to check the actual continuous and peak current demands of our motor. A 1440W load at 24V theoretically draws about 60A, which the pack must be able to supply on the discharge side (the spec focuses mainly on the charging current), and the BMS must allow. So for very high peak-current motors, we should double-check compatibility and, ideally, confirm with the seller or test in a controlled way.
Power Efficiency and Self-Discharge
Up to 95% Discharge Efficiency
A discharge efficiency of up to 95% is quite good for a lithium battery used in 24V systems. This means that most of the stored energy is actually delivered to our load instead of being lost as heat.
In practice, this higher efficiency gives us:
- Longer run times from the same nominal capacity
- Less energy wasted in the battery during quiet periods
- Better overall performance in off-grid setups and power banks
We will still want a decent inverter or controller if we are converting to AC, but the battery itself is not likely to be a major source of loss.
Low Self-Discharge Rate
The self-discharge rate is stated as ≤ 3% when not in use. That means if we leave the battery sitting disconnected for a month or two, we do not lose a big chunk of capacity.
We appreciate this if we use the battery seasonally, for example:
- On a boat we use mainly in summer
- In a backup power system for occasional outages
- In a DIY project we only switch on occasionally
We still want to recharge periodically if we store it long term, but such low self-discharge is very convenient compared with some older lead-acid options.
Temperature Range and Environmental Resilience
Operating from -20°C to 60°C
Being able to discharge between -20°C and 60°C gives us a lot of flexibility. We can use this battery in:
- Cold climates where winter temperatures drop below freezing
- Hot environments such as sheds, workshops, or vehicles in warm regions
However, even though the battery can operate in that range, we still want to treat temperature carefully. Extreme cold can temporarily reduce available capacity, and extreme heat can shorten long-term life expectancy. We should try to keep the battery as close to room temperature as reasonably possible for daily use.
Practical Implications for Outdoor Use
For off-grid cabins, RVs, small boats, or outdoor work sites, this wide temperature range matters. We do not need to baby the battery every day, but we might choose to:
- Avoid leaving it in direct sunlight inside a closed vehicle
- Use some basic insulation or shading in very hot conditions
- Store it indoors if temperatures fall far below freezing for long periods
With a bit of care, we can enjoy good performance without over-complicating our setup.
LiFePO4 Chemistry: Safety and Longevity
Why Lithium Iron Phosphate Matters
LiFePO4 (Lithium Iron Phosphate) is one of the safest and most stable lithium chemistries currently used in consumer and industrial batteries. Compared with certain other lithium-ion types, it offers:
- Better thermal stability
- Lower risk of thermal runaway
- Very long cycle life
- More predictable performance over time
We still want to treat any battery with respect, but LiFePO4 reduces many of the typical safety concerns people have with high-energy-density packs.
Around 4000 Charge/Discharge Cycles
A cycle life of about 4000 cycles is substantial. If we use the battery:
- Once per day:
- 4000 cycles / 365 ≈ ~11 years of daily cycling (in ideal conditions)
The seller mentions a life expectancy of up to 5 years, which is more conservative and more realistic for typical mixed use, varying depth of discharge, temperature fluctuations, and general wear. Still, this is significantly better than most lead-acid batteries, which often start to degrade noticeably within a few hundred deep cycles.
If we do not fully discharge the battery every time and we avoid extremes of temperature and charging, we may enjoy a useful life that extends beyond the stated 5 years.
Built-In BMS Protection
What the BMS Actually Does for Us
The integrated Battery Management System (BMS) is the brain that protects the battery during everyday use. It monitors vital parameters and takes action when necessary. This BMS offers protection against:
- Overcharge
- Overdischarge
- Overcurrent
- Short circuits
We should think of it as a safety net, not a free pass to abuse the battery. It keeps our system from going into dangerous territory and helps prevent accidents and premature battery failure.
Why BMS Protection Matters in Real Systems
In practical terms, the BMS:
- Prevents us from overcharging the cells if our charger or controller is imperfect
- Protects the battery from being deeply drained to the point of damage
- Limits current draw if something goes wrong downstream
- Cuts off in the event of a short, which reduces fire and damage risk
When we connect this battery into boats, carts, or DIY power projects, having a built-in BMS means we do not have to install a separate external protection board. We still want fuses and proper wiring, but a large part of the safety logic is already inside the pack.
Charging Requirements and Best Practices
Recommended Charging Voltage and Current
The battery is designed for 29.2V charging voltage and a maximum charging current of 20A. That means our charger or solar charge controller should:
- Be compatible with LiFePO4 profiles (or user-programmable to match)
- Limit voltage to around 29.2V in the final phase
- Not exceed 20A when charging this single battery
Charging at lower currents is generally gentler and can extend life, but 20A is a reasonable max rate for those who want faster top-ups.
Charging Options We Can Consider
Depending on our use case, we might charge the battery:
- From a dedicated AC LiFePO4 charger (24V / 29.2V output)
- Through a solar charge controller set to LiFePO4 parameters
- Via a DC-DC charger from a vehicle alternator if our system is properly set up
We should avoid generic lead-acid chargers that do not allow us to set the correct voltage profile, as they might either undercharge (reducing capacity) or overcharge (stressing the cells and BMS).
Portability and Ease of Use

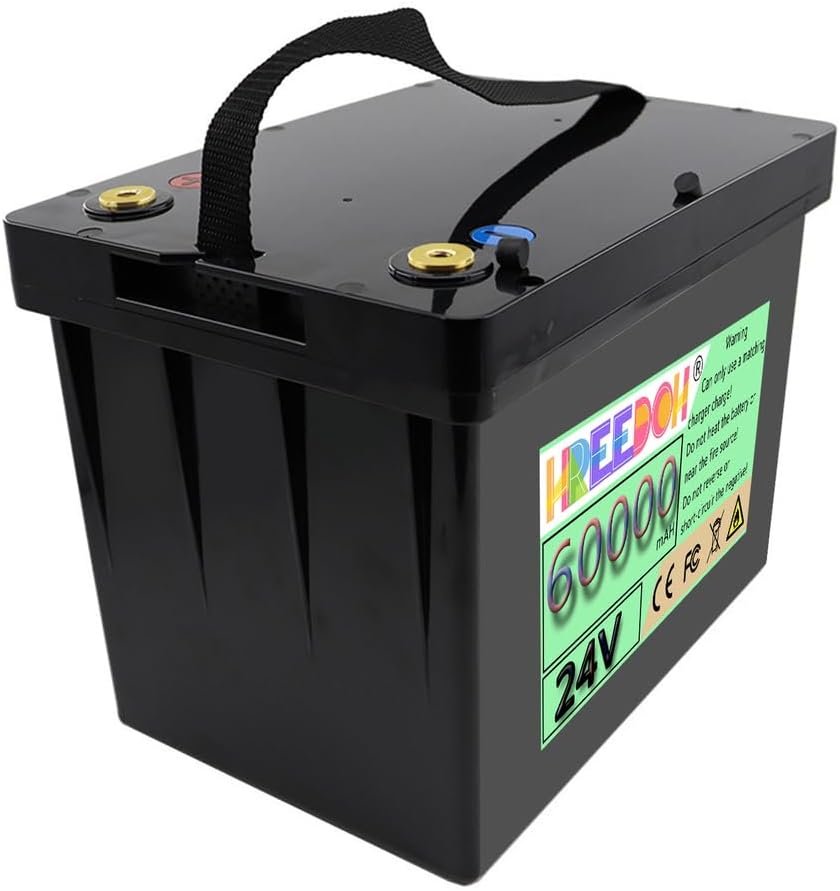

Integrated Handle for Quick Removal
The built-in handle is more than a convenience feature. It supports a way of using the battery that many of us appreciate:
- Charge it in place when it is installed in a frame or compartment
- Or remove it quickly and charge it separately indoors
For e-bikes, carts, or small boats, this means we can:
- Park the vehicle in a garage
- Take just the battery inside to charge
- Keep the battery in a temperature-controlled environment when not in use
We do not need tools or complicated disassembly every time we want to charge or move the pack.
Flexible Charging Locations
Being able to charge in the frame or outside it lets us design flexible systems. For instance, we might:
- Run the battery in an outdoor piece of equipment but bring it inside at night
- Charge multiple batteries using the same charger, one at a time
- Store the battery indoors during long off-seasons while leaving the equipment in a shed or garage
This flexibility adds real-world convenience that we notice over weeks and months of use.
Use Cases and Application Ideas
Pairing with 24V Motors (0–1440W)
Because the battery is described as suitable for motors up to 1440W, it naturally fits:
- Small electric vehicles running 24V motors
- Trolling motors requiring reliable 24V power
- 24V winches and hoists (within current limits)
- 24V pumps and sprayers in agricultural or garden setups
We still need to pay attention to peak currents, especially for motors that have high startup surges. The BMS will typically tolerate some peaks but may cut off if the current is sustained beyond its safe range.
Off-Grid and Backup Power
We can also use this pack as part of an off-grid or backup power solution, such as:
- A small 24V solar system with an inverter for light household loads
- A backup bank for computers, network devices, and essential electronics
- A power source for camping setups, lighting, fans, or low-power tools
With about 1.44 kWh of energy, this single battery is enough for modest loads. If we need more capacity, we may consider multiple batteries in parallel, but we must follow manufacturer guidance regarding parallel connection and ensure the BMS supports it.
Advantages Compared to Lead-Acid Batteries
Higher Usable Capacity
While a 60Ah lead-acid battery at 24V might have a similar nominal capacity on paper, LiFePO4 gives us far more usable energy. Lead-acid batteries are typically not happy being discharged below about 50% regularly, whereas LiFePO4 can routinely handle deeper cycles.
That means:
- A 60Ah LiFePO4 often performs more like a much larger lead-acid bank in day-to-day use
- We can actually use most of the 60Ah capacity without dramatic wear and tear
Lighter and More Compact for the Same Energy
At roughly 11 kg, this 24V 60Ah LiFePO4 pack is usually lighter than an equivalent energy lead-acid solution. This weight advantage matters when:
- We install the battery in mobile equipment
- We move it in and out of vehicles regularly
- We carry it by hand using the built-in handle
Over time, having a lighter, more energy-dense battery makes systems more efficient and user friendly.
Much Longer Cycle Life
Lead-acid batteries often degrade significantly after a few hundred deep cycles. This LiFePO4 pack offers around 4000 cycles, which is an order of magnitude better in many cases.
Over the long term:
- We replace batteries less frequently
- We reduce maintenance and total cost of ownership
- We enjoy more consistent performance year after year
Safety Considerations and Best Practices
Respecting the BMS, Not Relying on It Blindly
The BMS protection is our last line of defense, not our primary strategy. We still want proper:
- Fuses sized to our load and cable rating
- Appropriately gauged wiring to handle current safely
- Secure mounting to prevent movement and mechanical stress
If we assume the BMS will save us from every wiring mistake or overload, we may still run into problems, so it is better to design the system conservatively.
Avoiding Overheating and Mechanical Damage
Even though LiFePO4 is safer than some other chemistries, we should:
- Keep the battery away from open flames and extreme heat sources
- Prevent it from being punctured or crushed
- Avoid soaking it in water or leaving it in places prone to flooding
Basic care goes a long way to ensuring that the battery remains safe and reliable throughout its life.
Installation Tips and System Integration
Matching the Battery with the Right Charger
The most important installation choice we make is selecting the appropriate charger or charge controller. We want:
- A LiFePO4-compatible charger with 29.2V final charge voltage
- Or a programmable solar controller where we can set the absorption and float voltages for LiFePO4
We should avoid over-voltage situations that could stress the cells or trigger the BMS to shut down repeatedly.
Proper Wiring and Connectors
We should use cables that match the current the system will draw. For example:
- For moderate loads (under 30A continuous), decent mid-gauge cables are usually fine
- For closer to the higher power range (like near 1440W at 24V), we need thicker cables and higher-quality connectors to prevent heating and voltage drop
We should also secure all connections, use insulated terminals, and make sure there are no loose strands or exposed conductors.
Maintenance and Long-Term Care
Routine Checks
LiFePO4 batteries are generally low-maintenance, but we can still extend life by:
- Checking terminal tightness occasionally
- Inspecting for corrosion, damage, or swelling
- Monitoring performance (does it seem to hold the same charge and runtime?)
If we notice any unusual behavior, we should investigate before pushing the system hard.
Storage Guidelines
If we plan to store the battery for several months:
- We should leave it at a moderate state of charge (around 50–70% is typical for storage)
- We should store it in a cool, dry place, away from direct sunlight
- We should avoid leaving it fully discharged for long periods
Every few months, we can top it up slightly to keep it from dropping too low, especially if the self-discharge plus any standby electronics slowly reduce the charge.
Pros and Cons Summary
Key Strengths
We see several strong advantages with this 24V 60Ah LiFePO4 battery:
- Solid energy capacity: Around 1.44 kWh of usable energy at 24V
- Long cycle life: About 4000 cycles with good conditions
- Good safety profile: LiFePO4 chemistry plus BMS protections
- Low self-discharge: Up to 3% when not in use, great for seasonal use
- High discharge efficiency: Up to 95%, so less energy wasted
- Wide temperature operating range: -20°C to 60°C discharge range
- Portability: Integrated handle for easy removal and carrying
These features together make it a compelling choice for medium-power 24V systems, ranging from mobility to small off-grid power setups.
Potential Limitations
There are also some factors we want to keep in mind:
- Maximum charge current is limited to 20A, which may be modest for those wanting extremely fast charging.
- Motor peaks: Although suitable for up to 1440W motors on paper, very high surge currents might require careful testing or consultation with the seller to avoid BMS trips.
- Single-battery capacity: For larger off-grid systems, one 60Ah pack may not be enough; we might need multiple units, which demands attention to parallel connection guidelines.
None of these are deal-breakers, but they are important for realistic expectations when designing our system.
Who This Battery Is Best For
Ideal Users and Scenarios
We think this battery suits us best if we:
- Run 24V motors or equipment up to around 1440W in a controlled, well-designed system
- Want a lightweight, long-lasting alternative to lead-acid in a 24V setup
- Need a portable pack that we can easily remove and charge separately
- Build small to medium off-grid power systems for camping, cabins, or backup power
If we value safety, cycle life, and everyday convenience, this LiFePO4 pack checks many boxes.
When We Might Want Something Else
We might consider another solution if:
- We require extremely high power beyond 1440W for long periods
- We need ultra-fast charging at currents far above 20A per pack
- We are building a very large off-grid system where higher-capacity or higher-voltage batteries are more suitable
In those cases, we might look at larger LiFePO4 packs or higher-voltage systems designed for industrial or heavy-duty residential installations.
Final Thoughts on the 24V 60Ah LiFePO4 Energy Storage Battery
When we bring everything together, this “24V Energy Storage Battery 24V LiFePO4 Battery 60Ah Batteries with BMS Protection Board for 0-1440W Motor” offers a balanced mix of practicality, safety, and performance. We get:
- A robust 24V power source with about 1.44 kWh of usable energy
- Modern LiFePO4 chemistry with around 4000 cycles of life
- An integrated BMS for essential protection
- A portable form factor with an easy-carry handle
- A wide operating temperature range and low self-discharge
For many of us working with 24V motors, mobile power projects, or compact off-grid systems, this battery provides a reliable heart for our setup. As long as we respect its limits, follow good charging practices, and design our wiring thoughtfully, we can expect a stable and long-lasting power solution that serves us well for years.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
