Have we ever wished our 12V system could reliably power or charge a 24V LiFePO4 battery without a complicated setup?
Understanding What This DC-DC Converter Actually Is

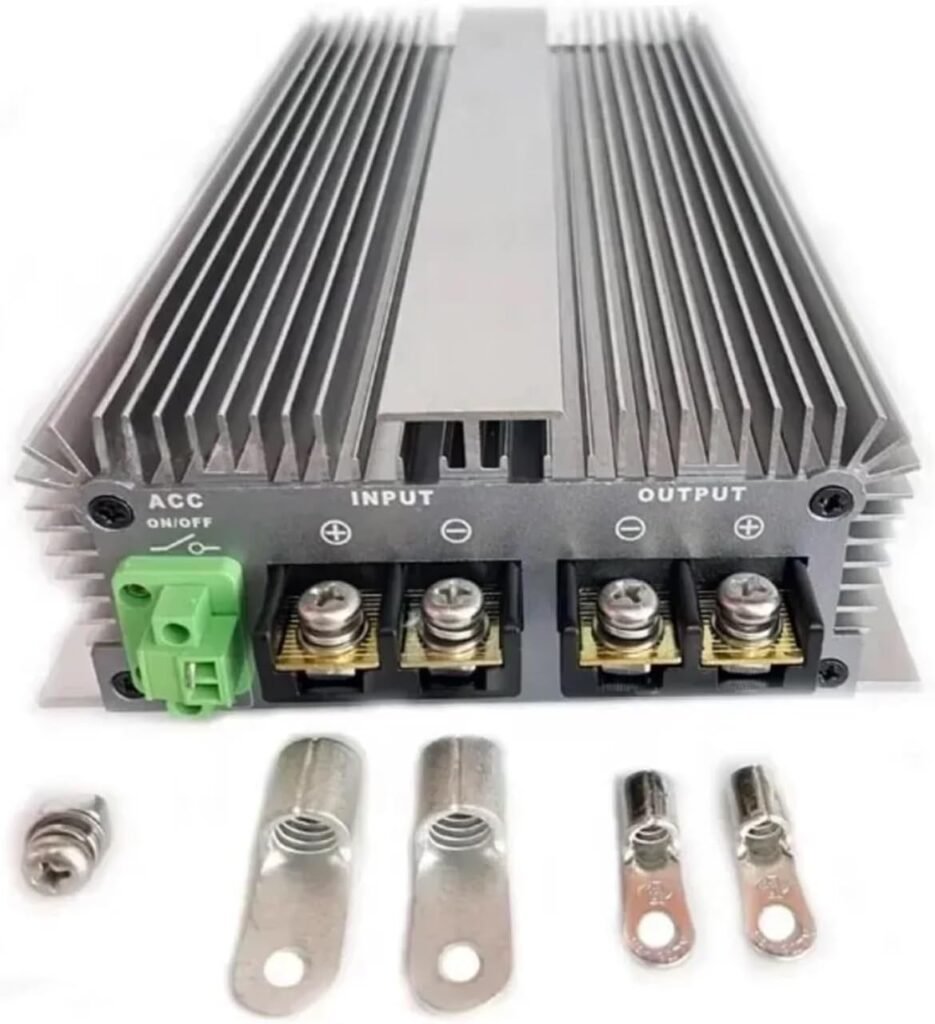

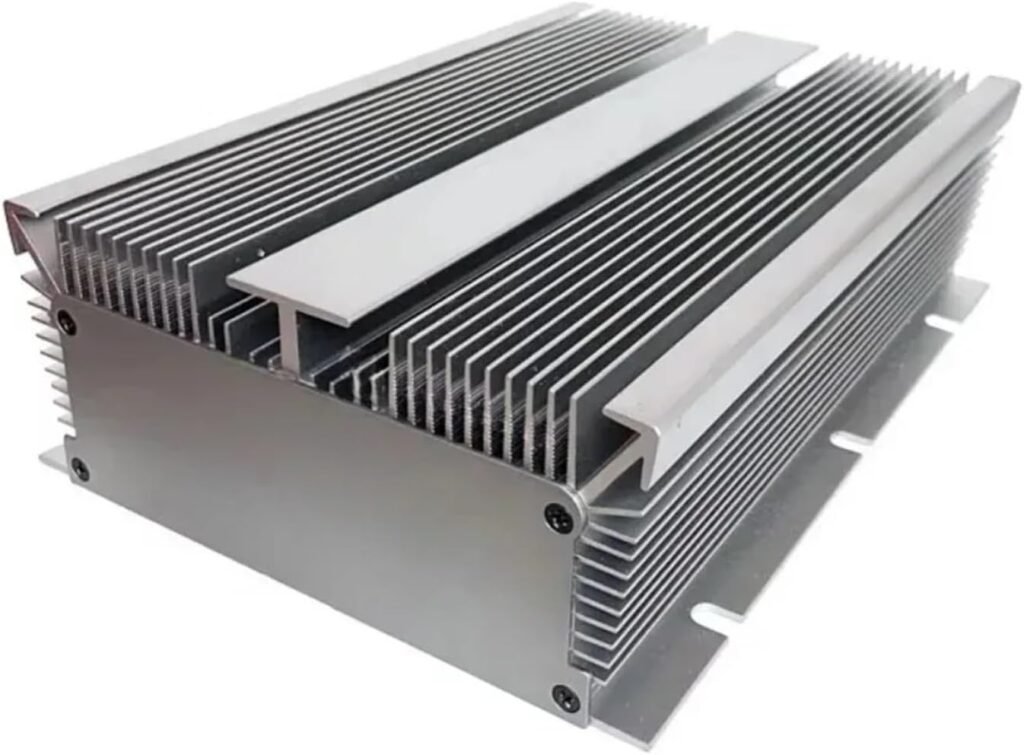

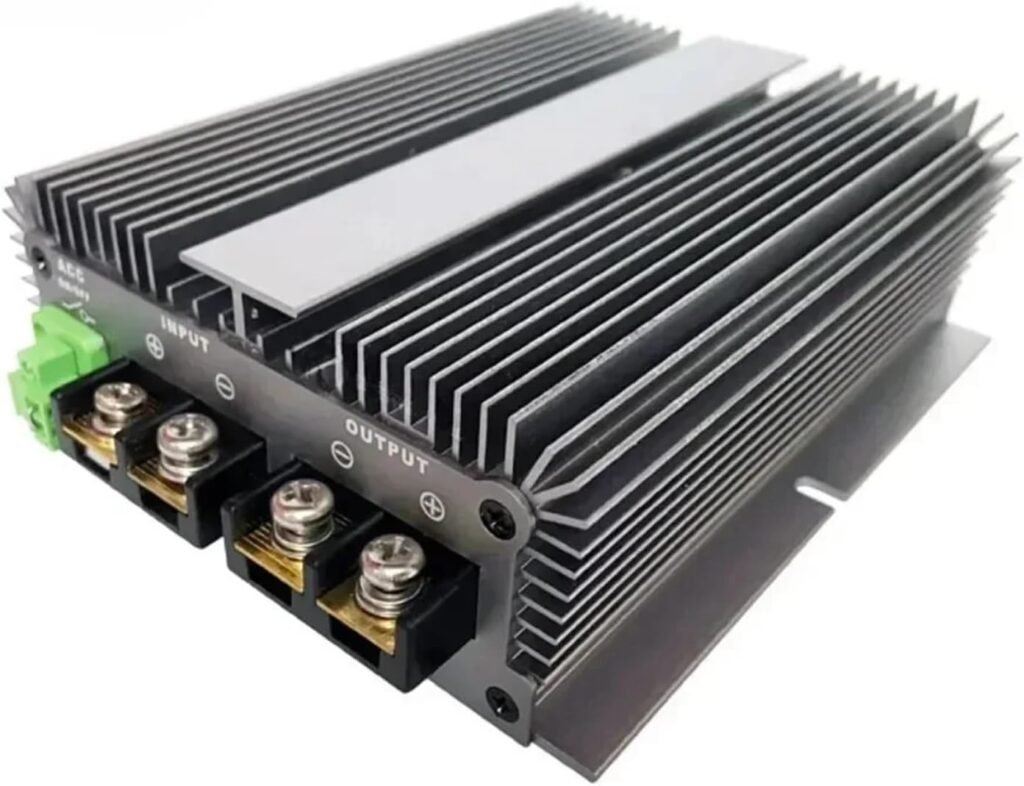

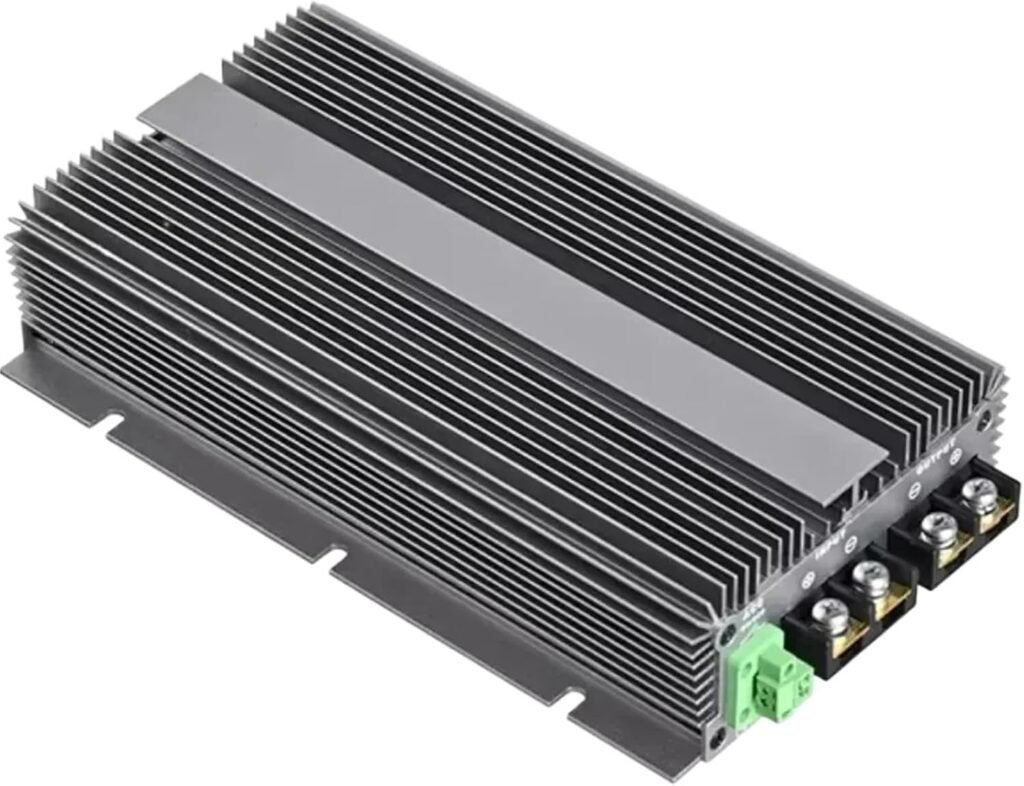

When we look at the name “12v to 29.2v 10A 20A 30A 40A lifepo4 battery charger lithium 24v Voltage Supply Module DC DC Power Converter (29.2V 20A charger)”, it can feel a bit overwhelming. Yet beneath the long name, we are basically dealing with a DC-DC step-up power module designed specifically to charge 24V LiFePO4 batteries from a 12V source.
This unit is a 29.2V 20A charger, which means it is tuned to the proper full-charge voltage for a 24V LiFePO4 battery pack (generally 8S). That makes it especially useful in vehicles, boats, RVs, solar setups, or any off-grid systems where we have 12V power but want to charge 24V lithium batteries efficiently.
Key Purpose: Why We Would Want a 12V to 29.2V Charger
Many of us run into the same issue: our main system is 12V (car, truck, RV, boat, or 12V solar bank), but we need to run or charge 24V LiFePO4 batteries. Buying a separate 24V charger that runs from AC power is not always convenient, especially off-grid.
This DC-DC converter’s main purpose is to take a 12V DC input and convert it to a stable 29.2V output at up to 20A for LiFePO4 batteries. This gives us a controlled, battery-specific charging solution instead of a crude step-up converter that might damage our pack.
Main Features of the 29.2V 20A DC-DC Converter
The product description is minimal, but based on the name and typical specifications in this category, we can identify the main features. These are the core aspects that define how it works and how we might use it in our setup.
Voltage Step-Up from 12V to 29.2V
This module is designed to accept a 12V DC input (often from a lead-acid battery, vehicle alternator, or 12V LiFePO4 system) and convert it up to 29.2V, which is a standard full-charge voltage for 24V LiFePO4 packs.
This makes it ideal for:
- Charging a 24V LiFePO4 battery bank in an RV or camper from the vehicle’s 12V alternator.
- Using a 12V solar bank or 12V battery to maintain or charge a 24V LiFePO4 pack.
- Providing a 24V output for devices that expect a fully charged 24V lithium setup, as long as we use it in a charger-oriented way.
Constant Voltage LiFePO4 Charging Profile (Basic)
Although the description is sparse, the key detail is the target output: 29.2V. That voltage is specifically matched to 8-cell LiFePO4 packs (8 x 3.65V = 29.2V), which indicates that this is not just a generic DC step-up, but one set for LiFePO4 full-charge levels.
We can think of it as a bulk/absorption stage charger for LiFePO4 batteries:
- It raises the voltage up to 29.2V.
- It can supply up to 20A, depending on input and wiring.
We should still use a BMS (Battery Management System) on our LiFePO4 battery, since this module does not replace the need for proper cell balancing and protection.
Output Current Rating: 20A Charging Capability
This unit is identified as the 29.2V 20A charger. That means the maximum rated charging current is 20 amps on the output side. For a 24V LiFePO4 battery, 20A is a solid medium-current charger—fast enough to be practical, yet not so intense that it stresses typical packs.
We should understand:
- At 29.2V and 20A, the maximum power output is roughly 584W.
- Our input source (12V battery or alternator) must be able to support that, accounting for conversion losses.
This current level is suitable for:
- 24V LiFePO4 batteries around 50Ah–200Ah, depending on the desired C-rate.
- Faster charging for smaller packs, more moderate charging for larger ones.
Technical Breakdown: Inputs, Outputs, and Power Considerations
To use this converter properly, it helps to think through the power math and connection requirements. Even though the product page details are minimal, typical DC-DC chargers of this type follow certain patterns.
Expected Input Voltage and Source Type
The name clearly states 12V to 29.2V, which implies:
- Input Voltage Range: Likely around 10V–16V, suitable for 12V battery systems.
- Common Inputs:
- Vehicle alternator + starter battery.
- 12V deep-cycle lead-acid or AGM batteries.
- 12V LiFePO4 banks.
- 12V DC buses from power supplies or solar charge controllers.
We should always check our specific unit’s label, but in general, feeding it from a standard automotive 12V system or 12V battery is the intended use.
Output Characteristics: 29.2V at Up to 20A
The target output is a regulated DC 29.2V, which is optimal for 8S LiFePO4:
- Charging Voltage: 29.2V corresponds to 3.65V per cell.
- Maximum Current: 20A (under ideal conditions).
In practice:
- If our input voltage is low or our source is weak, the converter might not reach full 20A.
- The output is still limited by both converter capability and input power.
Power and Efficiency: What Our 12V Source Needs to Provide
To understand whether our alternator, battery, or power supply can handle this charger, we need to look at power and likely efficiency.
Input Power Requirements
At maximum rated output:
- Output power ≈ 29.2V × 20A ≈ 584W
Assuming the converter operates at, for example, 90% efficiency (a reasonable estimate for DC-DC converters in this range):
- Input power needed ≈ 584W / 0.90 ≈ 649W
- At 12V input, input current ≈ 649W / 12V ≈ 54A
That means:
- Our 12V source must support around 50–60A for full 20A output at 29.2V.
- Wiring, fusing, and connectors must be sized for significant current on the 12V side.
If we cannot supply that much current, the effective output current will naturally be lower. So this converter is not a magic amplifier; it transforms voltage while conserving total power (minus some losses).
Thermal and Cooling Considerations
Running at several hundred watts of conversion inevitably produces heat. While we do not have exact thermal specifications from the brief description, we can reasonably assume:
- The module needs good ventilation.
- It may benefit from mounting on a metal surface or near airflow.
- Continuous full-load operation might require us to avoid enclosed, unventilated spaces.
Overheating typically leads to current limiting or automatic shutdown in many converters, so we should plan installation with heat dissipation in mind.
Typical Use Cases Where This Converter Shines
This kind of DC-DC charger module fits very neatly into several common real-world scenarios. Thinking through them helps us decide whether this product is right for our system.
Charging a 24V LiFePO4 Bank from a 12V Vehicle Alternator
One of the most practical uses is within RVs, vans, trucks, or boats. We may have:
- A 12V alternator that charges our starter battery.
- A separate 24V LiFePO4 house bank for inverters and 24V loads.
Using this module:
- We connect the input side to the vehicle’s 12V electrical system (typically through a fuse and possibly an ignition relay).
- We connect the output side to the 24V LiFePO4 bank (with appropriate fuse and disconnect).
This lets us:
- Charge a 24V lithium battery while driving, using the engine’s alternator.
- Avoid the inefficiency and complexity of an inverter + AC charger combination.
We do need to ensure our alternator and wiring can supply the necessary current without overload. Sometimes we might deliberately limit current below the module’s maximum by using smaller gauge wire or by adjusting input constraints (if supported).
Integrating 12V Solar Systems with 24V Lithium Storage
Another scenario is off-grid solar installations where:
- We already have a 12V solar system with panels and a 12V charge controller.
- We want a 24V LiFePO4 bank to run specific loads or act as a secondary system.
Instead of completely reconfiguring our solar arrangement to 24V:
- We can charge the 24V LiFePO4 pack from our existing 12V storage or bus line.
- This module steps up 12V DC to the correct 29.2V LiFePO4 charging voltage.
It is not a solar charge controller by itself, but it can be part of a chain:
Solar panels → 12V charge controller → 12V battery → DC-DC 29.2V charger → 24V LiFePO4 battery.
Powering or Charging 24V Equipment from a 12V Base System
Some systems rely on 24V devices (e.g., certain inverters, motors, or industrial controls) but the primary available source is only 12V. If we pair this converter with a 24V LiFePO4 battery:
- The converter keeps the battery charged at 29.2V when the 12V side is powered.
- The 24V side supplies equipment that expects a 24V lithium pack.
We must remember: this module is a charger, not just a generic power supply. We always want a battery and BMS on the output side, not sensitive electronics directly, unless they are designed to handle 29.2V as their normal upper limit.
Pros and Cons of the 29.2V 20A Charger
Having a balanced view helps us make informed decisions. We can summarize the strengths and weaknesses of this module based on typical specs and reasonable expectations.
Advantages
We see several clear positives in this product category:
-
Purpose-Built for 24V LiFePO4
The 29.2V output is exactly what an 8S LiFePO4 pack needs for a full charge, reducing guesswork. -
High Output Current (20A)
This is a useful current level for mid-sized LiFePO4 packs and offers reasonably fast charging. -
DC-DC Convenience
No AC required; we can charge lithium batteries directly from a 12V system, making it ideal for mobile and off-grid setups. -
Efficient Power Conversion
DC-DC conversion is generally more efficient than using an inverter plus AC charger, especially at this power level. -
Scalable and Modular
We can potentially run multiple units (with proper planning and current limits) if we need more charging power.
Disadvantages or Limitations
We should also be aware of potential downsides:
-
High Input Current Demand
At full output, our 12V side must supply 50–60A or more. That requires strong wiring, fusing, and a robust source. -
Limited Product Documentation in the Listing
The brief description (“Converters Converters Converter”) suggests we may need to rely on labels, manuals, or seller support to get full specifications, which could be inconvenient. -
Not a Full Smart Charger with Multi-Stage Logic (Assumed)
The key spec is voltage and current. It may not provide advanced multi-stage algorithms beyond reaching 29.2V and regulating current. Our LiFePO4 BMS will still need to handle protection and balancing. -
Thermal Management Requirements
Any 500–600W converter will generate noticeable heat; poor installation can lead to thermal throttling or failures.
Specification Snapshot in Table Form
To make things clearer, we can map the core parameters into a simple table. Some values are derived or typical rather than guaranteed, because the listing provides only minimal text.
| Parameter | Value / Description |
|---|---|
| Product Name | 12v to 29.2v LiFePO4 Battery Charger DC-DC Converter |
| Model Variant | 29.2V 20A charger |
| Input Voltage | 12V DC (likely 10–16V range typical for 12V systems) |
| Output Voltage | 29.2V DC (suitable for 8S LiFePO4 packs) |
| Maximum Output Current | 20A |
| Approx. Maximum Output Power | ~584W (29.2V × 20A) |
| Estimated Input Current | ~50–60A at 12V (at full load, depending on efficiency) |
| Battery Type Target | 24V LiFePO4 (8 cells in series) |
| Main Function | DC-DC step-up charger from 12V to 29.2V |
| Typical Use Cases | RVs, vans, boats, off-grid, dual-battery systems |
| Additional Needs | External LiFePO4 BMS on the battery, fuses, proper wiring |
This overview helps us quickly align our expectations with what the product is designed to provide.
Installation Considerations and Best Practices
For a product like this, its long-term reliability and safety depend a lot on how we install and use it. Even a good converter can fail or cause issues if hooked up incorrectly.
Wiring and Cable Sizing
On the input (12V) side, current can be very high at full output. We should:
- Use thick cables rated for at least 60A, preferably more for headroom.
- Keep cable runs as short as practical to minimize voltage drop.
- Use proper lugs and crimps; no bare wires wrapped around terminals.
On the output (29.2V) side:
- Current is lower (up to 20A), but still not trivial; we should size cables accordingly.
- We connect directly to the 24V LiFePO4 battery terminals or bus bars, not via thin or undersized wiring.
We should also pay attention to polarity—reversing input or output polarity is one of the fastest ways to damage a converter.
Fusing and Protection
Proper fusing is essential for preventing wiring damage in case of short circuits or faults:
- On the input side, we place a fuse or breaker rated just above the expected maximum input current. For example, a 60–70A fuse might be appropriate for a full-power setup.
- On the output side, we use a fuse slightly above 20A (e.g., 25–30A), unless our system design calls for something specific.
We also want a main disconnect switch or breaker on at least one side so we can safely isolate the converter for maintenance or troubleshooting.
Cooling, Ventilation, and Mounting
Because this charger will dissipate heat:
- We should mount it in a well-ventilated location, away from flammable materials.
- It may benefit from being mounted on a metal surface that can act as a heatsink.
- We should avoid stuffing it into closed, insulated compartments with no airflow.
Some modules are designed with mounting holes or brackets. We should use them rather than rely on makeshift fixes, since secure mounting also protects connections from vibration and strain.
Safety and Battery Health
When working with LiFePO4 and high current DC systems, safety and long-term battery health must be front and center.
Using a Proper LiFePO4 Battery with BMS
This converter is not a replacement for a Battery Management System. Our 24V LiFePO4 pack must have:
- Over-voltage protection
- Under-voltage protection
- Over-current and short-circuit protection
- Cell balancing
The charger provides a voltage and current limit at 29.2V and 20A, but if something unusual happens at the cell level, we rely on the BMS to intervene.
Avoiding Overcharging and Oversizing
The 29.2V setting is correct for LiFePO4, but:
- Not all LiFePO4 batteries prefer being held at full charge continuously.
- Some users choose to disconnect the charger or limit charge voltage slightly if they aim to maximize cycle life rather than capacity.
We might consider:
- Using the converter mainly to bring the battery up to full or near-full, then disconnecting or reducing use once charged.
- Ensuring our battery capacity is suitable for 20A charging. For instance, a 50Ah pack at 20A sees a 0.4C rate, which is generally fine, but a 20Ah pack at 20A would be at 1C, which might be too aggressive depending on the manufacturer’s recommendations.
Performance Expectations in Real-World Use
While specifications are one thing, everyday performance depends on how we actually use the converter in our system.
Charging Speed for Typical Battery Sizes
To estimate charging times (from roughly 20% to 100%, which is common for LiFePO4 usage), we can do some quick calculations, understanding that real-world times will vary.
-
For a 24V 50Ah LiFePO4 battery
Energy capacity: 24V × 50Ah = 1,200Wh (approximate).
If we charge at 29.2V × 20A ≈ 584W, ideal time from 20% to full (80% of total) would be:
~1,200Wh × 0.8 / 584W ≈ 1.6 hours (plus some overhead).
In practice, we might expect around 2 hours or so. -
For a 24V 100Ah LiFePO4 battery
Capacity: ~2,400Wh.
Using the same rough math, we might expect around 3–4 hours from moderately discharged to full. -
For larger banks (e.g., 200Ah)
We are looking at 6–8 hours depending on start SOC and whether we can sustain full current.
These are ballpark figures, but they give us a sense of how the 20A limit relates to typical battery sizes.
Behavior Under Less-Than-Ideal Input Conditions
If our 12V source cannot supply full power (for instance, a weak alternator or a small battery), we should expect:
- Reduced output current (the converter may not reach 20A).
- Possible voltage sag on the input side.
- In some cases, protective shutdowns if the input drops below a safe threshold.
For best results, we want:
- A healthy, fully charged 12V system providing input.
- Good wiring and minimal voltage drop.
- Awareness that alternators have their own limits; we do not want to burn out an alternator by constantly pulling near its maximum.
How This Converter Compares to Alternatives
We have multiple ways to charge 24V LiFePO4 batteries from a 12V system. This DC-DC converter is one path among several.
Compared to AC Chargers with an Inverter
Using an inverter and a standard AC 24V LiFePO4 charger is a more complex chain:
- 12V DC → Inverter → 120V/230V AC → AC Charger → 24V battery.
This approach:
- Involves more energy losses (inverter + charger inefficiency).
- Requires us to manage and mount more hardware.
- Can be noisier and more failure-prone due to more components.
By contrast, our 12V to 29.2V DC-DC converter:
- Provides a direct DC solution with fewer conversion stages.
- Is usually smaller and more efficient overall.
Compared to Simple Boost Converters Without Battery Focus
We could use a generic 12V-to-30V boost converter, but:
- It may not be calibrated to 29.2V, which is the precise LiFePO4 charge limit.
- It might not have the same level of current limiting or charging focus.
Battery charging is not just about hitting a higher voltage; it is about doing so in a controlled, predictable way. The product we are reviewing aims to deliver a safer, more battery-appropriate solution than a bare, adjustable boost module.
Who This Product Is Best Suited For
We can sum up the kind of user who gets the most benefit out of this 29.2V 20A DC-DC converter.
Ideal Users and Scenarios
This converter is a strong fit for us if:
- We run 12V vehicles, RVs, vans, or boats and we want a 24V LiFePO4 house bank.
- We have a 12V off-grid or backup system and want to add a 24V LiFePO4 bank without rebuilding everything at 24V.
- We value direct DC efficiency and prefer to avoid the complexity of inverters and AC chargers.
- We are comfortable working with high-current DC wiring, fusing, and basic system design.
Users Who Might Prefer a Different Solution
This device might not be the best choice if:
- We want a full-featured, programmable charger with detailed multi-stage profiles, temperature compensation, and advanced monitoring for multiple chemistries.
- We do not want to work with high current wiring or arrange heat management.
- Our main system is already 24V, in which case a direct 24V charger from AC or solar would be simpler.
Practical Tips for Getting the Most from the Charger
We can extend the life of both the charger and our battery by using some practical strategies.
Match Charger Output to Battery Capacity
We should aim for a charging rate (C-rate) that our battery manufacturer approves. As a loose guide:
- For a 50Ah 24V LiFePO4, 20A is a 0.4C charge rate. Many LiFePO4 batteries handle 0.5C or more, but we should confirm.
- For a 100Ah 24V LiFePO4, 20A is a 0.2C charge rate, which is very gentle.
- For very small packs (under 40Ah), 20A might be too aggressive and we may want to limit current in some way or choose a lower-current model (10A option).
Even though the listing mentions 10A, 20A, 30A, and 40A variants, the one we are reviewing here is the 29.2V 20A version. Choosing the right current rating at purchase time is part of a safe and efficient setup.
Monitor Temperatures and System Behavior Initially
For the first few charging sessions, it is wise to:
- Check for warm connectors or wiring.
- Observe the converter’s case temperature under load.
- Use a multimeter to verify output voltage around 29.2V.
If anything seems excessively hot or unstable, we should correct wiring issues, upgrade cable sizes, improve ventilation, or re-evaluate load and source capacity.
Our Overall Impression of the 12V to 29.2V 20A LiFePO4 Charger
Taking everything together, we can form a clear, balanced view of this product’s value and role in our system.
We see this converter as a practical, purpose-built solution for charging 24V LiFePO4 batteries from a 12V source. Its standout qualities are:
- A precise 29.2V charging voltage matched to 8S LiFePO4.
- A solid 20A current capability, making it effective for a range of battery sizes.
- The convenience and efficiency of a direct DC-DC conversion path, well suited to vehicles, boats, and off-grid setups.
The main points of caution revolve around:
- High input current demands, which require robust wiring and power sources.
- The need for a proper LiFePO4 BMS and protective fusing.
- Some lack of detailed documentation in the sparse product text, meaning we need to rely on labeling, manuals, or seller input for exact specifications.
If we already understand DC systems and are comfortable handling 50–60A on the 12V side, this charger can be a very useful part of a dual-voltage or hybrid system. It gives us a straightforward way to keep 24V LiFePO4 batteries properly charged using a 12V base, without unnecessary conversions through AC.
For those of us trying to build or upgrade an RV, van, marine, or off-grid power system where 12V and 24V need to coexist, the “12v to 29.2v 10A 20A 30A 40A lifepo4 battery charger lithium 24v Voltage Supply Module DC DC Power Converter (29.2V 20A charger)” offers a focused, efficient tool: a strong link between our 12V world and our 24V LiFePO4 storage.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
