Looking for a reliable way to charge lithium batteries from your vehicle’s power system?
When we first consider upgrading an RV, boat, or car to lithium or LiFePO4 batteries, one of the toughest pieces of the puzzle is charging them correctly. That’s exactly where the 9V-32V 12v/24v to 14.5v 10A 10amp battery charger DC DC Power Converter for Lithium ion liFePO4 Batteries for RVs Boat Car (9V-32V-14.5V 10A) comes into play. It promises to convert a wide range of DC voltages into a stable 14.5V output tailored to lithium charging needs.
In this review, we’ll walk through how this converter performs, where it shines, what to consider before buying, and whether it truly suits different setups like RVs, boats, and vehicles.
What This DC-DC Converter Actually Does
Many of us are familiar with simple 12V systems, but modern setups often include mixed voltages, alternators, solar inputs, and various battery chemistries. This product’s job is to act as a DC-to-DC charger/converter, turning a variable input (9–32V) into a steady 14.5V output at up to 10A, which is appropriate for many lithium and LiFePO4 battery packs.
In other words, instead of relying on the alternator or another unregulated DC source to charge lithium batteries, we can route power through this converter, so our batteries receive a more consistent and battery-friendly charging voltage.
Key Specifications at a Glance
Having a quick overview of the key numbers helps us see if this charger fits our system. Below is a simple breakdown:
| Feature | Specification / Description |
|---|---|
| Product Name | 9V-32V 12v/24v to 14.5v 10A DC DC Power Converter |
| Input Voltage Range | 9V – 32V DC |
| Output Voltage | 14.5V DC (fixed) |
| Max Output Current | 10A (10 amp) |
| Max Output Power | Approximately 145W |
| Supported Battery Types | Lithium ion, LiFePO4 (and other 12V lithium variants, if compatible) |
| Primary Use Cases | RVs, boats, cars, trucks, off-grid systems |
| Function | DC-DC step-up / stabilization for battery charging |
| Polarity | DC input/output (check markings on the unit) |
| Form Factor | Compact converter module (varies slightly by batch/brand) |
We like having this table in mind before wiring anything, since it shows clearly that this is not a high-amp charger, but rather a modest, efficient converter suited for lighter or mid-size lithium battery charging.

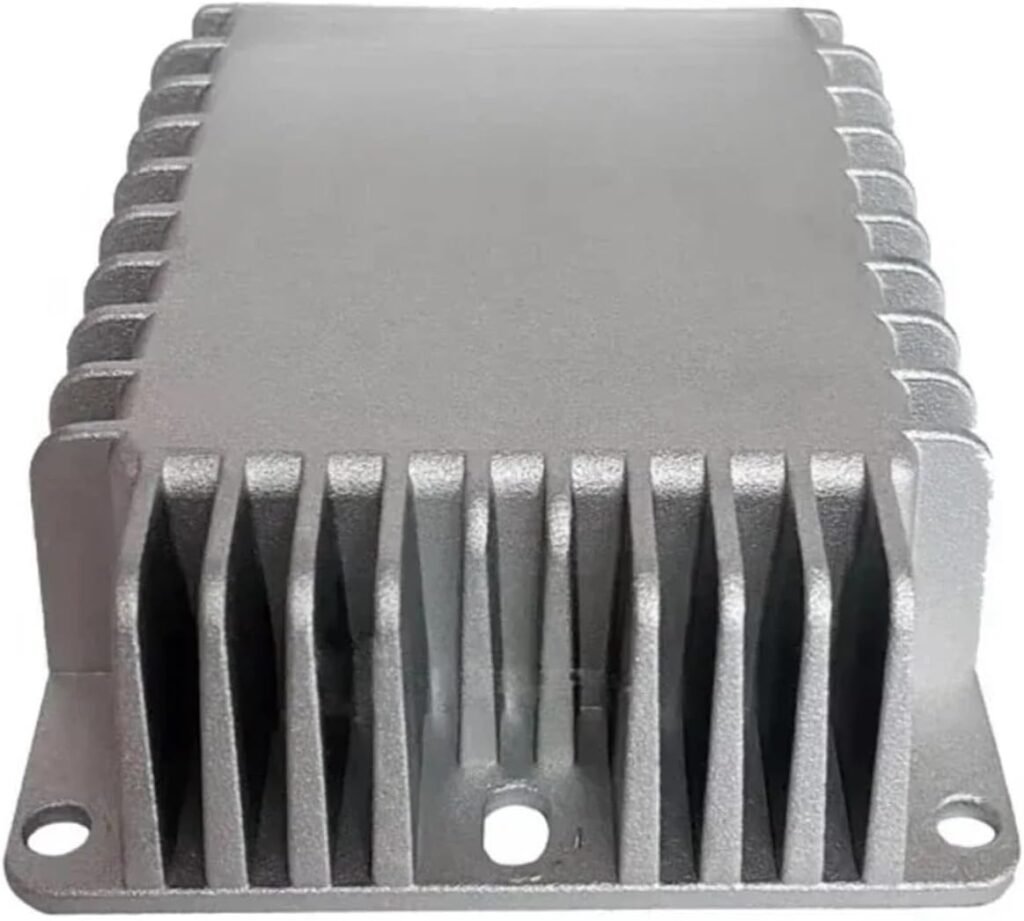

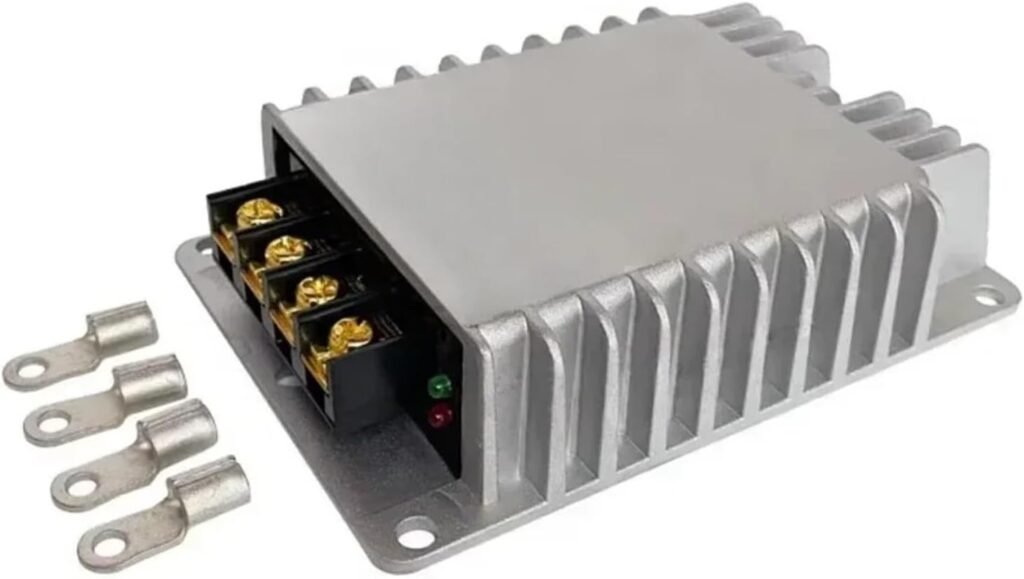

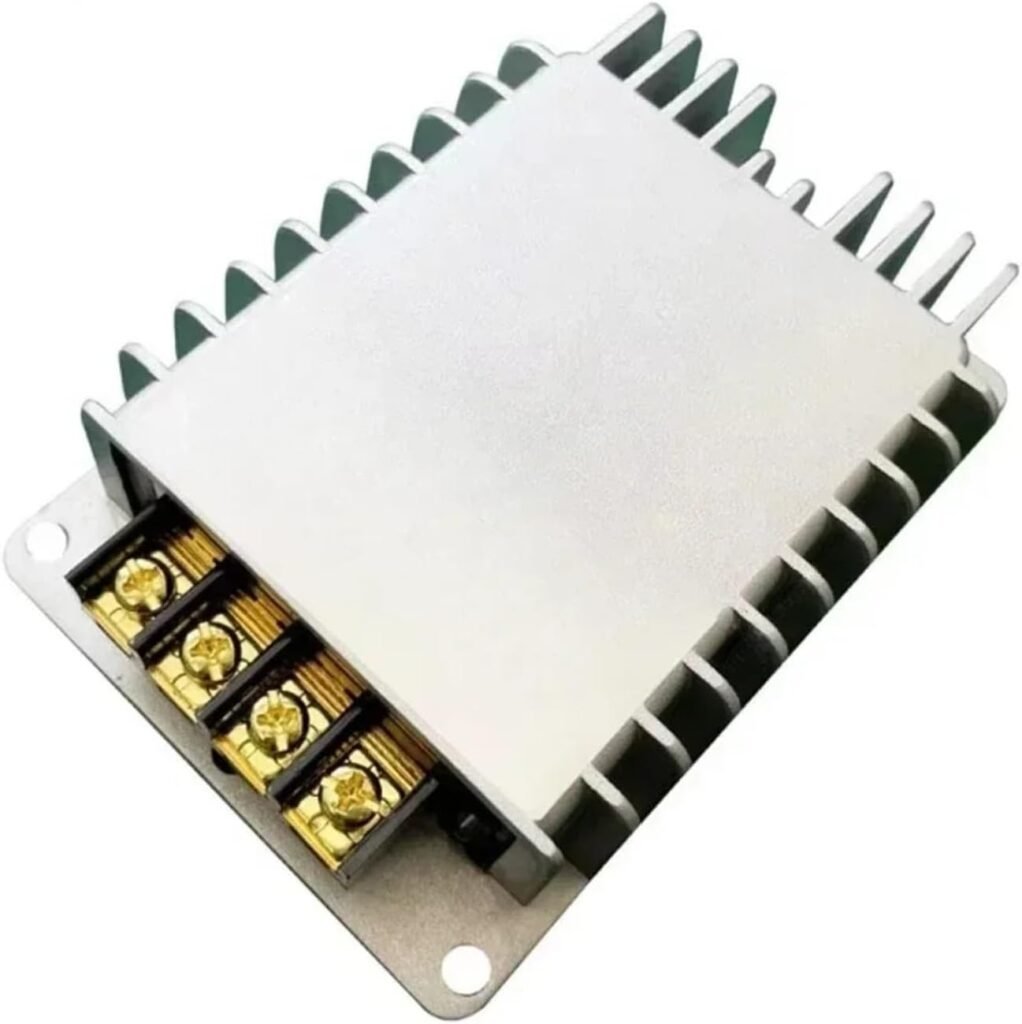

Build Quality and Design
Construction and Materials
Even though this type of converter doesn’t need to look fancy, we still care that it’s robust. The unit generally comes in a solid casing (often aluminum or another durable material) with integrated fins or a rigid shell that can help with heat dissipation.
We can expect:
- A compact, rectangular housing
- Clearly labeled input and output wires or terminals
- A sealed or semi-sealed design to provide some protection against dust and minor splashes
The build usually leans toward utilitarian rather than stylish, but that’s exactly what we want from a component that might live in an RV battery compartment or under a car’s hood.

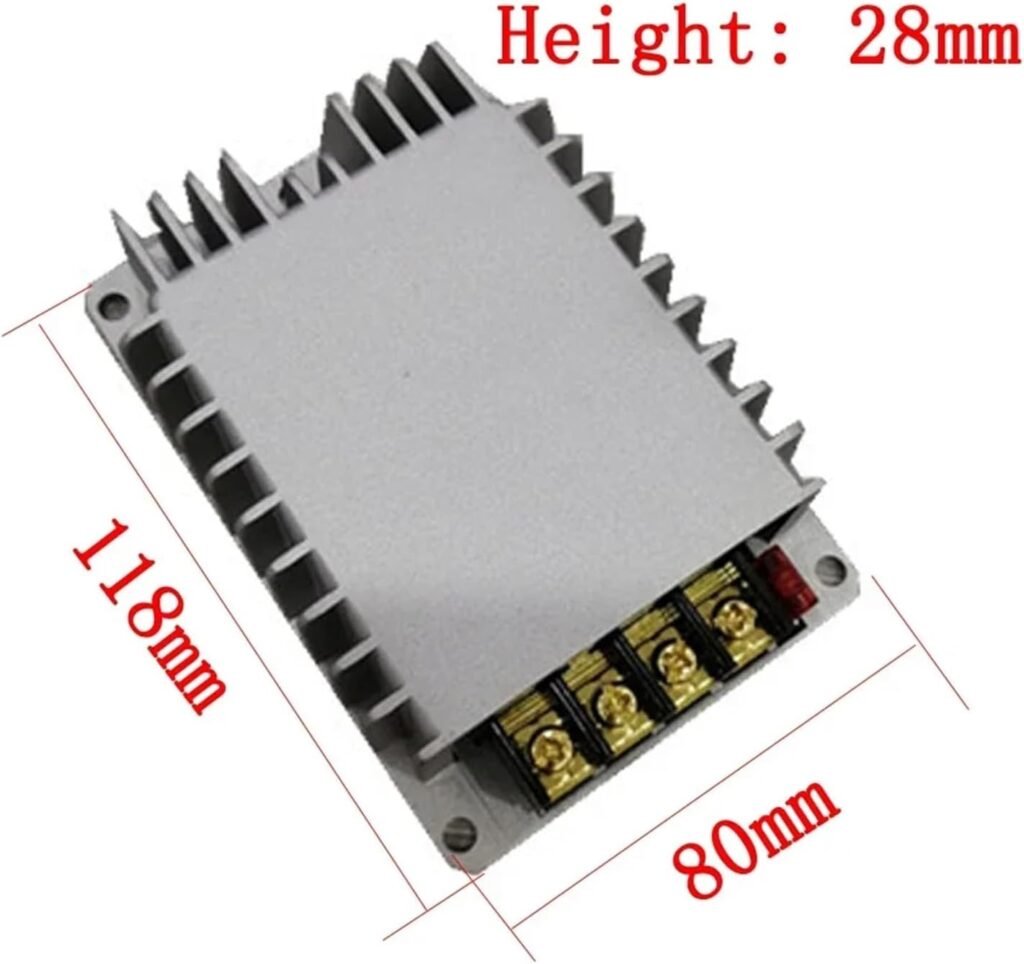

Size and Mounting
Because this converter is relatively low power (10A), the housing is compact enough to tuck into tight spaces. Most of us will mount it using screws or brackets, and we should have enough flexibility to place it near the batteries or near our input source.
We recommend planning the mounting spot with:
- Sufficient airflow around the unit
- Easy access to wiring for future maintenance
- Protection from direct water exposure or engine heat
Input Voltage Range (9–32V) and Why It Matters
Compatibility with 12V and 24V Systems
The standout specification is the 9–32V input range. This means the converter can comfortably handle:
- 12V vehicle/RV/boat systems (which typically fluctuate between ~11V and ~14.4V)
- 24V systems (commonly 22V to 29V under operation)
This flexibility makes the unit especially attractive for those of us who either:
- Travel between vehicles with different systems
- Have upgraded to a 24V house bank but still need to charge a 12V lithium battery
- Use a 24V alternator feeding a 12V lithium bank via this converter
We appreciate not needing a separate product for each system type.
Handling Voltage Fluctuations
Vehicle and boat systems rarely deliver a perfectly stable voltage. Alternators ramp up, solar controllers vary their output, and loads cause drops. Because the input range starts at 9V, the converter continues to function even if our source voltage dips a bit due to load or partial battery discharge.
The internal electronics step and regulate this varying input and present a consistent 14.5V output, which is far better for lithium battery health than directly connecting them to an alternator or unregulated source.
Fixed 14.5V Output: Benefits and Considerations
Why 14.5V Is Appropriate for Many Lithium Batteries
This converter is specifically marketed for lithium ion and LiFePO4 batteries, and 14.5V is a common charge voltage for many 12V lithium packs. It generally sits within the typical lithium charging range (commonly 14.2–14.6V for LiFePO4, depending on the manufacturer).
By providing a fixed 14.5V, the converter:
- Ensures a reasonably full charge without gross overvoltage
- Helps the battery’s internal BMS (Battery Management System) top-balance cells
- Avoids undercharging that might occur at lower voltages
We do emphasize that each battery manufacturer might specify a slightly different ideal charge voltage. Most quality LiFePO4 packs accept 14.5V as safe and effective, but it’s always wise for us to confirm.
When a Fixed Output Might Be a Limitation
The benefit of a fixed 14.5V output is simplicity. The trade-off is less flexibility. If our particular lithium pack:
- Specifies a maximum charge of 14.2V, or
- Has a recommended charge voltage of 14.4V or lower
then we might be operating slightly above the recommended setting. The battery’s BMS should protect it by disconnecting if necessary, but repeated charging at a higher-than-ideal voltage could, over time, affect longevity.
Before committing, we should:
- Check the datasheet or label of our lithium battery
- Confirm that 14.5V is within its permissible charge range
If it is, this converter slots right into a simple and reliable setup.
10A / 145W Output: Is It Enough for Our Needs?
Charging Speed Expectations
At 10A and 14.5V, we are looking at roughly 145W of available charging power. That’s a moderate current level and works very well for:
- Small to mid-size lithium batteries (20Ah–100Ah)
- Trickle or maintenance charging of larger batteries
- Supplemental charging alongside solar or shore power chargers
Let’s consider a few rough examples with a theoretical 12V LiFePO4 battery:
- 20Ah battery → at 10A, a near-empty battery could be mostly charged in about 2–3 hours (assuming ideal conditions).
- 50Ah battery → we might expect roughly 5–6 hours from low state-of-charge to near full.
- 100Ah battery → plan for 10+ hours of charging to go from low to full, again assuming near-ideal conditions.
These numbers are approximate and depend on battery health, temperature, and load. Still, they help set realistic expectations. We’re not dealing with a huge 40A or 60A DC-DC charger here; this is more modest but also easier on wiring and alternators.
Protecting Alternators and Wiring
One positive aspect of a 10A charger is that it doesn’t place excessive strain on alternators or wiring. Higher-amp DC-DC chargers can sometimes overtax smaller alternators, especially in light-duty vehicles or small boats.
With 10A:
- Our wiring size requirements are lighter (though still must be appropriately rated and fused)
- Heat generation in the cables is reduced
- The alternator experiences a more manageable continuous load
For many of us, that’s a strong advantage, especially in older vehicles or compact RVs where electrical systems are not oversized.
Compatibility With Lithium Ion and LiFePO4 Batteries
How It Plays With Different Lithium Chemistries
The product is promoted for Lithium ion and LiFePO4 batteries, which both fall under the broad lithium family but have different chemistry characteristics.
Most 12V LiFePO4 packs:
- Have a “full” voltage near 14.4–14.6V
- Sit flat around 13.2–13.4V during most of their discharge
- Include a built-in BMS for protection
The 14.5V output of this converter aligns nicely with those specs. For more generic “lithium ion” packs (like some custom or specialty batteries), we should double-check that 14.5V is correct, but in many cases, it falls in the common range as well.
BMS Cooperation and Protection
The BMS plays the key role in protecting lithium batteries. It monitors:
- Cell overvoltage and undervoltage
- Cell balancing
- Overcurrent and short circuits
- Temperature
Because this converter outputs a relatively conservative voltage for lithium (14.5V rather than something dramatically higher), it typically works well with the BMS. If the battery is already full, the BMS may reduce current flow or cut off charging. The converter continues to offer 14.5V at up to 10A, but the battery only takes what it needs or what the BMS allows.
Real-World Use Cases: RVs, Boats, and Cars
In an RV
In an RV setting, this converter becomes very useful when we want to charge a lithium house battery bank from the vehicle alternator. Instead of tying the alternator directly to lithium batteries (which can stress both the alternator and the batteries), we route that alternator output through the converter.
Common RV scenarios include:
- A 12V vehicle alternator feeding a 12V LiFePO4 house bank
- A 24V alternator feeding a 12V LiFePO4 battery via this 9–32V converter
- Using the converter as a dedicated lithium charger off a DC distribution panel
We simply connect the converter input to the alternator side (with appropriate fuses and isolation devices) and the output to the lithium house battery. This can provide gentle, steady charging while driving, without overcomplicating the system.
On a Boat
Marine environments pose unique challenges: vibration, moisture, and sometimes limited space. Many boats have either 12V or 24V systems, sometimes both. We might be running a 24V engine bank and a 12V lithium house bank or vice versa.
Here, the converter’s role can be:
- Allowing one battery system to charge another safely
- Acting as a stable lithium charger from a fluctuating generator or alternator output
- Preventing unregulated voltages from stressing lithium batteries
We just need to place the converter in a dry, reasonably ventilated compartment and make sure our connections are corrosion-resistant.
In Cars and Light Trucks
For cars and light trucks, upgrading to a small lithium auxiliary battery (for camping gear, inverters, or fridge) is increasingly common. The standard alternator and lead-acid starter battery don’t naturally play well with lithium, especially when we want an auxiliary pack to live separately.
This converter can be wired so that:
- The car’s 12V system feeds the converter input
- The converter output charges a standalone 12V lithium auxiliary battery
Whenever the engine runs, we get a steady 14.5V charging voltage going to the lithium battery. We just might want to incorporate an ignition-controlled relay or switch so the converter isn’t drawing from the starter battery when the engine is off.
Installation: What We Should Keep in Mind
Basic Wiring Layout
While exact wiring will vary by setup, the conceptual layout is usually:
-
Input Side (9–32V DC):
- Connected to the power source (alternator side, starter battery, 24V system, etc.)
- Protected by a fuse or circuit breaker
-
Output Side (14.5V DC, 10A):
- Connected to the lithium battery positive terminal (or the appropriate lithium bus bar)
- Output negative tied to system ground/negative common
In many installations, we’ll also:
- Use appropriately sized wire (often 12–14 AWG for 10A over short runs, but always verify based on length and standards)
- Include fuses on both the input and output sides, close to their respective power sources
Safety and Best Practices
We want our lithium setup not just to work, but to be safe and compliant with best practices:
- Polarity Check: Always confirm positive and negative leads before connecting. A DC converter can be damaged by reverse polarity.
- Ventilation: Even efficient converters generate heat. Provide at least a few centimeters of clearance around the unit.
- Environment: Protect from direct water spray. If mounting in an engine bay, consider heat levels and vibration.
- Isolation: In vehicles, consider an ignition-controlled relay or DC disconnect, so the converter doesn’t pull from the starter battery when the engine is off.
It’s wise for us to sketch out a simple wiring diagram before starting, especially if we’re integrating this unit into a larger electrical system with solar and inverters.
Performance and Efficiency
Stable Voltage Output
In operation, one of the main criteria for a charger like this is how stable it holds the output voltage under varying input conditions. We want the converter to keep 14.5V:
- When the input fluctuates (for example, 11V to 14.4V from a 12V alternator)
- When the load changes (battery going from empty to nearly full)
Stability is crucial for both the battery’s health and for any equipment running downstream. The fixed-output design helps with this, as the converter doesn’t attempt complex multi-stage charging but rather provides a consistent target voltage.
Efficiency and Heat
Most DC-DC converters in this power range are reasonably efficient, often in the 85–95% range depending on conditions. That means:
- Some portion of power is lost as heat
- The casing might get warm or even hot to the touch under heavy load
- Good ventilation remains important
In practical terms, our alternator or source doesn’t need to supply a huge amount more than 145W to feed the converter, but we should still budget for that small overhead.
Pros and Cons of the 9V–32V to 14.5V 10A Converter
What We Like
There are several aspects of this unit that feel well-targeted for everyday RV, boat, and vehicle users:
- Wide Input Range (9–32V): Works with both 12V and 24V systems without needing separate models.
- Lithium-Friendly Output (14.5V): Matches many LiFePO4 charging recommendations.
- Moderate Current (10A): Gentle on alternators, wiring, and battery longevity.
- Compact and Simple: Minimal configuration, just wire it correctly and it works.
- Versatile Use Cases: Fits into RVs, boats, cars, off-grid systems, and mixed setups.
The overall approach is “set and forget” once wired correctly, which many of us appreciate.
Where It Falls Short
No product is perfect, and there are a few limitations we should acknowledge:
- Fixed Voltage: We can’t tweak or program the output for specific battery profiles.
- Limited Current (10A): Larger battery banks (e.g., 200Ah or more) will charge slowly.
- Not a Full Multi-Stage Charger: Some more advanced DC-DC chargers offer bulk/absorption/float stages specifically tuned for various chemistries.
If we have huge lithium banks or want very fine-tuned charge profiles for maximum longevity, we may eventually want a more sophisticated, higher-amp charger. For small to mid-size systems, though, this converter does a good job filling that “reliable and simple” niche.
Comparing This Converter to Other Charging Options
Versus Direct Alternator Charging
Connecting lithium batteries straight to an alternator is common, but it comes with downsides:
- Alternators may run hot and wear faster
- Voltage might be too low to fully charge lithium or too unregulated
- Lithium batteries can pull very high currents, stressing everything upstream
With this converter in between, we cap current at 10A and regulate voltage to 14.5V. That means:
- Less alternator stress
- More predictable voltage at the battery
- Safer, more controlled charging
Versus Higher-Amp DC-DC Chargers
Some DC-DC chargers offer 20A, 30A, or higher output. They charge faster but:
- Require thicker wiring
- Put more persistent load on alternators
- Often cost more
If our priority is rapid charging of a large lithium bank, those might be worth the extra investment. If our main goal is affordable, steady charging of a small-to-medium pack, this 10A converter usually hits a sweet spot.
Versus AC Chargers or Solar Controllers
AC chargers and solar charge controllers come into play when we have shore power or solar panels. Those devices:
- Are great primary chargers in a campground or marina
- Don’t help at all when we’re driving or motoring without solar
The DC-DC converter is a complementary device, not a replacement. Many of us will use:
- Solar charger → for sun
- AC charger → for shore/generator power
- This DC-DC converter → for alternator or other DC source
Together, all three create a robust multi-input charging system for our lithium batteries.
Longevity, Reliability, and Maintenance
What We Can Expect Over Time
A DC-DC converter is a mostly solid-state device. There aren’t moving parts like fans in some basic models of this type (depending on the specific build), so wear and tear usually comes from:
- Heat cycling
- Vibration
- Moisture or corrosion on terminals
With decent mounting and protection, we can expect several years of reliable service. Regular inspection of the wiring and terminals goes a long way to preventing intermittent faults or overheating.
Simple Maintenance Routine
We can keep our setup in good shape by:
- Inspecting cables and connections every few months for looseness or discoloration
- Checking for dust buildup if the unit is in a compartment that’s not fully sealed
- Confirming that the unit still maintains around 14.5V at the output under load
Because the device itself requires little to no interaction once installed, most of our attention will be on the health of the wiring, fuses, and the batteries themselves.
Who This Converter Is Best For
Ideal Users and Setups
We see this unit as an excellent fit for those of us who:
- Run small to mid-size 12V lithium or LiFePO4 batteries, from about 20Ah to around 100Ah+
- Want a simple, low-stress way to charge lithium batteries from 12V or 24V DC sources
- Prefer not to overhaul the entire electrical system just to support lithium charging
- Are okay with 10A charging rather than ultra-fast top-ups
Examples of ideal use cases:
- A campervan with a 60Ah LiFePO4 house battery running a fridge and lights
- A small sailboat with a lithium house bank being charged by a 24V starting system
- A car-based overland rig with a 50Ah lithium auxiliary battery for camping gear
Who Might Need Something Else
On the other hand, this converter may not be the perfect choice if:
- We have a very large lithium bank (e.g., multiple 100Ah+ batteries) and need fast charging from the alternator
- Our battery manufacturer recommends a significantly different charge voltage (well below 14.5V)
- We require programmable or multi-stage DC-DC charging with advanced profiles
In those cases, a higher-end, programmable DC-DC charger or multiple converters might be a better match.
Practical Tips for Getting the Most From This Converter
Verify Battery Specs First
Before installing, it’s worth taking a few minutes to:
- Check our lithium or LiFePO4 battery manufacturer’s recommended charge voltage
- Confirm that 14.5V is within the allowable range
- Note any temperature-related charging limits
If everything lines up, we can proceed confident that this converter is compatible.
Use Proper Fusing and Wire Gauge
Even though 10A doesn’t sound high, safe wiring still matters:
- Choose a fuse or breaker that protects the wire and the converter (often slightly above 10A, e.g., 15A, depending on guidelines and wire size).
- Use wire sized according to amp rating and run length, following local standards or marine/vehicle wiring charts.
- Keep cable runs as short and direct as possible to minimize voltage drop.
Being meticulous about this helps us avoid nuisance trips and overheating.
Consider an Ignition or Manual Switch
To prevent unintentional battery drain, we might:
- Wire the converter’s input through an ignition-controlled relay so it only runs when the engine is on, or
- Add a manual switch or breaker that we can shut off when parked for extended periods
This way, our starter battery remains protected, and we don’t wonder why it’s low after a week of staying in one spot.
Our Overall Impression
After weighing specifications, typical use cases, and practical considerations, we see the 9V-32V 12v/24v to 14.5v 10A 10amp battery charger DC DC Power Converter for Lithium ion liFePO4 Batteries for RVs Boat Car (9V-32V-14.5V 10A) as a straightforward, purpose-built tool for anyone wanting to add lithium charging to a 12V or 24V DC system without a lot of complexity.
We appreciate:
- The generous input range that comfortably spans 9V to 32V
- The fixed 14.5V output, which suits many LiFePO4 batteries
- The 10A rating that balances charging capability with mechanical and electrical safety
We do recognize that it won’t replace high-end multi-stage chargers or support massive battery banks on its own, but for moderate needs, especially in RVs, boats, and cars with modest lithium packs, it strikes a good balance between performance, simplicity, and cost.
If our goal is to reliably charge a lithium or LiFePO4 battery from a DC source—without heavily modifying our existing system or adding unnecessary complexity—this converter earns a solid place on our shortlist.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
