DALY Smart BMS 4/8/16S 100A-500A review

Have we ever wished our LiFePO4 battery packs felt as smart and safe as the rest of our tech gear?

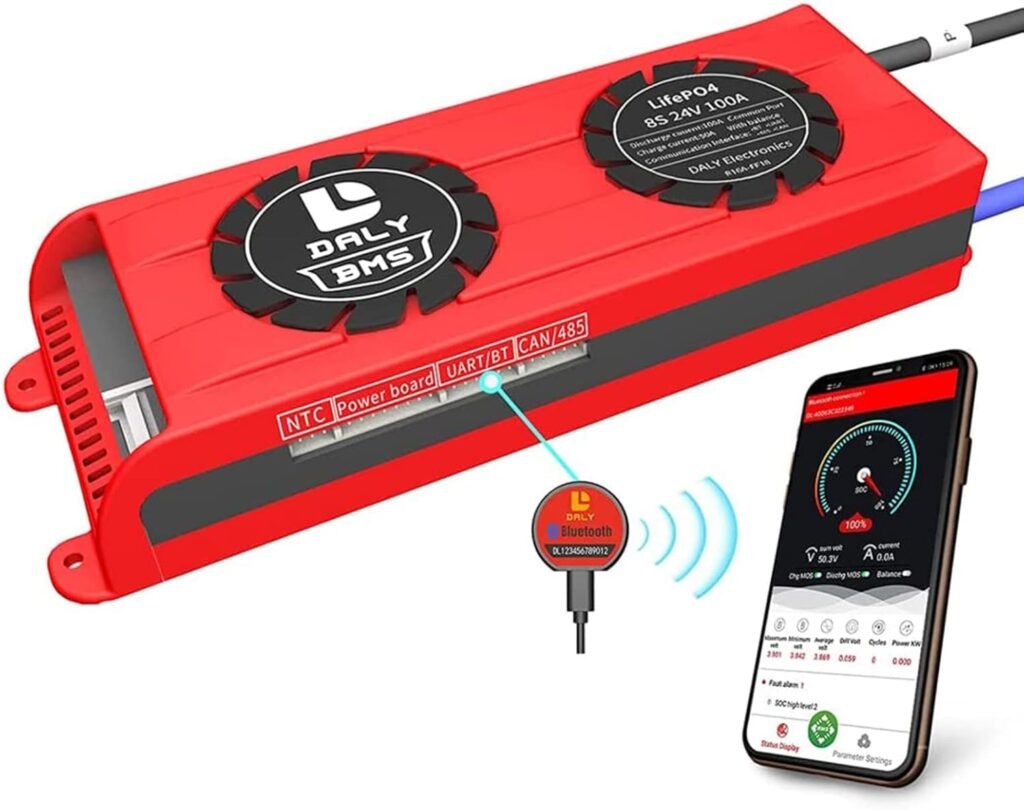

What Is the DALY Smart BMS 4/8/16S 100A–500A?

When we talk about building or upgrading a serious LiFePO4 battery system, a robust Battery Management System (BMS) is at the center of everything. The DALY Smart BMS 4/8/16S 100A–500A is designed exactly for that role. It works as the “brain and bodyguard” of our battery pack, focusing on safety, performance, and monitoring.

This specific model is compatible with 3.2V LiFePO4 cells and supports configurations of 4S, 8S, or 16S, with current ratings from 100A up to 500A. It is targeted at high-demand applications such as electric vehicles, e-bikes, scooters, skateboards, inverters, and DIY solar power banks.

Key Features at a Glance

Before we go deeper into experiences and use cases, it helps to have a clear, structured view of what this product offers. The DALY Smart BMS is not just a basic protection board; it is a smart, communication-capable controller for serious battery systems.

Here is a simple overview:

Feature Category	Details
Battery Chemistry	LiFePO4 (Lithium Iron Phosphate), 3.2V rated cells
Supported Series (S)	4S / 8S / 16S cell packs
Current Rating Options	100A, 150A, 200A, 250A, up to 500A (specific model dependent)
Nominal System Voltage	Up to 16S LiFePO4 (around 48V nominal for 16S)
Communication Ports	UART / Bluetooth / NTC / RS485 / CAN
Included Bluetooth Module	Yes, with DALY Bluetooth app support
Included Accessories	BMS board, Bluetooth component, matching balance wires, NTC temperature sensor, manual
Protections	Overload, overcurrent, short-circuit, cell overcharge, cell over-discharge, balancing
Cooling	Heat sink with fan (on relevant versions)
Typical Uses	EVs, e-bikes, scooters, skateboards, solar, inverters, DIY battery projects
Energy Class	A (high-efficiency classification)

This combination of high current handling, LiFePO4-specific design, and smart Bluetooth monitoring makes it a strong candidate for anyone building a reliable, long-lasting battery pack.

Design and Build Quality

The DALY Smart BMS is clearly designed with serious DIY and professional builds in mind. We are not looking at a flimsy board with minimal components; instead, we get a sturdy PCB, sizable terminals, and an integrated heat sink design that often includes a fan on higher-current models like the 500A version.

The physical layout places the high-current paths and MOSFETs in a compact, well-structured way. Components look organized, and the heat sink is positioned to draw heat efficiently from areas where current is concentrated. This is especially important at higher current levels, where thermal management is critical for safety and longevity.

We also appreciate that DALY has paid attention to connectors and wiring. The matching balance wire harness makes cell connection more straightforward and orderly, reducing the chance of wiring mistakes. For those of us who have built packs before, we know that miswiring balance leads is a quick path to damage, so this small design detail matters.

Supported Battery Types and Configurations

This BMS is purpose-built for LiFePO4 cells, each with a rated voltage of 3.2V. That chemistry choice is crucial because LiFePO4 has different voltage ranges and characteristics compared to NMC or Li-ion laptop-style cells. Using a BMS designed for the right chemistry is one of the key steps to a safe build.

We can configure the pack as:

• 4S (around 12.8V nominal)
• 8S (around 25.6V nominal)
• 16S (around 51.2V nominal)

Because the board is tailored to LiFePO4, it aims to match the proper cutoff and charge voltages for that chemistry. That means better longevity and more stable performance over thousands of cycles, provided we pair it with a charger that is appropriate for LiFePO4 voltage profiles.

The BMS is suitable even for automotive-grade single cells, which tend to be larger and higher quality. Whether we use 100Ah cells or larger capacities, the current rating we choose for the BMS should match both our intended loads and the cells’ safe continuous discharge rating.

Protection Features and Why They Matter

A BMS is only as good as the protections it offers. The DALY Smart BMS includes a comprehensive set of safety functions that work in the background while we charge and discharge our pack:

Overload and Overcurrent Protection

For high-power setups—like inverters, e-bikes, or electric vehicles—overcurrent situations happen easily if something goes wrong. The DALY BMS monitors current flow and cuts off the pack if discharge current exceeds specified limits for defined durations.

We gain peace of mind knowing that if a motor controller locks up or a device suddenly pulls too much current, the system will act quickly rather than letting cables or cells overheat.

Short-Circuit Protection

Short circuits are among the most dangerous faults in DC systems. Given the high energy density of LiFePO4 packs, a direct short can cause extreme currents. This BMS includes short-circuit protection, which disconnects the pack in a fraction of a second when a short is detected.

This feature is especially critical if we are installing the battery in moving applications like electric bikes, scooters, or skateboards, where cables can be stressed or damaged over time.

Overcharge and Over-Discharge Protection

Each LiFePO4 cell has safe voltage limits. Charging too high or discharging too low both reduce lifespan and can cause damage. The DALY BMS monitors per-cell voltages through balance leads and enforces:

• Maximum cell voltage cut-off while charging
• Minimum cell voltage cut-off while discharging

With this protection, even if our charger malfunctions or we forget to disconnect a load, the BMS will act to preserve battery health.

Temperature Monitoring via NTC Sensor

The included NTC temperature sensor allows the BMS to react to dangerous temperature conditions. Heat is a main enemy of batteries and power electronics, so having temperature-aware protection adds another layer of safety.

We can place the NTC near the cells or on the pack where temperatures are likely to rise fastest. The BMS can then limit use or shut down if temperatures go beyond safe thresholds.

Balancing and Battery Health

One of the most important jobs of any decent BMS is balancing. Over time, small variations in cell capacity and resistance cause cells to drift apart in voltage, especially at the top of charge. If we let that go unchecked, some cells overcharge while others undercharge, which shortens pack life and reduces usable capacity.

How This BMS Handles Balancing

The DALY Smart BMS includes a balancing function designed to:

• Help ensure each cell reaches full charge at about the same time
• Prevent individual cells from staying at higher voltage for too long
• Reduce long-term imbalance that often requires manual rebalancing or rework

The product description suggests that it provides “proper balance current” with “sufficient balance thermal power,” indicating that balancing is strong enough not to be negligible yet carefully designed not to harm battery performance through excessive heat.

Why Balancing Helps Us Long-Term

LiFePO4 cells are known for their long cycle life, often around 2,000–5,000 cycles under good conditions. A functional balancing system supports that longevity by:

• Keeping the pack’s usable capacity closer to rated capacity
• Reducing the need for periodic manual balancing routines
• Helping us avoid prematurely hitting high or low voltage cutoffs due to a few weak cells

In practical use, we notice this through more consistent run-times between charges and fewer “mystery” shutdowns when the pack still seems partially full.

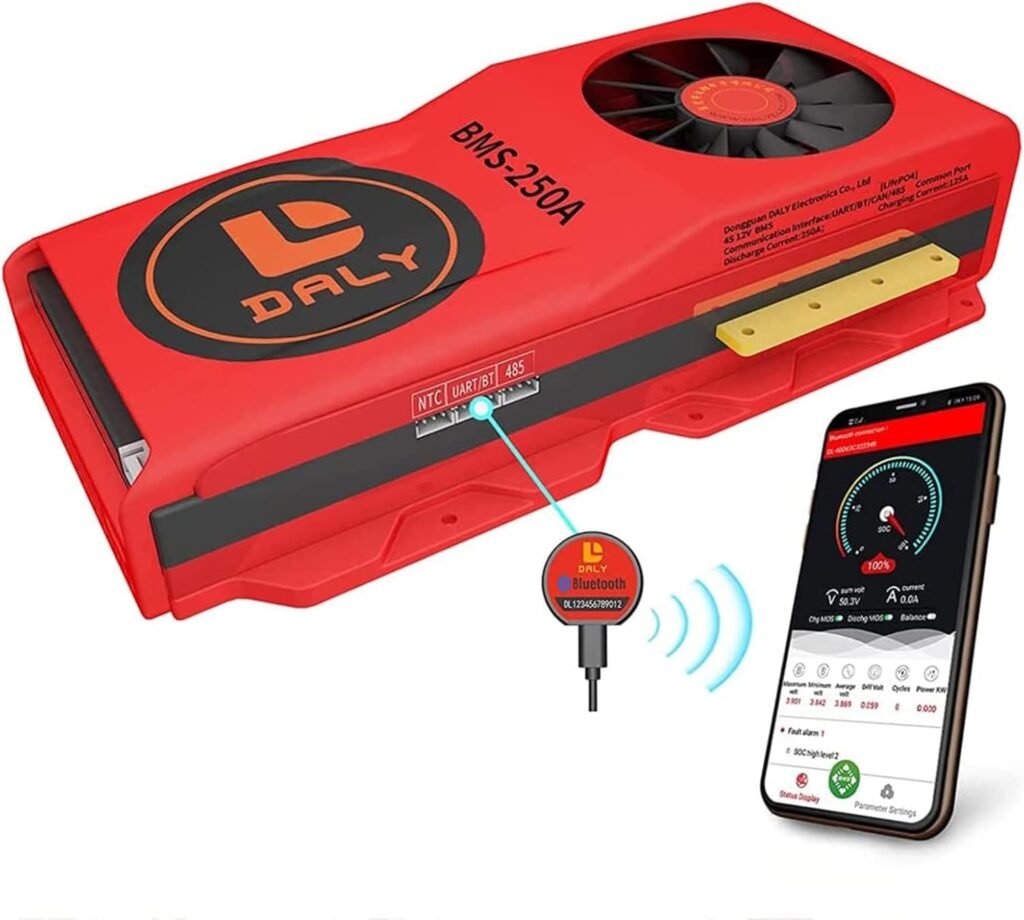

Cooling and the Built-In Fan

As current goes up, heat goes up quickly. High-current BMS units, especially those rated up to 500A, must handle serious thermal loads. DALY addresses this with a heat sink and fan on the relevant models.

The fan helps:

• Keep MOSFETs and other high-current components at reasonable temperatures
• Maintain performance during long, continuous high loads
• Support higher peak power without triggering thermal cut-off too quickly

We still want to design our enclosure with airflow in mind. A fan on the BMS helps a lot, but enclosing everything in a sealed, unventilated metal box with no chance for heat to escape would still be a bad idea. We get the best results when we pair the integrated cooling with a thoughtful enclosure design.

Smart Functions and Communication

One of the standout aspects of this DALY BMS model is its smart capability. Rather than being a blind “black box,” it offers multiple communication interfaces and a dedicated app.

Multiple Communication Ports

The BMS includes the following ports:

• UART
• Bluetooth
• NTC (for temperature sensor)
• RS485
• CAN

This range of options gives us flexibility. If we want to integrate the BMS into a more complex system—such as a custom inverter, a vehicle controller, or a home automation setup—RS485 and CAN can be extremely useful.

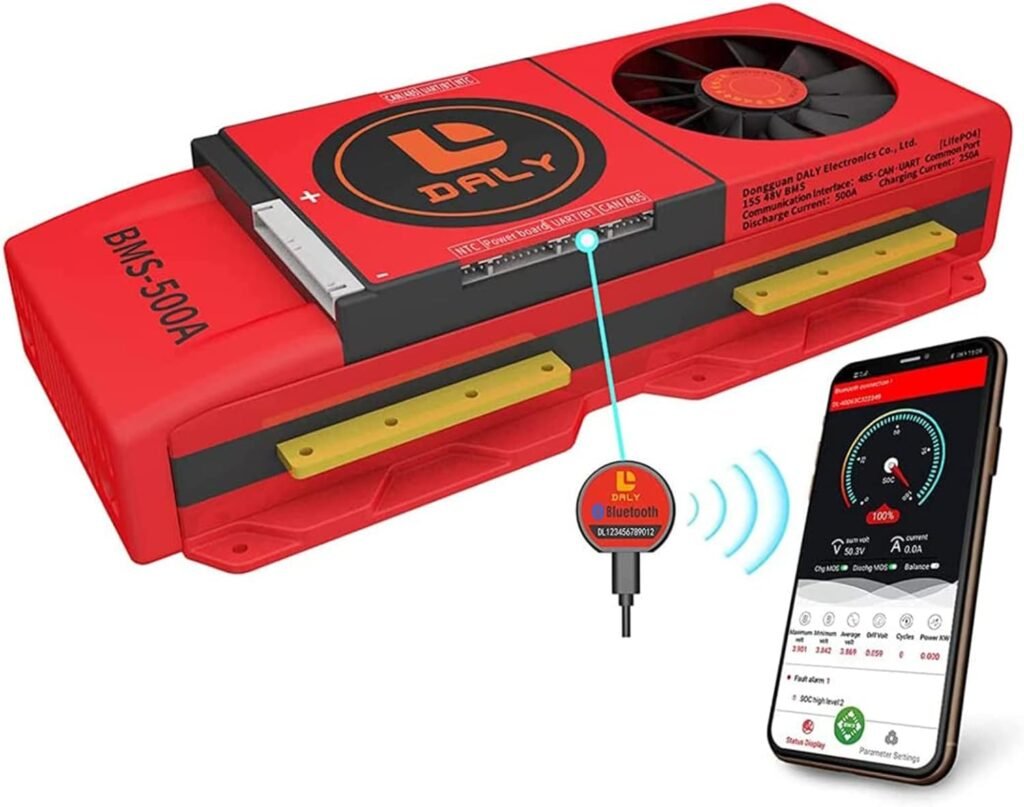

DALY Bluetooth Module and App

The included Bluetooth component is one of the main reasons we might choose this model over simpler boards. Using the DALY Bluetooth app, we can:

• Connect with one click (once paired)
• Read real-time battery data, such as pack voltage, individual cell voltages, current, temperature, and state of charge (depending on app and firmware)
• Adjust certain BMS parameters within safety constraints
• Monitor activity without opening our battery enclosure

The app also supports seven language options, which improves usability for users in different regions. Having that portability is handy; we can stand next to our solar system or vehicle and check the battery from our phone.

The inclusion of a BMS activation button within the app is also practical. It allows us to activate or wake up the BMS without having to perform physical tricks such as plugging and unplugging chargers or loads.

What We Get in the Box

Knowing exactly what comes with the product helps us plan our build. Here is what the “Smart Protection Board Packaging” includes:

• 1 × BMS protection board (with UART/BT/NTC/RS485/CAN ports)
• 1 × Bluetooth component (for wireless app connection)
• 1 × Matching balance wire harness
• 1 × NTC temperature sensor
• 1 × Instruction manual

It is important to note what is not included, since product photos may show additional accessories:

• No CAN box included
• No power display board included
• No separate screen or display included

These items, if needed, must be purchased separately. We should plan for this in our budget if we want a full dashboard-style display or more extensive system integration.

Installation Considerations

Installing a BMS like this is not as simple as plugging in a charger. We are working with high current, high energy battery systems, so care is mandatory. While the specific steps differ based on pack design, there are general points we should keep in mind.

Wiring the Main Power Connections

The high-current paths must use appropriately thick cables and secure terminations:

• Use cable gauges sized for the BMS’s continuous current rating (or higher)
• Crimp or solder lugs carefully and mount them tightly on the BMS terminals
• Keep cable runs as short as reasonably possible to reduce resistance and heating

We want all our main connections to be mechanically solid and electrically clean. Loose high-current connections lead to heat, voltage drops, and potential failure.

Connecting the Balance Leads

The balance wire harness must connect to each cell in the correct sequence from the negative end to the positive end of the series string. The manual usually explains the exact pin order. Common precautions include:

• Double-checking the order of the wires against the pack layout
• Confirming with a multimeter before plugging the harness into the BMS
• Ensuring no stray strands of wire can touch adjacent terminals

If we are not comfortable with handling balance wiring at all, it may be safer to work with a professional builder, because a mistake at this stage can damage the BMS or cells.

Placing the Temperature Sensor

The NTC temperature sensor should be placed where it can indicate real battery or BMS temperature, such as:

• Between cells, near the warmest part of the pack
• On or near the MOSFETs, if we are more concerned about board temperature

We should fix the sensor so that it cannot detach easily. Good thermal contact matters more than exact placement, as long as we cover the area most likely to heat up.

Securing the BMS and Ensuring Ventilation

We want to mount the BMS firmly inside our battery box or project enclosure. We should:

• Avoid mechanical stress on the PCB
• Prevent cables from pulling on connectors
• Provide air channels so the fan can actually move air in and out

Even with the cooling fan, the board benefits from thoughtful mounting and vibration isolation, especially in mobile or off-road applications.

Daily Use and Real-World Scenarios

Once installed, the DALY Smart BMS becomes part of the background—quietly managing conditions, protecting the system, and providing data when we want it. It is helpful to imagine how it behaves in several typical use cases.

Use in an Electric Bike or Scooter

With a 16S LiFePO4 pack (around 48V), we can power a mid-range to high-power e-bike or scooter. As we ride:

• The BMS manages discharge, preventing cells from dropping below minimum voltage
• Overcurrent protection kicks in if something goes wrong with the motor controller
• The Bluetooth app lets us track pack status as we ride or when we stop

Instead of guessing how much useful charge remains, we can check real readings. Over the long term, cell balancing supports consistent range and performance.

Use in a Solar or Off-Grid Inverter Setup

For a 48V solar system with LiFePO4 storage, this BMS plays a central role:

• The pack charges daily from solar panels through an appropriate charge controller
• The BMS keeps cells balanced and within safe voltage ranges
• RS485 or CAN integration may allow communication with an inverter or monitoring system

We gain the benefit of safe, deep cycling without constantly worrying about overcharging or over-discharging the pack. The Bluetooth app gives us quick insights into how the system behaves through the day.

Use in DIY Power Banks and Portable Power Stations

If we build a custom portable power box, the DALY BMS allows:

• A stable 12.8V (4S) or 25.6V (8S) pack, depending on design
• Robust protection under uncertain or mixed loads
• App-based monitoring when we travel or camp

Even if we are not running hundreds of amps continuously, having a high-current BMS gives us extra headroom for short surges—ideal for fridges, inverters, and tools.

Strengths of the DALY Smart BMS

Every product has its strong points, and this model brings several advantages that stand out for many users.

High Current Capacity Options

The ability to choose versions from 100A up to 500A makes this BMS scale from moderate builds to genuinely high-power systems. For users building electric carts, high-wattage inverters, or performance e-bikes, having that current margin:

• Reduces stress on the BMS at typical loads
• Allows short bursts above continuous ratings (within safe design)
• Broadens the kinds of projects we can attempt with one familiar product family

We just need to ensure the rest of our system (cables, cells, fuse, connectors) matches this current capability.

Strong Safety Feature Set

The combination of overload, overcurrent, short-circuit, overcharge, over-discharge, and temperature protections is what we expect from a modern, responsible BMS. We may never see these features acting, but knowing they are in place is essential.

Because we are often dealing with expensive cells, wiring, and equipment, the cost of a robust BMS is small compared to what it might save us from damaging.

Bluetooth Monitoring and App Usability

In practice, the Bluetooth monitoring feature transforms how we interact with the battery. Instead of measuring individual cells manually, we can:

• Quickly see cell voltages and pack status
• Identify a mismatched or failing cell early
• Adjust certain settings and test responses

For both beginners and experienced builders, this increases confidence and reduces troubleshooting time.

Suitable for DIY and Professional Use

The DALY Smart BMS sits in a sweet spot where it is:

• Friendly enough for DIY users with basic electrical experience
• Capable enough for use in commercial or semi-professional projects

We are not limited to simple hobby projects; we can consider integrating this into working vehicles, off-grid systems, and serious backup power installations, provided we respect electrical codes and good building practices.

Limitations and What to Watch For

No product is perfect, and it is healthier for us to be aware of limitations or points where extra care is needed.

Installation Requires Care and Knowledge

This is not a plug-and-play consumer battery pack. We need at least a moderate understanding of:

• Series cell connections
• DC wiring and current ratings
• Basic safety practices with high-energy systems

If we wire it incorrectly or ignore recommended practices, we risk damaging the BMS or cells. Beginners should consider reading multiple guides or working with experienced builders before handling a large pack.

Additional Accessories May Be Required

The product photos sometimes show displays or additional modules that are not included in the standard packaging. If our system design depends on a CAN box, a dedicated display screen, or a more advanced integration, we should plan to purchase these parts separately.

App and Firmware Variability

As with many smart devices, user experience depends on app quality and firmware. While DALY’s app covers the basics well, we may notice:

• Occasional connection quirks depending on phone models
• A learning curve when navigating advanced settings
• Limited customization compared to very high-end industrial BMS units

For most DIY and small professional applications, the feature set should be sufficient, but we should not expect the depth of an enterprise battery management platform.

Who This BMS Is Best For

Considering strengths and limitations, it is helpful to map out who benefits most from the DALY Smart BMS 4/8/16S 100A–500A.

This BMS is an excellent match if we:

• Build LiFePO4 battery packs (3.2V cells, 4S/8S/16S)
• Need robust safety protections for high-current applications
• Want Bluetooth-based monitoring and some configurability
• Value an integrated fan and heat sink for demanding loads
• Have at least some experience or willingness to learn battery pack construction

It is less suitable if we:

• Want a fully pre-built, plug-and-play power station
• Use chemistries other than LiFePO4 (like Li-ion NMC) without proper adjustments
• Feel completely uncomfortable working around DC systems and cell wiring

In those cases, a prebuilt battery system with an integrated, invisible BMS might be a better fit.

Practical Tips for Getting the Most Out of It

To make sure we actually benefit from what this BMS offers, we can follow a few practical habits.

Match the BMS to Our Real Needs

It is tempting to pick the highest current rating “just in case,” but:

• Higher-current models can be larger and costlier
• Our cells, wiring, and connectors still need to match that rating

We should estimate our real load and select a BMS that is appropriately above that level, leaving a reasonable safety margin. For a medium-power solar backup system, a 100A–150A unit might be enough, whereas a high-performance vehicle might benefit from 250A–500A.

Use a Charger Designed for LiFePO4

Even though the BMS offers protection, we achieve the best lifespan and stability by pairing our pack with a charger specifically configured for LiFePO4 voltages. That combination means:

• The charger stops close to the correct pack voltage
• The BMS only needs to act as fine protection and balancer, not as a brute-force limiter

The less often we push the BMS to its cut-off thresholds, the more quietly and effectively it can preserve the cells.

Regularly Check the App

The Bluetooth app is not just a novelty. By checking it periodically, we can:

• Spot cell voltage imbalances early
• Verify that temperatures are staying in comfortable ranges
• Confirm that charge and discharge currents align with expectations

Catching an anomaly early often means a simple fix, whereas letting it grow can lead to failure or costly repairs.

Keep the Pack Clean and Dry

We should protect the BMS and entire pack from moisture, dust, and physical abuse. An enclosure that shields the electronics while still allowing airflow and cable management will go a long way toward long-term reliability.

Overall Value and Final Thoughts

The DALY Smart BMS 4/8/16S 100A–500A offers a compelling mix of robust protection, smart monitoring, and flexible communication for LiFePO4 systems. It stands out because it:

• Is tailored to 3.2V LiFePO4 cells and typical 4S/8S/16S packs
• Provides comprehensive safety protections for daily use
• Integrates Bluetooth monitoring with a multilingual app
• Includes a heat sink and fan for better thermal control under load

For those of us building or upgrading serious LiFePO4 battery packs—whether for electric vehicles, inverters, or solar backup—this BMS can form a solid foundation. When we pair it with good-quality cells, proper wiring, and thoughtful installation, we end up with a battery system that is not only powerful, but also much safer and easier to monitor.

If our goal is a reliable, long-lived LiFePO4 pack with the ability to see what is happening inside without taking it apart, this DALY Smart BMS offers a well-balanced combination of features and performance that makes it worth considering.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
