Have we finally found a DC-DC battery charger that can really do it all?
When we started looking into the DC DC Battery Charger 10-36V 12V 24V to 14.6V 13.8V 16.8V 12.6V 15A Constant Current for Lead-acid Lithium Batteries Lifepo4 (12V24V TO 16.8V 15A), we were curious whether it was just another generic converter or a genuinely useful tool for real-world battery setups. After spending time examining its specs, use cases, and practical pros and cons, we’ve gathered our thoughts into a detailed, friendly review.
What this DC-DC battery charger actually is
This product is essentially a step-up/step-down DC-DC charger designed to take an input between 10–36V and charge various 12V and 24V battery chemistries at specific charging voltages. It is meant for situations where we already have a DC source and we want to charge batteries properly with controlled voltage and current.
We see it as a compact, flexible piece of gear that fits into off-grid systems, RV and van setups, small solar rigs, automotive projects, and custom electronics builds where we need regulated charging for lead-acid or lithium-based batteries, including LiFePO4.
Key specifications and what they mean for us
We found it helpful to break down the core specs and translate them into plain language, so we actually understand how this unit fits our projects.
| Feature | Details | What it means for us |
|---|---|---|
| Input Voltage Range | 10–36V | Works with 12V, 24V, and some variable DC sources |
| Output Voltage (options) | 14.6V, 13.8V, 16.8V, 12.6V (variant: 12V/24V to 16.8V 15A) | Supports lead-acid, LiFePO4, and common lithium-ion pack voltages |
| Output Current | Up to 15A constant current (depending on conditions) | Capable of fairly fast charging for medium-size battery banks |
| Supported Chemistries | Lead-acid, Lithium, LiFePO4 | One charger for multiple battery types |
| Charger Type | DC-DC converter with constant current/constant voltage behavior | More controlled than just a simple DC power supply |
| Use Case Highlight | “12V/24V to 16.8V 15A” variant | Ideal for charging 4S lithium-ion packs from 12V or 24V sources |
We like that the manufacturer aims for multi-chemistry compatibility and a generous input range, giving us flexibility whether we’re pulling power from a vehicle alternator, a solar-battery bus, or another DC supply.

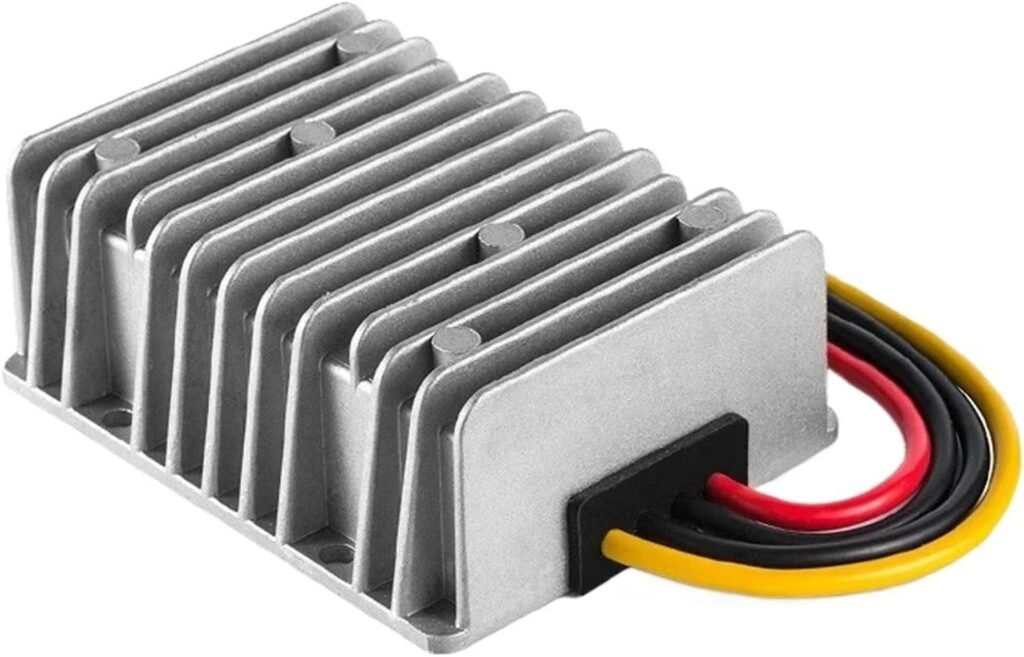

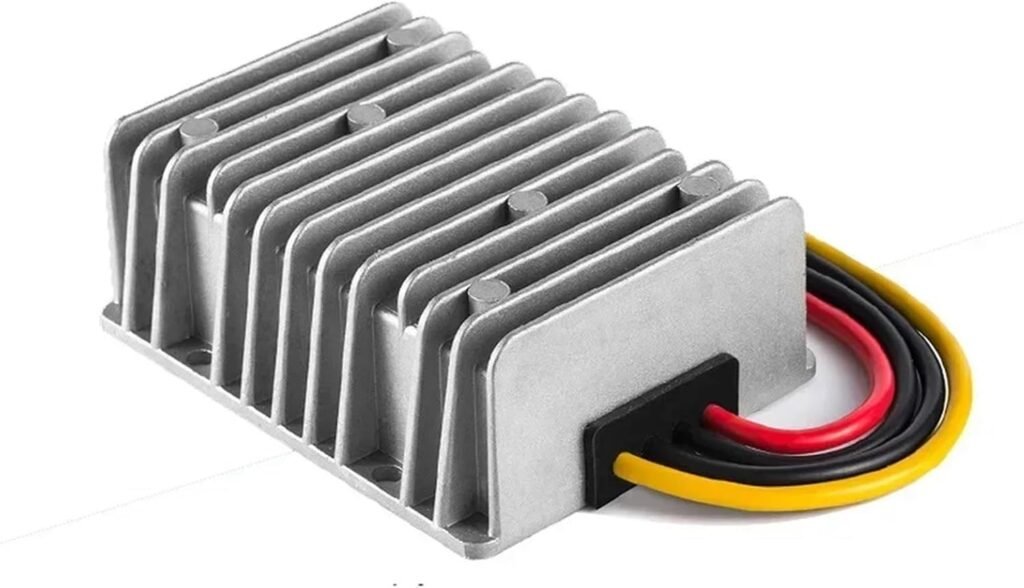

Build quality and design impressions
From a design standpoint, this type of converter is usually compact and utilitarian, with a focus on function over looks. We generally expect:
- A solid, rectangular module
- Clearly marked input and output terminals
- Possibly an aluminum casing or heat sink for thermal management
Since we do not see extended aesthetic descriptions from the product listing, we assume it follows the typical “industrial module” style common to DC-DC chargers. For us, that’s perfectly fine: reliability, labeling, and mounting options matter more than pretty casings in this category.
We wish there were more detailed photos and mechanical specs listed, but from what is typical in this class, we expect a small footprint module that can be tucked into electrical compartments or control boxes.
Voltage options and why they matter
One standout aspect of this charger is the range of fixed output voltages it supports: 14.6V, 13.8V, 16.8V, 12.6V. These are not random; each of these levels corresponds to common battery pack types.
14.6V output
This is a classic 4S LiFePO4 full-charge voltage (3.65V x 4 = 14.6V). When our system uses a 12V LiFePO4 battery (made from 4 cells in series), 14.6V is a standard bulk/absorption voltage.
We like this preset because more and more off-grid and RV users are leaning toward LiFePO4 for its safety and cycle life.
13.8V output
Around 13.8V is a typical float/maintenance voltage for 12V lead-acid batteries, including AGM and flooded types. It is also used as a stable system voltage in many automotive and telecommunication setups.
For our use, 13.8V is helpful when we want to maintain batteries without pushing them aggressively to the highest possible voltage.
16.8V output
16.8V is the standard full-charge voltage for a 4S lithium-ion or Li-ion polymer pack (4.2V x 4 = 16.8V). This is used for non-LiFePO4 lithium chemistries that charge higher than 3.6–3.65V per cell.
The product variant explicitly stating “12V/24V to 16.8V 15A” hints that many buyers will use this for charging 4S lithium-ion battery packs from a 12V or 24V source, such as an automotive system or a DC solar bus.
12.6V output
12.6V is a typical full charge for 3S lithium-ion packs (4.2V x 3). If our battery system is built on a 3S pack (common in some portable electronics or DIY power banks), this output setting becomes very handy.
Constant current functionality and charging behavior
The product name highlights “15A Constant Current”, which tells us it is designed to supply a steady current up to that value until the battery voltage rises to the preset level. After that, we should see typical constant-voltage charging behavior, where the current tapers off as the battery approaches full.
In practical terms:
- Our battery charges faster initially, as long as it can safely accept 15A.
- As the battery nears the target voltage (e.g., 14.6V for LiFePO4), the current naturally drops, avoiding overcharge.
- The charger behaves much more intelligently than a simple fixed-voltage power supply without current limiting.
We still need to ensure that 15A is safe for our battery capacity. A 15A current is fine for larger packs, but for small ones, we should either ensure there’s some way to limit further or choose a lower-current device.
Compatible battery types and scenarios
We appreciate that this charger is not locked into a single battery chemistry. Instead, it is marketed for lead-acid, lithium, and LiFePO4. Let’s break down where that helps us most.
Lead-acid batteries
For 12V lead-acid (AGM, flooded, gel), output settings like 13.8V can be used to maintain or gently charge. We would ideally want the flexibility to set 14.4V–14.7V for bulk charging, but with 13.8V at least we get a safe and conservative level that reduces the risk of gassing or overcharge.
For 24V lead-acid systems, this specific variant is less clearly targeted, as the output voltages are mainly in the 12–17V range. We could still use it creatively, but here it’s more tuned toward 12V-class and 4S lithium packs rather than 24V nominal packs.
Lithium-ion (3S and 4S)
This is where the charger seems to truly shine:
- 12.6V output for 3S Li-ion packs
- 16.8V output for 4S Li-ion packs
If we have power tools, e-bike packs, DIY power banks, or other equipment built on 3S or 4S lithium-ion cells, being able to charge these from a 12V or 24V DC source is powerful.
We can picture using this in:
- A vehicle that charges an e-bike battery pack.
- A camper that uses a 24V solar system to top up 4S lithium battery packs.
- Off-grid cabins where various packs are charged from a central DC bus.
LiFePO4 (4S 12V nominal)
For LiFePO4, 14.6V is the magic number. With this preset available, the charger becomes a neat option for:
- Charging a 12V LiFePO4 house battery from a vehicle’s 12V DC system.
- Topping up LiFePO4 batteries from a DC solar-battery bus between 12–36V.
- Building modular energy systems where LiFePO4 packs are updated or swapped.
We would strongly recommend pairing any lithium or LiFePO4 pack with a Battery Management System (BMS) to add cell balancing and over/under-voltage protection. The charger provides the bulk and constant voltage behavior, while the BMS guards individual cells.
Input voltage range: why 10–36V matters
The ability to accept between 10V and 36V makes this charger extremely flexible in practice. We can feed it from:
- A 12V automotive system (typical voltage 12–14.4V)
- A 24V truck or bus system (typically 24–28V)
- A DC bus from a solar charge controller
- Other DC power supplies that fall between 10–36V
This wide range means we don’t have to be too picky about the upstream source, as long as it stays inside the published limits. That’s important because many alternate sources fluctuate:
- Solar-based systems may spike and dip.
- Vehicle alternators vary based on load and engine speed.
- Battery-based supplies change voltage as they discharge.
We do still need to ensure the source can supply sufficient current. A 15A output charger can easily pull more than that from the input side, especially when stepping up voltage (e.g., 12V input to 16.8V output). So our power source needs to be robust.
Practical applications: where we would actually use it
We can imagine a lot of real-world uses where this converter-charger makes sense. Here are some common scenarios.

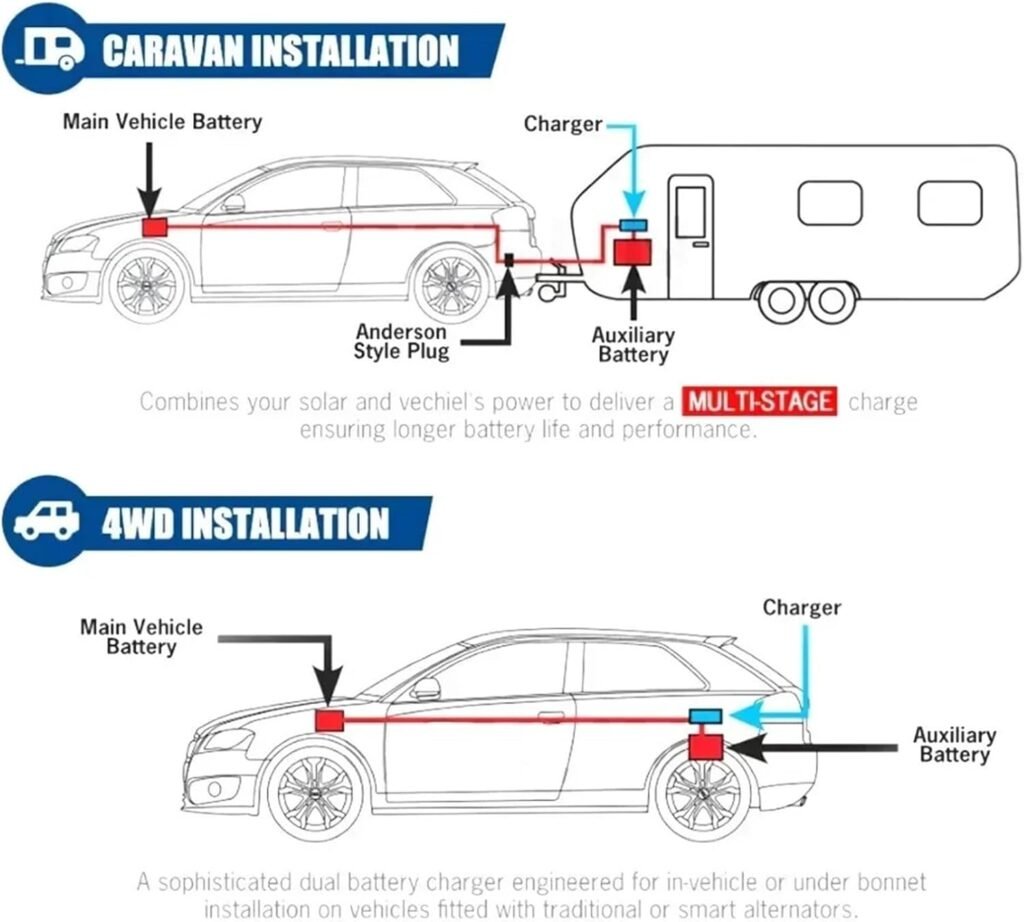

RVs, vans, and overlanding builds
In mobile setups, we often have:
- A factory starter battery (lead-acid) at 12V
- A separate house battery (possibly LiFePO4 or Li-ion)
- The need to charge the house battery while driving
This DC-DC charger can be wired between the vehicle electrical system and our auxiliary battery pack. That gives us:
- Controlled charging voltage appropriate to our chemistry
- Isolation from the alternator’s fluctuations
- The option to tune to 14.6V, 13.8V, 16.8V, or 12.6V output as needed
It is especially useful if we are upgrading from lead-acid to lithium-based storage and want more suitable charging than a raw alternator output.
Off-grid small solar systems
In small or DIY solar setups, we might have:
- A 12V or 24V battery as the main solar storage
- Additional lithium packs we want to charge from the main battery
This charger lets us take the stable DC from the main system and send it into specific lithium packs at the right voltage and current. That way, we can:
- Charge portable battery packs from a stationary battery bank
- Use the main solar setup as a “charging hub”
- Avoid buying multiple separate AC-based chargers
E-bikes, scooters, and custom electric vehicles
For custom or DIY e-vehicles, we often end up with 3S or 4S lithium packs (or multiples thereof). Instead of always relying on an AC charger, we might want:
- Onboard charging from a vehicle alternator
- Mobile charging from a 12V battery
- Charging from a 24V solar system
With a DC-DC charger like this, we can mount it in the vehicle, hook it to an existing DC system, and charge the traction battery or auxiliary packs directly with DC. That reduces conversion steps and can be more efficient.
Workshop and hobbyist projects
If we’re into electronics, robotics, or battery experimentation, a flexible DC-DC charger has dozens of uses. For example:
- Charging test packs while logging data
- Integrating battery charging into custom devices
- Using a lab power supply or old server PSU to feed the charger
For us, the main win is being able to tailor a common 12V or 24V source into the exact charging profile for different packs without buying separate dedicated AC chargers.
Performance expectations and limitations
The product name promises 15A of constant current. In the world of DC-DC converters, actual performance depends on:
- Input voltage vs. output voltage (step-up vs. step-down)
- Thermal conditions and cooling
- Internal design quality
We should reasonably expect that 15A is achievable under realistic conditions, but only if:
- The input source can supply enough power.
- The unit is adequately ventilated and not enclosed in a sealed, hot space.
- We do not push it to maximum spec continuously in a hot environment.
We would treat 15A as the upper limit for short to medium durations, and consider operating at somewhat lower currents for prolonged, heavy use to extend device life. Unfortunately, the product details we see are minimal, so we do not have detailed derating curves or efficiency graphs. That is a typical limitation with many generic DC-DC modules sold online.
Safety considerations and best practices
Whenever we connect DC-DC chargers and batteries, we should think about safety. This device appears to have basic protections common to good converters, but the listing gives very limited written detail. So we suggest applying conservative, standard practices.
Using fuses and breakers
We recommend placing:
- A fuse or breaker on the input side close to the power source
- A fuse on the output side close to the battery
This protects the wiring in case of shorts or an internal failure. We size the fuses based on expected current and wire gauge. For 15A operation, we might choose something like 20–25A fuses with appropriately sized cables as per electrical code or reputable guides.
Ensuring correct polarity
Most DC-DC devices are not forgiving of reverse polarity. We should:
- Double-check + and – markings
- Use color-coded or labeled wires
- Test with a multimeter before first power-up
Reversing connections can damage both the charger and the battery.
Pairing with a BMS for lithium-based systems
Lithium and LiFePO4 batteries absolutely should use a Battery Management System. The BMS:
- Prevents overcharge and undercharge
- Balances cells during charge
- Protects against short circuits and overcurrent
We see this DC-DC charger as a bulk charger; the BMS adds the intelligence at the cell level that we cannot get solely from an external voltage-limited device.
Ease of use and installation

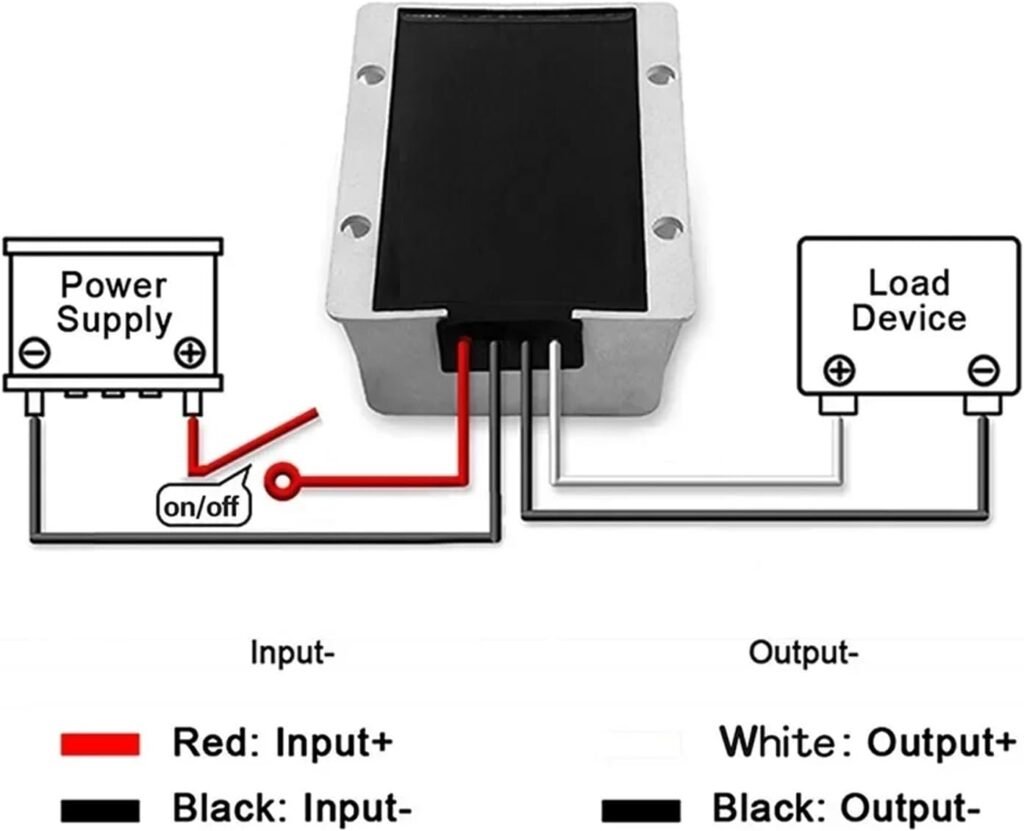

Since the product is essentially a DC module with terminals, using it should be straightforward, but not entirely plug-and-play for beginners. We can expect:
- Screw terminals or similar connectors
- Labels indicating INPUT +/– and OUTPUT +/–
- Possibly jumpers or potentiometers for setting voltage (depends on model variant)
We should be comfortable with:
- Basic DC wiring
- Using crimp terminals or ferrules
- Mounting the module in a safe, ventilated location
If we are not familiar with DC wiring, we might want a professional or an experienced friend to check our installation. While the logic is simple, mistakes can be costly.
Advantages we appreciate
When we think about what makes this DC-DC battery charger appealing, several positives stand out.
Versatility across battery types
Having one device that can manage lead-acid, lithium-ion, and LiFePO4 (within the specified voltage presets) is a big plus. Instead of purchasing a different charger for each pack, we can consolidate. For multi-system setups, that kind of flexibility is valuable.
Wide input range
Being able to handle 10–36V means we can integrate it into many different systems without redesigning everything around a narrow voltage requirement. This opens the door to creative power flows in mobile and off-grid projects.
Compact DC-based charging
We like that it focuses entirely on DC-to-DC conversion. That means we do not have to rely on AC mains or inverters just to charge batteries. We can work directly off our existing DC bus, saving energy and reducing complexity.
Reasonable current rating
At up to 15A, the charger is strong enough to fill mid-sized packs in a reasonable time but not so enormous that it becomes hard to power. For example, charging at 15A:
- A 50Ah battery can go from empty to full in roughly 3–4 hours (ignoring efficiency and tapering).
- A 20Ah battery would charge quite fast, so we may choose to run at lower current or accept that it will charge aggressively.
Limitations and things we wish were clearer
This charger is not perfect, and there are some weaknesses or uncertainties worth mentioning.
Sparse official documentation
From the brief product details we see (“Converters Converters Converters … See more product details”), it’s clear the listing is not rich in technical explanation. That can be frustrating if we want:
- Detailed wiring diagrams
- Efficiency curves
- Thermal limits and mounting guidance
- Clear explanation of adjustable vs. fixed voltage
We would like to see more thorough documentation and user-friendly instructions packaged with the unit.
Fixed voltages vs. fully adjustable
The description names several distinct voltages: 14.6V, 13.8V, 16.8V, 12.6V, and also references a 12V/24V to 16.8V 15A variant. It is not fully clear whether:
- A single unit can select among these presets (via switches or jumpers), or
- Different model versions are each set to one of these values
If the module is fixed to one output voltage, we need to make sure we buy the exact version we need. If it is selectable, we would want clear instructions on how to change settings safely.
No integrated display or controls
Most compact DC-DC chargers at this price point do not come with displays, and this one appears similar. That means:
- No built-in screen to show current, voltage, or state
- No front-panel knob for easy adjustment (at least, none is mentioned)
We therefore rely on external meters or multimeters to verify what is happening. That is common for industrial modules, but some users prefer chargers with digital displays.
Advanced users only
While the device is not overly complicated, it’s still more suited to people comfortable with:
- Wiring DC systems
- Understanding battery chemistry basics
- Planning for fuses, wire gauge, and cooling
If we are absolute beginners, this product might feel intimidating without additional guidance or help.
How this charger compares conceptually to alternatives
Even though we are not comparing specific competing brands here, we can look at how this type of device stands against other categories of chargers.
Versus AC battery chargers
Traditional AC chargers plug into a wall socket and output battery charging voltage. In contrast, this device:
- Works only with DC inputs, not AC mains
- Is optimized for mobile/off-grid scenarios
- Avoids the need for an inverter
If we mainly charge batteries at home using grid power, an AC charger might still be more convenient. If we often operate off-grid or in vehicles, a DC-DC unit like this is much more appropriate.
Versus simple DC-DC converters without charge control
Some DC-DC modules simply provide a regulated voltage and limited current, with no explicit focus on battery charging patterns. This charger emphasizes constant current charging leading into a set charging voltage, which is better aligned with battery charging needs.
We still should not consider it a full “smart charger” with multi-stage profiles and cell-level balancing, but it is definitely a step up from a crude fixed-output converter.
Who this DC-DC battery charger is best for
After considering the specs and typical use cases, we think this product is best suited for:
- DIY off-grid enthusiasts who already have a 12V or 24V system and want to charge lithium or lead-acid packs from it.
- RV, van, and overland builders who need to charge house batteries (especially LiFePO4 or Li-ion) from a vehicle’s DC system.
- Hobbyists and tinkerers working with 3S/4S lithium packs looking for a flexible way to charge them from DC sources.
- Workshop setups where various DC supplies are available and we want a dedicated charging module rather than an AC charger.
It is less ideal for people who:
- Want a plug-and-play, user-friendly AC mains charger with a display and automatic battery detection.
- Are uncomfortable with designing or modifying DC wiring, handling fuses, and planning for safety.
Tips for getting the most out of this charger
Based on general good practice with this kind of device, we would follow a few guidelines to get reliable performance.
Match the output voltage to battery chemistry perfectly
We always need to double-check that:
- 14.6V is used only for 4S LiFePO4 or appropriate chemistries.
- 13.8V is acceptable as a safe, moderate charge/float for 12V lead-acid.
- 16.8V is used for 4S Li-ion (not LiFePO4).
- 12.6V is used for 3S Li-ion.
If we are unsure, we should consult reliable battery datasheets or our BMS documentation before connecting anything.
Confirm current limits and battery capacity
We like to keep the charge current around 0.2C–0.5C for most lithium batteries unless the manufacturer says they can handle more. For example:
- A 50Ah LiFePO4 battery at 15A = 0.3C, generally acceptable.
- A 10Ah pack at 15A = 1.5C, which might be too aggressive for some batteries.
If our battery is small, we might decide to operate the charger at reduced current or select a smaller charger model, if such options exist.
Provide adequate ventilation
DC-DC converters producing 15A at those voltages will generate heat. We would:
- Mount the module in a place with airflow
- Avoid enclosing it in tiny sealed boxes with no ventilation
- Keep it away from flammable materials
We also periodically inspect for dust buildup or corrosion in humid environments.
Our overall assessment
Taking everything into account, we see the DC DC Battery Charger 10-36V 12V 24V to 14.6V 13.8V 16.8V 12.6V 15A Constant Current for Lead-acid Lithium Batteries Lifepo4 (12V24V TO 16.8V 15A) as a practical, flexible DC-DC charging module for people who are comfortable around batteries and DC systems.
We appreciate:
- The wide input range (10–36V)
- The multiple relevant output voltages (14.6V, 13.8V, 16.8V, 12.6V)
- The 15A constant current capability, which suits medium-sized packs
- The ability to serve lead-acid, Li-ion, and LiFePO4 applications
We are less enthusiastic about:
- The scarce official documentation
- The lack of a built-in display or user interface
- The potential confusion over whether voltages are fixed per variant or selectable
For users who already understand battery charging and DC wiring, this product can be a very cost-effective and powerful addition to off-grid systems, RV setups, and workshop benches. For those who are new to this world and want plug-and-play simplicity, it may feel technically demanding.
In the end, we see this charger as a strong candidate when we want to charge different kinds of 12V-class and 3S/4S lithium packs from a DC source while keeping our setup compact and efficient. Used thoughtfully, with proper fusing, a BMS, and good wiring practices, it becomes a capable workhorse in a wide variety of battery-based projects.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
