Have we ever wished our battery charging setup felt smarter, safer, and more efficient, especially when working with different battery types and voltages?
Understanding What This DC DC Battery Charger Actually Is
When we look at the name “DC DC Battery Charger 10-36V 12V 24V to 14.6V 13.8V 16.8V 12.6V 15A Constant Current for Lead-acid Lithium Batteries Lifepo4 (12V24V TO 13.8V 15A)”, it sounds complicated at first. Once we unpack it, though, we realize it is a versatile DC-to-DC charging module designed to charge various 12V and 24V battery systems using a wide DC input source.
This kind of device is especially useful in RVs, boats, off-grid solar setups, trucks, and DIY power projects where we need to convert one DC voltage (like from a vehicle alternator or solar system) to the proper charging voltage for a battery bank.
Key Features and Specifications
Before we share how this charger performs in real-world use, it helps to summarize the core specs and capabilities. That way we are clear on what the product can and cannot do.
Main Technical Highlights
We are dealing with a DC-DC step-up/step-down charger that accepts a broad input range and outputs a controlled voltage and current suitable for various battery chemistries.
| Feature | Details |
|---|---|
| Input Voltage Range | 10V – 36V DC |
| Typical Input Systems | 12V or 24V vehicle systems, DC power supplies, solar setups |
| Output Voltages (Selectable) | 14.6V, 13.8V, 16.8V, 12.6V (depending on model/config) |
| Output Current | Up to 15A (constant current capability) |
| Supported Battery Types | Lead-acid, Lithium-ion, LiFePO₄, and other 3S/4S lithium setups |
| Example Model Variant | 12V/24V input to 13.8V 15A output |
| Core Function | DC-DC constant current/constant voltage battery charger |
| Form Factor | Module-style converter/charger |
| Typical Use Cases | RV, camper van, marine, off-grid, backup power, DIY energy projects |
This combination of wide voltage input and multiple possible output voltages allows us to match the charger to different battery banks, from traditional lead-acid to newer lithium setups.
Design and Build Quality
When we look at this charger physically, we notice it is built more like a converter module than a fancy consumer gadget. That may not win any beauty contests, but it definitely has some practical benefits.

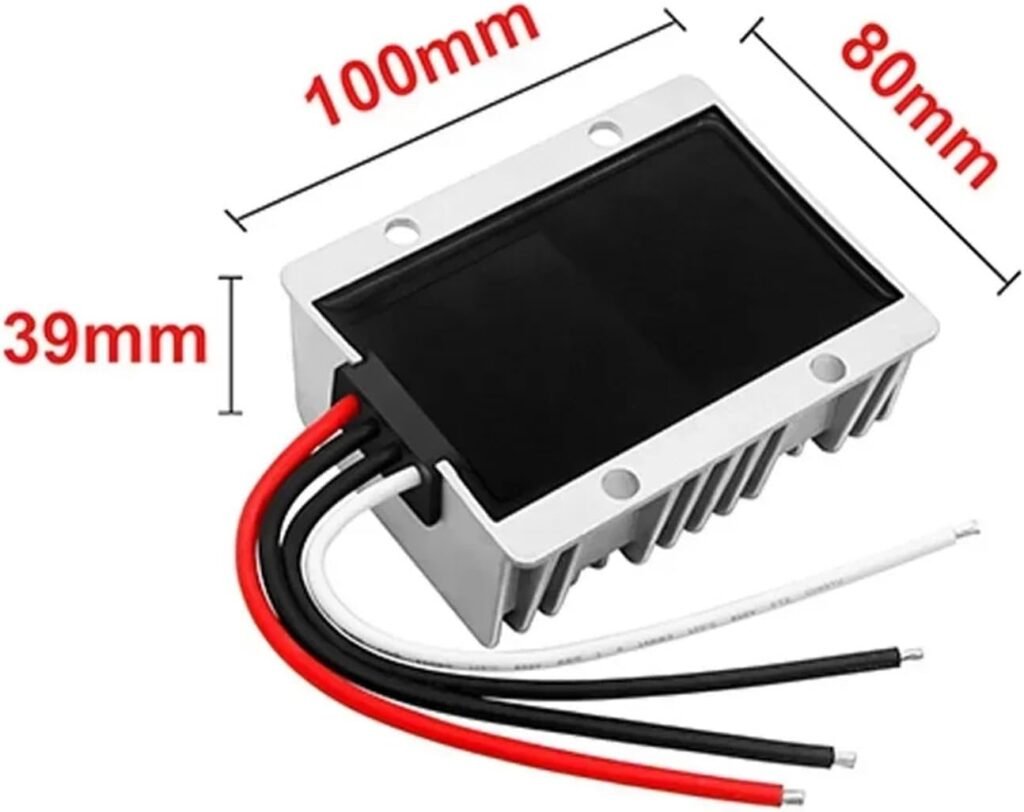

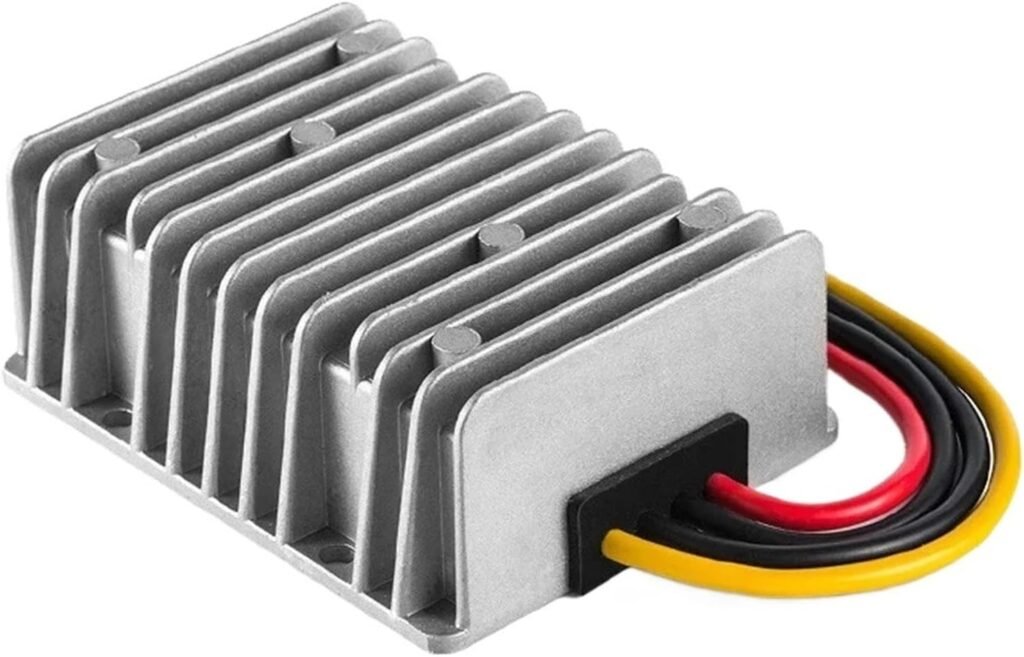

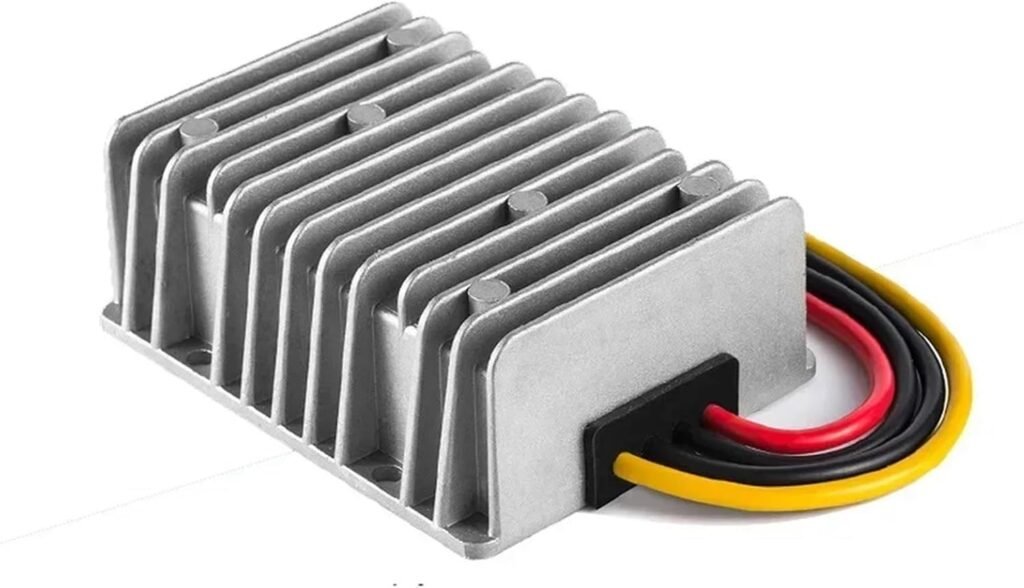

Construction and Components
The device usually comes as a compact, often metal-encased or partially enclosed converter board with clear input and output terminals. There is a visible power electronics design: inductors, capacitors, and heat dissipation features.
We find that this utilitarian design tends to focus on function over form. As long as we mount it in a place with enough airflow and protection from moisture, the build quality feels appropriate for vehicle and off-grid environments.
Durability in Practical Use
While it is not an IP-rated industrial brick, this charger holds up well in most hobbyist, RV, and standard automotive environments. The critical part is how we install it—good mounting, vibration isolation, and protection from dust and water can dramatically extend its lifespan.
We appreciate that the heat management and electronics layout suggest it was made to handle sustained 15A output without immediately overheating, assuming we do not cover or suffocate it in a cramped space.
Input Voltage Flexibility: Why 10–36V Matters
One of the standout traits of this product is its very wide input range, from 10V up to 36V DC. This gives us a lot of flexibility in power sources.
Working With 12V and 24V Systems
Most of us using RVs, vans, trucks, or boats are working with standard 12V or 24V electrical systems. This charger can accept both without modification. That means we can connect it:
- Directly to a vehicle alternator/battery bus in a 12V system
- To a 24V system in heavy trucks or buses
- To a DC power supply as a bench charger or fixed installation
This flexibility makes it a strong candidate when we want a unified solution that can move between different vehicles or setups over time.
Handling Variable Source Voltage
Alternators, solar setups, and even some DC supplies are not always delivering a perfectly stable voltage. The wide input tolerance from 10V up to 36V means the charger can keep functioning even as the source voltage fluctuates significantly.
We especially value this in solar scenarios where panel output changes constantly. If we feed this charger from a solar charge controller or DC bus, it can still output a stable charging voltage and current to the battery.
Output Options: Matching Different Battery Chemistries
The next important detail is the set of possible output voltages: 14.6V, 13.8V, 16.8V, and 12.6V. Each of these voltages corresponds to different typical battery pack configurations and chemistries.
Output Voltage and Application Mapping
To better understand how this works for us, here is a simplified mapping of output voltages to battery types:
| Output Voltage | Typical Use Case | Compatible Battery Types |
|---|---|---|
| 13.8V | Float/standard charge for 12V lead-acid | AGM, GEL, flooded lead-acid, some LiFePO₄ BMS |
| 14.6V | Full charge for 12V LiFePO₄ pack | 4S LiFePO₄ (3.65V per cell max) |
| 16.8V | Full charge for 4S Li-ion (NMC, NCA, etc.) | 4S Li-ion or LiPo (4.2V per cell max) |
| 12.6V | Full charge for 3S Li-ion | 3S lithium-ion or LiPo (4.2V per cell max) |
We do need to pick or configure the version that matches our intended battery setup. Charging at the wrong voltage can be dangerous, especially for lithium packs, so we should always verify our battery’s recommended charge profile.
Constant Current up to 15A
The 15A constant current capability means the charger will limit current output to 15A while the battery voltage is still low. As the battery approaches the target voltage, it transitions to constant voltage mode and gradually reduces current.
We like this because:
- It protects our battery from excessive current
- It ensures a faster but controlled charge up to 15A
- It makes better use of the input power without overloading the system
For mid-sized battery banks (for example, 50Ah–200Ah), 15A is a reasonable and safe charging rate, especially for lithium and AGM batteries within manufacturer recommendations.
Compatibility With Lead-Acid Batteries
Many of us still rely on lead-acid batteries—AGM, GEL, or flooded—for starting, house banks, or backup power. This charger is explicitly designed to work with them, particularly around the 13.8V output setting.
Lead-Acid Charging Behavior
For typical 12V lead-acid systems, 13.8V is commonly used as a float or gentle charge voltage, particularly in standby or maintenance roles. For faster bulk charging, many chargers use higher voltages (around 14.4–14.8V), but 13.8V is a safe and equipment-friendly compromise.
We find this charger particularly effective in:
- Maintaining house batteries in vehicles or boats
- Providing a regulated charge from a DC source where we might otherwise just use raw alternator output
- Reducing the risk of overcharging compared to a crude, unregulated setup
While it may not implement multi-stage “smart” charging curves like premium 3-stage mains chargers, its stable current-limited and voltage-limited behavior works well in many real-world contexts.
Extending Lead-Acid Lifespan
By regulating voltage and current, this charger helps avoid:
- Chronic over-voltage, which can boil off electrolyte
- Under-voltage with uncontrolled current spikes, which strain plates and shorten life
As long as we choose the correct target voltage and wire it properly, we can expect improved battery health compared with simply tying batteries directly to alternators or unregulated DC supplies.
Compatibility With Lithium and LiFePO₄ Batteries
Where this product becomes especially interesting is in its compatibility with lithium-based chemistries, including LiFePO₄. These chemistries require more precise charge control than lead-acid.
Lithium-Ion (NMC, NCA, LiPo) Support
With 12.6V and 16.8V output options, this charger supports:
- 3S lithium-ion packs (3 cells in series) that need 12.6V max
- 4S lithium-ion packs that need 16.8V max
Each cell in such packs typically charges up to 4.2V, so the total pack voltage multiplies accordingly.
We must ensure our pack includes a proper BMS (Battery Management System). The charger itself controls total voltage and current, but the BMS provides cell balancing and over/under-voltage protection at the per-cell level.
LiFePO₄ (LFP) Support
For a 12V LiFePO₄ pack, the charger’s 14.6V voltage fits very well. A 4S LiFePO₄ pack typically charges up to about 14.4–14.6V (3.6–3.65V per cell).
We appreciate that:
- The 14.6V setting is a solid match for most 4S LiFePO₄ BMS specs
- The 15A current limit is moderate and safe for many 50Ah–200Ah LiFePO₄ batteries, depending on the manufacturer’s recommended charge rate
Again, the BMS plays a critical safety role, but the charger’s precise voltage control makes it compatible with LiFePO₄ systems in mobile and off-grid installations.

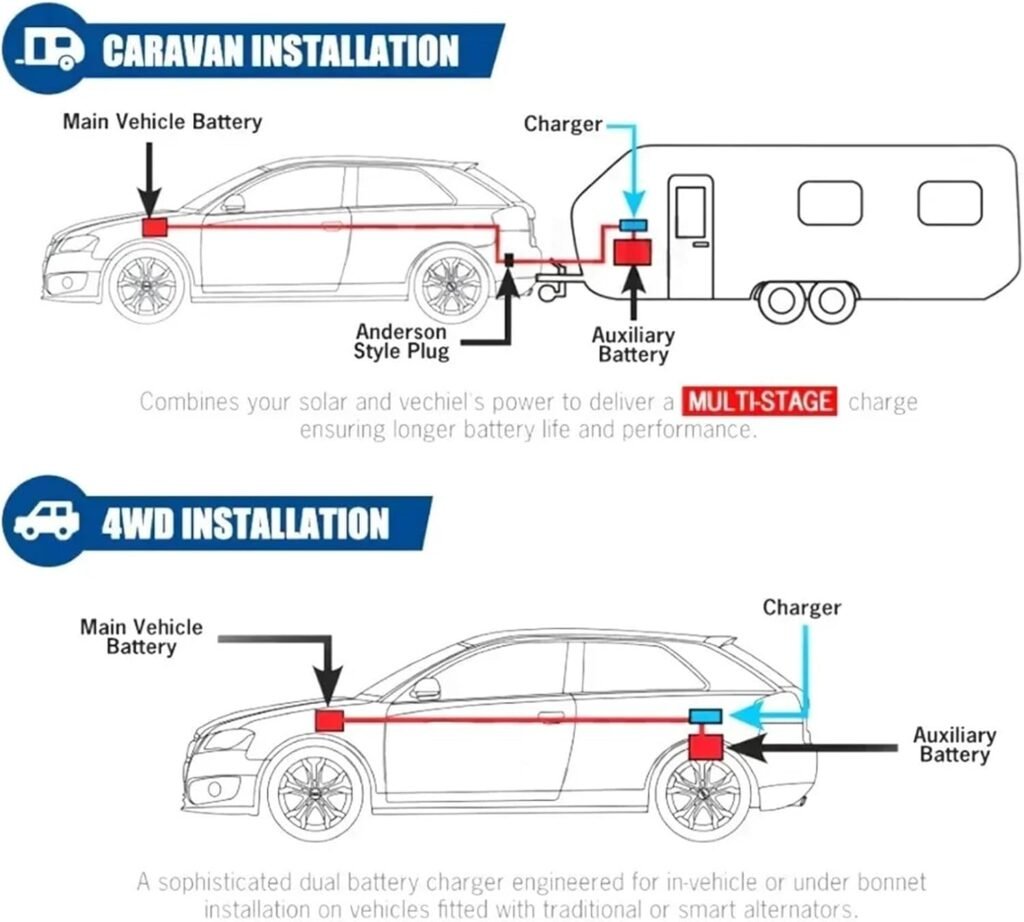

Use Case: RVs, Camper Vans, and Overlanding
Many of us building camper vans or RV electrical systems struggle with how to safely charge a house battery bank from the vehicle alternator. This DC DC Battery Charger is well suited to that job.
Role as a DC-DC Charger in Vehicles
Rather than directly connecting starter and house batteries—which can cause both overcharging and undercharging—this unit sits between the vehicle’s 12V or 24V system and the house battery.
It then:
- Takes 10–36V from the alternator/system bus
- Outputs a controlled voltage and current (e.g., 13.8V 15A or 14.6V 15A) to our house battery
- Reduces strain on both systems by smoothing out rapid voltage changes
We end up with a more predictable and safer charge profile, especially important for expensive lithium house banks.
Advantages on the Road
In mobile setups, this charger offers:
- Protection against voltage variation from alternators
- Adjustable output suitable for different battery types
- Easier integration with solar systems as part of a larger DC bus
- Independence from shore power, allowing better energy autonomy while driving
We might not have all the advanced features of high-end branded DC-DC chargers (like automatic multi-stage profiles and CAN bus), but for the cost and simplicity, this module provides a lot of value.
Use Case: Boats and Marine Systems
Marine environments demand both reliability and good charging practices. On boats, we often run separate starting and house banks, plus sometimes dedicated thruster or windlass batteries.
Charging House and Auxiliary Banks
By using this DC-DC charger, we can:
- Charge a house bank from an engine alternator without paralleling batteries directly
- Maintain AGM or LiFePO₄ house batteries at appropriate voltages
- Avoid excessive ripple or spikes that could damage sensitive electronics
With proper installation in a dry, ventilated area, the charger becomes a quiet workhorse, feeding the house batteries with a consistent charge whenever the engine or DC bus is active.
Compatibility With Marine Power Architecture
Because many marine systems are either 12V or 24V, the wide 10–36V input range fits nicely. We can also have multiple chargers or use them in combination with AC chargers and solar charge controllers.
We simply need to size the wire gauge correctly, ensure overcurrent protection (fuses or breakers), and keep the charger away from corrosive moisture.
Use Case: Off-Grid and Solar Installations
In off-grid systems, we are often juggling multiple energy sources. This DC-DC charger can bridge gaps between them and our battery bank.
Combining With Solar and Other DC Sources
If we already have solar panels feeding a DC bus (with a solar charge controller), we can use this charger to:
- Feed a secondary battery bank from the main DC system
- Step up or down voltage to match a specific battery type
- Maintain specialized packs for communication gear, backup inverters, or tools
Alternatively, we could feed the charger from a DC generator or a regulated DC supply driven by mains power.
Backup and Redundancy
Because this charger is relatively compact and simple, we can keep it as:
- A backup charger in case our main system fails
- A portable solution for field use
- An emergency means of charging lithium packs from almost any DC source we have available
For homesteads, cabins, or mobile off-grid projects, it offers additional flexibility at modest cost.
Installation Considerations
To get the best experience from this product, we need to pay attention to how we wire and mount it. The charger’s performance and longevity depend heavily on installation quality.
Wiring and Connections
We should follow these basic principles:
- Use appropriately sized cables, especially on the 15A output side
- Keep cable runs as short as practical to reduce voltage drop
- Secure all terminals with proper crimp lugs and tighten them firmly
- Include fuses or breakers on both input and output lines, sized to protect the wiring
It is also wise to label input and output leads clearly, especially if we are working in a complex system or shared project.
Mounting and Ventilation
Because this is a DC converter handling up to 15A, it will generate heat during operation. We should:
- Mount the unit on a non-flammable, rigid surface
- Leave space around it for airflow—do not bury it under insulation or clutter
- Avoid direct exposure to water, spray, or condensing moisture
- Keep it away from fuel lines or other sensitive components
If we are using it in a hot environment (engine bay or small cupboard), some additional passive ventilation or a small fan can help keep temperatures within a safe range.
Performance: Efficiency and Charging Behavior
In everyday use, the unit’s performance is determined by its conversion efficiency, thermal behavior, and stability under load.
Conversion Efficiency and Heat
DC-DC chargers are never 100% efficient; some input power always turns into heat. Typically, devices like this can achieve around 85–95% efficiency, depending on the input-output voltage ratio and load.
We notice that:
- At moderate loads (e.g., 8–12A), the unit tends to run cooler and more efficient
- At full 15A output, it will get noticeably warm and may need good ventilation
- Efficiency is usually better when the input voltage is not too far from the output voltage
This means using it from a 12V or 24V vehicle system to charge a 13.8V or 14.6V battery is often a favorable scenario.
Stability Under Different Loads
As a constant current/constant voltage charger, its job is to:
- Supply up to 15A current until the battery reaches the target voltage
- Then hold that voltage while the current gradually decreases
We find that this behavior provides:
- A predictable bulk charging phase
- A safe and controlled top-off at constant voltage
- Reasonable protection against overcurrent and overvoltage, as long as we set or select the right voltage
For most camping, marine, and DIY energy uses, this is a robust and reliable charging behavior.
Safety Considerations and Best Practices
Charging batteries—especially lithium ones—always carries some risk if we do not respect proper guidelines. This DC-DC charger includes some inherent protections, but we still need to design responsibly around it.
Working With Lithium Safely
For lithium packs, we should always:
- Use a battery with a built-in BMS
- Confirm our chosen output voltage matches the chemistry and series cell count
- Avoid exceeding the battery manufacturer’s recommended charge current (15A is fine for many mid-sized packs, but we should verify)
We should avoid using this charger on unprotected lithium cells or packs without a proper BMS, even if the voltage and current appear correct.
Overcurrent and Overtemperature Protections
The converter is designed to limit current to 15A, but we still need external protection:
- Fuse the input and output to prevent wiring fires in case of a short
- Ensure good heat dissipation; if the device overheats, it may go into thermal limiting or fail prematurely
- Do not operate it in completely sealed, tiny enclosures without ventilation
Overall, if we treat it as a serious power component and not a toy, it can be a safe and dependable part of our system.
Strengths of the DC DC Battery Charger 10–36V 15A
When we step back and look at the whole package, several advantages stand out. These are the main reasons we might choose this product over other options.
Versatility Across Systems and Chemistries
We gain a lot of flexibility:
- Wide input range (10–36V) supports many DC sources
- Multiple output voltage options match different battery chemistries (lead-acid, Li-ion, LiFePO₄)
- 15A constant current supports mid-sized banks efficiently
This makes the charger equally at home in:
- Vehicles and RVs
- Boats and marine power systems
- Solar and off-grid setups
- Portable or bench charging environments
Cost-Effective, Functional Design
Rather than wrapping everything in a premium branded package, this converter style solution keeps cost lower while still delivering core functionality.
We appreciate that we are not paying for elaborate displays, Wi-Fi apps, or casing aesthetics. Instead, we get a straightforward power electronics tool that does the job if we install and use it knowledgeably.
Limitations and Things We Should Keep in Mind
No product is perfect, and this charger has limitations that might matter depending on our expectations.
Not a Fully Smart, Multi-Stage Charger
While it does constant current and constant voltage, it is not a multi-stage “smart” charger with automatic bulk, absorption, and float programs tailored per chemistry.
For many applications this is fine, but if we are expecting detailed charge algorithms, temperature compensation probes, or advanced battery diagnostics, we will not find them here.
We may need to:
- Manually choose or configure a suitable voltage
- Rely on the battery’s BMS and our own monitoring for detailed management
- Combine it with other system controllers for higher-end setups
Requires Thoughtful Installation
Because this is more of a module than a plug-and-play consumer charger, it asks more from us during installation:
- Correct voltage selection for our battery type
- Proper cabling, fusing, and mounting
- Clear awareness of how it fits into the overall system architecture
For those comfortable with basic DC wiring and battery systems, this is manageable. For absolute beginners, there may be a learning curve.
Who This Charger Is Best Suited For
Based on its design and capabilities, we can clearly imagine who will get the most out of this DC-DC charger.
Ideal Users and Scenarios
We would recommend it in particular for:
- RV and van builders who want a budget-friendly DC-DC solution for charging house batteries from an alternator
- Boat owners looking for a compact way to charge or maintain a secondary bank from a main DC system
- Off-grid enthusiasts who need to charge specific lithium or lead-acid packs from a DC bus
- DIYers and hobbyists comfortable with wiring and battery concepts, who want flexibility more than flashy features
If we fall into any of these categories and are fine with a hands-on installation approach, this product can be an excellent fit.
When We Might Want Something Else
On the other hand, we might consider different options if:
- We want a highly automated, brand-name DC-DC charger with full multi-stage charging profiles and advanced monitoring
- We are not comfortable performing manual wiring, voltage matching, and safety checks
- We need extremely high current (more than 15A) for very large battery banks, and want fewer individual modules
In those cases, higher-end automotive or marine DC-DC chargers or larger-scale power electronics might better suit our needs, albeit at higher cost.
Practical Tips for Getting the Most Out of This Charger
To wrap up our experience-based perspective, we can share a few practical guidelines that help us use this unit safely and effectively.
Match the Voltage to the Battery and Use a BMS
We should always:
- Verify our battery chemistry and recommended charge voltage
- Ensure our model/setting (e.g., 13.8V, 14.6V, 16.8V, or 12.6V) matches that
- Confirm that any lithium pack includes a proper BMS, especially for multi-cell configurations
This alone eliminates the majority of potential problems.
Size the Wiring and Fusing Correctly
For sustained 15A operation, we should:
- Use wire gauge appropriate for the run length (for example, 12 AWG or better for short runs, adjusting for our local standards and distances)
- Install fuses or breakers close to both the input source and the battery connection
- Periodically recheck all connections for tightness and corrosion
Good wiring practices dramatically increase safety and reliability.
Provide Adequate Cooling and Protection
To help the charger last:
- Give it some breathing room and avoid sealed, hot compartments if possible
- Keep it away from direct splashes, condensation, and chemical vapors
- Consider additional ventilation or a small fan in very warm installations
By treating it as a serious power component, we can enjoy dependable service over the long term.
Our Overall Verdict on the DC DC Battery Charger 10–36V 15A
Looking at everything together, we see this DC DC Battery Charger 10-36V 12V 24V to 14.6V 13.8V 16.8V 12.6V 15A Constant Current for Lead-acid Lithium Batteries Lifepo4 (12V24V TO 13.8V 15A) as a highly capable, flexible DC-DC charging module that shines in practical, real-world setups.
We appreciate:
- The wide 10–36V input range, making it adaptable to many DC sources
- The multiple output voltage options, covering lead-acid, LiFePO₄, and common lithium-ion packs
- The 15A constant current, which is strong enough for mid-sized systems but still manageable for wiring and safety
- Its value-oriented, functional design, focusing on the electronics rather than cosmetics
We also acknowledge:
- It is not a fancy, fully “smart” charger with multi-stage profiles and full automation
- It demands careful installation, correct voltage selection, and basic DC knowledge
For many of us working with RVs, marine systems, solar configurations, or DIY energy projects, this product strikes a strong balance of performance, cost, and flexibility. If we respect its technical nature and install it thoughtfully, it can become a reliable core component of our charging toolkit, handling lead-acid and lithium batteries with confidence.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
