JK Battery Equalizer 8S 10S 13S 16S Review – Best LiFePO4 Battery Chargers

Have we ever wished our lithium battery packs could be smarter, safer, and easier to manage without constant tinkering?

Table of Contents

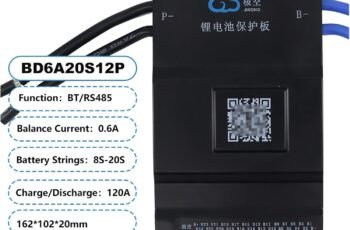

What Is the JK Battery Equalizer 8s 10s 13s 16s 36v 48v Circular Smart Jk Bms Lifepo4?

This JK Battery Equalizer and Smart BMS is an all‑in‑one battery management system designed for DIY Lifepo4 and 18650 lithium‑ion packs. We get active balancing, a dedicated JK mobile app, Bluetooth built in, CANBus communication, and a wide range of voltage and current support.

The specific variant we are looking at here is the “B1A24S15P, Build in BT” version, which means we get integrated Bluetooth, support for multiple series configurations, and an emphasis on active equalization and protection.

Key Features at a Glance

Before we go into the details, it helps to see the main points in one place. This product is not just a simple protection board; it is a smart controller aimed at serious DIY users and system builders.

Main Specifications and Capabilities

We can summarize the core specs and capabilities in this table:

Feature	Description
Product Type	Circular Smart JK BMS / Battery Equalizer
Supported Chemistries	Lifepo4, 18650 lithium‑ion packs
Series Cell Support	4S (12V), 8S (24V), 16S (48V), 24S (72V) depending on configuration
Supported Voltages	Around 12V, 24V, 36V, 48V, 72V class systems
Max Current Range	100A–350A (depending on model and system design)
Balancing Type	Active balancing (0.6–2A balance current)
Mobile App	JK Own Development APP (Android/iOS, with BT communication)
Communication	Built‑in Bluetooth, CANBus support
Protection Functions	Overcharge, over‑discharge, over‑current, short circuit, low‑temp cut‑off
Target Use	DIY solar storage, RV, camper, off‑grid, e‑mobility packs
Model Variant in Focus	B1A24S15P, with Built‑in Bluetooth (Build in BT)

The combination of high current support, active balancing, and real‑time monitoring makes this BMS a strong candidate for robust DIY power systems where we care about both performance and safety.

JK Own Development APP and Bluetooth Integration

The dedicated JK app is one of the biggest advantages of this unit. Instead of relying on generic third‑party tools, we get a first‑party app tailored around the features of the JK BMS.

Real‑Time Battery Status on Our Phone

With built‑in Bluetooth (BT) in this B1A24S15P version, we can check our battery status in real time directly from our smartphone. We do not need to open up enclosures or attach extra screens.

The app typically shows:

Per‑cell voltage readings
Pack voltage and current
Remaining capacity (SoC estimate)
Temperature readings (where sensors are used)
Charge/discharge state and protection status

This helps us quickly diagnose issues, catch early signs of imbalance, and confirm everything is functioning as intended.

Advanced BMS Settings Through the App

Because this is JK’s own app, it allows deeper configuration of BMS parameters. We can usually set:

Overcharge voltage and recovery thresholds
Over‑discharge voltage and recovery thresholds
Charge and discharge current limits
Temperature limits (including low‑temperature charging cut‑off)
Balancing start voltage or delta parameters

That level of configurability means we can tune the BMS to match our specific cells, whether we are using Lifepo4 prismatic cells or 18650 lithium‑ion in custom packs.

JK Active Balance: What It Is and Why It Matters

Instead of relying only on passive balancing (where excess energy is burned off as heat using resistors), this JK BMS uses an active balancing approach. Active balancing is a major selling point for anyone who wants long‑term reliability and efficiency.

How JK Active Balancing Works for Us

The BMS actively moves energy from higher‑voltage cells to lower‑voltage cells using electronic circuitry. With a balance current rated around 0.6–2A, the system is strong enough to handle larger capacity packs.

Active balancing offers us several advantages:

Much better energy utilization (claimed up to 99% usage efficiency)
Reduced heat generation compared with pure passive balancing
Faster equalization when cells are significantly out of sync
More consistent capacity across cells over the life of the pack

When we are working with 50Ah Lifepo4 or 18650 packs in substantial parallel groups (like 15P layouts), this stronger, active balance current is very useful.

Extending Battery Life Through Proper Balancing

When cells stay closer in voltage, they share load more evenly. That translates into less stress on the weakest cell and prevents early capacity loss.

By minimizing the voltage difference between cells:

We avoid over‑charging the higher‑voltage cells.
We prevent over‑discharging the lowest‑voltage cell in the pack.
We maintain usable capacity and cycle life over time.

For systems that are expensive to rebuild or hard to access, this extra protection can save us a lot of time and money.

Full Protection Suite: Keeping Our System Safe

Beyond balancing, this JK BMS offers the essential protections we expect from a modern battery management system. These are not optional; we need them if we care about safety and longevity.

Protection Against Overcharge and Over‑Discharge

We get:

Overcharge protection: cuts off charging if any cell exceeds the set high‑voltage limit.
Over‑discharge protection: stops discharging if any cell falls below the low‑voltage limit.

By accurately reading individual cell voltages, the BMS prevents conditions that degrade cells or create safety risks.

We can adjust these voltages in the app to match our cell specifications, especially important for Lifepo4 vs traditional NMC/NCA 18650 chemistries.

Over‑Current and Short Circuit Protection

High current capability (100A–350A range, depending on model) is great, but only if current is controlled. The BMS monitors pack current and will cut off if:

Discharge current exceeds the safe threshold
Charge current spikes too high
A short circuit is detected

This is crucial when we connect our pack to inverters, motors, or large DC loads that can produce significant surges.

Low Temperature Charging Cut‑Off

Charging lithium cells at low temperatures is one of the fastest ways to damage them. The JK BMS integrates low temperature charging cut‑off to better protect our pack.

With temperature sensors attached:

Charging will be disabled below a set temperature point.
Discharging may still be allowed within safe limits, depending on settings.

For off‑grid setups in cold climates or RVs that experience winter storage, this feature can make a big difference in long‑term cell health.

Supported Voltages and Configurations

This JK Battery Equalizer and Smart BMS is built to support a wide range of system voltages by handling multiple series counts. That flexibility is ideal for DIY builders who work with several types of packs.

Supported Series Configurations

The product description highlights support for:

4S (12V‑class Lifepo4 systems)
8S (24V‑class systems)
16S (48V‑class systems)
24S (72V‑class systems)

On top of that, the general title refers to 8s, 10s, 13s, 16s, with 36V and 48V ranges. In practice, this lineup covers the most common pack configurations used in:

Home energy storage and solar battery banks
E‑bikes, e‑scooters, and mobility devices (36V, 48V packs)
RV, camper, and marine house batteries (12V, 24V, 48V Lifepo4)
Light off‑grid cabins and backup power systems

We just need to select the specific JK BMS model that matches our series count and current requirement, then configure it correctly through the app.

Current Handling: 100A to 350A

With current capability ranging from around 100A to 350A (depending on version), we can build packs for:

Medium‑power solar systems with 1–3 kW inverters
Higher‑current inverters or motor controllers for traction uses
Parallel pack setups where each pack feeds a share of total current

We should always confirm the exact rating of the model we choose and ensure our wiring, fuses, and busbars are appropriately sized.

Active Balance Current: 0.6–2A in Practice

The balance current of 0.6–2A is one of the standout numbers in the description. Many cheaper BMS boards offer only a few hundred milliamps of passive balancing at best.

Why 0.6–2A Matters for Larger Packs

For packs in the 50Ah range or higher, especially when we build, for example, 24S15P setups or similar, imbalances can be fairly large after many cycles. A low‑current balancer can take ages to correct a few hundred millivolts of difference.

With up to about 2A of active balance current, we get:

Faster balancing after assembly or reconfiguration
Quicker recovery from partial imbalances caused by varied loads
Reduced time at high pack voltage while balancing completes

We still want to build packs using well‑matched cells from the start, but this strong balancing capacity gives us more headroom as the pack ages.

Design and Build Quality: Unique Circular Smart Layout

The product is referred to as a “Circular Smart JK BMS,” which hints at a unique physical design compared to typical rectangular BMS boards. That can be beneficial for certain pack layouts and enclosures.

Unique Design for Practical Safety

A thoughtful design can influence:

Heat distribution and dissipation under high current
Wiring convenience around the periphery of the pack
Mounting options in tight or unconventional spaces

JK emphasizes “UNIQUE DESIGN” and the importance of choosing the right protection board. That tells us they are targeting more advanced DIY users who care about proper integration, not just cheapest‑possible boards.

A well‑designed board layout with clear labeling, good connector placement, and adequate clearances helps reduce wiring mistakes—a major safety factor for high‑energy packs.

Using the JK Smart BMS in DIY Systems

This BMS is marketed directly at DIY system builders. The wide series support, strong active balancing, and the app all suggest that we are the primary audience: hobbyists, tinkerers, and independent installers.

Typical Use Cases

We can imagine using this BMS in setups such as:

A 48V Lifepo4 home battery bank connected to a hybrid inverter
A 24V or 48V RV battery system with solar charging and DC loads
A 36V or 48V 18650 pack for a mobility device or e‑bike style build
A 72V Lifepo4 traction pack for custom vehicles (with the right model)

The key is to match:

The series count (4S/8S/16S/24S or 8s/10s/13s/16s)
The maximum continuous current and surge current
The chemistry settings (Lifepo4 vs typical NMC/NCA 18650)

Once wired and configured, the JK app allows us to keep an eye on performance and adjust as our system evolves.

DIY‑Friendly, but Not Beginner‑Only

We should be clear: this is a capable BMS that rewards a bit of technical understanding. We are dealing with high currents and significant stored energy.

We should be comfortable with:

Reading wiring diagrams and connection order
Using proper crimping, busbars, and fusing
Verifying polarity and cell sequence before power‑up
Configuring parameters in the app according to our cells’ datasheets

If we are new to lithium battery building, we may want to start with smaller packs or seek guidance from experienced builders before committing to large high‑voltage, high‑current assemblies.

CANBus and System Integration

The BMS supports CANBus, which is increasingly important in more advanced setups. This lets us connect the pack to higher‑level controllers or inverters that can read data directly.

Why CANBus Support Helps Us

With CANBus, our system can:

Share pack voltage, current, and SoC with compatible inverters or chargers
Enable smarter charge control and load management
Potentially log data for diagnostics or performance tracking

If we are building a more integrated system—especially anything that might need to talk to other smart components—this communication option is a big plus over cheaper BMS boards that only offer a basic UART or a simple Bluetooth interface.

Safety Considerations When Using This BMS

Even the best BMS cannot compensate for dangerous wiring or misuse. We need to approach installation carefully and respect the energy our pack holds.

Choosing the Right Protection Board and Using It Properly

The manufacturer highlights that selecting the right protection board and applying it properly is “vital to the longevity of your batteries.” We completely agree. We should:

Choose a JK BMS model that matches or exceeds our current and voltage needs.
Ensure our cable sizes, lugs, and busbars are sized for the peak current.
Use proper fusing on both charge and discharge paths.
Mount the BMS in a way that allows safe heat dissipation.

If we respect these basics, the BMS can then do its job: prevent over‑charge, over‑discharge, and thermal or current‑related damage.

Respecting Limits and Configuring Correctly

We also need to set sane parameters in the app:

Follow cell manufacturers’ recommended voltage limits.
Set temperature cut‑offs that reflect our climate and use.
Avoid pushing the pack to its maximum rated current continuously if not needed.

Proper configuration can be the difference between a safe, long‑lasting pack and one that causes problems after only a few months.

Day‑to‑Day Experience: What It Feels Like to Use

Living with a smart BMS like this is quite different from using basic protection boards or no BMS at all. The main difference is visibility and control.

Monitoring Without Guesswork

Instead of guessing pack health from a single voltage reading, we can:

Open the app and see each individual cell voltage.
Track how well balancing is working over time.
Watch for trends like a cell consistently lower than the rest.

This kind of visibility reduces anxiety around “battery mysteries” and helps us make informed decisions, like when to re‑cell, re‑configure, or investigate wiring issues.

Adjusting Settings as Our System Evolves

If we later add more solar, change our inverter, or switch usage patterns, we can adjust:

Charge limits to be gentler for extended lifespan.
Discharge current limits if we connect more demanding loads.
Balancing behavior for packs that show particular quirks.

That flexibility extends the usefulness of the BMS across multiple builds and upgrades.

Pros and Cons of the JK Smart BMS and Equalizer

To keep our expectations grounded, it is worth looking at strengths and trade‑offs side by side.

What We Appreciate About This Product

We see several notable advantages:

Active balancing (0.6–2A) helps keep cells well‑matched, especially in larger packs.
Full protection set (overcharge, over‑discharge, over‑current, short circuit, low‑temp cut‑off) covers our safety basics.
Wide voltage and series support allows us to use one product line in many types of builds.
High current capability (100A–350A) makes it suitable for more serious power systems.
Dedicated JK app with built‑in Bluetooth gives us convenient monitoring and control.
CANBus support opens the door for integrated, smart power systems.
Unique circular design can be handy for certain pack layouts where space or shape is an issue.

Together, these features make the BMS suitable for ambitious DIY builds rather than just small hobby packs.

Potential Limitations We Should Keep in Mind

We also need to be realistic:

Installation complexity is higher than with simple plug‑and‑play batteries; we must wire and configure it correctly.
Not aimed at total beginners; a learning curve exists if we have never used a smart BMS or built packs before.
Specific model selection (8S, 10S, 13S, 16S, 24S, current rating) must be done carefully; picking the wrong variant can limit us.
App‑dependence for configuration means we rely on the JK app being available and working well on our devices.

These are not necessarily flaws of the product; they are just part of the reality of working with sophisticated, configurable BMS hardware.

Comparison With Simpler BMS Boards

When we compare this JK Battery Equalizer and Smart BMS with basic “no‑name” boards, the differences are substantial in function, not just price.

Why We Might Choose This Over a Cheaper Passive BMS

With a simple low‑cost passive BMS, we typically get:

One‑time factory‑set voltage thresholds (not adjustable).
Very weak passive balancing, often a few dozen to a few hundred milliamps.
No app, no Bluetooth, no CANBus.
Minimal visibility into cell voltages or pack history.

By contrast, the JK Smart BMS offers:

Configurable, smart protections matched to our exact chemistry and pack.
Active balancing up to around 2A.
Real‑time app monitoring and parameter setting.
More robust handling of higher current and more complex systems.

If our goal is a serious system we plan to rely on for years—especially with expensive cells—spending more for this level of protection and control is usually worth it.

Installation Tips and Best Practices

Because this product can be central to our system, we should approach installation methodically. A few guidelines can make the process smoother.

Planning Our Pack and Wiring

Before we connect anything, we want to:

Decide on our series and parallel configuration (e.g., 16S15P Lifepo4).
Verify that the specific JK BMS variant supports that series count and current.
Layout our cells and the BMS in a way that allows clean and short wiring paths.

We should also consider how we will access the BMS and its Bluetooth antenna once everything is enclosed, so we maintain good connectivity for the app.

Following Proper Connection Order

Most BMS manufacturers—including JK—recommend a strict order for connecting:

Balance leads to each cell in the correct sequence.
Negative main lead to the pack negative.
Positive and negative connections to load and charger as directed.

We should always consult the wiring diagram provided with the BMS and verify polarities with a multimeter. A wrong connection, especially in high series count packs, can damage the BMS or cells.

Initial Configuration and Testing

Once everything is wired:

Connect through Bluetooth with the JK APP.
Set voltage, current, and temperature limits according to our cells’ datasheet.
Confirm that each cell voltage is read correctly and in order.
Start with low‑current testing to ensure protections are working.

Only after confirming basic behavior should we ramp up to full load and charging currents.

Who This JK Smart BMS Is Best Suited For

Not every user needs this level of sophistication, but for certain types of projects, this BMS fits very well.

Ideal Users and Projects

We think this product is particularly suited to:

DIY solar and off‑grid enthusiasts building custom battery banks.
RV and camper owners upgrading to Lifepo4 systems with significant loads.
Makers and engineers assembling 36V, 48V, or 72V packs from 18650 cells.
Anyone who wants per‑cell visibility and is willing to configure settings.

If we treat our battery pack as a critical part of a larger system, with future expansion and integration in mind, the JK Battery Equalizer and Smart BMS gives us a strong foundation.

When a Simpler Solution Might Suffice

If we only need:

A small, low‑power pack
A simple drop‑in replacement battery
Minimal configuration and no deeper monitoring

Then a prebuilt battery with an integrated basic BMS or a simple low‑cost board might be enough. This JK BMS is more of a long‑term, advanced option.

Long‑Term Value and Battery Longevity

Investing in a smart BMS only really makes sense if it meaningfully extends pack life and reliability. The active balancing and configurable protections are designed with exactly that goal.

Protecting Our Investment in Cells

High‑quality Lifepo4 or 18650 cells are not cheap. A single pack can represent a significant investment. With this BMS:

Over‑charge and over‑discharge are actively prevented.
Low‑temperature charge is blocked, preventing plating and damage.
Imbalances are corrected aggressively before they get out of hand.

If those features allow our pack to last hundreds or even thousands more cycles, the BMS can pay for itself several times over.

Reducing Maintenance and Surprises

We are far less likely to encounter “sudden” pack failures if we:

Regularly check the app for trends.
Allow balancing to do its work at high states of charge when needed.
Respond early to any cell that behaves differently.

Instead of a black‑box pack that one day loses capacity unexpectedly, we get a transparent system where we can see problems brewing long before they become critical.

Final Thoughts: Is the JK Battery Equalizer and Smart JK BMS Right for Us?

If we want a robust, configurable, and actively balancing BMS for Lifepo4 or 18650 lithium‑ion packs in the 12V–72V range, this JK unit stands out as a powerful tool. The “JK Battery Equalizer 8s 10s 13s 16s 36v 48v Circular Smart Jk Bms Lifepo4 for 50ah 18650 Lithium Ion Battery with Canbus Boar (Color: B1A24S15P, Size: Build in BT)” combines:

Strong active balancing (0.6–2A)
Comprehensive protection features
Wide current and series support
A dedicated app with real‑time monitoring
Bluetooth and CANBus communication
A distinctive, practical design for serious DIY work

For those of us building or upgrading substantial lithium packs—especially where safety, longevity, and system integration matter—this BMS offers the kind of control and visibility that passive boards simply cannot match.

If we are ready to treat our battery system as an engineered component rather than a mystery box, this JK Smart BMS is a compelling core piece for our next project.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
