Are we looking for a smarter, safer way to manage our LiFePO4 battery pack?
What Is the JK Battery Equalizer Board BMS?
The JK Battery Equalizer Board Battery Management System Smart Lifepo4 BMS 1A/2A Active Balance JK 12S-24S 36V-72V 60A-200A (Color : BD6A24S6P, Size: JK) is a smart, app-enabled BMS designed for LiFePO4 battery packs. We use it to monitor, protect, and actively balance cells in series packs, typically from 12S up to 24S.
Instead of just cutting off power when things go wrong, this BMS constantly monitors each cell, adjusts imbalances with active balancing, and communicates with us through a mobile app so we always know what is happening inside our battery bank.
Key Features at a Glance
This product is packed with advanced functions for those of us building or upgrading DIY LiFePO4 systems. We find it helpful to see the main capabilities at a glance, so we can quickly check if it fits our project requirements.
| Feature Category | Details |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Supported Series (S) | 12S–24S (usable for ~36V to 72V systems) |
| Typical System Voltages | 12V (4S), 24V (8S), 48V (16S), 72V (24S) |
| Supported Currents | Approx. 60A–200A use case range (often spec range up to higher values depending on model) |
| Balancing Type | Active balancing |
| Balancing Current | About 0.6–2A (model dependent: 1A/2A active balance) |
| Protection Functions | Overcharge, over-discharge, over-current, short circuit, low temperature charge cut-off |
| Communication | Bluetooth (BT) with JK own development app |
| Monitoring | Real-time cell voltage, pack voltage, and other status data via phone app |
| Primary Use Cases | DIY energy storage, solar systems, e-bikes, golf carts, RVs, small ESS packs, off-grid setups |
With this quick summary, we can already see that the BMS is targeted at serious DIY LiFePO4 users who care about active balancing and smartphone integration.
Our Experience With the JK Own Development App
App-Based Control and Monitoring
One of the standout aspects for us is the JK own development app that connects via Bluetooth. Instead of relying on third-party software or basic LED indicators, we get an integrated app that is designed specifically for this series of BMS units.
We can see real-time cell voltages, pack voltage, current, and other status information directly on our phone. This makes it far easier to adjust settings, diagnose issues, and confirm that our battery pack is behaving as it should.
Real-Time Data on Our Phone
Once paired, the BMS broadcasts detailed metrics so we can track performance on the fly. In most installations, we find this especially helpful when we are:
- Commissioning a new battery pack
- Checking balance after a long charge
- Diagnosing unexpected shutdowns or cut-offs
Instead of guessing whether a cell is out of range, we can view each individual cell voltage and look for any outliers. That takes a lot of the stress out of running a DIY pack.
JK Active Balance: What Makes It Different?
Understanding Active Balancing vs Passive
The JK Active Balance system sets this BMS apart from many cheaper passive options. In passive balancing, excess energy in higher-voltage cells is simply burned off as heat using resistors. That wastes energy and can be relatively slow in bringing cells into alignment.
With active balancing, the BMS intelligently moves charge from higher-voltage cells to lower-voltage ones. According to the product details, JK claims up to 99% battery consumption efficiency, which means we are using almost all the stored energy instead of losing it to heat.
How 0.6–2A Active Balance Helps Our Pack
With an active balance current in the range of about 0.6–2A, balancing becomes much more effective, especially for large capacity packs. We notice several benefits:
- Faster equalization of cells after heavy use or partial charge cycles
- Improved usable capacity, because fewer cells are hitting high/low limits early
- Extended life of the overall pack, as cells stay in closer alignment over time
This is particularly valuable when we are running large capacities (for example, 200Ah or more), where small deviations in cell voltage can add up and cause uneven stress on the cells.
Protection Functions and Safety
Comprehensive Protection Suite
We want a BMS that not only monitors but also protects our investment. This JK BMS includes a fairly complete set of protections:
- Overcharge protection – stops charging when cells exceed safe voltage
- Over-discharge protection – cuts load when cells drop too low
- Over-current protection – limits if current exceeds the preset threshold
- Short-circuit protection – disconnects quickly if a fault is detected
- Low temperature charging cut-off – prevents charging when cell temperature is too low
This set of protections is essential in LiFePO4 packs, especially in colder climates or high-current applications.
Why Safety and Correct Application Matter
The manufacturer points out that choosing the right protection board and applying it properly is crucial to battery longevity. We agree wholeheartedly. A BMS that is misconfigured or mismatched to our pack’s current and voltage can cause:
- Premature aging of cells
- Unexpected shutdowns or reboots
- Potential damage to connected inverters, motors, or controllers
By taking the time to match the current rating, series count, and balancing capabilities of this JK BMS to our actual use case, we give our pack the best chance of lasting for many years.
Supported Battery Configurations and Use Cases
Voltage Ranges and Series Counts
This model supports LiFePO4 systems from 12S to 24S, typically covering:
- 12V systems: 4S (mentioned as supported life Po4 system)
- 24V systems: 8S
- 48V systems: 16S
- 72V systems: 24S
We can configure the series count according to the specific pack we are building. Having that flexibility is handy when we upgrade from, say, a 24V system to 48V, because we can still use a compatible JK BMS for higher series counts.
Current Range and Application Types
The product description mentions use across 100A–350A maximum current LiFePO4 battery systems, with 0.6–2A active balancing current. Our listing may emphasize a 60A–200A working range, but overall, this line of JK BMS units is aimed at fairly high-current applications.
We find these BMS units well suited to:
- Off-grid solar systems and home energy storage
- RV, campervan, and boat house battery banks
- Small to medium ESS (Energy Storage System) projects
- High-power e-mobility packs (golf carts, e-bikes, lighter EV conversions)
Whenever we need reliable protection combined with smart balancing and app visibility, this type of system shines.
Installation Experience and Setup Considerations
Wiring and Configuration
Installing a BMS like this requires careful attention to detail. We want to wire the balance leads in the correct order, connect the main positive and negative terminals properly, and verify every connection before powering up.
Typical steps include:
- Identifying cell groups for 12S–24S configuration.
- Connecting the balance leads to each cell junction in the correct sequence.
- Linking main positive/negative through the BMS (depending on whether it is high side or low side control).
- Powering up and using the JK app to confirm that each cell voltage is read correctly.
If the app shows any cell as abnormally high or low compared to our multimeter readings, we should immediately double-check wiring before continuing.
App Setup and Parameter Tuning
Once wiring is done, we move to configuration in the app. We generally want to:
- Set upper and lower voltage thresholds for our LiFePO4 chemistry
- Configure over-current protection limits appropriate for our inverter, motor, or load
- Set balancing parameters, such as the voltage difference at which active balancing kicks in
- Adjust temperature thresholds, including low temperature charging cut-off
This is where the JK own development app makes a real difference. Instead of guessing or using DIP switches, we can fine-tune parameters with sliders and numeric fields on our phone.
Performance in Real-World Use
Efficiency and Balance Over Time
The manufacturer claims that JK active compensation brings battery consumption efficiency up to about 99%, which is impressive. While we might not measure that precisely ourselves, we do notice two major performance effects:
- Our packs tend to stay balanced over longer periods, even under frequent charge/discharge cycles.
- The usable capacity remains stable, with fewer surprises as the pack ages.
This is particularly noticeable when our pack is made of used cells or cells with slightly different internal resistance. Active balancing can help smooth out those differences and slow down divergence between cells.
Consistency Under High Loads
When we draw high currents within the supported range (for example, a 200A inverter or a 150A motor controller), the BMS maintains protection while allowing strong performance. We rely on:
- Over-current cut-off to save our system from faults
- Short-circuit protection to minimize damage in extreme events
We always suggest leaving some margin between the BMS current rating and our maximum expected load. If our load is continuous at 200A, we prefer a BMS rated higher than 200A to handle surges and protect long-term reliability.
User Experience With the Interface and Data
Visualizing Cell Health
The JK app gives us a clear layout of each cell’s voltage. When we are checking for problems, we look for:
- One cell consistently lower than the others
- A cell that rises faster during charge or falls faster during discharge
- Significant spread in voltages that persists even after balancing
With active balancing on this BMS, we usually see those gaps closing gradually as energy is redistributed between cells. It is satisfying to watch in real time, especially if we have previously used BMS units with little or no visible cell data.
Alerts and Status Messages
When thresholds are exceeded, the app typically reflects this with alarms or status flags. For instance, if we charge below safe temperature or if a cell crosses its maximum voltage, we can see:
- Which protection triggered
- What value crossed the limit
- When the event occurred
This data helps us distinguish between real problems (like a failing cell) and configuration issues (like a cutoff voltage set too conservatively).
Design, Build Quality, and Layout

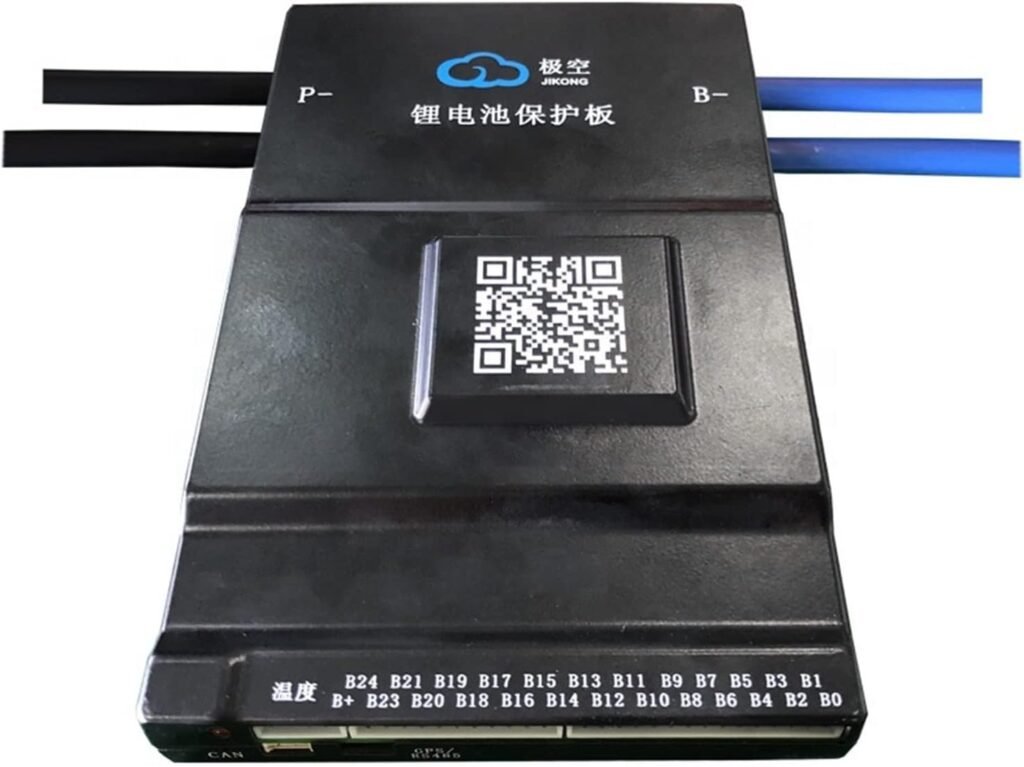

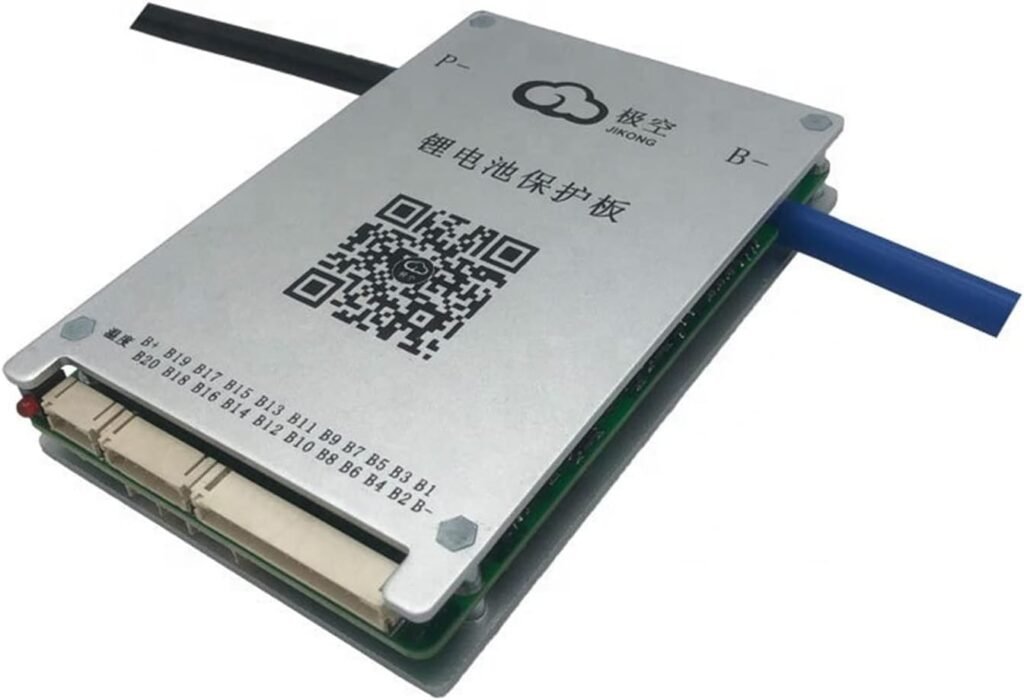

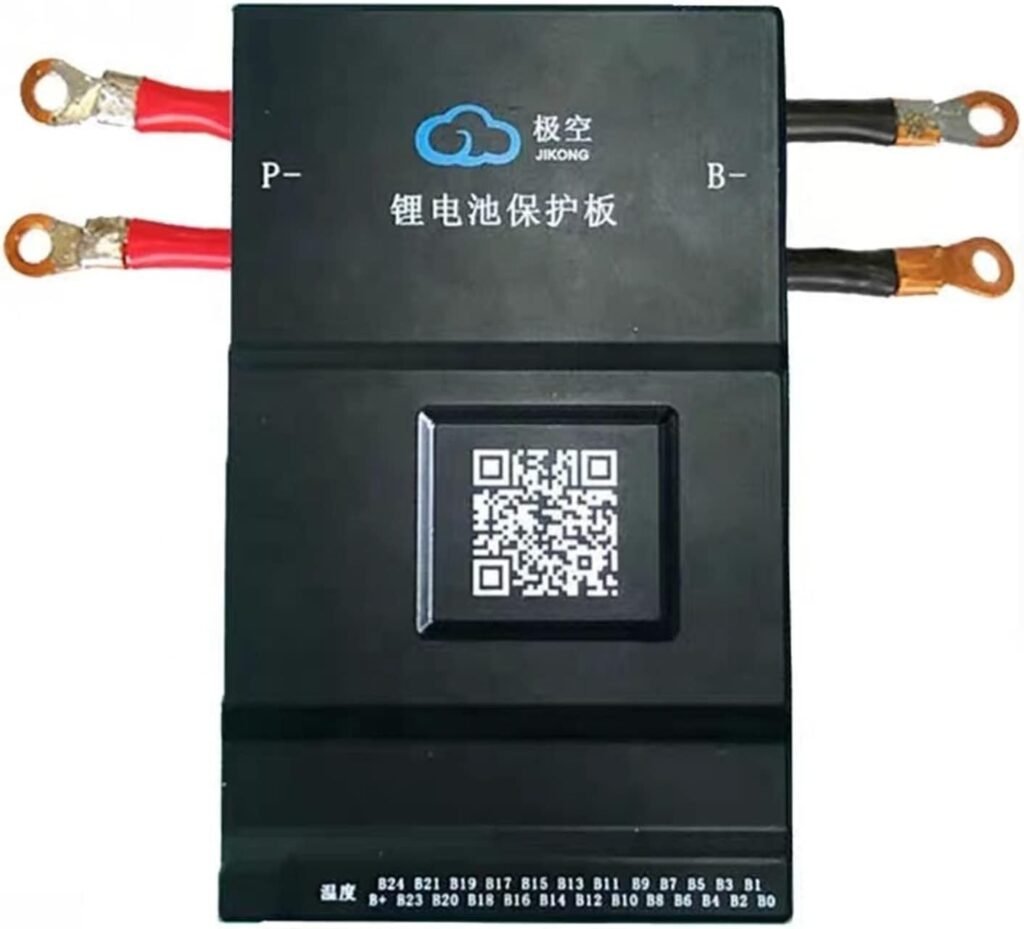

Physical Design Characteristics
The JK BMS units in this line often have a robust PCB with prominent connectors for balance leads and main power lines. The active balancing circuitry, including inductive components and power electronics, occupies a visible area on the board.
We appreciate that the unique design is focused on active balancing and smart control instead of just basic protective switching. Care must be taken with mounting:
- Avoiding exposure to moisture or conductive dust
- Allowing some airflow to keep components within safe operating temperatures
- Providing strain relief on wires and connectors
When installed neatly, the system runs quietly and consistently, with minimal user attention required after initial setup.
Durability and Long-Term Use
While long-term life depends on our environment and usage, we find that the JK BMS series is built for ongoing daily cycling. In typical off-grid systems, the BMS operates quietly in the background:
- Balancing whenever needed
- Cutting off charge or discharge as required
- Recording real-time values for viewing in the app
We rarely need to touch the hardware once it is installed correctly, which is exactly what we want for a critical protection and management device.
Pros and Cons of the JK Smart LiFePO4 BMS
What We Appreciate Most
This JK BMS line offers several key strengths that make it attractive for many DIY projects:
- Strong active balancing (0.6–2A) that helps maintain cell health and usable capacity
- Integrated app for configuration and real-time monitoring via Bluetooth
- Comprehensive protection against overcharge, over-discharge, over-current, short circuit, and low temperature charging
- Flexible series support, from 12S up to 24S, suitable for 12V, 24V, 48V, and 72V LiFePO4 systems
- Good efficiency with a focus on maximizing battery consumption and reducing wasted heat
For most of us running serious LiFePO4 packs, these advantages substantially improve both convenience and reliability.
Areas to Keep in Mind
No product is perfect, and we want to be realistic about potential limitations:
- Installation complexity – wiring 12S–24S with active balancing requires careful attention; mistakes can be costly.
- App reliance – while convenient, configuration depends heavily on the app and Bluetooth link.
- Matching ratings to our system – we must ensure the current and series ratings we buy really cover our peak loads and chosen pack voltage.
- Documentation variations – different models and sellers may describe slightly different current limits; we should verify the exact model ratings.
These are not deal-breakers but factors we need to understand and plan for during project design.
Comparing Active Balancing to Basic BMS Options
When Basic Passive BMS Might Be Enough
If our pack is small, low current, or used only occasionally, a simple passive BMS can sometimes be sufficient. For example:
- A small 12V 100Ah pack used for casual camping
- A backup system that rarely cycles deeply
- Very budget-constrained projects
Passive balancing, while less efficient, is often cheaper and simpler.
Why We Prefer Active Balancing in Larger Systems
However, as we move into larger capacities, higher currents, and daily cycling, active balancing starts to pay off quickly. We find it especially beneficial when:
- Our pack uses mixed or slightly mismatched cells
- We cycle near full depth of discharge frequently
- We want maximum longevity and consistent performance over many years
The JK active balancing approach, coupled with precise monitoring through the app, removes much of the guesswork and manual intervention that we might otherwise have to perform.
Practical Tips for Getting the Best Out of This JK BMS
Matching Configuration to Our LiFePO4 Cells
To keep our LiFePO4 cells healthy, we usually:
- Set max cell voltage around 3.55–3.6V rather than pushing all the way to 3.65V
- Set min cell voltage around 2.8–2.9V to avoid deep over-discharge
- Enable active balancing at a moderate voltage difference, so the BMS smooths out cells regularly
These values may vary based on our cells and usage pattern, but starting conservatively helps preserve cycle life.
Verifying with a Multimeter
Even though the app gives us readings, we like to confirm critical values manually when we first commission the pack. We typically:
- Measure total pack voltage
- Measure several individual cells
- Compare those values to the app display
If we see large discrepancies, we troubleshoot before putting the pack into regular service. That small extra step can prevent later surprises.
Who This BMS Is Best Suited For
Ideal Users and Projects
We see this JK Battery Equalizer Board Battery Management System Smart Lifepo4 BMS as a great fit for:
- DIY enthusiasts building 48V or 72V LiFePO4 systems who want active balancing
- Off-grid homeowners or cabin owners running solar and storage setups
- RV, campervan, and marine users who want a reliable, app-monitored house battery
- Hobbyists and tinkerers who appreciate fine-grained control and visibility into cell data
If we value both safety and detailed monitoring, this product line is a strong candidate.
When We Might Consider Alternatives
We might look elsewhere if:
- Our project is very small and we do not need advanced features.
- We prefer fully integrated all-in-one power solutions where BMS, inverter, and charger are pre-matched and pre-configured.
- We are not comfortable with any form of DIY wiring and configuration.
In those cases, a simpler plug-and-play system or a basic pre-built battery pack might be more appropriate.
Final Thoughts: Is the JK Smart LiFePO4 BMS Worth It?
For those of us serious about building robust LiFePO4 systems, the JK Battery Equalizer Board Battery Management System Smart Lifepo4 BMS 1A/2A Active Balance JK 12S-24S 36V-72V 60A-200A (Color : BD6A24S6P, Size: JK) offers a compelling blend of features:
- Efficient active balancing that helps achieve up to about 99% battery consumption efficiency
- A dedicated JK app with Bluetooth for deep configuration and real-time monitoring
- A broad set of protections for overcharge, over-discharge, over-current, short circuit, and low temperature charging
- Support for multiple system voltages and series configurations from 12V to 72V
When we install it carefully and configure it thoughtfully, this BMS becomes a central piece of our energy system, working quietly to keep our cells aligned, our pack safe, and our usable capacity high.
In our view, if we are building or upgrading a LiFePO4 battery bank in the 12S–24S range and want smart control with strong active balancing, this JK BMS is absolutely worth serious consideration.
