Have we ever wished our DIY lithium battery system felt as smart, safe, and efficient as a high-end commercial battery pack?
Our Hands-On Impression of the JK Battery Equalizer JK BMS Smart BMS
When we first looked at the JK Battery Equalizer JK BMS Smart BMS 8S Lifepo4 200A BT Heating Function RS485 Lithium Battery Balance Board BMS 20S 12V 24V with Blancer, we were curious whether it truly matched the claims: active balancing, app control, RS485 communication, and solid protection. After going through the features in detail, we found that this BMS aims squarely at serious DIYers and off‑grid users who want more than a basic protection board.
This is not just a simple cutoff board; it is more of a smart energy manager for lithium iron phosphate (LiFePO4) packs. With support for up to 24 cells in series (depending on model), active balancing up to around 2A, and current ratings up to 350A in the broader JK line, it is clearly built for robust systems.
Key Features at a Glance
We like starting with a quick summary of what the product brings to the table. This helps us decide quickly whether it fits our needs before digging into the details.
| Feature Category | What It Offers | Why It Matters |
|---|---|---|
| Supported Chemistries | LiFePO4 (primary focus) | Perfect for modern solar and storage systems |
| Series Cell Support | 4S (12V), 8S (24V), 16S (48V), 24S (72V) depending on version | Works across common DIY voltages |
| Current Rating | 100A–350A variants (product listing highlights 200A) | Suitable for inverters, RVs, golf carts, small EVs, and powerwalls |
| Balancing Type | Active balancing, 0.6–2A | Faster, more efficient balancing than passive systems |
| Communication | Bluetooth + RS485 | Phone app monitoring and integration potential |
| Protection Functions | Overcharge, over-discharge, over-current, short circuit, low temp charge cut | Extends battery life and enhances safety |
| App Support | JK’s own dedicated app | Real-time monitoring and parameter control |
| Heating Function | Heating support (where model includes it) | Helps with low-temperature operation (with proper hardware) |
This combination of features positions the JK BMS as a serious option for anyone building a DIY battery bank, particularly with LiFePO4 cells.

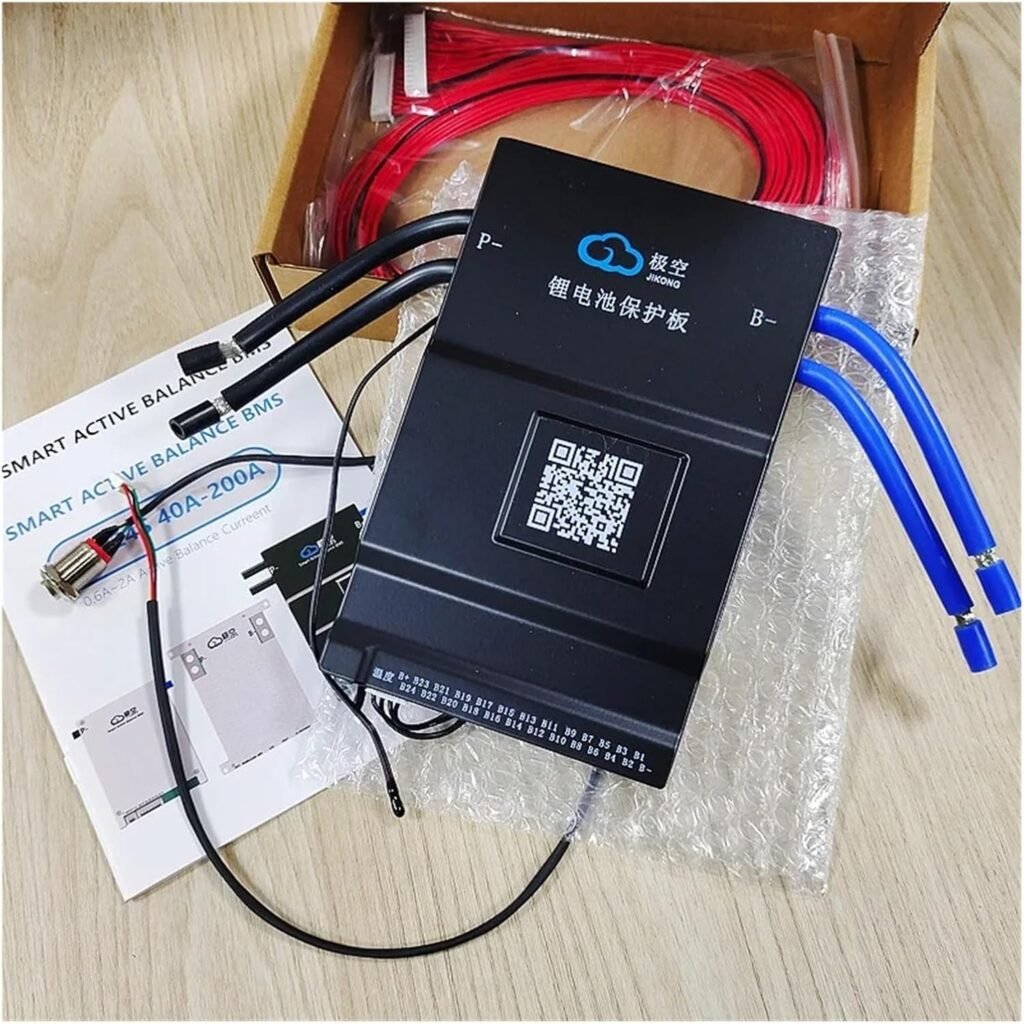

Design and Build Quality
We care a lot about how a BMS is physically put together, because it will sit at the heart of our battery system for years. The JK BMS tends to be built on a sturdy PCB with heavy copper traces and solid terminals. Models targeted at higher current ratings, such as 200A or more, usually come with robust screw terminals or heavy leads to handle the load.
From a layout perspective, the JK boards are often clearly labeled for cell connections and communication ports. When we wire up multiple series cells (8S, 16S, or 24S), the labeling and layout matter a lot to prevent wiring mistakes, so we appreciate clear markings.
The inclusion of RS485 and Bluetooth on the board demonstrates that JK is aiming for smart, integrated systems, not just the bare minimum protective function.
Compatibility With 12V, 24V, 48V, and 72V Systems
One of the strengths of this product line is versatility. Depending on the specific JK BMS model we choose, we can build packs at various voltages.
Supported System Configurations
We like that the same general control philosophy works across several common voltages, and we can scale up our system without relearning everything from scratch.
| System Voltage | Example Series Count | Typical Use Cases |
|---|---|---|
| 12V (approx.) | 4S LiFePO4 | RV systems, small backup power, marine, carts |
| 24V (approx.) | 8S LiFePO4 | Larger RVs, small inverters, small solar |
| 48V (approx.) | 16S LiFePO4 | Home solar, powerwall-style systems |
| 72V (approx.) | 24S LiFePO4 | High-voltage applications, some light EVs |
Because the JK BMS family supports 4S, 8S, 16S, and 24S configurations, we can pick the exact series count we need. The product listing we are discussing specifically calls out 8S LiFePO4 200A as an example, but the same logic applies across their 4S–24S offerings.

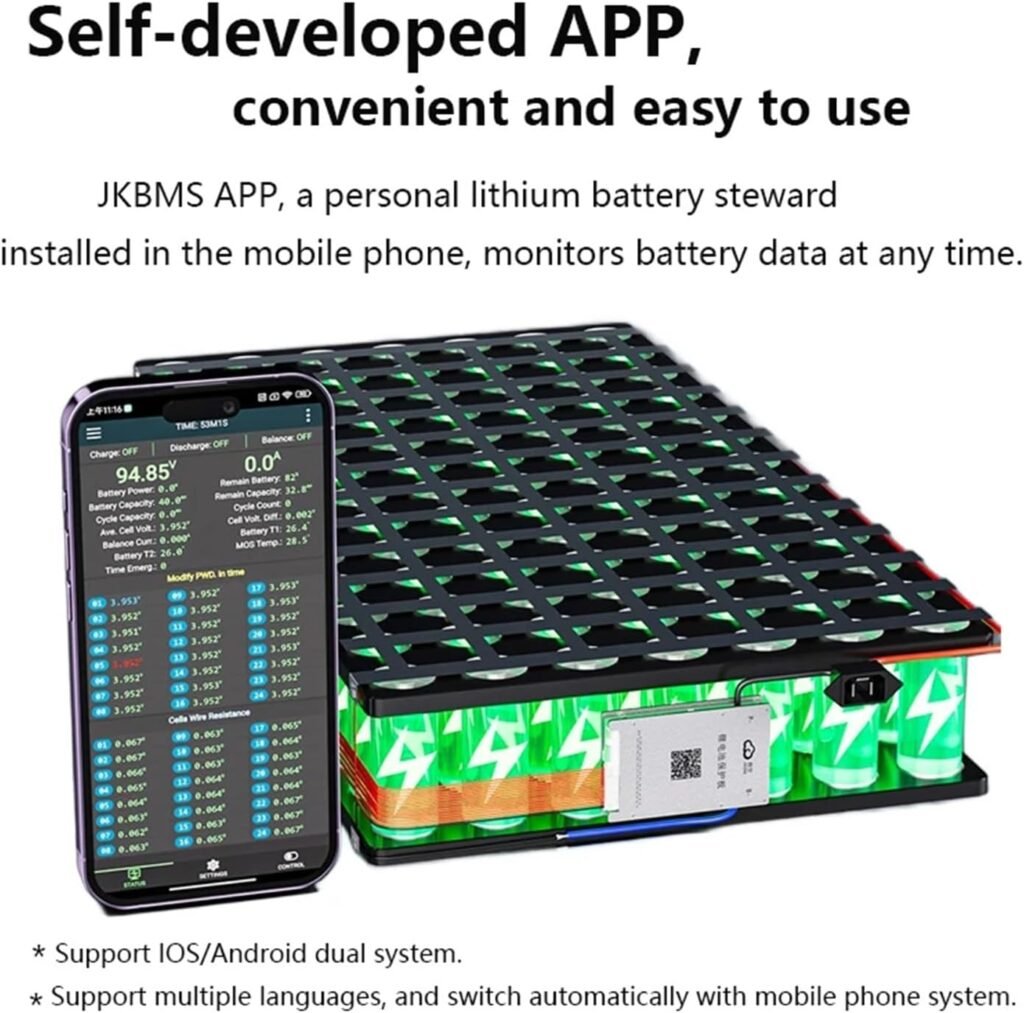

JK’s Dedicated App and Bluetooth Communication
We appreciate having a real app that gives us access to real-time data, rather than relying only on tiny displays or guesswork. The JK BMS comes with its own dedicated app, which connects via Bluetooth, letting us monitor and tune the battery directly from our phone.
What We Can See in the App
The app enables us to see:
- Per-cell voltages
- Pack voltage
- Charge and discharge current
- State of charge (SOC) estimation
- Temperature readings
- Balancing status and activity
- Alarms and protection status
Being able to check cell balance and temperatures from our phone reduces the need for multimeters and ad-hoc measurement tools. It provides a more professional feel, especially when we run a larger bank.
Configurable Parameters
Another big benefit is that we can often configure:
- Overcharge and over-discharge voltages
- Charge and discharge current limits
- Temperature cutoff points
- Balancing start voltage
- Various protections and triggers
Having this control means we can tailor the behavior to our exact cells and use case, instead of living with generic, hardcoded values.
RS485 Communication for Advanced Integrations
While Bluetooth is great for quick checks, RS485 is the gateway to more advanced integration. For off-grid installations, home automation, or industrial projects, we might want to pull data into an inverter, a PLC, a monitoring server, or a custom microcontroller system.
RS485 is:
- Robust over longer distances
- Widely used in industrial and energy systems
- Often compatible with protocols like Modbus (depending on firmware and documentation)
We like that the JK BMS does not lock us into only using the phone app; RS485 gives us a path to more complex, automated systems. For example, we can:
- Feed battery data into a home energy management system
- Log long-term performance and degradation
- Automate generator start/stop based on battery state
- Coordinate multiple packs in parallel (where supported and designed correctly)
Active Balancing: Why It Matters
This is one of the main reasons many of us choose the JK BMS over basic alternatives. Instead of just burning off extra energy from higher-voltage cells through resistors (passive balancing), the JK BMS uses active balancing.
How Active Balancing Works in This BMS
In an active balancing system, the BMS can transfer energy from a higher-voltage cell to a lower-voltage one or to the pack, instead of wasting it as heat. In practical terms:
- The JK BMS can shift significant current between cells (0.6–2A depending on conditions and model).
- Balancing can start at lower voltage differences and continue more efficiently.
- Balancing is not restricted to tiny current levels; it can work faster and more effectively.
This results in:
- More even cells across the entire pack
- Less wasted energy during balancing
- Higher usable capacity over the life of the pack
- Longer cell life, because no individual cell gets regularly overworked or overcharged
Compared with small, purely passive BMS boards, this is a big step up, especially for high-capacity DIY banks using large prismatic LiFePO4 cells.
Protection Features and Battery Safety
We always prioritize safety with lithium batteries, and a BMS is our main line of defense. The JK Battery Equalizer JK BMS Smart BMS provides a comprehensive protection suite, which is essential for long-term reliability and peace of mind.
Overcharge and Over-Discharge Protection
The BMS monitors each cell in the series and does the following:
- Overcharge protection: When a cell reaches its configured high voltage limit, the BMS will stop charging and protect the cell from dangerous over-voltage conditions.
- Over-discharge protection: When a cell’s voltage falls near the configured low limit, the BMS will cut off discharge to avoid deep discharge, which can permanently harm LiFePO4 cells.
This ensures no single cell is taken beyond its safe limits, which helps prevent capacity loss, swelling, or, in worst-case scenarios, thermal issues.
Over-Current and Short Circuit Protection
With currents ranging up to 200A (and higher on some models), over-current protection is critical. The BMS can:
- Detect when current exceeds safe limits
- Quickly interrupt the circuit to protect cells and wiring
The short-circuit protection is another fail-safe, where extremely high current is detected and the BMS reacts quickly. We still need proper fusing and wiring; a BMS is not a replacement for good electrical design, but it is a powerful second line of defense.
Low Temperature Charging Cutoff
LiFePO4 cells are sensitive to charging at low temperatures, which can damage the chemistry internally. The JK BMS includes low temperature charge cutoff, meaning:
- If the temperature sensor detects that cells are below a set threshold, the BMS will prevent charging.
- Discharging can still be allowed at lower temperatures, depending on settings, but charging is carefully controlled.
This is especially important for outdoor installations, RVs, or unheated spaces where our battery bank may see winter conditions.
Heating Function: Supporting Cold-Weather Operation
Some JK BMS versions come with a heating function to assist operation in cold environments. The idea is not that the BMS itself is a heater; instead, it can control heaters attached to the battery pack.
We typically:
- Attach heating pads to the battery case or around the cells
- Let the BMS manage when these heaters run, often based on temperature sensors
This allows us to warm the cells before charging in freezing conditions, which protects the battery and maintains performance. We still need to ensure our actual heaters and power sources are correctly sized and wired, but the BMS provides the logic and control.
Balancing Current and Efficiency
The product description notes 0.6–2A active balance current and efficiency of up to 99%. That means most of the energy being balanced is not wasted as heat.
Why 0.6–2A Balancing Is Significant
Many simple BMS boards balance at only 30–60mA, which is acceptable for small packs but very slow for big LiFePO4 systems. With up to 2A active balancing current, JK can:
- Reduce major voltage imbalances more quickly
- Keep cells in tight alignment even with large capacity banks
- Handle repeated high-load cycles with greater stability
This is especially helpful if we regularly charge and discharge deeply or if we built a pack from cells with slightly different internal resistance or history.
Installation Considerations
We like to be realistic: installing a smart BMS like this is more complex than dropping in a ready-made battery. We need to pay careful attention to wiring, fusing, and configuration.
Wiring the Cells
Typical steps involve:
- Arranging the cells in series (4S, 8S, 16S, or 24S depending on our voltage target).
- Connecting the main positive and negative leads through appropriate fuses and contactors or directly to load/charger (as per design).
- Connecting the BMS balance harness: one sense wire per cell junction, carefully matched to the BMS labeling.
- Securing the temperature sensors to the battery pack so they read realistic cell temperatures.
We must follow the manufacturer’s wiring diagrams closely, because miswiring balance leads can damage the BMS or cells.
Connecting Communication and Accessories
After power and cell leads are correct, we can:
- Attach Bluetooth antenna (if applicable) and test the app connection.
- Wire RS485 to our external devices (such as inverters or monitoring systems), respecting polarity and recommended cables.
- Connect heaters, fans, or other controlled devices where the model supports it, following the specs.
Proper strain relief, cable management, and insulation are essential, especially at higher currents.
Real-World Use Cases
To understand where this BMS fits, it helps to picture typical scenarios where we might install it.
Off-Grid Solar Battery Bank
We might be building a 48V LiFePO4 bank for home backup or cabin use, with:
- 16S LiFePO4 cells
- Large capacity (e.g., 280Ah prismatics)
- Inverter drawing 5kW or more
The JK BMS provides:
- Active balancing to keep these big cells in line
- App monitoring so we can see pack health at a glance
- RS485 data to link with an inverter or monitoring system
- Over-current and temperature protections for safety
RV or Van Conversion Pack
In an RV or van, we might run:
- 12V 4S LiFePO4 for house loads
- High current bursts for inverters, fridges, or AC units
Here, the BMS:
- Manages charge and discharge from alternators, chargers, and solar
- Offers Bluetooth visibility so we can check our battery status from inside
- Protects from low temperature charging if we are camping in cold weather
- Helps maintain balance across multiple deep cycle events
Workshop or Garage Backup
We could also build a 24V 8S pack to drive a small inverter for a workshop, running tools and lights in case of outages. The JK BMS gives enough control and monitoring to treat this more like a professional backup system instead of a rough DIY box.
Strengths of the JK Battery Equalizer JK BMS Smart BMS
When we look at the product more broadly, several standout strengths emerge:
-
Active Balancing with High Efficiency
The ability to actively balance at up to about 2A and claim 99% efficiency is a major benefit for large-capacity LiFePO4 banks. This pushes the BMS into a more advanced category than passive-only options. -
App-Based Monitoring and Control
The dedicated JK app with Bluetooth means we can keep a close eye on pack health without extra hardware. Adjusting thresholds and seeing real-time data makes this BMS feel very modern. -
Rich Protection Set
Overcharge, over-discharge, over-current, short circuit, and low temperature charging cutoff together form a comprehensive safety net. This is essential for preserving both our cells and the rest of our system. -
Wide Voltage and Current Range
Supporting 4S–24S LiFePO4 packs and currents up to 100A–350A (200A being a common choice) makes this product line flexible for many roles—from small RV systems to home energy storage. -
RS485 Interface
The presence of RS485 pushes the BMS beyond hobby-grade into something suitable for more serious systems. We can integrate it with inverters, controllers, or custom monitoring hardware. -
DIY-Focused but Capable
The overall design targets DIY system builders, providing the features we usually associate with commercial smart batteries but keeping them accessible for hands-on users.
Potential Drawbacks and Considerations
No product is perfect, and we should weigh a few considerations before choosing this BMS.
-
Complexity for Beginners
With advanced features comes responsibility. Wiring an 8S, 16S, or 24S LiFePO4 pack and configuring the BMS correctly is not a beginner-friendly task. We need to be comfortable with high-current DC systems, safety practices, and reading documentation. -
Learning Curve for App and Settings
While the app is powerful, it can be a little overwhelming for users who are new to BMS settings. We must understand what parameters like cutoff voltages, hysteresis, and temperature limits actually mean for our specific cells. -
Model Variations
JK produces several variants (different current ratings, cell counts, heating support, etc.). We must be careful when ordering to ensure we get the exact version matching our pack size and current expectations. -
Dependency on Proper Installation
The BMS can only protect us if it is wired correctly and paired with proper fuses, contactors, and mechanical protection. It is not a magic shield; system design remains crucial.
Comparison With Basic BMS Solutions
To put this product into context, we find it useful to compare it with typical low-cost, passive BMS boards that many of us might have used before.
| Aspect | Basic Passive BMS | JK Battery Equalizer JK BMS Smart BMS |
|---|---|---|
| Balancing Type | Passive (small resistor burn-off) | Active (0.6–2A transfer) |
| Balancing Efficiency | Often low, energy wasted as heat | High, up to ~99% efficiency stated |
| Monitoring | Sometimes no external interface | Bluetooth app + RS485 |
| Protection Features | Basic OV/UV, limited customization | Comprehensive OV/UV/OC/SC + temp-based charge cutoff |
| Configuration | Usually fixed or minimal | App-configurable parameters |
| System Integration | Standalone only | Integrates with other systems via RS485 |
| Use Case | Small packs, low budgets | Medium to large DIY LiFePO4 systems, advanced users |
From this, we can see that the JK BMS aims at users who care about performance, insight, and long-term reliability rather than the lowest possible upfront cost or minimum functionality.
Tips for Getting the Most Out of This BMS
We can enhance our experience and pack longevity by following some best practices with this BMS.
Match the BMS to the Battery and Load
We should:
- Choose a current rating that comfortably exceeds our maximum expected continuous load (200A is often suitable for many home and RV systems, but verify).
- Pick the correct cell count model for our desired pack voltage (4S, 8S, 16S, or 24S).
- Ensure the BMS is rated for LiFePO4, which this product is, since voltage limits differ from other chemistries.
Set Sensible Protection Thresholds
Using the app, we can:
- Set overcharge limits slightly under the absolute maximum cell voltage (e.g., 3.55–3.65V per LiFePO4 cell, depending on our cycle-life preference).
- Set over-discharge limits that leave some buffer (e.g., around 2.5–2.8V per cell).
- Configure temperature limits to match manufacturer recommendations for our particular cells.
This ensures the BMS acts conservatively, maximizing cycle life.
Monitor Cell Balance Over Time
We can use the app to:
- Check cell voltages regularly, especially in the early days after building the pack.
- Verify that active balancing is kicking in and that cell voltage differences are narrowing over several cycles.
- Keep an eye on any outlier cells that might indicate an aging or damaged unit.
If we see persistent imbalance beyond what balancing can handle, it may be time to top-balance or investigate the health of individual cells.
Who This Product Is Best Suited For
Based on the capabilities and complexity, we see this product as ideal for:
- DIY solar enthusiasts building 12V/24V/48V/72V LiFePO4 banks with substantial capacity.
- RV and van converters who want deep visibility into their battery systems and strong protection.
- Small off-grid homeowners who prefer to build their own battery bank rather than buy pre-packaged units, but still want near-commercial functionality.
- Tech-savvy tinkerers who enjoy setting and tuning parameters, integrating RS485 into custom monitoring setups.
It may not be the best choice for:
- People who want a plug-and-play battery with no configuration, wiring, or parameter tuning.
- Very small, low-current projects where a simple, inexpensive BMS would be enough.
Long-Term Value and Battery Life
Active balancing and intelligent protections are all about enhancing long-term value. Good cells are not cheap, and a BMS like this aims to:
- Keep them within safe voltage and temperature ranges at all times
- Ensure they share the load evenly
- Prevent damaging events like deep discharge or charging in the cold
- Allow us to track performance as the pack ages
By managing these factors, we can significantly extend the practical life of our battery pack, reducing the total cost of ownership. The BMS cost becomes small compared with the value of protecting a large capacity bank over thousands of cycles.
Our Overall Verdict on the JK Battery Equalizer JK BMS Smart BMS
Taken as a whole, the JK Battery Equalizer JK BMS Smart BMS 8S Lifepo4 200A BT Heating Function RS485 Lithium Battery Balance Board BMS 20S 12V 24V with Blancer stands out as a powerful and flexible option for anyone serious about building a smart LiFePO4 system.
We appreciate:
- The dedicated JK app that gives us real-time insight and extensive adjustability.
- The active balancing system that increases efficiency and supports a longer battery life, especially with larger packs.
- The full protection suite, including over-charge, over-discharge, over-current, short circuit, and low temperature charging cut.
- The wide applicability across 12V, 24V, 48V, and 72V systems, with current capabilities that suit many common inverters and loads.
- The RS485 communication, which opens the door to more sophisticated integrations.
We do recognize that:
- It requires careful installation and configuration, making it better suited for users who are comfortable working with high-current DC systems.
- There is a learning curve with the app and settings, making it important that we read manuals and understand battery chemistry basics.
If we are building or upgrading a LiFePO4 battery system and want the kind of control and visibility usually found in higher-end commercial batteries, this JK BMS is a compelling choice. It offers a strong blend of performance, safety, and intelligence, and when installed correctly, it can become the reliable core of our energy storage setup for years to come.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
