JK Battery Equalizer Smart Lifepo4 BMS review

Have we ever wished our LiFePO4 battery bank could manage itself more intelligently and keep every cell in line without constant tweaking?

What Is the JK Battery Equalizer, Smart-Lifepo4 BMS 1A/2A Active Balance?

This product is a smart battery management system designed for LiFePO4 packs, especially larger DIY systems. With active balancing, Bluetooth, and a dedicated app, it aims to keep our pack healthier, safer, and more efficient over the long term.

The specific version we are talking about is the JK Battery Equalizer, Smart-Lifepo4 BMS 1A/2A Active Balance JK 12S-24S 36V-72V 60A-200A (Color: BD6A17S8P, Size: JK). It targets packs in the 12S to 24S range, commonly used in 36V–72V systems, with medium to high current needs.

Key Features at a Glance

Before we go deeper into real-world usage, it helps to summarize what this BMS brings to the table. We want to see quickly whether it suits our project or not.

Here is a breakdown of the main specs and features based on the product description:

Feature Category	Details
Product Type	Smart LiFePO4 BMS with active balance (Battery Equalizer)
Supported Cell Count	12S–24S (36V–72V nominal packs)
System Voltage Range	12V/4S, 24V/8S, 48V/16S, 72V/24S
Supported Current Range	60A–200A (with versions going up to higher currents in the series)
Active Balance Current	Approx. 0.6–2A active DC balancing
Balance Type	Intelligent active compensation (not simple passive bleeding)
Protection Functions	Overcharge, over-discharge, over-current, short circuit, low-temp load
Communication	Bluetooth (BT) with JK own app
App Functions	Real-time status display, configuration, BMS settings
Use Case	DIY battery banks, solar, RV, off-grid, powerwalls
Model Variant Mentioned	Color: BD6A17S8P, Size: JK

This high-level overview already hints at a powerful, configurable BMS that aims at serious DIY users rather than basic plug-and-play hobby projects.

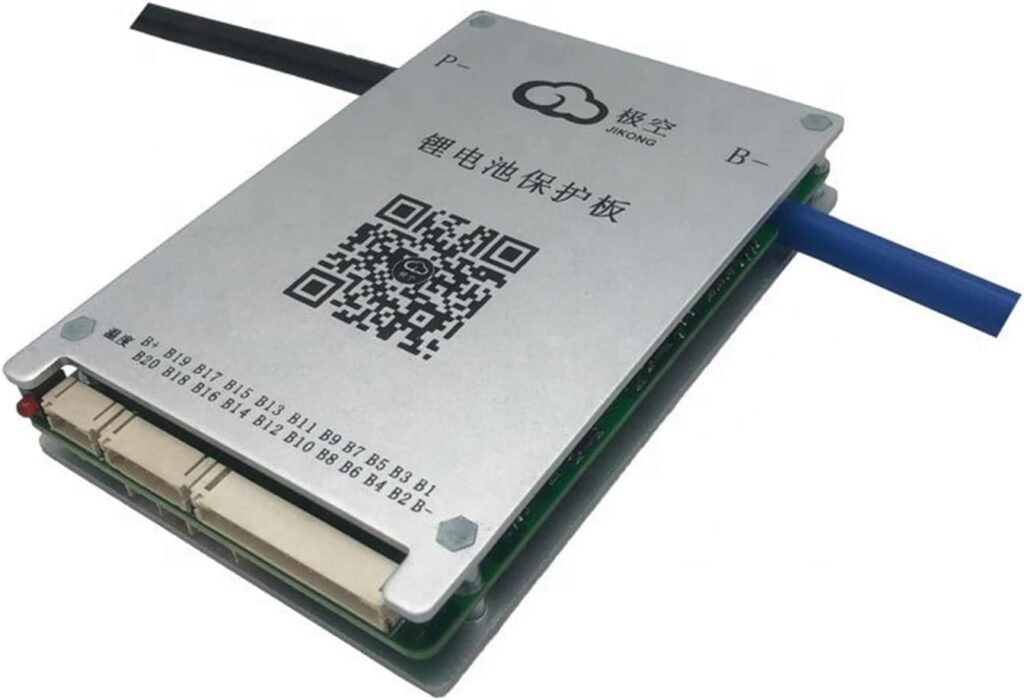

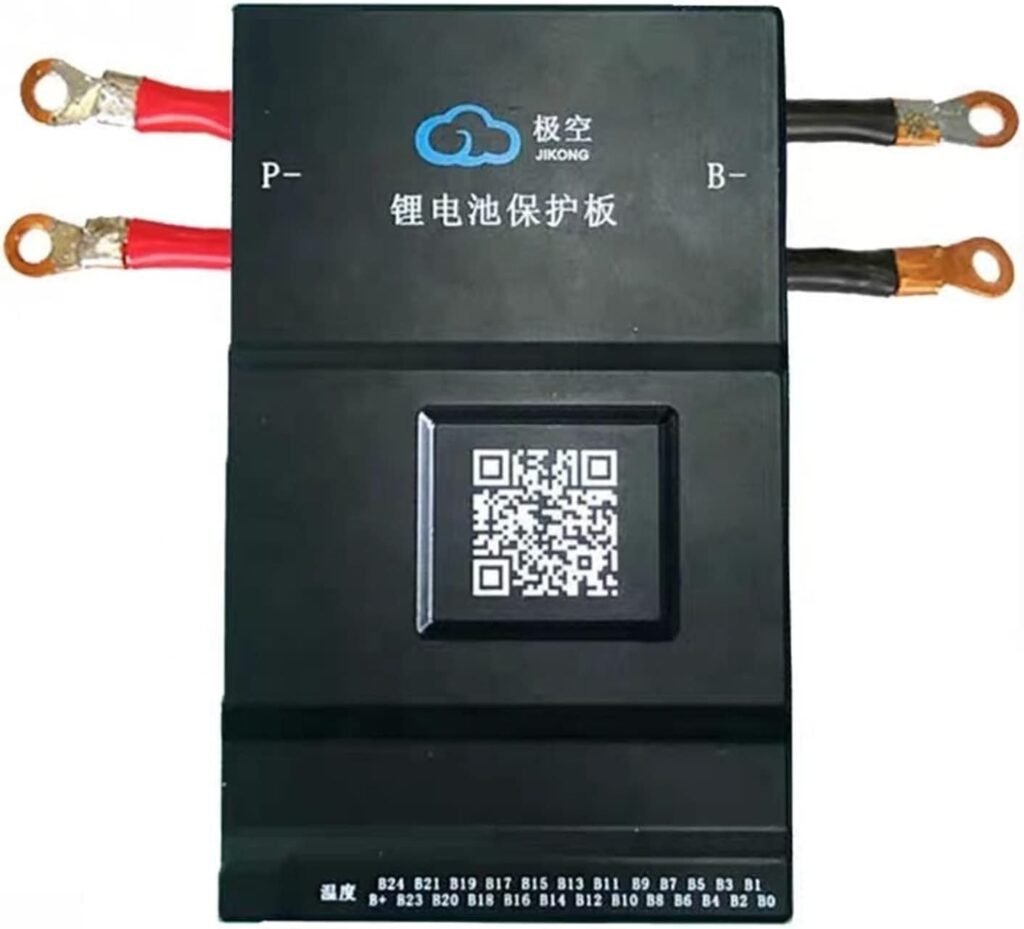

First Impressions and Build Quality

When we first look at a BMS for a substantial LiFePO4 bank, we care about robustness, layout, and clarity of connections. This JK model feels purpose-built for DIY powerwall, RV, and off-grid users who want advanced control rather than a bare-bones protective board.

The casing and busbar connections (depending on the specific current rating we choose) usually come across as solid and designed for continuous current. The wiring harness for the balance leads is clearly labeled, which matters a lot when we are managing 12–24 series cells. Overall, it gives the impression of a well-thought-out component, not a flimsy generic board.

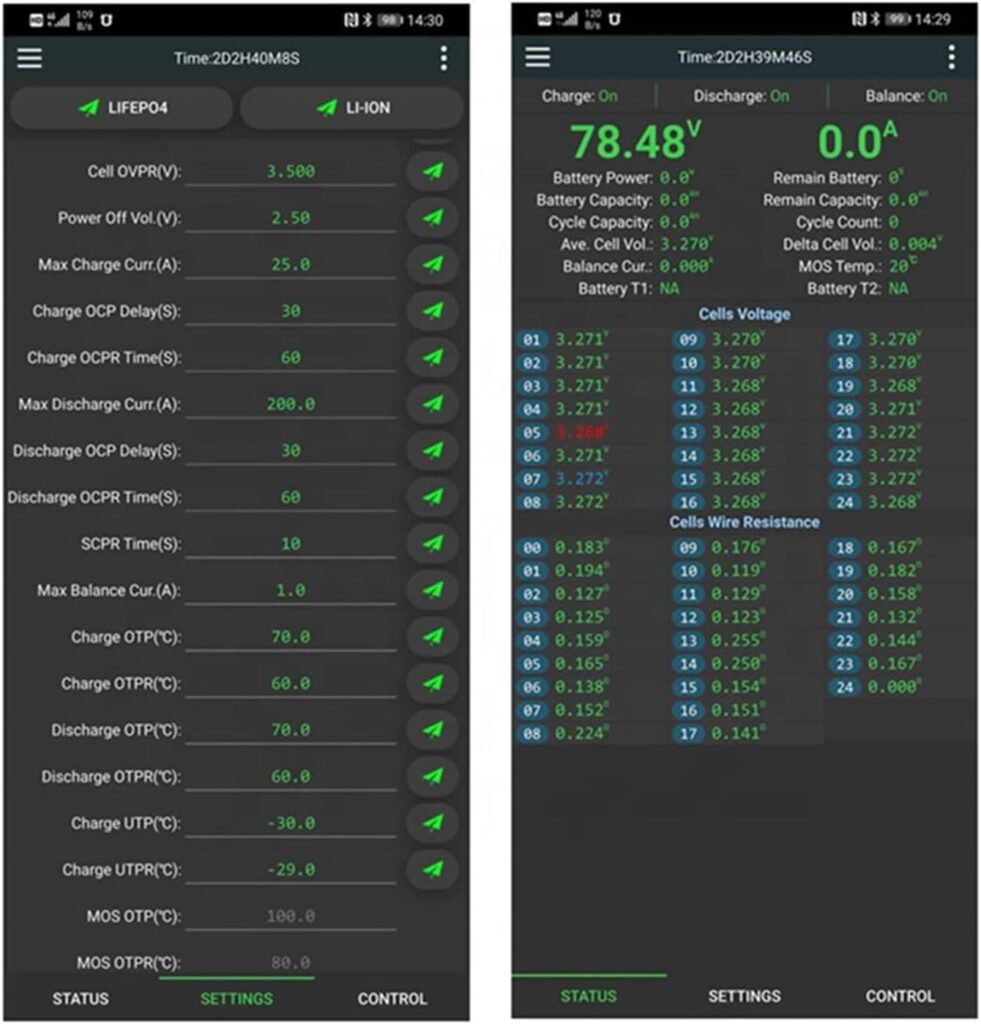

The JK App: Real-Time Monitoring and Control

One of the standout parts of this BMS is the dedicated JK own development app with Bluetooth communication. We can monitor and adjust our pack without needing to plug in a laptop or use obscure TTL adapters.

What We Can See and Do in the App

The app allows us to view the real-time status of our battery system without guesswork. For most of us, that means less time with a multimeter and more time making decisions based on clear data.

Typical information and controls include:

• Per-cell voltages for each of the 12S–24S cells in our series string
• Pack voltage and current (charge and discharge)
• State of charge (SOC) approximation
• Temperature readings from connected sensors
• Error and protection status, such as over-voltage, under-voltage, and over-current flags
• Adjustable parameters, like charge cutoff, discharge cutoff, and balancing thresholds

This kind of visibility transforms how we manage our system. Instead of guessing which cell is out of balance, we see it instantly and can act accordingly.

Why the App Matters for DIY Systems

For many DIY builders, especially those creating wall-mounted powerwalls or under-bed packs in vans and RVs, physical access to every cell is limited. The app becomes our window into the pack. We get early warnings if a particular cell starts to drift or if something about our system configuration needs adjustment.

Having all this in a clean mobile interface also reduces the learning curve, making it friendlier for those of us who are not professional electrical engineers but still want high-end performance from our battery system.

Active Balancing vs Passive Balancing

One of the biggest upgrades over simpler BMS designs is active balancing. Most conventional BMS units use passive balancing, which simply bleeds extra energy off high cells as heat. JK takes a different approach.

How JK Active Balance Works

JK describes this as intelligent active compensation of voltage differences between battery cells with a balancing current in the range of about 0.6–2A. Rather than wasting energy, the system transfers charge from higher-voltage cells to lower-voltage ones.

This kind of active balancing gives several benefits:

• Higher efficiency: JK claims up to 99% efficiency in energy usage during balancing. That means we are not just burning off extra charge.
• Faster balancing: With up to 2A of active balancing current, the pack can be corrected more quickly than with 50–200 mA passive balancers.
• Better capacity utilization: By keeping cells closer in voltage, we can use more of the pack’s total capacity before we hit cutoff limits.

We especially notice the benefits over time, as even small differences between cells can grow. Active balancing keeps the pack aligned with less wasted energy and less wear.

Why Active Balancing Extends Battery Life

Cell mismatch is one of the sneaky killers of large battery banks. When one or two cells drift lower, the entire pack must stop charging or discharging early to protect those weaker cells. Over the years, this can lead to under-utilized capacity and stress on certain cells.

With active balancing:

• The system constantly works to minimize cell voltage differences.
• We reduce situations where one cell is frequently the first to hit high or low voltage cutoffs.
• The pack ages more uniformly, which extends the useful life of the whole bank.

In other words, by treating all cells more equally, we give our investment in LiFePO4 cells a better chance at long, stable service.

Protection Functions and Safety

Beyond balancing, any good BMS must act as the guardian of our battery. The JK BMS includes a full set of protective mechanisms, essential for both safety and longevity.

Core Protection Features

Based on the product details, the JK BMS offers:

• Overcharge protection: Prevents cell voltages from exceeding safe upper limits.
• Over-discharge protection: Stops discharge before cells are driven too low.
• Over-current protection: Guards against excessive load or charging current.
• Short-circuit protection: Quickly disconnects on dangerous faults.
• Low-temperature load failure protection: Prevents charging or loading in conditions where LiFePO4 cells are at risk.

These protections are not just nice-to-have; they are crucial when we are dealing with high current systems from 60A to 200A and beyond. A misconfiguration or wiring fault in such setups can be serious, so we want a BMS that reacts quickly and predictably.

The Importance of Choosing the Right Protective Plate

The product description emphasizes how choosing the right protective plate and proper application is critical to the longevity of our batteries. In practical terms, this means:

• Matching the BMS current rating to our system’s expected peak and continuous current
• Ensuring the cell count setting lines up with our actual number of series cells
• Installing temperature sensors where they realistically capture pack behavior
• Using correct cable gauge, fuses, and physical mounting to handle our current levels

This JK BMS is sophisticated enough that a sloppy installation can undermine its advantages. When we treat it as the heart of a carefully designed system, it can substantially improve safety and long-term reliability.

Supported Battery Configurations and Use Cases

One thing we like about this JK model is its flexibility for different system sizes. Many of us build in stages or combine used and new cells, so having a BMS that can adapt across a range of configurations is very helpful.

Supported Packs and Systems

This BMS supports:

• 12V (4S) systems
• 24V (8S) systems
• 48V (16S) systems
• 72V (24S) systems

The core range is 12S–24S (36V–72V nominal), with the LiFePO4 chemistry in mind. Combined with current capacity in the 100A–350A maximum current life range across the JK series, it becomes viable for fairly serious projects.

Common scenarios include:

• Off-grid solar banks using 48V or 24V LiFePO4 packs
• DIY home powerwalls built from prismatic cells or repurposed modules
• RV and camper conversions, where space and safety both matter
• Small industrial or workshop backup systems where reliability is essential

The active balancing and strong protections make this BMS particularly suitable for packs that we intend to keep for many years.

Why It Fits DIY Projects So Well

Many generic BMS boards are simple “set it and forget it” devices, but they give little feedback and limited configurability. By contrast, JK targets DIY users who want to understand and manage their system.

For us as builders, this means:

• Clear visibility of each cell’s behavior
• Ability to tune parameters for our exact setup
• Confidence that if we expand or modify our system, the BMS can usually keep up

When we are assembling or upgrading a DIY power solution, such adaptability and insight can prevent costly mistakes.

Detailed Look at 1A/2A Active Balancing

The product name mentions both 1A/2A active balance. That range is important, especially for larger packs with significant capacity per cell.

Why 0.6–2A Active DC Current Matters

The description notes 0.6–2A active DC current for balancing. For a small pack, that may sound like overkill. For larger packs in the 100–300 Ah range per cell, it is actually a sensible level.

Consider:

• With passive balancing (often 50–100 mA), correcting a 50–100 mV cell imbalance can take many hours or even days.
• With up to 2A of active balancing, the process is much faster, especially if several cells drift over time.
• The system can maintain a tight voltage spread even under regular heavy use and partial cycling.

This higher balancing current translates into less downtime, better usable capacity, and more consistent performance over the long term.

Real-World Benefits for High-Capacity Packs

If we run a 48V 16S pack of 280 Ah cells, we are storing a substantial amount of energy. Small differences between cells add up to lost capacity if the BMS keeps hitting cutoffs early to protect the lowest or highest cell.

With robust active balancing:

• Our charging cycles become more uniform, as the BMS keeps the top-of-charge level more consistent across cells.
• Deep discharges become safer because the low cells are less likely to be pulled down prematurely.
• Over many cycles, the pack’s usable capacity stays closer to its theoretical capacity, making the investment far more worthwhile.

We are essentially getting a smarter, more efficient brain for our expensive LiFePO4 cells.

Daily Usage and User Experience

Once installed and configured, how does the JK BMS feel to use on a day-to-day basis? Our experience centers around the app interactions, the pack’s behavior under load, and how often we need to intervene.

Monitoring in Real Time

In everyday use, we tend to:

• Open the app to check per-cell voltages and pack SOC
• Verify charge/discharge current when heavy loads (like inverters) are running
• Confirm that temperatures stay in a safe range
• Occasionally adjust voltage limits or balance start thresholds if our strategy changes

This process is straightforward and quickly becomes routine. The app reduces the friction of checking on our pack, which means we stay more aware of its health and performance.

Stability and Consistency

With an active balancing BMS like this one, a stable system becomes almost “set and trust,” provided our original configuration is correct. Over weeks and months:

• The voltage spread between cells remains impressively tight.
• The pack reaches its full charge level more consistently, rather than stopping early due to one high cell.
• We are less likely to see sudden “mystery” capacity loss, since the balancing compensates for drift.

When something does go wrong—like a poor connection or an aging cell—the BMS and app make it easier to identify which part of the system needs our attention.

Installation Considerations

A BMS of this sophistication deserves careful installation. We will want to plan our wiring layout, busbar configuration, and protective devices before we start tightening bolts.

Wiring and Connection Tips

We should keep in mind:

• The balance lead harness must be connected in the correct order to each cell’s positive terminal (and the pack negative where applicable).
• Main charge/discharge leads should be sized to handle our maximum current plus a safety margin.
• Proper fusing on main lines is still required; the BMS is a controller, not a substitute for traditional circuit protection.
• We should mount the BMS in a location with some airflow and protection from moisture and dust.

If we are not confident in high-current DC wiring, partnering with someone more experienced or following vetted community guides is a wise step.

Configuration Through the App

Once the hardware is wired:

• We use the app to set cell type and counts correctly (LiFePO4 chemistry, number of series cells).
• We configure over/under voltage limits per cell and for the pack.
• We set charge and discharge current limits appropriate for our battery and wiring.
• We define balancing start voltage and other fine-tuning parameters to align with our pack’s behavior.

Taking the time to understand each critical parameter pays off. Misconfigured limits could either restrict performance unnecessarily or expose the pack to avoidable stress.

Performance in Different Environments

Battery systems live in varied environments—ranging from climate-controlled utility rooms to sweltering RV compartments. The JK BMS is designed to cope with a range of conditions, but how it is installed influences its resilience.

Temperature Management

The inclusion of low-temperature load failure protection highlights that the BMS is aware of environmental risk. LiFePO4 cells, in particular, dislike charging below freezing, and uncontrolled charging in such conditions can cause lasting harm.

With the JK BMS:

• We can rely on the BMS to help block dangerous operations in extreme cold.
• We still need to ensure cells are physically insulated or heated if our climate demands it.
• We can monitor temperature trends over time through the app to see how our pack responds to seasonal variations.

In very hot conditions, monitoring and managing both BMS and cell temperatures is just as crucial. The BMS protection helps, but good system design remains essential.

Indoor vs Mobile Applications

For stationary use (like home powerwalls or garage setups):

• We can often provide better airflow, more space, and neater cabling.
• The BMS can be mounted in an easy-to-access location, making maintenance and monitoring more comfortable.

For mobile use (RVs, vans, marine):

• We need to pay extra attention to vibration resistance and secure mounting.
• Cable routing must be more cautious due to tight spaces and moving parts.
• Regular checks through the app become more important, since we may push the system harder with intermittent heavy loads.

In all cases, the JK BMS’s active balancing and protections act as a kind of backbone for an otherwise complex environment.

Pros and Cons of the JK Smart-LiFePO4 BMS

It is helpful to summarize the strengths and limitations so we can decide if this BMS is the right match for our particular build.

Advantages

• Active balancing up to around 2A provides fast, efficient equalization of cells.
• Bluetooth with a dedicated JK app gives rich, real-time visibility and control.
• Full protection suite (overcharge, over-discharge, over-current, short circuit, low-temp load) enhances safety.
• Flexible system support from 12V/4S up to 72V/24S suits many DIY applications.
• Efficient use of energy (up to 99% balancing efficiency) means less waste and heat.
• Designed for LiFePO4 chemistry, matching the most popular cells in DIY power systems.

These strengths make the JK BMS particularly compelling for serious LiFePO4 packs that we expect to use daily and for many years.

Potential Drawbacks

• The configuration and advanced features can feel complex for beginners unfamiliar with BMS settings.
• We still need careful wiring and system design; this is not a simple plug-and-play module.
• As with many smart BMS units, our experience will depend somewhat on app stability and updates on our chosen mobile platform.

For those of us comfortable with some technical learning, these are manageable trade-offs. For users wanting absolute simplicity, a more basic BMS might feel less intimidating, but it would not offer the same level of control or efficiency.

How It Compares to Simpler BMS Units

When we contrast this JK active balancing BMS with basic passive designs, the differences become clear in both short-term performance and long-term pack health.

Energy Efficiency and Balancing Speed

With passive BMS boards:

• Balancing is slow and can only handle small imbalances gradually.
• Excess energy is simply burned off as heat, which is inherently wasteful.

With this JK active BMS:

• Energy is redistributed between cells more quickly and efficiently.
• The pack stays more tightly balanced with less thermal load on the BMS itself.

Over thousands of cycles, that difference can translate into more usable energy and stronger overall reliability.

Monitoring and Insight

Many budget boards provide little to no real-time insight into each cell. We often have to attach external monitors or guess what is happening inside the pack.

The JK BMS changes that by:

• Making per-cell data available at a glance.
• Providing error codes and protection statuses directly in the app.
• Allowing parameter tweaks without opening the battery enclosure each time.

This kind of insight is exactly what we want when we are depending on our battery for critical uses like off-grid living or long-distance travel.

Ideal Users and Applications

We can ask ourselves: who will benefit the most from a BMS like this? The answer tends to span several enthusiastic groups of DIY users.

DIY Off-Grid and Solar Enthusiasts

For those of us building solar-based power systems:

• The JK BMS gives the visibility and control we need to pair with MPPT charge controllers and inverters.
• We can tune charge limits to extend battery life while still meeting our energy needs.
• Long-term balancing ensures our investment in prismatic cells pays off for many years.

This BMS becomes a hub of information and safety for the rest of our energy system.

RV, Vanlife, and Marine Builders

For mobile applications:

• The active balancing and protections keep cells happier under variable and sometimes harsh loads.
• The app lets us check on our system from inside the vehicle or cabin without accessing the battery compartment.
• We can more confidently rely on the pack during extended boondocking or voyages.

In these scenarios, running out of power or damaging a pack through imbalance is not just inconvenient—it can seriously affect our comfort or safety.

Workshop and Backup Power Systems

For workshop or home backup use:

• This BMS helps create a stable, dependable battery backup that pairs well with inverters and UPS-style setups.
• We are able to see clearly how much capacity remains and how the cells are aging over time.
• When grid outages occur, we can trust the system to operate safely within configured limits.

The JK BMS becomes part of a more resilient, self-reliant energy solution in these environments.

Long-Term Value and Battery Longevity

One of the strongest arguments in favor of this BMS is the promise of longer battery life. LiFePO4 cells are not cheap, and most of us build a pack expecting it to last many years.

How the BMS Protects Our Investment

This JK BMS contributes to longevity by:

• Avoiding repeated overcharge and over-discharge events that wear cells down.
• Keeping cells in tight balance, preventing certain cells from taking disproportionate stress.
• Preventing abusive currents and temperatures that would shorten cycle life.

When combined with sensible charge and discharge rates chosen in the app, these protections help ensure our pack can approach its rated cycle life, which is often in the thousands of cycles range for quality LiFePO4 cells.

Reducing Maintenance and Surprise Failures

Without intelligent balancing, we might find ourselves opening the battery box frequently to check for issues or manually top-balance cells. Over time, that becomes tedious and risky.

With the JK active BMS:

• Cell drift is corrected automatically in the background.
• We can catch small issues early through the app instead of discovering them only after a serious failure.
• Routine checks become as easy as glancing at a phone screen.

The result is less hands-on maintenance and fewer unpleasant surprises, which is especially valuable in remote or hard-to-access installations.

Our Overall Verdict on the JK Smart-LiFePO4 BMS

After looking at its capabilities, use cases, and trade-offs, we can form a clear opinion on where this product stands.

The JK Battery Equalizer, Smart-Lifepo4 BMS 1A/2A Active Balance JK 12S-24S 36V-72V 60A-200A (Color: BD6A17S8P, Size: JK) is best suited for us when:

• We are building a mid-to-large LiFePO4 battery bank (12S–24S).
• We want serious control and visibility via a dedicated app and Bluetooth connectivity.
• We care about active balancing efficiency and the long-term health of our cells.
• We are willing to invest time in proper installation and parameter configuration.

Its combination of active balancing, full safety protections, and flexible app-based control makes it a powerful choice for DIY builders, off-grid enthusiasts, and anyone serious about managing a LiFePO4 system correctly.

If we are simply assembling a small, low-current pack for light use, a simpler BMS may suffice. But when our system becomes a primary power source or a major investment in energy independence, this JK BMS offers tools and safeguards that can significantly improve outcomes.

In short, for those of us who want our LiFePO4 battery bank to run efficiently, safely, and intelligently for the long haul, this JK smart BMS stands out as a strong, future-focused option.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
