Have we ever wished our DIY battery system felt as smart, safe, and transparent as a professional-grade power solution?
What Makes the JK BMS Battery Equalizer Stand Out?
When we look at battery management systems, most of them promise protection and basic monitoring. This JK BMS Battery Equalizer goes further by adding active balancing, a dedicated app, and support for multiple battery chemistries and pack sizes. It feels built for serious DIYers who want both performance and insight into what is happening inside every cell.
We will walk through how it works, where it shines, and what to consider before choosing it for our own Li-ion, LiFePO4, or LTO setup.
Key Features at a Glance
This specific model, the JK BMS Battery Equalizer Jk Smart BMS Balance BT 8s 10s 16s 20s 21s 24s Balance Current 60A–600A, is designed as a flexible protection and control module. It works with packs from 8 to 24 series cells and supports very high current systems, all while providing intelligent active balancing.
To make things easier to digest, we can start with a quick summary of the essentials.

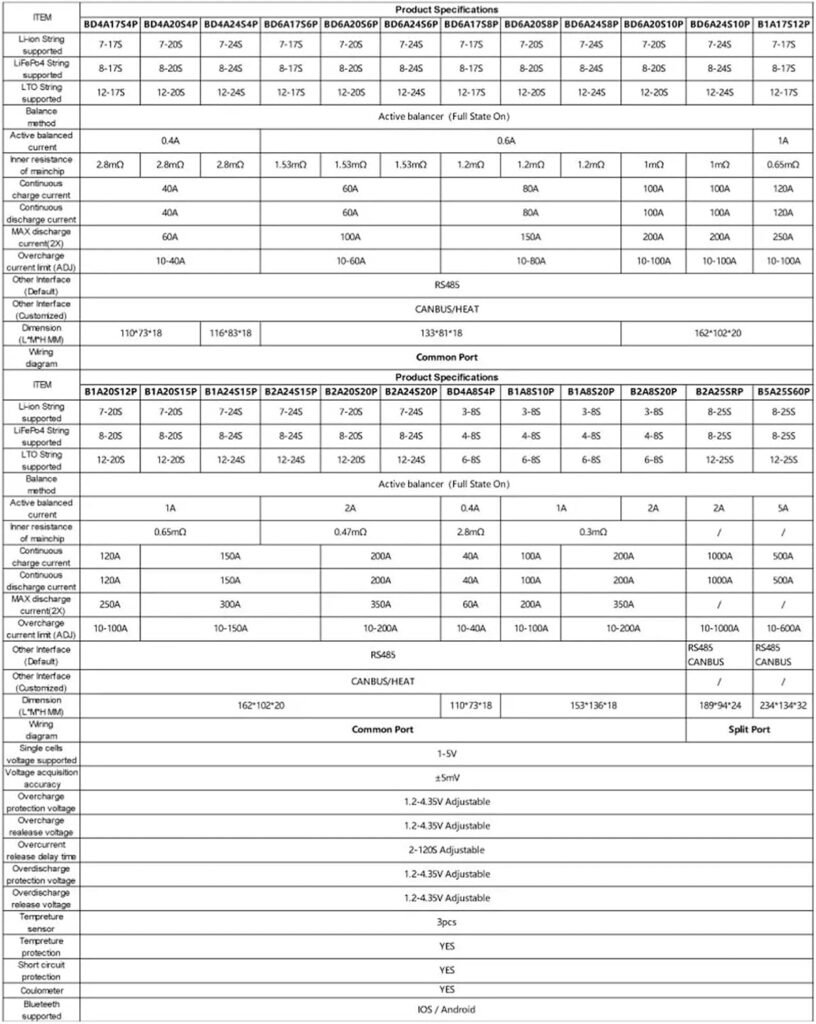

Quick Spec Overview
We find it helpful to see the main characteristics laid out clearly. This helps us match the BMS to our own battery system requirements.
| Feature | Description |
|---|---|
| Product Name | JK BMS Battery Equalizer JK Smart BMS Balance BT |
| Model Variant | B2A24S20P-HC, Si |
| Supported Cell Count (Series) | 8S, 10S, 16S, 20S, 21S, 24S |
| Supported System Voltages | 12V (4S), 24V (8S), 48V (16S), 72V (24S) |
| Supported Chemistries | Li-ion, LiFePO4, LTO |
| Max Current Range (Series) | Approximately 100A–350A (depending on system) |
| Active Balance Current | 0.6A–2A (active balancing between cells) |
| Communication | Bluetooth (BT) with dedicated JK App |
| Protection Functions | Overcharge, over-discharge, over-current, short circuit, low-temp charge |
| Application Type | DIY battery packs, energy storage, off-grid, mobile power systems |
These core specs give us the big picture. From here, we can get into how each feature actually affects our day-to-day use.
Our Experience With the JK App and Bluetooth Connectivity
One of the best parts of this BMS is the JK-owned development app that pairs with the module via Bluetooth. Rather than guessing what our cells are doing or trusting a tiny onboard LED, we can see clear, real-time data on our phone.
We found that this transforms the way we interact with our battery system. It shifts us from “install and hope” to “install and monitor with confidence.”

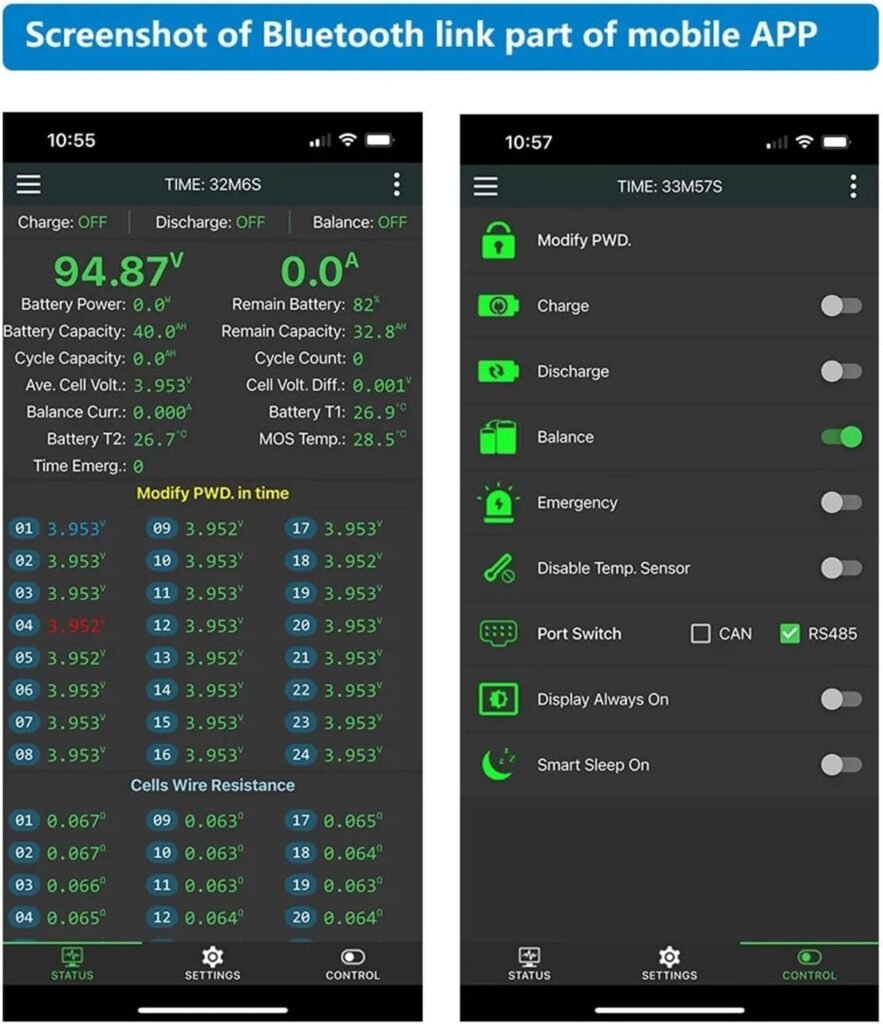

Real-Time Monitoring on Our Phone
Using Bluetooth, the BMS streams live status information directly to the app. We can see individual cell voltages, total pack voltage, current in and out, and temperature readings. Instead of a rough health indicator, we get detailed insight into how balanced our pack is at every moment.
This is especially reassuring when we are pushing our system with high loads, fast charging, or long discharge cycles. We get to spot potential issues early before they turn into real problems.
Adjustable Settings Through the App
What we particularly appreciate is the ability to configure BMS parameters directly in the app. We can set voltage thresholds, balancing behavior, and various protection cutoffs without needing to hook up a laptop or fiddle with hidden buttons.
Being able to adjust settings on the fly lets us fine-tune our system based on our actual use case, whether that is an off-grid cabin, RV, boat, or stationary storage bank. It also helps us adapt if we change cells, chemistries, or capacity later on.
Understanding JK Active Balancing and Why It Matters
Balancing is one of the most important—and often overlooked—parts of battery management. Without proper balancing, even a good pack can lose capacity and degrade faster. JK’s Smart Active Balancing system is a major reason to consider this BMS.
Instead of just burning off excess energy as heat (passive balancing), this module actively redistributes charge between cells. This can significantly improve overall efficiency and lifespan.
What Is Active Balancing in This BMS?
In practical terms, the BMS measures each individual cell voltage and then uses an internal circuit to move energy from higher-voltage cells to lower-voltage ones. This helps keep all cells in a pack as close as possible to the same voltage.
The rated balance current of 0.6A–2A is quite meaningful. That means it can actively correct imbalances relatively quickly, especially during charging phases. For larger packs or packs that have developed noticeable drift, that capacity can make a clear difference.
Efficiency and Battery Life Benefits
JK claims up to 99% efficiency in battery usage when their active balancing is functioning properly. While real-world performance depends on how abused or mismatched our cells are, the concept is sound: less wasted energy and more of our pack’s capacity actually available.
Over time, consistent balancing can equal:
- More usable amp-hours out of the same pack
- Reduced stress on individual cells
- Improved long-term health and stability
We see this as particularly important for LiFePO4 and LTO packs, which many of us expect to last thousands of cycles. If we are investing in high-quality cells, it makes sense to pair them with a BMS that treats them gently and intelligently.
Protection Features That Keep Our System Safe
Behind all the clever monitoring and balancing, a BMS still has one core job: protect our cells. This JK unit covers the fundamentals very well, offering multiple layers of safety.
We like the feeling of having a “guardian” watching over voltage, current, and temperature, especially in higher-voltage or higher-current systems.
Overcharge and Over-Discharge Protection
Overcharging can destroy lithium cells or at least severely shorten their lifespan. Over-discharging can leave cells in a state from which they cannot recover. This BMS steps in on both ends:
- Overcharge protection: Cuts off charge once cells or total pack reach configured limits.
- Over-discharge protection: Disconnects load when voltage drops below safe thresholds.
Combined, these safeguards help us stay well within recommended limits for Li-ion, LiFePO4, and LTO chemistries. This is vital for safety and for maximizing our investment in the battery pack.
Over-Current and Short-Circuit Protection
In high-current systems, things can go wrong quickly if there is a short or a load that draws too much power. We count on the BMS to limit current and shut down the system if a dangerous condition arises.
This JK module supports up to around 100A–350A in typical life Po4 (LiFePO4) configurations, depending on model and wiring. Over-current protection engages when draw exceeds configured safe levels, and short-circuit protection provides a rapid cutoff if a serious fault is detected.
For DIY systems where wiring, fuses, and connectors may not be as standardized as in commercial products, this level of protection is very reassuring.
Low-Temperature Charging Shutdown
One of the easiest ways to ruin lithium cells, especially LiFePO4, is to charge them at low temperatures. This BMS includes low-temperature charge cutoff, which prevents charging when the measured temperature is below safe limits.
We find this especially important in colder climates or for outdoor systems, off-grid cabins, and vans that may not always be climate controlled. It takes the guesswork out of winter operation and protects us from accidentally damaging our pack when the weather gets harsh.
Compatibility With Different Battery Chemistries
Versatility is a major advantage of this JK BMS. Rather than being tied to just one chemistry or a narrow voltage range, it supports several common setups.
That flexibility means we can use the same platform across multiple projects or upgrade our cells later without completely changing our protection infrastructure.
Li-ion, LiFePO4, and LTO Support
The unit supports:
- Li-ion (typical 3.6–3.7 V nominal per cell)
- LiFePO4 (LiFePO₄) (around 3.2–3.3 V nominal per cell)
- LTO (Lithium Titanate) (approximately 2.3–2.4 V nominal per cell)
Each chemistry has different charge and discharge limits, but the JK BMS can be configured through its app to suit those parameters. This means we can match our BMS behavior to manufacturer recommendations rather than being locked into fixed thresholds.
Supported Pack Voltages and Series Counts
Thanks to its flexible series support, the unit works in many common DIY configurations. The product description references systems like:
- 12V / 4S (more applicable to LiFePO4 packs, although this particular variant handles higher S counts starting from 8S)
- 24V / 8S
- 48V / 16S
- 72V / 24S
On the high side, being able to handle up to 24S opens up some impressive potential, especially for 72V-class systems or large stationary battery banks. That range means we can design for today’s needs and still have some flexibility if we decide to scale up.
Current Handling and System Capacity
One of the points that stands out with this unit is its high current capability, going up to several hundred amps depending on the exact configuration and wiring.
If we are building a modest home storage bank or a more demanding system (such as an inverter-powered workshop or high-output RV system), current rating is critical.
High Current Support: 100A to 350A and Beyond
The product description references 100A–350A maximum current for life Po4 battery setups, while the name listing mentions 60A, 80A, 100A, 120A, 150A, 200A, and even 600A variants.
In practice, we need to match:
- The BMS variant (amperage rating)
- Our inverter or load requirements
- Our wiring and fuse ratings
We should not treat the highest listed current as a target to push continuously without proper design. Instead, we see it as an indicator that this platform can handle quite serious demands when correctly installed.
Active Balance Current: 0.6A–2A
The 0.6–2A active balance current may sound modest compared to the main system current, but for cell-level balancing, it is actually quite substantial.
If we think about balancing as a slow, continuous process that corrects drift over hours and days, this range of current means the BMS can handle real-world imbalances in larger packs, especially during charge cycles when the cells are near full.
We see this as a nice sweet spot between effectiveness and efficiency, without excessive heat generation or wasted energy.
Practical Use Cases for the JK Smart BMS
The flexibility of this BMS makes it suitable for many DIY and semi-professional installations. Because it brings both protection and smart features, it fits especially well in systems where we want better insight and control.
We can think of it as a backbone for our custom energy system.
Off-Grid and Home Energy Storage
For off-grid cabins, tiny homes, or grid-tied backup systems, this JK BMS can form the heart of a custom LiFePO4 or Li-ion bank. Paired with an inverter/charger and solar charge controller, it gives us:
- Reliable pack-level and cell-level safety
- Active balancing for long-term performance
- Insight into pack behavior through the app
This is ideal if we are building our own battery instead of buying a pre-packaged “power wall” and want similar capabilities without the brand-name price tag.
RVs, Vans, Boats, and Mobile Systems
Mobile applications demand both reliability and monitoring. Heat, vibration, varying loads, and frequent charge/discharge cycles put stress on cells. A smart BMS with active balancing can help maintain pack health over all those cycles.
In an RV, caravan, or van conversion, we might be running:
- Inverters for AC power
- DC appliances (fridges, lights, pumps)
- Solar panels on the roof
The JK BMS helps us keep everything in check while we monitor on our phone, which is very convenient when we are inside the vehicle or on board a boat.
Workshop, Backup Power, and DIY Experiments
For those of us who use battery systems in workshops, for tools, UPS-style backup, or experimental builds, a versatile BMS is almost mandatory. This JK unit supports a wide enough current range that it can handle many such scenarios.
Its smart features also make it great for teaching and learning. Being able to visually see cell behavior and system response in real time is invaluable for understanding how batteries really behave under load.
Installation and Setup Considerations
Although we are focusing on functionality and performance, it is also important to think about how this unit is wired and configured.
The JK BMS is aimed at DIY users, but its capabilities and current ratings mean we need to take installation seriously. We are working with significant energy and sometimes high voltages.
Wiring and Safety Basics
When installing a BMS like this, we need to pay attention to:
- Correct connection of each cell’s sense wire to the proper terminal
- Proper gauge wiring for main positive and negative leads
- Strong mechanical connections for high-current paths
- Appropriately rated fuses and breakers
The BMS provides electronic protection, but it should always be combined with good wiring practices and physical protection devices. We should also confirm polarity multiple times before energizing, as reverse connections can permanently damage both cells and electronics.
Initial Configuration in the App
Once the hardware is in place, we use the JK app to:
- Select the correct chemistry (Li-ion, LiFePO4, or LTO).
- Set maximum charge voltage and minimum discharge voltage.
- Configure over-current thresholds and response behavior.
- Choose how and when active balancing turns on.
We suggest taking our time during this step. It is worth cross-checking the cell manufacturer’s specs and aligning all BMS settings with those values. A careful setup pays off in long-term reliability.
Everyday Use and Real-World Behavior
Once installed and configured, the JK BMS mostly works in the background, continually monitoring and protecting. We only need to open the app from time to time to confirm everything looks good or to tweak things when we adjust our system.
In day-to-day use, this BMS helps us gain trust in our pack without constant manual checks or external meters.
Monitoring During Charge Cycles
During charging—whether from solar, shore power, or generator—we can watch:
- Cell voltages converging as active balancing works
- Total pack voltage approaching our set maximum
- Charge current as it tapers off near the top of the charge curve
If we see any cell out of line, we can investigate that cell’s connection or health. This is far better than discovering problems only after capacity has already dropped significantly.
Monitoring During Discharge and High Loads
Under heavy loads, such as running a large inverter, the app helps us see:
- Voltage sag and recovery
- Whether any cells dip faster than others
- How close we are to over-current or low-voltage cutoffs
This can guide us in sizing loads correctly and understanding what our pack can truly handle. Over time, we build a clearer picture of our system’s real capabilities versus theoretical numbers.
Strengths of the JK BMS Battery Equalizer
Overall, this JK Smart BMS has multiple strong points that make it a compelling choice for many DIY and custom systems. The combination of app control, advanced balancing, and robust protection gives us a feature set that feels professional while still being user-friendly.
We can sum up the main positives in a concise way.
Highlights We Appreciate
-
Dedicated JK App with Bluetooth
We get clear, real-time data and flexible settings on our phone. No guesswork, no proprietary closed systems that hide information. -
Active Balancing (0.6–2A)
Energy is actively shifted from stronger cells to weaker ones, increasing effective pack capacity and helping to maintain a healthy balance over time. -
Comprehensive Protection Functions
Overcharge, over-discharge, over-current, short circuit, and low-temperature charge protection all work together to protect cells and wiring. -
Wide Compatibility and Voltage Range
Support for multiple chemistries and series counts (up to 24S) gives us room to design varied packs for different applications. -
High Current Capability
With ranges going up to 100A–350A and variants even higher, this platform is suitable for demanding power systems that do more than just run small loads. -
DIY-Friendly Design
Though powerful, it is still targeted at users building their own systems, with clear series count support and configurable parameters.
Potential Limitations and Things to Keep in Mind
No product is perfect, and the JK BMS is no exception. Understanding its potential drawbacks helps us decide if it fits our project or if we need a different approach.
We find that being realistic about limitations leads to better, safer designs.
Not a Beginner-Level Plug-and-Play Unit
While the app and Bluetooth features are user-friendly, the BMS still expects us to:
- Understand basic electrical principles
- Wire cells correctly in series
- Deal with high currents and proper cable sizing
If we are completely new to DIY power systems, we may want to read up on BMS basics, watch installation tutorials, or consult someone experienced before committing to a high-power build.
Needs Proper Environmental Protection
The BMS is typically installed in relatively protected environments. If we want to use it in very harsh or dusty conditions, we may need to provide additional enclosure protection and ensure adequate cooling and ventilation.
Lithium battery systems also should not be exposed to extreme heat or direct water spray, so careful planning of installation space is important.
Variant Matching and System Design
Since the JK line includes multiple variants (60A, 80A, 100A, 120A, 150A, 200A, 600A, etc.), we must ensure we:
- Choose the right amperage rating for our system
- Confirm compatibility with our maximum load and charge currents
- Align our wiring, busbars, and fuses to the same current rating
Undersizing the BMS for a heavy-load system can cause nuisance cutoffs or even damage. Oversizing is generally safer but can be more expensive and might require bigger hardware.
How This BMS Compares to Basic Alternatives
When we compare the JK Smart BMS to simpler, cheaper BMS boards, the most obvious differences lie in active balancing and app-based control. Basic boards usually offer only passive balancing and minimal feedback.
With this JK unit, we are stepping into a more refined category.
Beyond Simple Protection Boards
Simple BMS units often:
- Only offer basic over/under voltage protection
- Have little to no individual cell monitoring in practice
- Use passive bleed balancing at very low current levels
In contrast, the JK BMS offers:
- True active balancing at meaningful current levels
- Detailed per-cell data on a phone screen
- Configurable parameters that we can tune instead of fixed thresholds
This means we get not only safety but also efficiency and visibility, which is exactly what we want if we are investing in a sizable battery bank.
A Cost-Effective Step Toward “Smart” Power Systems
Commercial all-in-one battery systems from big brands can be very expensive, often bundling cells, BMS, and communications in a locked ecosystem. The JK BMS gives us many of the smart features at a fraction of that cost, assuming we are comfortable sourcing and assembling cells ourselves.
We gain:
- Control over pack size and chemistry
- A smart communication layer via Bluetooth
- High current capability suitable for strong inverters and systems
For many of us building custom setups, this is a very attractive balance between control, capability, and cost.
Who Will Get the Most Value From the JK Smart BMS?
We can now piece together a clear picture of the ideal user for this BMS. While it can technically be used in many contexts, certain user types will benefit the most from what it offers.
Knowing where it fits best helps us decide if it belongs in our project or if a simpler solution is more appropriate.
Ideal Users and Projects
We see this BMS as a excellent match for:
- DIY battery builders creating 24V, 48V, or 72V LiFePO4 or Li-ion packs
- Off-grid enthusiasts building home or cabin energy storage with solar input
- RV and van builders who want a powerful, smart battery bank with real-time monitoring
- Boat owners upgrading to lithium-based house banks with significant loads
- Tinkerers and hobbyists who want to study battery behavior with fine-grained data
In all of these scenarios, the combination of active balancing, high current handling, and app control is extremely valuable.
When a Different Solution Might Fit Better
On the other hand, we might look elsewhere if:
- We want a completely pre-built, plug-and-play battery pack with no assembly.
- Our system draws only small currents and we do not care about detailed data.
- We are not comfortable working with DC systems at higher voltages or currents.
For very simple use cases, a basic low-amp BMS might be enough. For complex or mission-critical industrial systems, we may need a more specialized solution with integrated communications into an existing industrial network.
Final Thoughts: A Smart, Capable Backbone for Our DIY Battery System
The JK BMS Battery Equalizer JK Smart BMS Balance BT offers a compelling package for anyone serious about building, upgrading, or managing a lithium-based battery system. Its mix of Bluetooth app control, active balancing, comprehensive protections, and wide compatibility with series counts and chemistries makes it a robust and future-friendly choice.
We see it as more than just a safety device. It is a management tool that gives us clear visibility and control, enabling us to run our battery system safely, efficiently, and with confidence over the long term.
If we are planning a DIY LiFePO4, Li-ion, or LTO bank in the 8S–24S range and want to treat our cells well while also having insight into how they are performing every day, this JK Smart BMS stands out as one of the most attractive, feature-rich options in its class.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
