Have you been looking for a smart BMS that not only protects your battery pack, but also actively keeps your cells balanced and healthy for the long term?
What You’re Actually Getting With the JK BMS Battery Equalizer 14–24S 600A 5A
When you pick up the JK BMS Battery Equalizer 14-24S 600A 5A Smart BMS with Active Balancer BT App for LiFePO4 Lithium Li-ion LTO Battery for 36V 48V 60V Battery Protection Module, you’re not just buying a basic protection board. You’re getting an actively balancing, app-connected brain for your battery pack.
This BMS is built for serious DIY systems and custom battery projects where you want high current support, long battery life, and precise control, not just minimal safety.
Who This BMS Is Designed For
You will appreciate this BMS most if you are building or upgrading:
- Home backup power or solar storage
- Off-grid or RV battery banks
- E-bike, e-scooter, or light EV packs (within its voltage/current range)
- Inverter battery systems for 12V, 24V, 48V, or 72V setups
It is aimed at you if you want a robust, configurable system and you’re comfortable working with wiring, configuration, and safety for high-current battery packs.
Key Features at a Glance
It helps to see the main features in a clear format before you get into the details. Below is a simplified breakdown of what this JK BMS offers and what that means for you.
| Feature | What It Is | What It Means for You |
|---|---|---|
| 14–24S support | Works with 14 to 24 series cells | Flexible for 36V, 48V, 60V, up to 72V-class packs (depending on chemistry & configuration) |
| Up to 600A support | High continuous current capability (model-dependent) | Suitable for high-power inverters, motors, and large DIY systems |
| Active balancing up to ~5A (0.6–2A typical range mentioned) | Actively moves charge between cells | Faster, more efficient balancing and longer cell life |
| BT App & JK own development app | Dedicated mobile app for config and monitoring | Real-time data, easier tuning, no guesswork |
| Full protection suite | Over-charge, over-discharge, over-current, short circuit, low-temp charge cutoff | Safer operation and better pack longevity |
| Supports LiFePO4, Li-ion, LTO | Compatible with multiple lithium chemistries | Lets you use it across different projects or battery types |
| DIY friendly design | Multiple settings, user-adjustable parameters | You can fine-tune the system to match your exact build |

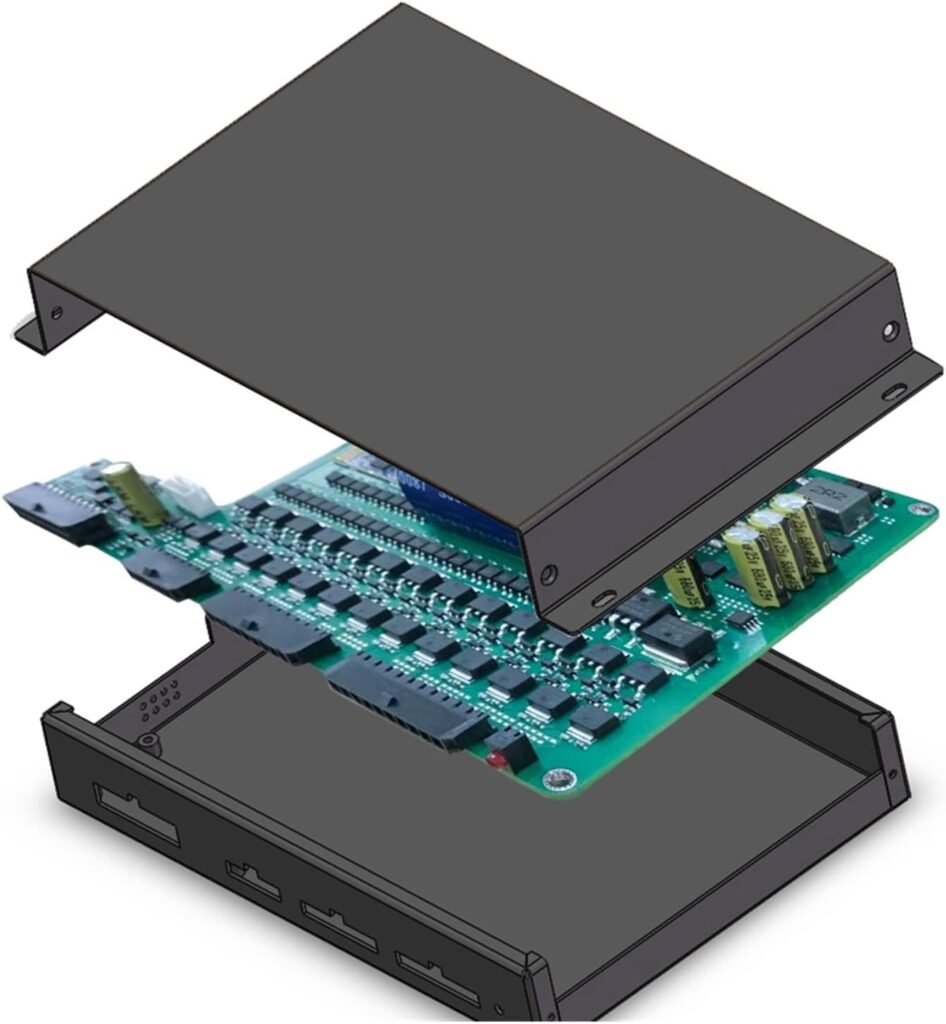

Design and Build Quality
You want a BMS that feels like a real piece of equipment, not a flimsy board that you are afraid to mount. The JK BMS line is known for a solid, industrial-style construction that can handle real-world current and thermal loads.

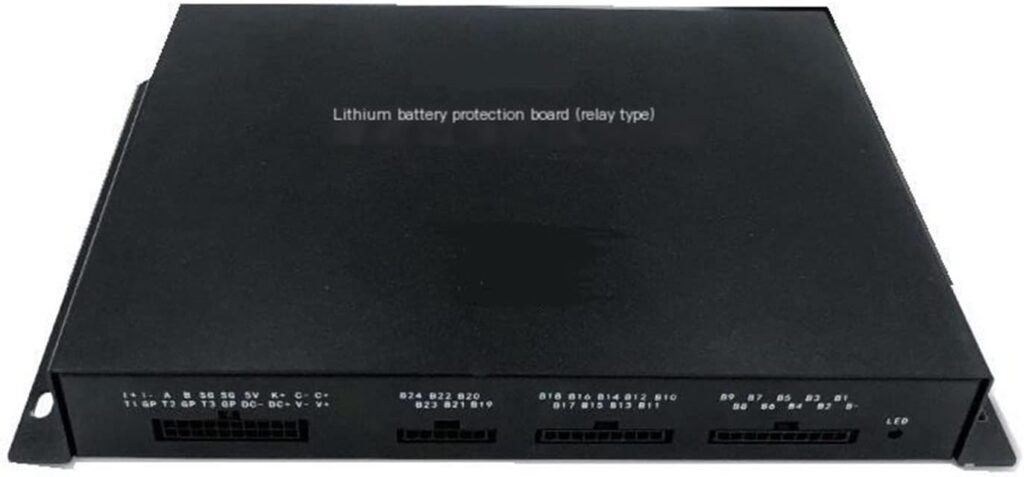

Physical Layout and Wiring
The wiring layout is designed to be systematic rather than “pretty,” which matters more for reliability than for aesthetics. You typically get:
- Heavy terminals or busbar connection points for main positive/negative
- A multi-pin harness for your series cell taps (B1, B2, B3, etc.)
- Temperature sensor wiring
- Communication ports (often including Bluetooth module connectivity)
You will want to take your time during installation because high-current systems leave very little room for sloppy wiring. Still, the arrangement is logical, and once you map your cells and double-check polarity, connection is straightforward.
Durability and Heat Handling
At high currents, thermal performance becomes critical. The JK BMS is built with:
- Large heatsinks on high-current components (model dependent)
- Circuitry sized for the rated amperage
- Layouts that help spread heat instead of concentrating it
You can mount it in a reasonably ventilated area, and under most use cases, the BMS handles typical inverter or load spikes comfortably as long as you stay within rated limits.
Battery Compatibility and Voltage Range
One of the main selling points is flexibility. You might be experimenting with different chemistries or upgrading from one system to another over time.
Supported Chemistries: LiFePO4, Li-ion, and LTO
You can use this BMS with:
- LiFePO4 (LFP) – Excellent for solar/off-grid and stationary use due to safety and long cycle life.
- Lithium-ion (NMC/NCA-type) – Common in e-bikes, scooters, and portable power systems.
- LTO (Lithium Titanate) – More niche, but great for extreme cycle life and low-temperature performance.
The BMS parameters, such as over-charge and over-discharge thresholds, can be adjusted through the app, which is important because each chemistry has different optimal voltage limits.
Series Count and Nominal System Voltages
This BMS supports 14 to 24 cells in series (14S–24S). That gives you coverage for several common system voltages.
- 12V systems (4S) are mentioned generically in the product details, but this exact 14–24S model is truly aimed at:
- 36V range: typically 10–12S Li-ion or 12S LiFePO4, but with 14S you are more in the high-30s to 50V peak range
- 48V systems: often 15–16S LiFePO4 or Li-ion in many builds
- 60V systems: roughly 16–20S depending on chemistry
- 72V systems: often 20–24S depending on cell voltage
You want to match the series count and chemistry to your voltage targets, then map those correctly in the app.
Active Balancing: Why It Matters So Much
Passive balancing just burns off excess energy as heat from higher-voltage cells. Active balancing, like you get with this JK BMS, moves energy from high cells to low cells, which is a huge win for efficiency and pack lifespan.
How the JK Active Balance Works for You
The product details mention 0.6–2A active balance current, and the title calls out “5A” capacity. In practice, that means:
- The BMS does not wait forever to fix imbalances; it moves a meaningful amount of current between cells.
- Instead of cells getting progressively more out of sync over cycles, the BMS constantly nudges them back into alignment during charge.
- You can reach close to 99% battery usage efficiency as claimed, because your weakest cell is less likely to limit your whole pack.
When you use your battery heavily, especially with high loads or deep cycles, cells naturally drift over time. Active balancing helps you keep that drift under control before it becomes a problem.
Benefits You Actually Feel in Use
You will notice three practical improvements:
-
Longer usable capacity
- You can charge closer to full without overcharging individual cells.
- You can discharge deeper without under-volting a weak cell.
-
Longer cycle life
- Balanced cells age more evenly, which slows down the “one bad cell kills the pack” effect.
-
Less maintenance
- You will spend less time opening your battery box to test or manually balance cells.
Protection Functions and Safety
When you build a custom lithium system, safety is non-negotiable. This JK BMS includes a full safety toolkit so your cells are protected from common failure modes.
Over-Charge and Over-Discharge Protection
The BMS constantly monitors each cell’s voltage and shuts off charging or discharging when limits are reached:
- Over-charge protection prevents any cell from being pushed beyond its safe upper voltage.
- Over-discharge protection prevents cells from being drained too low, which would permanently damage capacity and internal structure.
You can tune these cutoffs in the app to match your battery chemistry and manufacturer recommendations.
Over-Current and Short-Circuit Protection
High current is both useful and dangerous. This BMS supports up to hundreds of amps of continuous current (100A–350A and up to 600A depending on model), but it will still:
- Cut output if the current exceeds your configurable limit.
- React quickly in short-circuit conditions to protect wiring and cells from catastrophic failure.
This is especially important for inverter-based systems and motor loads, where you may see large inrush or surge currents.
Low-Temperature Charging Cutoff
If you use LiFePO4 or most conventional lithium packs, charging below freezing can cause plating and serious long-term damage. The JK BMS includes:
- Temperature sensors to monitor cell or pack temperature.
- Low-temperature charge cutoff to block charging if it is too cold.
This is crucial if your battery bank is in a garage, shed, RV compartment, or any unheated space in a cold climate.
JK’s Own App and Bluetooth Connectivity
Instead of guessing what your battery is doing, you can pull out your phone and see it in real time. The dedicated JK app is one of the major reasons people choose this brand.
What You See in the App
You typically can monitor:
- Overall pack voltage and current
- State of charge estimate (SOC)
- Per-cell voltages
- Temperature readings
- Charge/discharge status and alarms
Seeing per-cell voltages is especially valuable. You can catch a weak cell early instead of discovering it when the whole pack starts underperforming.
What You Can Configure
The app is not just a display; it lets you fine-tune your BMS behavior. You are usually able to adjust:
- Over/under voltage thresholds (per cell and pack)
- Charge and discharge current limits
- Balancing parameters and trigger conditions
- Temperature limits for charging and discharging
- Protection delays and reconnection thresholds
Having all this accessible through your phone instead of needing a PC or programming cable makes your tuning workflow much more comfortable.
Performance in Real-World DIY Systems
When you put this BMS into an actual battery bank with an inverter or motor controller, your experience hinges on how well it deals with real loads, not just spec sheet numbers.
Handling High Current Loads
You can pair this BMS with:
- High-power inverters for home backup or off-grid setups
- Large DC loads such as inverters for tools, pumps, or appliances
- Medium-scale electric drive applications (within rated current)
If your wiring is appropriately sized and connections are tight, the BMS generally manages sustained high currents well, while still protecting your pack from surges or faulty connections.
Balancing in Daily Use
In day-to-day cycles, you may not even notice the active balancing at work because it does its job quietly in the background. Over weeks and months, though, you benefit from:
- Reduced spread between highest and lowest cell voltages
- More consistent charging behavior to your chosen end-of-charge voltage
- Fewer error alarms due to cell imbalance
You end up with a more predictable battery system instead of one that behaves differently every few cycles as cell deviations grow.
Installation: What You Need to Be Ready For
If you have never installed a BMS before, you should be prepared for some planning. A powerful device like this is not plug-and-play in the casual sense, but it is absolutely manageable with care.
Planning Your Battery Layout
Before you wire anything, you should:
- Decide your series count (e.g., 16S LiFePO4 for a 48V-class system).
- Confirm your target charge and discharge voltages based on your chemistry.
- Make sure your cables, fuses, and busbars are rated for your maximum continuous and surge current.
You also want to choose a physical location for the BMS that:
- Has reasonable ventilation
- Is protected from moisture and debris
- Is close enough to your cells that the sense wires can reach safely

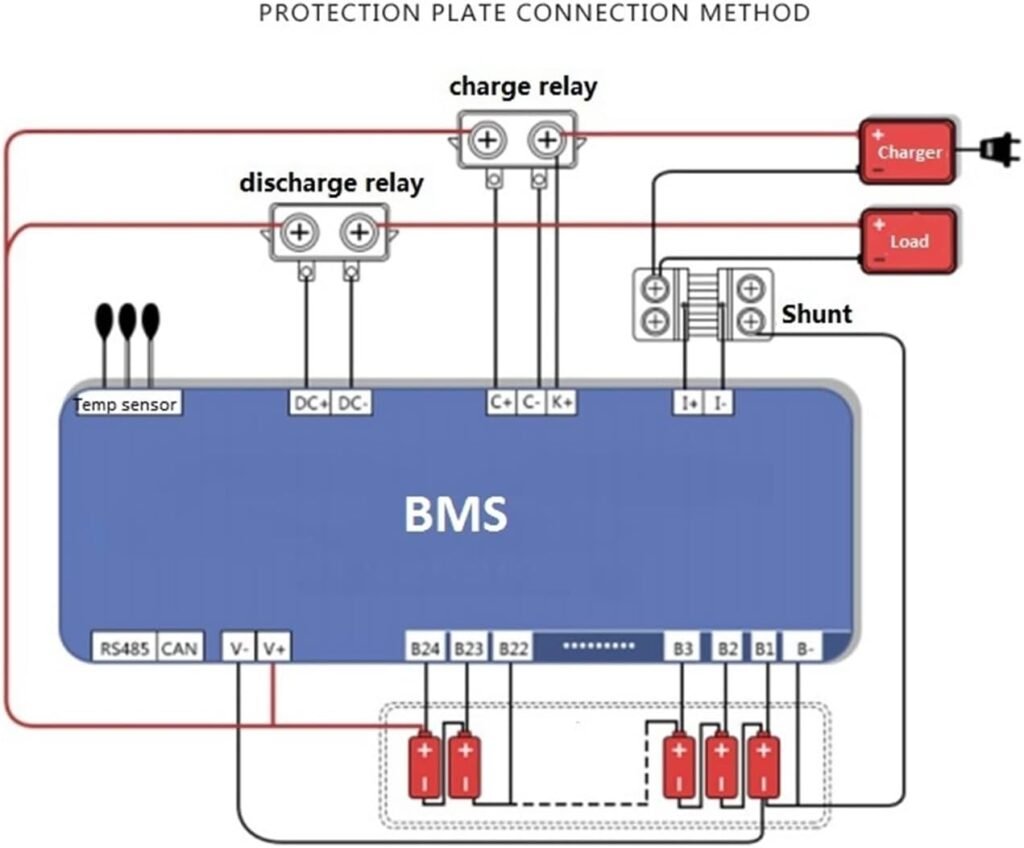

Wiring the Sense Leads and Main Connections
You will wire:
- Main negative and/or positive through the BMS according to JK’s wiring diagram.
- Cell sense leads from B1, B2, B3… to each cell’s positive terminal in sequence.
- Temperature sensors placed near or on cells for accurate readings.
Double-check your polarity and sequence; a miswired BMS can be damaged instantly. Once you power it up, you can confirm per-cell voltages in the app and verify that they match your multimeter readings.
Everyday Operation and User Experience
Once it is installed and configured, you want your BMS to be mostly invisible, just quietly keeping things safe and balanced.
How You Interact With the System
In normal operation, you will mostly:
- Glance at the app occasionally to check pack health, especially under load or during charge.
- Adjust settings if you change your usage pattern or if you switch chemistries.
- Watch for any error or warning flags in the app.
When everything is set correctly, you generally just use your battery bank without needing to constantly tweak the system.
Behavior Under Fault Conditions
If something goes wrong, such as:
- An overcurrent event
- A short circuit
- Over-voltage on one or more cells
- Over-temperature or low-temperature during charging
The BMS will cut off charge or discharge as necessary and typically report the alarm in the app. You can then diagnose the root cause rather than guessing what happened.
How This BMS Compares to Simpler Options
You might be wondering whether you truly need an advanced BMS like this or if a cheaper, basic board would do the job.
Active vs Passive Balancing
With a basic BMS, you usually only get passive balancing, which:
- Uses small resistor shunts to bleed off excess voltage
- Works slowly and wastes energy as heat
- May never fully correct large imbalances in bigger packs
With this JK BMS’s active balancing, you get:
- Faster equalization
- Better efficiency
- Reduced thermal stress on the BMS and pack
If your pack is small and lightly used, passive balancing can be enough. But as your system grows in capacity and current, active balancing starts to pay for itself in reliability and cycle life.
Smart App vs “Blind” Operation
A non-smart BMS is basically a black box: it protects your pack, but you have no easy way to see what is going on inside.
With the JK app-based BMS, you:
- See per-cell voltage, which is vital for troubleshooting
- Control your cutoffs and thresholds from your phone
- Can adapt the behavior to different chemistries and pack designs
If you value transparency and control, this smart approach will feel like a major upgrade.
Pros and Cons to Consider
You always want to balance strengths and trade-offs before committing your time and money.
Advantages You Get
- High current capability suitable for demanding loads and inverters
- Active balancing for efficiency and long-term pack health
- Bluetooth app for configuration and real-time monitoring
- Full safety features, including low-temperature charging cutoff
- Multi-chemistry support (LiFePO4, Li-ion, LTO) for flexible projects
- Configurable parameters that let you tailor the BMS to your exact system
Potential Drawbacks
- Installation requires careful wiring and some experience with high-current systems.
- You need to spend time configuring the app properly instead of just plugging it in and forgetting it.
- Its advanced features can be more than you need if you only have a very small, simple pack.
If you are comfortable with a bit of setup work, these trade-offs are minor compared to the control and safety you gain.
Safety Practices You Should Follow
Even with a smart BMS, your overall safety depends heavily on installation and use. You should always treat high-capacity lithium packs with respect.
Electrical Safety Basics
You will want to:
- Use properly rated cables, lugs, fuses, and breakers.
- Tighten all connections and periodically recheck them, especially in mobile setups.
- Keep conductors well insulated and protected from abrasion or accidental contact.
Despite having short-circuit protection, you never want to rely on the BMS as your only line of defense. Proper fusing and mechanical protection still matter.
Thermal and Environmental Safety
You should also:
- Mount your BMS and pack in a location that avoids excessive moisture and dust.
- Allow airflow or at least passive cooling for your BMS, especially if you regularly use high current.
- Keep flammable materials away from your battery bank and wiring.
Following these basic guidelines lets your BMS do its job effectively without being pushed beyond what it was designed to handle.
Ideal Use Cases for This JK BMS
To decide whether this BMS is right for you, think about how you plan to use your battery system.
Off-Grid and Solar Storage
If you are building a home battery or cabin system, you likely want:
- High current handling for an inverter
- Robust protection against deep discharge and overcharge
- Long-term reliability and reduced cell maintenance
This JK BMS provides strong value here with its active balancing and configurable protections. You can tune it for LiFePO4, which is very popular for solar storage.
RVs, Vans, and Mobile Power
For mobile setups, this BMS helps you manage:
- Frequent charge/discharge cycles
- Variable loads from inverters, fridges, and electronics
- Temperature swings in garages or exterior compartments
The Bluetooth app makes it easy for you to check battery status from inside your living space.
DIY E-Mobility and Hobby Projects
If you are building your own e-bike, cart, or similar project and running high currents, this BMS can:
- Provide the necessary amperage range
- Keep your pack safer during fast discharge and high load events
- Extend pack life through active balancing
You should still match your specific current and voltage needs carefully to the particular JK model you choose within the 14–24S, 600A, 5A family.
Tips for Getting the Most Out of Your JK BMS
A capable device like this offers benefits that compound over time when used properly. Here is how you can maximize what you get.
Set Conservative Voltage Limits
Instead of pushing your cells to their absolute maximum, you can:
- Lower your top-of-charge voltage slightly for longer life.
- Raise your cutoff voltage slightly for discharge to avoid over-stressing the cells at the bottom.
For example, with LiFePO4, you might avoid going all the way to 3.65V per cell every cycle and keep your lower limit around 2.8V–3.0V per cell, depending on your goals.
Use the App to Monitor Trends, Not Just Snapshots
It is useful to occasionally:
- Compare cell voltages at full charge to see if any cell is drifting.
- Watch temperature behavior under heavy load or fast charging.
- Note how balancing activity changes as your pack ages.
By catching gradual changes early, you can repair, replace, or reconfigure before your system fails unexpectedly.
Recheck After System Changes
Any time you:
- Change the pack configuration
- Replace cells
- Upgrade your inverter or charging hardware
You should go back through your BMS settings and confirm that everything still matches your new operating conditions.
When This BMS Is Not the Best Fit
You should also be honest about scenarios where a different approach might suit you better.
You might not need this JK BMS if:
- You are running a very small, low-current battery (like a modest e-bike or tool pack) with low risk and low cost involved.
- You want an ultra-simple, prebuilt, sealed battery with a BMS already installed and zero configuration.
- You are uncomfortable working near high current DC systems and cannot get help or guidance.
In those cases, a smaller, pre-configured battery and a simpler BMS or integrated solution may be safer and more practical.
Overall Value and Who Should Choose It
If you are serious about building a robust lithium battery system and you care about control, efficiency, and longevity, this JK BMS Battery Equalizer 14-24S 600A 5A Smart BMS with Active Balancer BT App offers a strong combination of features:
- High current handling for ambitious DIY systems
- Active balancing for better pack health and usable capacity
- A dedicated JK app with Bluetooth for real-time monitoring and detailed configuration
- Comprehensive safety functions, including low-temperature charging protection
- Compatibility across LiFePO4, Li-ion, and LTO chemistries
You get a BMS that behaves much more like a professional-grade battery management solution than a simple protection board. If you are willing to invest the time to install and configure it properly, it can become the backbone of a reliable, efficient, and long-lived battery system that you understand and control from your phone.
If your project demands that kind of smart protection and flexibility, this JK BMS is a strong candidate for your next build.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
