JK BMS Battery Equalizer 5A Active Balancer Review

Have you been searching for a reliable way to keep your battery packs healthier, safer, and better balanced without constantly worrying about cell differences?

What Is the JK BMS Battery Equalizer 5A and Who Is It For?

You are looking at a smart, active battery equalizer and protection module designed specifically for multi-cell lithium-based packs. The JK BMS Battery Equalizer 5A Active Equalizer Balancer 3S 4S 7S 6S 8S 17S 24S Lifepo4 Lithium Li-ion Lipo LTO Battery Energy active equalization Battery Protection Module (yes, a long name!) gives you active balancing, protection features, and a dedicated app in one unit.

You will benefit from this product if you build or manage battery packs for solar, RV, off-grid, e-bikes, energy storage, or other DIY projects and you want more efficient energy usage, better cell longevity, and precise monitoring.

Key Features at a Glance

You may find it easier to see the main points summarized before getting into the deeper details. Here is a quick breakdown of the core functionality you get.

Feature Category	What You Get	Why It Matters to You
Supported Chemistries	LiFePO4, Lithium-ion, LiPo, LTO	Works with most DIY and commercial-style packs
Supported Series Cells	3S, 4S, 6S, 7S, 8S, 17S, 24S (varies by model)	Flexible for 12V, 24V, 48V, 72V systems and more
Active Balancing	Up to about 0.6–2 A (model-dependent)	Faster, more efficient balancing than passive designs
Current Support	Suitable for 100 A–350 A battery systems (with matching JK BMS)	Works with high-demand setups like inverters and motors
Protection Functions	Over-charge, over-discharge, over-current, short circuit, low-temp cut-off	Keeps your cells safer in different operating conditions
Connectivity	Bluetooth and JK proprietary app	See real-time cell data from your phone
Efficiency	Up to around 99% usage efficiency via active equalization	More usable capacity and extended battery life

This module is intended to work as part of a JK BMS ecosystem, giving you both equalization and protection in a coordinated way.

How the JK Active Balancer Actually Helps Your Battery Pack

You know that in any multi-cell battery pack, no two cells are completely identical. Over time, some cells get out of sync, leading to voltage differences that cost you capacity and stress the weaker cells.

The JK BMS Battery Equalizer 5A uses active balancing, which moves energy from higher-voltage cells to lower-voltage ones. Instead of just burning off extra energy as heat (like passive balancers do), it redistributes it where it is needed.

Why Active Equalization Beats Passive Balancing

Passive balancers typically work by bleeding off excess voltage from high cells using resistors. That means:

• You waste energy as heat
• Balancing is relatively slow
• You put extra thermal stress on high cells

With this JK unit, you get active equalization that is far more efficient:

• Energy is transferred instead of wasted
• Balancing speeds are higher thanks to 0.6–2 A balancing current (depending on version)
• The system supports higher real-world usage efficiency, approaching 99% in ideal conditions

You end up with more usable capacity from the same battery pack, and you reduce the risk of specific cells becoming long-term weak points.

What 5A Active Equalization Means for You

When you see “5A” in the product name, you may think all current is directly balanced at 5A at all times, but in practice:

• The nominal balancing current is typically listed as 0.6–2 A
• The design and control logic are optimized for real-world active balancing across a range of configurations

For you, that translates into:

• Faster voltage alignment after heavy charging or discharging
• Less time spent waiting for cells to balance
• Fewer issues with one cell reaching cut-off limits earlier than the others

Supported Battery Types and Voltages

A major strength of this JK unit is its compatibility with several common lithium chemistries. You are not locked into just one battery type, which is ideal if you like to experiment or evolve your setup over time.

Supported Chemistries: LiFePO4, Lithium-ion, LiPo, and LTO

You can use this module with:

• LiFePO4 (LFP) – Ideal for home energy storage, RVs, and off-grid systems because of its safety and long cycle life.
• Lithium-ion (NMC, NCA, etc.) – Common in e-bikes, power tools, and many modern battery systems.
• LiPo (Lithium Polymer) – Favored in RC hobby projects, drones, and some DIY portable power setups.
• LTO (Lithium Titanate) – Known for extreme cycle life and very fast charge/discharge capabilities.

Being able to match the same equalizer and BMS platform to different chemistry types gives you flexibility when designing or upgrading your pack.

Supported Series Counts and Corresponding System Voltages

You can select an appropriate JK BMS model that supports different series counts:

• 3S / 4S – Often used for small portable packs, 12V-class systems.
• 6S / 7S / 8S – Useful for slightly higher-voltage applications or special DC systems.
• 16S / 17S / 24S – Used for standard 48V, 60V, or 72V systems, often in solar and high-power setups.

The product description mentions:

• 12V / 4S
• 24V / 8S
• 48V / 16S
• 72V / 24S

That means you can aim for common system voltages that pair nicely with many inverters, charge controllers, and DC devices.

Matching the Equalizer to Your System Current

The JK BMS platform supports battery packs in the 100 A–350 A range (depending on the exact BMS model you pair it with). You should choose:

• Lower current models for smaller solar or portable power projects
• Higher current models when you run large inverters, motors, or high-demand DC loads

This equalizer and BMS combo is intended to be part of a serious energy system, not just a small hobby pack.

Smart Monitoring Through the JK Own Development App

If you want convenient control, the JK Own Development APP is a major selling point. Instead of guessing what is going on inside your pack, you can see real-time data right on your phone.

Bluetooth Communication and Real-Time Data

Using built-in Bluetooth communication, the BMS and equalizer send live data to the JK app. You can typically monitor:

• Individual cell voltages
• Pack voltage
• Current draw and direction (charging or discharging)
• Balance status for each cell
• Protection events or error codes

This means you are not limited to a simple indicator light or a basic screen; you get detailed, cell-level information without needing extra hardware (such as external meters or complex communication modules).

What You Can Adjust in the App

Besides monitoring, you can usually tweak various BMS parameters from your phone. Depending on the exact JK model and firmware, you may be able to adjust:

• Over-charge and over-discharge thresholds
• Maximum charge and discharge current limits
• Temperature protection thresholds
• Balance start voltage or conditions
• Alarms and notifications

Instead of reprogramming the board via cables or jumpers, you can adapt your system to your exact battery chemistry and usage scenario in a more user-friendly way.

Battery Protection Features That Guard Your Investment

Your battery pack is probably the most expensive part of your system, so putting a strong line of defense in front of it is essential. The JK BMS Battery Equalizer 5A is built around not only balancing, but also protection.

Over-Charge and Over-Discharge Protection

Over-charging a lithium cell can cause gas formation, swelling, and in extreme cases, thermal runaway. Over-discharging can permanently reduce capacity or damage the cell structure.

This JK system monitors each cell and stops charging or discharging when any cell exceeds your configured safe limit. You get:

• Automatic cutoff when charge voltage is too high on any cell
• Automatic cutoff when any cell drops too low during discharge

You can adjust many of these limits in the JK app (depending on your exact model), which is helpful when matching to different chemistries like LiFePO4 versus standard Li-ion.

Over-Current and Short-Circuit Protection

High current surges can come from large inverters, motors, or even wiring accidents. The JK unit watches the current flow and steps in if it exceeds safe levels.

You benefit from:

• Defined maximum continuous current limits
• Short-circuit protection to prevent catastrophic pack failure

This is especially important if you run a system up to 350 A, where an uncontrolled short could be extremely dangerous.

Low-Temperature Charging Cutoff

Charging lithium batteries at low temperatures can cause lithium plating, which permanently damages cells. The JK BMS supports low temperature charging cutoff, so when the pack is too cold, it simply prevents charging.

You can often pair the BMS sensors with your environment to ensure:

• Charging only resumes when the battery temperature is back to a safe range
• You do not have to manually babysit the system during winter or cold conditions

You are effectively shielding your pack from one of the most common and subtle killers of lithium batteries.

Installation and Configuration Considerations

You should treat this equalizer and BMS as a precision control device that must be wired and configured correctly. While the product is DIY-friendly, a careful approach is essential for safety and performance.

Choosing the Correct Version for Your Pack

Before you install anything, you need to confirm:

• Cell count – Is your pack 4S, 8S, 16S, 24S, or something similar? You must match the BMS model to your series configuration.
• Chemistry – LiFePO4, Li-ion, LiPo, and LTO have different voltage ranges. Make sure your chosen JK model and settings support your chemistry.
• Current rating – Estimate your maximum continuous discharge and charge currents and choose a JK BMS model in the 100 A–350 A range accordingly.

A mismatch here can lead to nuisance shutdowns or, in the worst case, unsafe operating conditions.

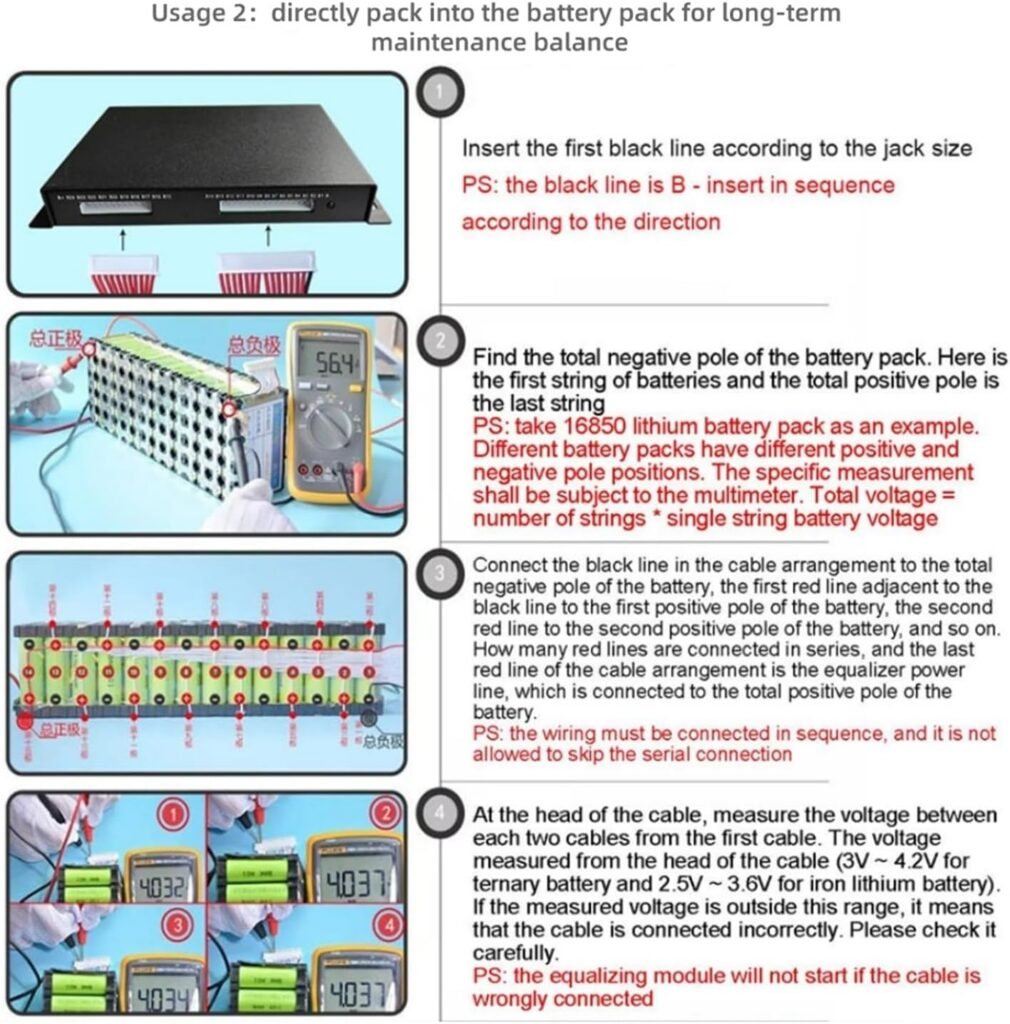

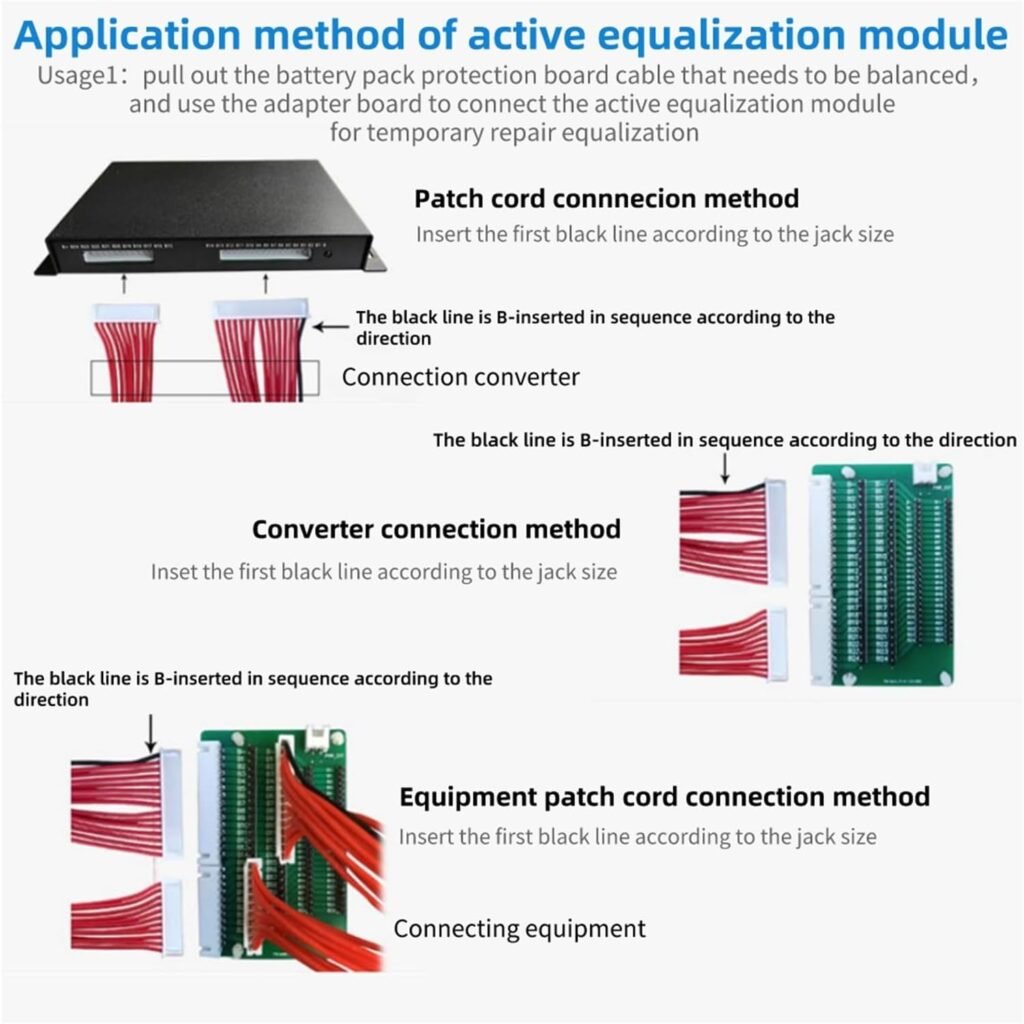

Wiring and Connection Safety

You will be wiring this unit into your pack, so you should:

• Follow the manufacturer’s wiring diagram closely
• Connect the balance leads correctly in sequence from the negative end upward
• Double-check polarity and connections before powering on
• Use appropriately rated fuses and cables for your system current

Even though the JK BMS offers strong protection, poor wiring can still cause serious problems. Take your time and do not rush the installation.

Initial Configuration Through the App

Once installed, you can use the JK app to:

• Set your target charge voltages appropriate for your chemistry
• Adjust over-charge and over-discharge limits
• Configure temperature thresholds
• Review real-time cell voltages to confirm correct wiring and operation

Spending some extra time here will help you optimize both performance and longevity. If you are new to customizing BMS parameters, you can start with more conservative, safe defaults and then fine-tune.

Everyday Use: What You Can Expect in Real Operation

After the initial setup, your system should work mostly in the background, quietly protecting and balancing your pack while you use your battery for its intended purpose.

Balancing During Charge and Discharge

You can expect the active equalizer to:

• Smooth out cell differences continuously or whenever the conditions are met
• Work smarter than simple top-of-charge balancing by actively shifting energy
• Help keep your pack well balanced even under heavy cycling

That means you are less likely to see one cell hit its voltage limit long before the others, which would waste capacity.

Real-Time Monitoring Builds Confidence

With the app in your hand, you can:

• Check your pack’s health before running high-demand loads
• Watch how cells behave under heavy charging or discharging
• Detect early signs of a weak or failing cell

Instead of guessing, you can make informed decisions, such as when to rebalance, reconfigure, or replace a cell.

Longer-Term Battery Life

By keeping cells:

• Within safe voltage ranges
• Protected from low-temperature charging
• Balanced with active equalization instead of wasteful bleeding

You are stacking the deck in favor of longer cycle life. That means more years of operation and better return on the investment you made in your batteries.

Advantages of the JK BMS Battery Equalizer 5A

This product stands out because it combines real-time intelligence, strong protection, and active equalization in one ecosystem. You are not just getting a simple equalizer; you are getting a smart management solution.

Efficiency and Capacity Utilization

You will notice several benefits in daily use:

• Higher usable capacity – Active balancing helps you use more of your pack without hitting an early cut-off on one cell.
• Less energy waste – Minimal heat loss compared to passive balancing, which improves overall system efficiency.
• Consistent performance – Fewer dramatic swings in cell voltages under load, making performance more predictable.

If you rely on your system for off-grid living or critical backup power, this extra reliability and efficiency can matter a lot.

Strong Protection Feature Set

You are not forced to choose between balancing and safety. With this JK BMS equalizer, you have:

• Full over-charge and over-discharge protection
• Over-current and short-circuit defense
• Temperature-aware logic, including low-temperature charging cutoff

Instead of needing several separate modules, you can integrate one coordinated unit.

Flexible for Many DIY and Professional Uses

Because it supports:

• Various series configurations (3S up to 24S depending on model)
• Multiple chemistries (LiFePO4, Li-ion, LiPo, LTO)
• Broad current ranges (100 A–350 A supported by the platform)

You can integrate it into:

• DIY solar battery banks
• Van or RV power systems
• Custom e-bike or scooter builds (with appropriate configuration)
• Home energy storage attached to an inverter
• Laboratory or workshop battery projects where monitoring is critical

You are not stuck with one narrow use case.

Limitations and Things You Should Watch Out For

No product is perfect, and understanding the limitations helps you avoid frustration or misuse. You want to know not only what it can do, but also what you should not expect from it.

Not a Plug-and-Play “Beginner Only” Device

Even though the app makes the interface friendlier, this is still a fairly advanced piece of battery management hardware. You should be prepared to:

• Read wiring diagrams carefully
• Understand basic concepts such as series connections, current ratings, and fuse protection
• Make sure your inverter, charger, and battery pack are compatible

If you have never worked with lithium batteries before, you may want to study battery safety fundamentals first or get help from someone experienced.

Balancing Current Is Strong but Not Infinite

With 0.6–2 A active balancing current, this JK unit gives you much faster and more efficient balancing than many low-cost alternatives. However:

• If your pack is extremely out of balance, it will still take time to bring all cells into alignment
• You should not rely on balancing alone to compensate for totally mismatched or damaged cells

You should still start with cells that are reasonably matched in terms of capacity and internal resistance.

You Must Choose the Right Model and Configure Correctly

If you mis-match the model (for example, using a 16S version on a 24S pack), or if you set incorrect voltage thresholds for your chemistry, you can:

• Trigger constant protection cutoffs
• Shorten your battery’s life
• Put your pack at risk

So, you need to double-check your model choice and configuration against your specific battery and use case.

How It Compares to Basic BMS and Passive Balancers

If you are wondering why you might pay more for a JK BMS active equalizer when cheaper BMS boards exist, the differences become clear once you compare capabilities.

Versus a Simple Passive BMS

A basic BMS usually:

• Offers over-charge and over-discharge protection
• Bleeds off extra voltage from high cells via resistors
• Has limited or no app-based monitoring

In contrast, with this JK product, you get:

• Active balancing instead of simple bleeding, saving energy and time
• Detailed cell-level data on your phone through Bluetooth
• More robust configuration options and broader current/series support

You are effectively upgrading from a basic safety-only system to a full management platform.

Versus Standalone Balancers Without Protection

Standalone active balancers may help keep your cells aligned, but they do not typically provide full BMS protection. That means:

• No over-current or short-circuit protection
• Limited or no intelligent charging cutoffs
• Often no integrated app with cell-level control

The JK BMS Battery Equalizer 5A works within the JK ecosystem to give you both equalization and protection in one coordinated unit.

Example Use Cases Where This Product Shines

To help you picture whether this is right for you, it helps to consider common scenarios where the JK BMS equalizer is a strong fit.

Off-Grid Solar Battery Bank (48V or 24V)

If you run a 48V or 24V LiFePO4 battery bank:

• You may cycle your pack daily
• Your inverter may pull several hundred amps at peak
• You would like long life and high reliability

In this case, the JK BMS active equalizer:

• Protects against harmful operating extremes
• Keeps the cells balanced for maximum usable capacity
• Gives you real-time status via the app, so you know what is going on even when your system is tucked away in a closet or shed

RV or Van Life System (12V, 24V, or 48V)

If your home moves with you, you need a robust yet intelligent battery management solution.

You might use this JK system to:

• Manage a LiFePO4 house battery bank
• Protect your investment during cold mornings or hot days
• Monitor your pack from your phone while camping or boondocking

Active balancing becomes especially valuable when your system experiences irregular or frequent charge/discharge cycles.

DIY E-Mobility Projects

For e-bikes, scooters, or custom mobility projects using higher-voltage packs:

• You often push your batteries hard with bursts of current
• You want to know how individual cells behave under acceleration and charging
• You care about both performance and safety

The JK BMS active equalizer and app help you:

• Spot trouble early when a cell is degrading
• Keep performance more predictable with well-balanced cells
• Protect against over-current and short-circuit incidents

You do need to ensure the current and voltage range match your specific build, but when they do, you gain a strong toolkit in one module.

Safety and Reliability: Why Design Choices Matter

The product description specifically mentions “USE SAFETY” and a unique design. That is not just marketing; using the correct protection board and applying it properly is truly crucial to your battery’s long-term health.

Importance of Correct Sizing and Installation

If you undersize your BMS for your real current draw, you risk:

• Overheating the unit
• Triggering nuisance over-current cutoffs
• Long-term reliability issues

By matching your real current (both continuous and peak) to the JK model’s ratings, you greatly increase system reliability.

Why Active Equalization Helps Long-Term Reliability

Over many cycles, even tiny voltage differences can add up to large imbalances. These imbalances:

• Force certain cells to shoulder more strain
• Lead to earlier capacity loss in the weakest cells
• Can cause your pack to “shrink” in usable capacity much sooner than expected

With an active equalizer like this, you are constantly correcting those differences. Over the lifetime of your battery pack, that translates to:

• More cycles before noticeable capacity loss
• Better alignment among cells, reducing the chance of a single-cell failure

You are essentially putting your battery on a healthier “diet” where it is not constantly being pushed into unhealthy extremes.

Practical Tips to Get the Most from Your JK BMS Battery Equalizer 5A

You can get more value and safety out of this product if you follow a few practical guidelines once you start using it.

Start with Matched Cells

You should try to begin your project with:

• Cells that are similar in capacity and age
• Cells at roughly the same state of charge when initially assembled

The active equalizer will keep them aligned, but it is always better to start from a reasonably balanced base.

Use Conservative Voltage and Current Settings at First

In the app, you may be tempted to push the limits for maximum capacity and power. For better longevity:

• Set conservative maximum charge voltage per cell (especially for LiFePO4 and Li-ion)
• Limit continuous current to what your cells are comfortably rated for, not just their absolute maximum

Once you see how your system behaves, you can adjust within safe margins if needed.

Monitor Regularly in the First Few Weeks

During the first weeks of operation, you can:

• Check cell voltages under load and rest
• Look for cells that behave differently from the others
• Confirm that balancing activity looks reasonable in the app

This initial observation period helps you catch wiring mistakes, weak cells, or configuration issues early.

Is the JK BMS Battery Equalizer 5A Right for You?

You are the ideal user for this product if:

• You build or operate multi-cell lithium battery systems (3S–24S depending on model)
• You want active, not just passive, balancing
• You need full protection (over-charge, over-discharge, over-current, short-circuit, and temperature safeguards)
• You appreciate real-time monitoring and configuration through a dedicated app
• You prefer a more professional, flexible platform that can support 100 A–350 A systems

You may want to look elsewhere if you only need a tiny, low-current pack with minimal monitoring, or if you do not feel comfortable working with higher-current lithium systems at all.

Final Thoughts on the JK BMS Battery Equalizer 5A

You get a sophisticated combination of active equalization, strong protection, and smart app integration with the JK BMS Battery Equalizer 5A Active Equalizer Balancer 3S 4S 7S 6S 8S 17S 24S Lifepo4 Lithium Li-ion Lipo LTO Battery Energy active equalization Battery Protection Module. It is designed to help you reach up to 99% usage efficiency, extend battery life, and keep your cells operating within safe, controlled limits.

If you are serious about building or upgrading a lithium battery system and you want more than a basic BMS board, this unit offers a well-rounded, friendly-to-use platform that puts detailed control and information directly in your hands through the JK app. By choosing the correct model for your cell count and current, wiring it correctly, and configuring it thoughtfully, you give your battery pack a much better chance at a long, productive, and safe life.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
