JK BMS Battery Equalizer B2a24s20p review

Have we ever wished our battery system could practically manage itself while keeping us constantly informed?

What Is the JK BMS Battery Equalizer and Why Should We Care?

When we build or upgrade a battery system, we quickly realize that the Battery Management System (BMS) is the real brain of the whole setup. The JK BMS Battery Equalizer JK BMS B2a24s20p 8s 10s 12s 14s 16s 20s Li-ion Lifepo4 Lto Battery Protection Board Smart BMS with Active Balance Battery Protection Module aims to be that smart, reliable brain.

With its own dedicated app, Bluetooth connectivity, active balancing, and support for a wide range of system voltages and chemistries, this unit targets serious DIYers and advanced users. We are not just getting basic protection; we are getting detailed control and monitoring that can significantly extend battery life.

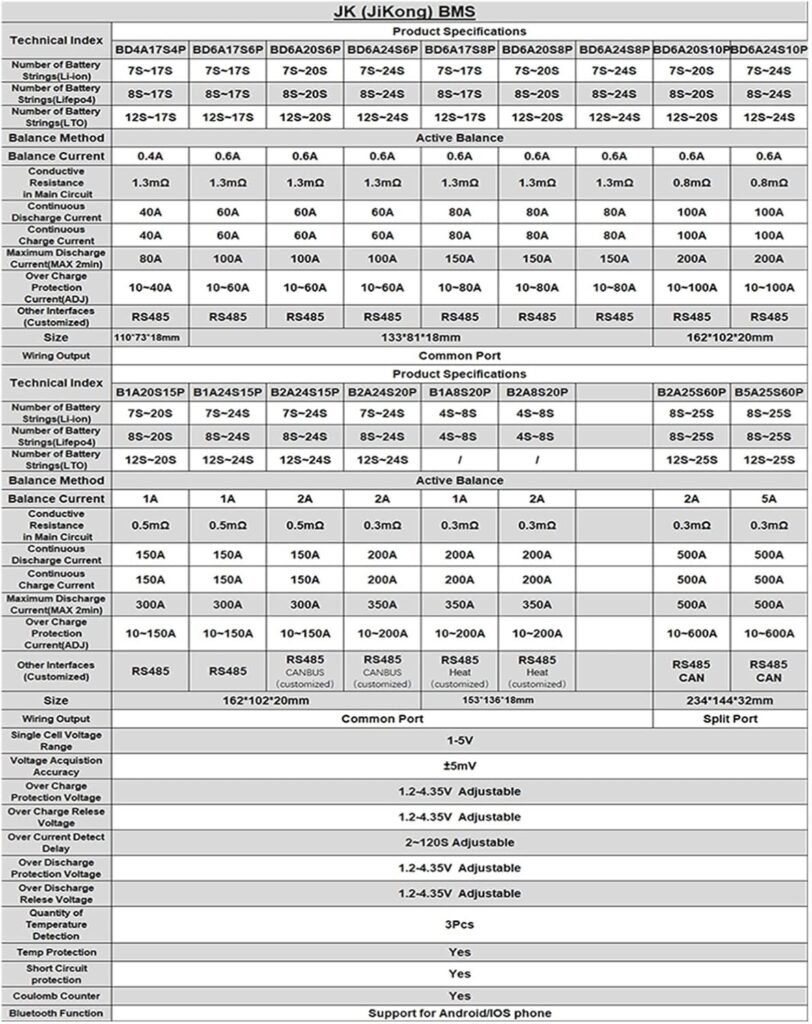

Main Features at a Glance

Before we go into more detail, it helps to see the core features laid out. This product packs a lot into one board, and understanding those parts helps us decide if it fits our system.

Feature Category	Key Details
App & Connectivity	JK proprietary app, Bluetooth communication, real‑time status monitoring
Balancing Type	Active balancing, 0.6–2 A balance current
Efficiency	Up to 99% battery usage efficiency (claimed)
Protection Functions	Over‑charge, over‑discharge, over‑current, short circuit, low‑temp cutoff
Supported Battery Types	Li-ion, LiFePO₄, LTO
Supported Configurations	8S, 10S, 12S, 14S, 16S, 20S (e.g. 12V/4S, 24V/8S, 48V/16S, 72V/24S)
Current Rating	100 A to 350 A max depending on model
Application	DIY battery packs, solar, RV, off‑grid, energy storage, e‑mobility
Safety Focus	Intelligent cutoffs, active balancing, robust board design

This overview already shows us that the JK BMS is targeted at serious energy storage projects rather than tiny consumer packs.

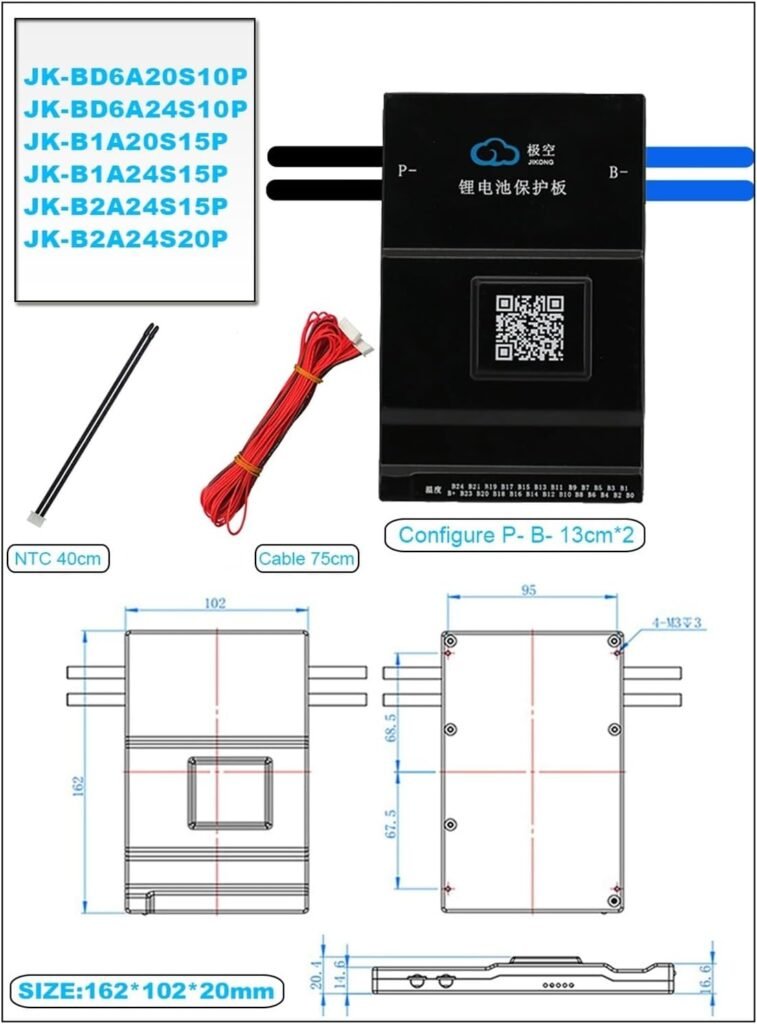

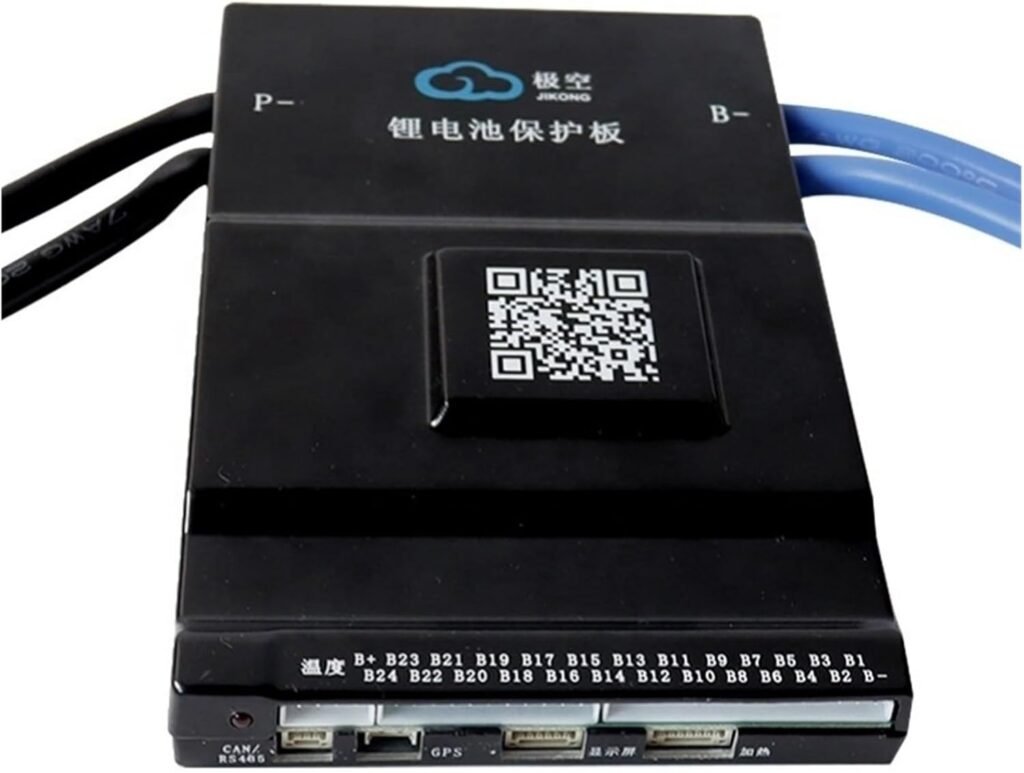

Design and Build Quality

From a physical perspective, the JK BMS Battery Equalizer is built with high currents and demanding environments in mind. The layout is clearly intended for robust installations like home energy storage, solar systems, RVs, and larger DIY battery banks.

We usually see solid busbar or large terminal connections, thicker traces, and a clear separation of high‑power and low‑voltage logic circuits. That separation matters for safety and reliability, and it suggests that this module was engineered with long‑term use in mind.

Layout and Component Choice

The board’s design is fairly compact for what it does, yet it does not feel cramped. JK generally uses:

• Large MOSFETs or contactors for switching and protection
• Heatsinks or thermal path design to handle high current
• Multiple connectors for balance leads and main power cables

We can tell the design is influenced by real‑world DIY needs: labeled terminals, consistent pinouts, and a layout that allows mounting inside battery cabinets or enclosures.

Durability and Practical Handling

When we mount a BMS, we need to think about heat, wiring strain, and accessible connectors. The JK BMS tends to be:

• Rigid enough to handle installation in mobile setups (like vans and RVs)
• Structured so we can route balance leads with minimal crossing and tangling
• Designed with screw terminals or equivalent hardware for secure high‑amp connections

We still need to ensure proper enclosure, ventilation, and strain relief, but the board feels built for more than just a bench test. It is meant for real projects that will see daily cycling.

JK Own Development App and Bluetooth Connectivity

The dedicated JK app is one of the standout reasons we would choose this BMS over simpler “black box” units. It is not just a few basic numbers; it gives us a full window into our pack.

We can pair the BMS through Bluetooth and see our battery parameters in real time, which dramatically reduces guesswork and manual meter probing.

What We Can See in the App

The JK app typically provides a dashboard view of key values. While features may vary by firmware revision, we can generally expect to see:

• Pack voltage and individual cell voltages
• Charge and discharge current
• State of charge (SOC) estimation
• Temperature readings from sensors
• Protection status (which protections are active or have been triggered)

This level of visibility lets us quickly identify a weak cell, a bad connection, or a configuration issue. We no longer need to watch each cell with separate voltmeters or guess which part of the system is misbehaving.

App‑Based Configuration and Fine‑Tuning

The app is not only about monitoring; it allows configuration too. This is crucial if we are mixing different battery chemistries or want custom voltage thresholds.

Typical parameters we can adjust include:

• Over‑charge and over‑discharge voltage thresholds
• Charge and discharge current limits
• Temperature limits for charging and discharging
• Balancing trigger points and behavior

This means we can tune the BMS to different pack chemistries like LiFePO₄, Li‑ion (NMC, NCA), or LTO, each of which has its own optimal voltage range.

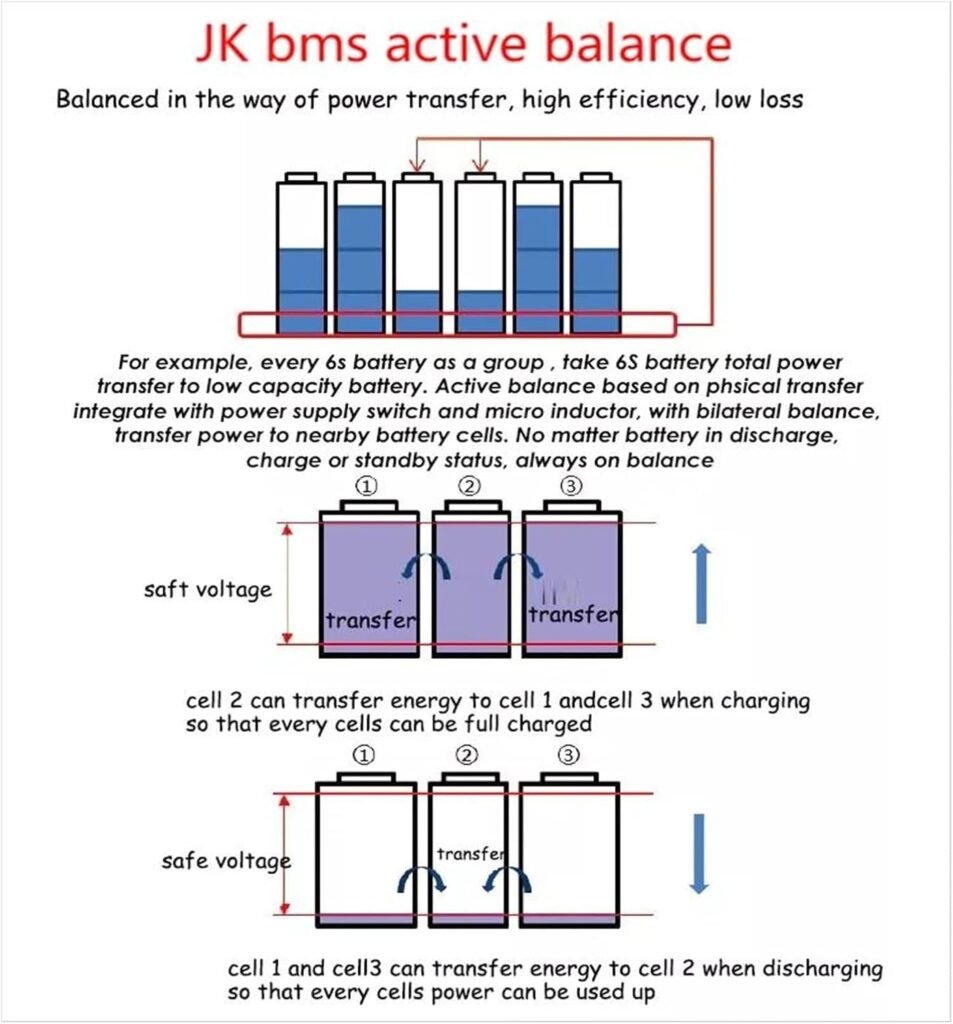

Active Balancing: Why It Matters for Our Battery Life

Balancing is one of the most critical jobs a BMS performs. The JK BMS uses active balancing, which is a step up from the passive balancing we often see in cheaper boards.

Instead of burning off excess energy from higher‑voltage cells as heat, active balancing moves energy from higher cells to lower cells. That is more efficient and better for long‑term health.

0.6–2 A Active Balance Current

The specified balance current range (0.6–2 A) is fairly strong compared to many BMS units that only manage a few hundred milliamps of passive bleed. With active balancing:

• Cells are equalized more quickly
• We can correct larger imbalances sooner
• We reduce wasted energy since we are transferring rather than just burning it off

This is especially helpful in big packs with high capacity cells, where small imbalances can grow over time and cause early cutoff or reduced usable capacity.

99% Battery Usage Efficiency (Claimed)

Active balancing can, in theory, push us closer to using nearly all of the capacity our cells have to offer. When one cell drifts high or low, the BMS can shift charge around and keep the pack aligned.

The claimed 99% usage efficiency is ambitious, but the core idea holds: the more effectively the pack is balanced, the more we can use the energy we have already paid for. Over thousands of cycles, that can add up to significant extra value and extended life.

Protection Functions and Why They Are Essential

The JK BMS Battery Equalizer does more than equalize cells. It is a full protection system that acts as a gatekeeper between our batteries and the rest of the world.

We can think of these protections as layers of safety. Each one addresses a distinct failure mode that could otherwise damage cells or even cause dangerous conditions.

Over‑Charge and Over‑Discharge Protection

Over‑charging and over‑discharging are the fastest routes to ruining a battery pack. The BMS monitors each cell and:

• Cuts off charging if any cell exceeds the set maximum voltage
• Cuts off load (discharge) if any cell drops below the set minimum voltage

For LiFePO₄, we might set something like ~3.6 V max and ~2.5–2.8 V min per cell. For Li‑ion or LTO, we would adjust those numbers accordingly in the app.

This keeps cells inside the safe working range and prevents capacity loss or internal damage.

Over‑Current and Short‑Circuit Protection

High current events can happen due to fault conditions, wiring mistakes, or device failures. The JK BMS is rated up to 100 A–350 A depending on the specific model, but it will still intervene if:

• Discharge current exceeds the upper threshold for too long
• A short circuit is detected on the output

In practice, this means the BMS can quickly shut down the output to protect both the cells and the wiring. We still want appropriate fusing in the system, but the BMS adds a crucial extra layer.

Low Temperature Charging Cutoff

Many lithium chemistries do not tolerate charging well at low temperatures. For LiFePO₄, for instance, charging below freezing can cause plating and long‑term damage.

The JK BMS includes a low temperature charging cutoff, which:

• Monitors the temperature sensor
• Prevents charging when the pack is below a defined threshold
• Resumes charging once the pack is back in a safe range

This is particularly important for off‑grid cabins, RVs, and outdoor battery setups where ambient temperatures can swing widely.

Supported Voltages, Cell Counts, and Chemistries

One of the major strengths of this unit is its flexibility. We can build packs of different sizes and chemistries while still using the same core BMS platform.

This helps us standardize around one ecosystem for multiple projects, whether we are assembling a 12 V pack for an RV or a higher‑voltage bank for home storage.

Cell Configurations: 8S to 20S

The JK BMS Battery Equalizer supports a wide range of series cell counts, including:

• 8S
• 10S
• 12S
• 14S
• 16S
• 20S

These counts map to common system voltages:

Series Count	Typical System Voltage (Approx.)	Common Use Cases
4S	~12 V (LiFePO₄)	Small solar, backup, RV starter replacement
8S	~24 V (LiFePO₄)	Mid‑size solar, trolling motors, light EVs
16S	~48 V (LiFePO₄)	Home energy storage, larger inverters
20S	~72 V (varies by chemistry)	E‑bikes, scooters, higher‑power systems
24S	~72 V (LiFePO₄) or more	Larger E‑mobility, advanced storage

The product details specifically note support for 12V/4S, 24V/8S, 48V/16S, and 72V/24S configurations. That gives us plenty of latitude to scale our system over time.

Supported Battery Types: Li‑ion, LiFePO₄, LTO

The JK BMS is not locked into a single chemistry. It can handle:

• Li‑ion (NMC / NCA): Higher energy density, often used in e‑bikes and power tools
• LiFePO₄ (LFP): Safer, longer cycle life, popular for solar and RV systems
• LTO (Lithium Titanate): Very long cycle life, excellent cold performance, lower energy density

Each chemistry has different voltage and temperature characteristics, but the adjustable parameters in the app enable us to tune the system to our specific cells.

We need to input the correct thresholds and double‑check against our cell manufacturer’s data sheet. Once set up, the BMS does the rest automatically.

Current Handling: 100 A to 350 A

For many of us, current handling is one of the most critical specs. The JK BMS Battery Equalizer range supports maximum currents between 100 A and 350 A depending on the specific model.

This is enough for:

• Medium to large inverters (e.g., 1–5 kW off‑grid systems)
• High‑power DC loads like inverters, motors, and large DC appliances
• Multiple parallel loads in an RV or solar‑powered home

We must still ensure our wiring, fuses, and connectors are rated for the same (or higher) currents. The BMS protects, but it cannot fix undersized cables or poor crimps.

Real‑World Use Cases

What really matters to us is how this BMS fits into our practical projects. It is one thing to list specs, but another to picture it in a working system.

Off‑Grid Solar and Home Energy Storage

For a home solar system with a 48 V LiFePO₄ bank, we can use a 16S configuration with this JK BMS. The active balancing helps us keep the cells aligned even after hundreds of charge‑discharge cycles, and the app lets us see SOC and voltage status at a glance.

We can:

• Pair the pack with a 3 kW–5 kW inverter
• Monitor daily cycling on our phone
• Adjust cutoff voltages once we better understand our real usage patterns

Over time, that fine‑tuning can significantly extend pack lifespan.

RVs, Camper Vans, and Boats

For mobile setups, a 12 V or 24 V LiFePO₄ bank is common. A 4S or 8S configuration works well here. The JK BMS:

• Protects the pack from alternator over‑voltage or faulty chargers
• Manages low temperature charging in cold climates
• Provides real‑time status to help us track remaining capacity when boondocking

We end up with a much more “transparent” battery system, which reduces the anxiety of not knowing how much energy we have left.

DIY Powerwalls and Garage Projects

For those of us building a DIY powerwall, active balancing is a major advantage. We might be assembling packs from reclaimed or mixed cells, where slight differences in capacity and internal resistance are inevitable.

The JK BMS:

• Balances out uneven groups to maintain pack cohesion
• Alerts us to problem strings via the app
• Helps prevent early failure of “weaker links” in the chain

This is particularly attractive if we want to keep costs down by reusing cells while still maintaining decent long‑term reliability.

Installation Considerations

Setting up a BMS can be intimidating if we have not done it before. While we should follow the manufacturer’s specific wiring diagrams, there are some general points to keep in mind for the JK BMS.

Wiring the Balance Leads and Main Terminals

The balance wiring is critical because it tells the BMS what each cell is doing. For a multi‑series pack:

• Each cell group’s positive terminal connects to its respective balance lead
• The pack negative typically connects to a designated “B‑” terminal
• Main charge/discharge connections use “P‑” or “C‑/D‑” depending on the board design

We want to route these leads neatly, label them if needed, and double‑check alignment before powering the BMS. Reversing leads or misplacing a connection can damage the board or the cells.

For the main current path, we:

• Use appropriately sized cables and lugs
• Ensure firm, clean connections
• Consider fuses or breakers on both charge and discharge paths

Configuring Parameters for Our Chemistry

Once physically wired, the app becomes essential. We need to:

1. Select or confirm the correct chemistry type.
2. Set maximum and minimum cell voltages based on our cell specifications.
3. Set maximum charge and discharge currents.
4. Configure temperature cutoffs for charging and discharging.
5. Adjust balancing thresholds if we want more aggressive or conservative behavior.

After setup, we should monitor the first few cycles closely. We can watch how cell voltages behave at the top and bottom of the charge curve and fine‑tune thresholds if needed.

Everyday Use and Monitoring

Daily use with this BMS is much more convenient than with basic boards. Instead of guesswork, we have actual data continuously available.

Tracking Pack Health Over Time

With the JK app, we can:

• Watch for cells that consistently lag behind or jump ahead
• Note trends in capacity or voltage sag over months
• Spot issues before they become failures

If a particular cell group starts drifting more than others, we can plan maintenance or replacement rather than waiting for a sudden drop in performance.

Using the BMS as a System Dashboard

Many of us end up using the app like a main system dashboard. It shows:

• How much current we are drawing under specific loads
• How charging sources (solar, alternator, AC charger) are behaving
• Whether any protection has recently triggered

When something goes wrong, we have actual data to troubleshoot rather than just “the lights went off.” That can save a lot of time and frustration.

Safety and Protection Philosophy

The product notes emphasize “USE SAFETY” and “unique design,” and that fits with how the JK BMS functions. The core idea is that choosing the correct protection board and applying it appropriately is vital to the longevity of our batteries.

The BMS as a Safety Net, Not a Substitute for Good Design

We should think of the BMS as a smart safety net, not a cure‑all. It provides:

• Intelligent cutoff for unsafe conditions
• Oversight of individual cells and overall pack behavior
• Minds of its own when things go out of range

But we still must design:

• Proper fusing and breakers
• Adequate cable size
• Secure mechanical mounting
• Ventilation for heat dissipation

When we combine a strong safety‑oriented BMS with sound electrical design, we get a system that is both reliable and long‑lived.

Protecting Our Investment

Battery cells, especially high‑capacity LiFePO₄ or Li‑ion packs, are not cheap. A BMS like this is essentially an insurance policy as well as a performance optimizer.

By:

• Preventing harmful over‑charge or over‑discharge
• Guarding against extreme currents
• Managing low temperature charging
• Continuously balancing cells

we are stretching the usable life of our pack. Over time, the cost of the BMS becomes small compared to the value of the saved cycles and prevented failures.

Strengths and Weaknesses of the JK BMS Battery Equalizer

Every product has tradeoffs, and understanding both sides helps us decide whether this one fits our specific needs.

Key Strengths

We see several strong points in this model:

• Active balancing with up to 2 A: Faster, more efficient balancing than passive systems.
• Robust protection suite: Over‑voltage, under‑voltage, over‑current, short‑circuit, and low‑temperature charging cutoff.
• Flexible chemistry support: Li‑ion, LiFePO₄, LTO, with configurable parameters.
• Wide range of configurations: From small 12 V setups to 48 V and beyond.
• Dedicated app with Bluetooth: Real‑time monitoring and configuration from a phone.
• High current capability: Up to 350 A on appropriate models, suitable for substantial systems.

For advanced DIYers, these strengths can be game‑changing, particularly in long‑term, frequently cycled systems.

Potential Limitations

We should also consider possible drawbacks:

• Complexity for beginners: The wealth of options and parameters may be overwhelming if we are new to BMS setups.
• Dependence on app and firmware: Our experience relies heavily on the quality and stability of the app and firmware support.
• Installation demands careful wiring: Especially with higher series counts and currents, mistakes can be costly.

None of these are deal‑breakers, but they do mean that this BMS is best suited to users who are willing to read documentation, follow diagrams carefully, and invest some time in correct setup.

Who Is This Product Best Suited For?

We can narrow down the ideal audience for the JK BMS Battery Equalizer based on its capabilities and complexity.

Ideal Users

This BMS is an excellent fit if we:

• Are building or upgrading mid to large‑scale lithium battery systems (12 V to 72 V and beyond).
• Need active balancing for higher capacity packs or reclaimed cells.
• Want fine control over voltage and current limits for different chemistries.
• Value real‑time app monitoring and adjustable parameters.
• Are comfortable (or willing to learn) about series wiring, balance leads, and system‑level design.

For serious DIYers, small installers, or technically minded enthusiasts, this product offers a lot of capability in a compact package.

Less Ideal Use Cases

It may not be the best choice if we:

• Just want a simple drop‑in replacement BMS for a small pack with no interest in configuration.
• Do not plan to use the app or do not have compatible phones for Bluetooth.
• Prefer a more “plug and forget” solution with minimal adjustment options.

In those cases, a simpler, lower‑featured BMS might be easier and more cost‑effective.

Practical Tips for Getting the Most Out of This BMS

To truly benefit from what this smart BMS offers, we can follow a few practical guidelines.

Start with Conservative Settings

When we first set up our thresholds:

• Choose slightly conservative voltage limits for both top and bottom end.
• Limit max charge and discharge currents to what our system easily handles.
• Let the system run for several cycles to observe behavior before pushing the limits.

We can always nudge the settings later once we are confident in how the pack is performing.

Use the App Regularly, Not Just at Setup

The value of real‑time monitoring is only realized if we actually use it. Periodically checking:

• Cell voltage spread at full charge
• Temperature trends under heavy load
• SOC and voltage vs. how our system “feels”

gives us a much better intuition about our battery bank. Over time, we learn to predict when we need to add capacity, adjust loads, or troubleshoot connections.

Keep the System Documented

With flexible BMS setups, documentation is our friend. It helps to:

• Note our voltage and current settings
• Label balance leads and terminals
• Keep a simple wiring diagram of the system

Future us (or anyone else working on the system) will be grateful when it comes time to troubleshoot or upgrade.

Our Overall Impressions and Verdict

Taking everything together, the JK BMS Battery Equalizer JK BMS B2a24s20p 8s 10s 12s 14s 16s 20s Li-ion Lifepo4 Lto Battery Protection Board Smart Bms with Active Balance Battery Protection Module stands out as a feature‑rich, flexible, and performance‑oriented BMS for serious battery projects.

We particularly appreciate:

• The active balancing that genuinely improves capacity usage and cell health.
• The JK proprietary app with Bluetooth, bringing advanced diagnostics and configuration into our pocket.
• The broad chemistry and configuration support, letting us standardize on one BMS platform for multiple builds.
• The comprehensive safety protections, including low temperature charging cutoff, that look after our investment over the long term.

For those of us planning or running medium to large lithium battery systems—whether in off‑grid solar, RVs, boats, or DIY energy storage—this unit offers a powerful combination of control, visibility, and safety. It does ask us to pay attention to configuration and wiring, but the payoff is a smarter, more efficient, and longer‑lasting battery bank.

If we want more than a basic “on/off” BMS, and we are comfortable managing a few settings through an app, this JK BMS Battery Equalizer is a compelling option that can become the central nervous system of our entire energy setup.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
