Have you been looking for a smarter, safer way to manage and protect your lithium battery pack, especially if you’re running a high-current DIY system or off‑grid build?

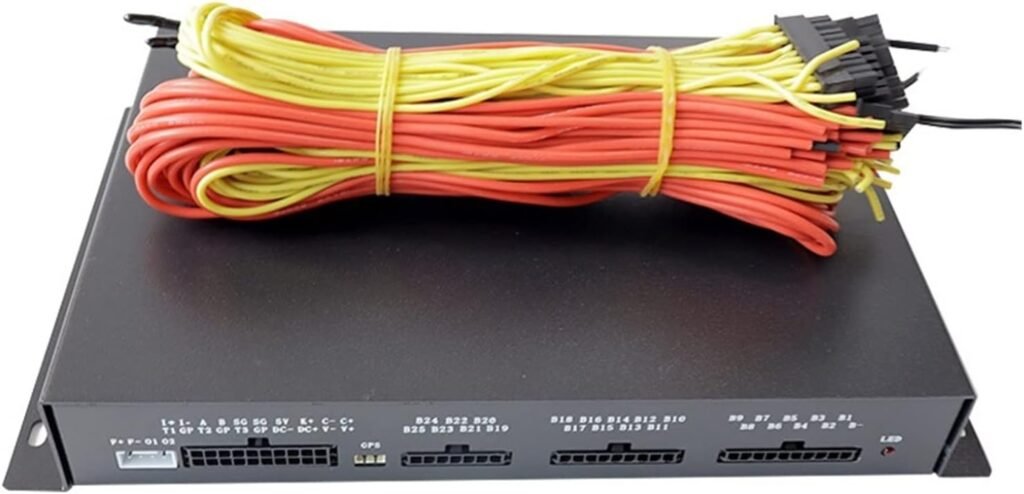

What You Get With the JK BMS Battery Equalizer JK 5A Balancer 8S–25S
You’re not just buying a basic protection board here—you’re getting an actively balancing, app‑connected battery management system designed for serious DIY users. This unit targets lithium packs in the 36V–100V range and supports substantial current, making it suitable for everything from solar setups to powerwalls and large EV projects.
This section walks you through the core idea of what this product is and what it’s meant to do in your system.
Core Purpose of This JK BMS
You use a BMS to protect your cells, maximize lifespan, and keep your pack operating safely under different load conditions. This JK BMS Battery Equalizer is built to manage multiple lithium chemistries and support up to 500A system currents when correctly matched with the rest of your components.
Your goal with a unit like this is simple: you want your battery pack to last longer, perform consistently, and remain safe—without needing to micromanage every voltage reading by hand.
Key Features and Specifications
You’ll likely want a clear view of the most important specs before deciding if this BMS fits your build. The table below breaks down the main points based on the product description.
| Feature | Details |
|---|---|
| Product Name | JK BMS Battery Equalizer JK 5A Balancer 8S–25S 500A 36V–100V BMS |
| Supported Cell Count | 8S–25S (varies by specific model variant) |
| Supported Nominal System Voltages | Commonly: 12V (4S), 24V (8S), 48V (16S), 72V (24S) and similar within 36V–100V operating range |
| Maximum Current (System/Application) | Up to 500A (depends on configuration and system design) |
| Compatibility (Chemistry) | Lithium-ion, LiFePO4, LTO, and similar lithium-based packs |
| Balancing Type | Active balancing |
| Balancing Current | Typically 0.6–2A active balance current (model dependent) |
| Communication | Bluetooth via JK dedicated mobile app |
| Main Protections | Over-charge, over-discharge, over-current, short-circuit, low-temperature charge cutoff |
| Use Case | DIY battery packs, solar storage, powerwalls, e-bikes, EV carts, off-grid systems, etc. |
These specs help you check compatibility with your existing or planned pack. The big takeaway is that you’re getting an active balancer BMS with robust protection features and an app for real‑time monitoring.
JK Own Development App and Bluetooth Connectivity
If you like seeing real-time data for your system, the dedicated JK app is one of the biggest advantages of this BMS. Instead of guessing how your pack is doing, you can see per-cell status, temperatures, and protections right on your phone.
This matters a lot for DIY packs, because you’re the system integrator and the service technician at the same time. Having a real-time window into your battery saves you trouble and guesswork.
Real-Time Status on Your Phone
With built-in Bluetooth, you connect to the BMS via the JK app and see detailed data, such as:
- Individual cell voltages
- Pack voltage and current
- State of charge (SOC) estimate
- Temperature readings
- Balance status and logs
Being able to check this information from your phone, without plugging in extra hardware or a laptop, makes maintenance and troubleshooting much smoother. You can quickly confirm whether your pack is balanced, if any cells are misbehaving, or if the BMS has triggered a protection event.

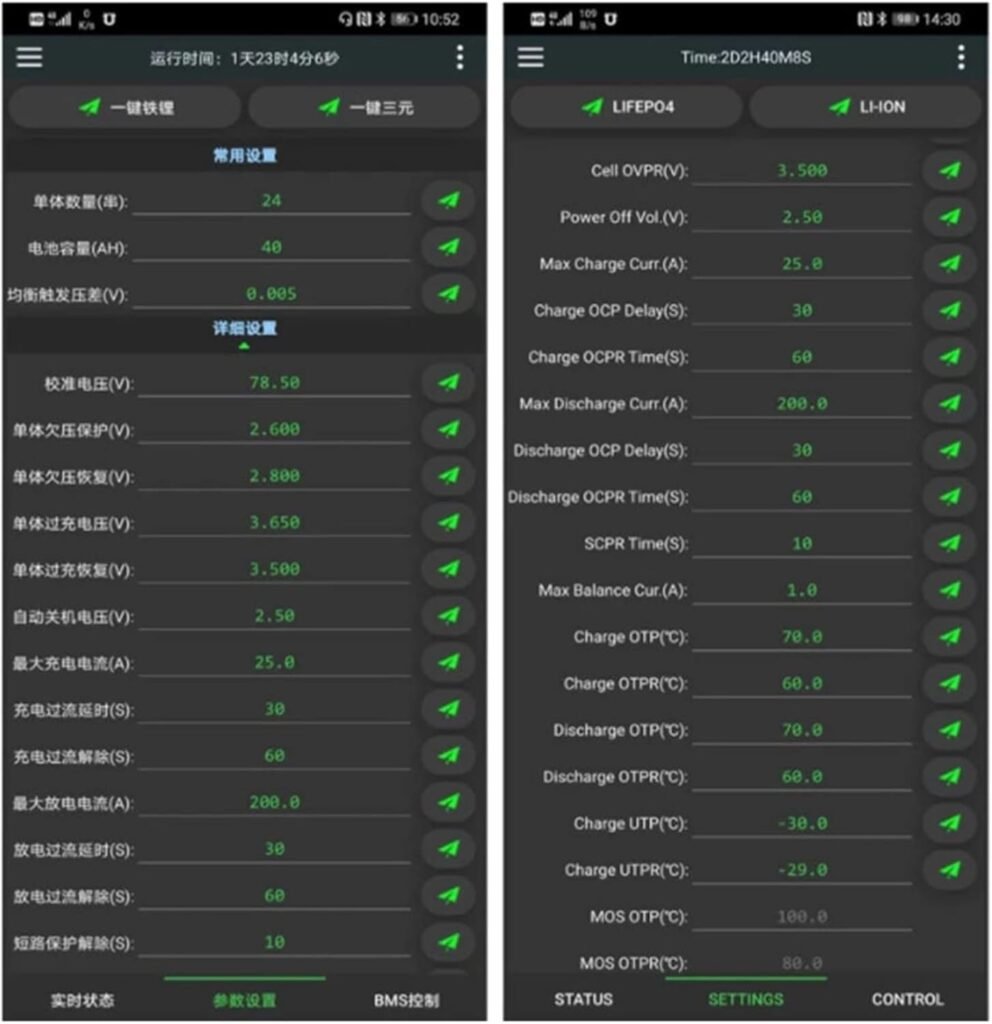

Customizable BMS Settings Through the App
The JK app lets you adjust many key parameters, so the BMS matches your exact chemistry and use case. You typically set things like:
- Charge cutoff voltage per cell (for LiFePO4 vs standard lithium-ion)
- Discharge cutoff voltage per cell
- Over-current thresholds
- Temperature limits for charging and discharging
- Balancing start and stop thresholds
This flexibility means you can fine-tune your system rather than being stuck with fixed factory defaults. If you’re the kind of person who calibrates your own pack, this level of control can be a big benefit.
Active Balancing for Higher Efficiency and Longer Life
Many BMS units rely on passive balancing (burning off excess charge as heat). This JK BMS Battery Equalizer instead focuses on active balancing, which is designed to move energy between cells more efficiently.
This is crucial when you’re dealing with large packs and higher capacities, where wasted energy and heat from passive balancing become significant.
How Active Balancing Works for Your Pack
Instead of simply bleeding off energy from higher-voltage cells, active balancing transfers that energy to lower-voltage cells. In practice, this means:
- Cells reach a more equal state of charge overall
- You use more of the total capacity of your pack
- You reduce stress on cells that would otherwise hit full or empty prematurely
With a rated active balance current in the 0.6–2A range, this BMS can correct imbalances at a reasonable speed—even in moderately large battery packs.
Why More Efficient Balancing Matters
When cell voltages drift apart, your BMS has to limit the entire pack based on the weakest or highest cell. By actively keeping cells in line, you:
- Raise battery usage efficiency (the manufacturer claims up to 99% usage efficiency)
- Minimize capacity loss from early cutoff due to a single outlier cell
- Extend the effective cycle life of your pack
Over years of use, active balancing can help you keep your pack performing closer to its original capacity, while also reducing the chance of one weak cell dragging down the entire system.
Protection and Safety Functions
You want a BMS to be strict when it matters. This JK unit takes that role seriously, with layered protection mechanisms built around voltage, current, and temperature.
Your cells are expensive, and your system may be running high currents. A strong protection strategy is not optional—it’s essential.
Over-Charge and Over-Discharge Protection
Over-charging and over-discharging are two of the fastest ways to damage lithium cells or cause safety issues. This BMS monitors each series cell group and will:
- Cut off charging when cell voltages exceed your configured or default charge limit
- Stop discharge when any cell hits the minimum safe voltage threshold
This helps prevent both capacity loss and structural damage to your cells. It also adds a layer of peace of mind whenever you leave your system unattended while charging or discharging.
Over-Current and Short-Circuit Protection
If your load suddenly spikes or a fault causes a short, you need the BMS to react immediately.
The JK unit monitors current flow and trips protections when:
- The discharge current exceeds your set or rated limit
- A short-circuit condition is detected, causing an instant and severe current draw
In such events, the BMS will typically disconnect the load (or charge source) to protect both the batteries and your wiring. This is especially important in higher-current setups (e.g., inverters, motor controllers, or large inrush currents).
Low-Temperature Charging Cutoff
Charging lithium batteries at low temperatures can permanently damage them. This BMS includes low-temperature charging cutoff, which:
- Uses temperature sensors to monitor cell or pack temperature
- Prevents charging when the temperature is below a safe threshold
If you keep your pack in a garage, van, or shed that can get cold, this feature helps you avoid accidentally harming the cells during winter or in cold climates.
Wide Compatibility and Use Cases
One of the strengths of the JK BMS Battery Equalizer is its flexibility across different pack configurations and applications. You’re not locked into a single voltage or chemistry.
If you like to build, upgrade, or modify your own systems, this flexibility means you can keep the same BMS platform across multiple projects.
Supported Voltages and Cell Counts
According to the product information, this BMS supports:
- 12V systems (typically 4S packs)
- 24V systems (8S)
- 48V systems (16S)
- 72V systems (24S)
Different JK variants cover the full 8S–25S range within 36V–100V packs, so you’ll want to verify the exact model before purchase. Still, this range gives you good coverage for most common DIY and off‑grid setups.
Lithium Chemistries: LiFePO4, Lithium-Ion, LTO, and More
You can use this BMS with:
- Standard lithium-ion (NMC/NCA) cells
- LiFePO4 cells (commonly used in solar and RV setups)
- LTO (lithium titanate) cells
Each chemistry has its own voltage thresholds and temperature nuances. The JK app allows you to configure parameters to better suit each type, giving you a safer and more tailored configuration.
Smart Design for DIY Builders
This product targets DIY users and system builders who need more control and better data than a typical “black box” BMS can offer. If you like to optimize every part of your setup, the design approach of this BMS will likely suit you.
However, with flexibility comes responsibility: you need to wire it correctly and configure it properly.
Unique Design Focused on Safety and Longevity
The manufacturer emphasizes that selecting the correct protection board and applying it appropriately is vital to the longevity of your batteries. That’s not just marketing—it’s reality.
A few design advantages you can appreciate include:
- Active balancing circuitry designed to maintain uniform cell health
- Protection logic configured for safe charge/discharge limits
- A layout intended to manage heat and current safely (within the design specs)
You’re given the tools for safety, but you still need to pair the BMS with properly sized cables, fuses, and hardware, and follow standard electrical safety practices.
Importance of Proper Matching and Installation
Because this BMS can handle substantial current and a wide voltage range, you need to:
- Match the BMS model to your exact series cell count (e.g., 16S for 48V LiFePO4)
- Make sure your pack’s maximum current is within the supported range
- Use appropriate gauge wiring and proper terminations
- Mount and ventilate the BMS in a way that helps it stay within its safe operating temperature
If you treat it as a plug‑and‑play toy without considering these things, you’re likely to run into issues. Used properly, though, it can be a powerful component in your build.
Setting Up Your JK BMS Battery Equalizer
You’ll get the best results if you approach installation methodically. While the exact wiring diagram depends on your specific model and pack, the general process tends to be similar across JK BMS units.
Always refer to the official documentation for your exact model, but the steps below give you a useful overview.
Planning Your Battery Pack and Configuration
Before you even touch a wire, clarify the basics of your pack:
- How many series cells (S) are you using?
- What is your target nominal pack voltage?
- What maximum current do you expect (continuous and surge)?
- Which chemistry are you using (LiFePO4, lithium-ion, LTO)?
Once you know this, you choose the JK BMS variant that matches your series count and fits your current and voltage target.
Wiring and Connection Guidelines
For a typical JK BMS install, you:
- Connect the main negative of the battery pack to the BMS’s B- terminal.
- Connect the pack positive directly to your system’s positive bus (through appropriate fuses and breakers).
- Use the balance harness (sense wires) to connect to each cell junction in your series string in the correct order.
- Connect load and charger positives to the pack positive, and negatives to the BMS-controlled terminals (as directed in the manual).
You need to be extremely careful with:
- Order of connection (often from most negative cell upward)
- Polarity of each sense wire
- Avoiding shorts between sense leads
After wiring, it’s wise to double‑check every connection with a multimeter before powering the system fully.
Using the JK App for Monitoring and Tuning
Once your hardware is wired up, the app becomes your main interface. Instead of poking at the board or guessing what’s happening internally, you work through your phone.
This is especially convenient when your pack is installed in a tight location or integrated into a larger system.
Pairing and Basic Dashboard
You generally pair your smartphone via Bluetooth by:
- Installing the official JK app from your app store
- Turning on Bluetooth and scanning for devices
- Selecting your BMS and pairing it
After pairing, you’ll typically see a dashboard displaying:
- Total pack voltage
- Real-time current (charge or discharge)
- SOC estimate
- Temperatures
- Per-cell voltages
This view helps you catch any issues early, such as one cell that lags behind or sudden current spikes.
Advanced Configuration and Logs
The app also exposes advanced configuration parameters. While menus can vary by version, you’ll usually be able to:
- Set charge/discharge voltage thresholds
- Configure max charge and discharge current
- Adjust balance thresholds (when balancing starts and stops)
- Define temperature limits and sensor roles
You may also access:
- Fault history or event logs
- Data records for voltage or current over time
These tools are valuable when you’re troubleshooting strange behavior, tuning for specific usage patterns, or testing your pack under different loads.
Performance in Real-World Use
On paper, a BMS can look great, but what matters is how it behaves in daily use. With the JK BMS Battery Equalizer, your experience will depend heavily on how well your pack is built and how accurately you set the parameters.
Still, there are some consistent benefits you can expect if you install and configure it properly.
Balancing Behavior Over Time
With 0.6–2A active balance current, this BMS:
- Works steadily to bring higher cells down and raise lower ones up
- Can correct drift reasonably quickly on medium and large packs
- Helps your pack reach a more uniform state during the top-of-charge phase
Over weeks and months, you’ll notice that your cells stay closer together in voltage, even if they started a bit uneven. This helps prevent one cell from topping out early or dropping out first.
System Stability Under Load
If your system involves inverters, motors, or other demanding loads, stability is key. Once the BMS is dialed in:
- Over-current protection prevents extreme surges from harming your pack
- Short-circuit protection acts as a last safety net in fault conditions
- Properly set low-voltage cutoffs keep you from depleting your cells too deeply
Combined with the app, you can watch your pack under load and see exactly what happens when you start up a heavy appliance or motor. This lets you refine your design (e.g., bigger cables, better bus bars, different fuses) based on real data.
Pros and Cons of the JK BMS Battery Equalizer
Every product has strengths and trade-offs. Understanding both helps you decide if this BMS is right for your projects and expectations.
Strengths You Can Benefit From
You get a combination of advanced features and practical usability:
- Active balancing: More efficient use of capacity and healthier cells over time.
- Robust app support: Live data, configuration, and logs from your phone.
- Multiple chemistries and voltages: Wide compatibility with LiFePO4, Li-ion, and LTO in 36V–100V ranges.
- Comprehensive protection: Over-charge, over-discharge, over-current, short-circuit, and low-temperature charging cutoff.
- DIY-friendly feature set: Fine-grained control suited for tinkerers and serious system builders.
For a DIY builder or small-scale integrator, these features can make your system more professional without demanding commercial-level tools or software.
Potential Limitations to Keep in Mind
There are also a few considerations you should accept up front:
- Configuration complexity: With more options comes more chance of misconfiguration; you must be careful and methodical.
- Installation skill requirement: This is not a beginner’s toy; you need basic electrical knowledge and good wiring discipline.
- Model selection detail: You must choose the correct variant for your exact series count and current; guessing can cause problems.
If you’re comfortable with these requirements, the trade-offs are reasonable. If you want something dead-simple and plug-and-play for a small pack, you may find the JK lineup more advanced than you truly need.
Ideal Use Cases for This BMS
You’ll get the most value from this product if your project matches its strengths. The more serious your pack and system, the more sense a BMS like this makes.
Off-Grid Solar and Home Storage
If you’re building:
- A DIY powerwall
- A cabin or shed battery bank
- A van or RV solar system with a large pack
Then this BMS fits well. You can:
- Manage a substantial pack (e.g., 48V 16S LiFePO4 bank)
- Monitor everything from your phone
- Ensure safe charge/discharge with inverters and high-current loads
The active balancing also helps keep long-term solar storage packs healthier, especially if they’re cycled daily.
EV, E-Bike, Golf Cart, and Mobility Projects
For transport and mobility builds where current can spike high and safety matters:
- E-bikes and e-motorcycles with custom packs
- Electric go-karts or golf carts
- Small EV conversions or experimental vehicles
The JK BMS can protect your pack under acceleration and regen, while giving you detailed insight into what your cells are doing under stress. You just need to carefully match the model to your voltage and current requirements.
Tips for Getting the Most Out of Your JK BMS
If you want your system to be reliable and safe, a few best practices go a long way. These aren’t complicated, but they make a big difference.
Verify and Calibrate Cell Voltages
Before and after connecting the BMS:
- Measure each cell (or parallel cell group) with a reliable multimeter
- Ensure the BMS readings match your actual cell voltages as closely as possible
- If the app allows small calibrations, use them carefully to align readings
This helps prevent errors where the BMS thinks a cell is over or under voltage when it really isn’t.
Set Conservative Limits for Longevity
You extend pack life dramatically by avoiding extreme ends of charge and discharge:
- Set maximum charge voltage slightly below the chemical maximum (especially for LiFePO4)
- Set cut-off voltage above the absolute minimum specification
- Avoid running continuous current at the absolute upper rating of your cells or BMS
You might give up a few percentage points of capacity, but you gain a lot in terms of lifespan and safety margin.
Monitor Early, Then Relax
When you first install the BMS:
- Watch the app closely during charge and discharge cycles
- Look for any abnormal voltage drift between cells
- Confirm that protections behave as expected (e.g., hitting low voltage triggers a cutoff)
Once you’re confident everything’s stable, you can relax and just check in periodically, instead of constantly watching numbers.
Is the JK BMS Battery Equalizer Right for You?
Whether this BMS is the right choice for you depends on what you need from your system and how much control you want over it. If any of the points below describe your priorities, it’s a strong candidate.
When This BMS Makes a Lot of Sense
You’ll likely be happy with this product if:
- You’re building a medium to large lithium pack in the 36V–100V range.
- You need active balancing to keep cells well-matched over time.
- You want detailed, real-time data and configuration power through a phone app.
- You’re comfortable with electrical wiring and parameter tuning.
In that scenario, this JK BMS becomes a centerpiece of your system, not just a hidden add‑on.
When You Might Want Something Simpler
On the other hand, you might consider a simpler solution if:
- You’re building a very small pack with low current draw.
- You don’t want to deal with app setup, parameter tuning, or series configuration.
- Your priority is plug‑and‑play simplicity over fine-grained control.
In those cases, a basic fixed-parameter BMS might meet your needs without the learning curve.
Final Thoughts on the JK BMS Battery Equalizer JK 5A Balancer 8S–25S 500A 36V–100V
You’re getting a serious tool for serious battery systems with this JK BMS Battery Equalizer. Between the active balancing, rich app integration, and comprehensive protection features, it’s designed for DIY builders and small integrators who want visibility and control rather than a black-box solution.
If you pair it with a well-built pack, wire it carefully, and configure it thoughtfully, you give your batteries a much better chance at a long, efficient, and safer working life.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
