Have we ever wished our DIY battery system could be a little smarter, safer, and easier to manage from our phone?
What Is the JK BMS Battery Equalizer and Why Should We Care?
When we build or upgrade a battery bank, the BMS is the brain and bodyguard of the entire system. The “JK BMS Battery Equalizer JK 8S 9S 10S 12S 13S 14S 16S 17S 20S 21S 24S Smart Bms 2A 5A Balance Current Li-Ion LTO Lifepo4 Bms 600A Storage Relay Battery Protection Module (Color : B2A25SRP, Size : JK” is designed to protect and actively balance cells in multi‑series lithium packs.
This model is aimed at users who run LiFePO₄, Li‑ion, or LTO battery systems in configurations from small 12 V setups up to higher‑voltage 72 V systems and beyond. Our goal here is to look closely at how well it works, what makes it stand out, and where it might not be the best fit.

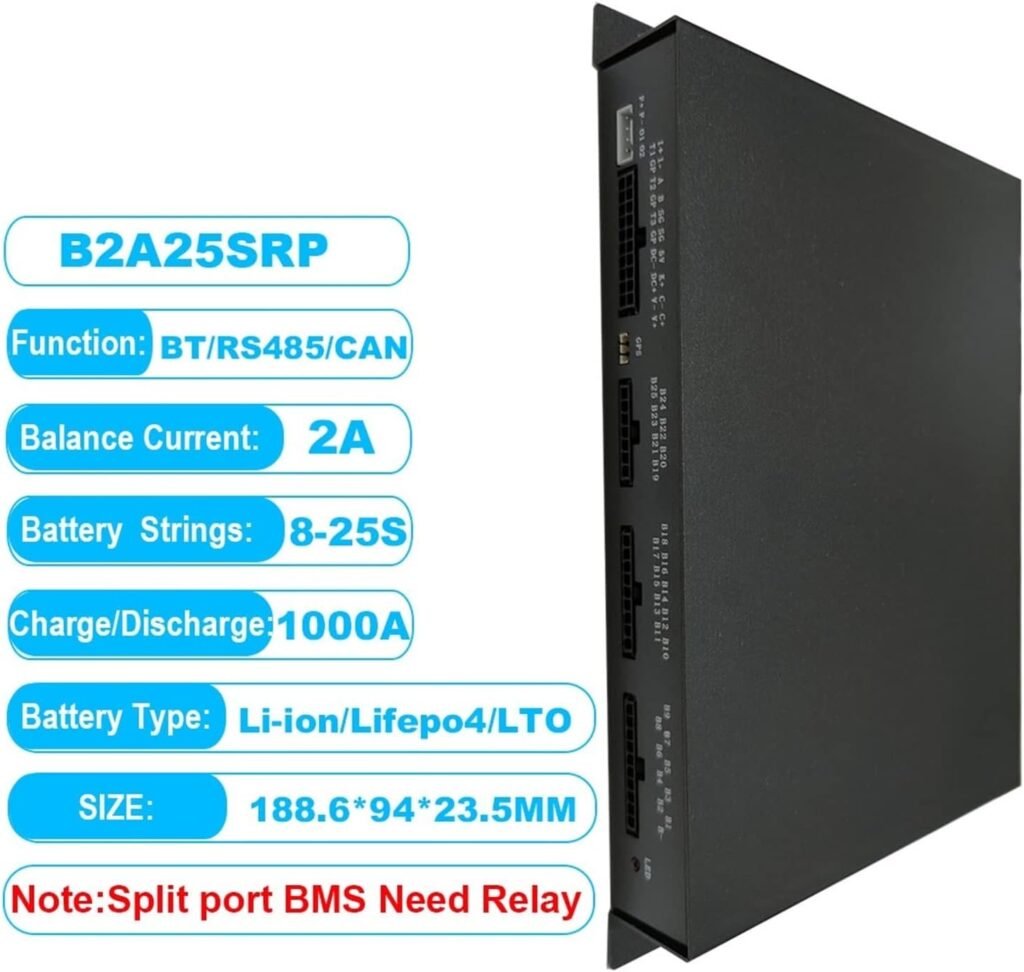

Key Features at a Glance
To make things easier to absorb, we can start by summarizing the main features, then go deeper into each one. This BMS brings active balancing, Bluetooth monitoring, configurable protection, and support for a wide range of system voltages.
It is especially attractive to DIY builders and off‑grid enthusiasts who want more control and detailed data than a basic protection board can offer.
Feature Summary Table
| Feature | What It Means for Us |
|---|---|
| Supported Series (S) | 8S–24S options (e.g., 4S, 8S, 16S, 24S LiFePO₄ typical pack configs) |
| Chemistry Support | LiFePO₄, Li‑ion, LTO |
| Max Current (Model‑Dependent) | Up to around 600 A models, common 100–350 A ranges |
| Balancing Type | Active balancing, 0.6–2 A (and up to 5 A on some variants) |
| Communication | Bluetooth with JK own‑developed mobile app |
| Protection Functions | Over‑charge, over‑discharge, over‑current, short‑circuit, low‑temperature cut‑off |
| Application | DIY powerwalls, RV, marine, solar storage, backup systems |
| Design Focus | Safety, longevity, and high cell utilization (up to ~99% efficiency) |
This table gives us a quick overview. Next, we can break each of these points down so we understand what we actually get in practice, not just on paper.
JK’s Own App and Bluetooth Connectivity
One of the standout aspects of this JK BMS is its own proprietary mobile app. Instead of depending on generic third‑party tools, the manufacturer provides an app tailored to the BMS hardware and firmware.
For us as users, that means we can adjust parameters, view detailed real‑time data, and diagnose issues without plugging in a laptop or guessing from blinking LEDs.
Real‑Time Monitoring on Our Phone
Through the Bluetooth connection, we can see a lot more than just pack voltage. The app typically exposes:
- Individual cell voltages
- Pack voltage and current
- State of charge (SOC) estimation
- Battery temperature(s), if sensors are installed
- BMS status flags (protection triggered, balancing active, etc.)
Having this information in our pocket helps us notice unmatched cells early, see if the BMS is throttling due to temperature, and confirm that charging and discharging stay within our set limits. For a DIY system, this peace of mind matters a lot.
App‑Level Configuration and Fine‑Tuning
The app is also where we set or adjust important safety parameters. Instead of fiddling with DIP switches or manual programming cables, we can usually configure:
- Over‑charge and over‑discharge thresholds
- Charge and discharge current limits
- Low‑temperature charge cutoff (crucial for LiFePO₄)
- Balancing start and stop voltages
This flexibility lets us tailor the BMS to our specific battery chemistry, brand, and use case. We can tune conservatively for longevity or more aggressively if we understand the risks and want maximum usable capacity.
Active Balancing: What It Is and Why It Matters
The JK BMS is described as having “active balance” with a balance current in the 0.6–2 A range (and some variants going higher). Compared to passive balancing, active balancing is a major step up for medium to large battery banks.
Instead of just burning excess energy off high cells as heat, the BMS can actively redistribute energy from higher‑voltage cells to lower‑voltage ones, improving utilization and reducing waste.
Passive vs Active Balancing in Real Life
To understand why we might prefer active balancing, it helps to compare:
| Balancing Type | How It Works | Pros | Cons |
|---|---|---|---|
| Passive | Bleeds excess voltage as heat on high cells | Simple, cheap, widely used | Wastes energy, often slow, can run hot |
| Active | Moves energy from high cells to low cells | More efficient, helps keep cells closer aligned | More complex, typically higher cost |
With 0.6–2 A of balancing current, the JK BMS can correct cell imbalances quicker than low‑current passive solutions. That especially helps once we start running high‑capacity cells (for example 280 Ah LiFePO₄) or large series strings.
Efficiency and Battery Life Benefits
The product claims up to 99% usage efficiency thanks to its smart active balancing. In practice, that means the BMS is designed to:
- Keep cells closer in voltage over the full charge and discharge cycle
- Reduce stress on individual cells that would otherwise be overcharged or over‑discharged compared to their neighbors
- Help maintain capacity over more cycles by avoiding repeated mild abuse of weak cells
If we plan to run our battery bank for years, especially in an off‑grid or continuous‑use context, this kind of balancing can make a genuine difference in long‑term performance and capacity retention.
Protection Functions: The Safety Net Around Our Battery
A BMS is first and foremost a protection device. The JK Smart BMS offers a full set of protections, which we can think of as layers of defense around our investment.
These features matter not only for the lifespan of the pack but also for safety, especially with higher current or higher voltage systems.
Over‑Charge, Over‑Discharge, and Over‑Current
These are the baseline protections we expect:
- Over‑charge protection: Prevents cells from exceeding the safe upper voltage. For LiFePO₄, the typical limit is around 3.65 V per cell; the BMS can cut off or reduce charging when this threshold is reached.
- Over‑discharge protection: Stops discharge when cells fall too low (for LiFePO₄, often 2.5–2.8 V per cell). Going under this threshold too often can permanently damage cells.
- Over‑current protection: If the system draws more current than the BMS (and battery) is rated to handle, it can disconnect or limit output to avoid overheating, cable damage, or cell stress.
By configuring sensible trip points in the app, we can match the BMS behavior to our inverter or load requirements while still keeping margins for safety.
Short‑Circuit and Low‑Temperature Cutoff
Two other critical protections:
- Short‑circuit protection: In the event of a wiring fault or sudden dead short, the BMS is designed to react rapidly, cutting output to prevent catastrophic damage. While we should never rely solely on a BMS for this (proper fuses are still essential), it is an important last‑line safeguard.
- Low‑temperature charging cutoff: This is particularly important for LiFePO₄ chemistry, which should not be charged below roughly 0 °C (32 °F). The JK BMS can stop charging when the battery is cold, protecting cells from plating and long‑term capacity loss.
These features help us run our system confidently through cold nights or unexpected wiring mishaps, instead of constantly worrying about worst‑case scenarios.
Supported Chemistries: LiFePO₄, Li‑Ion, and LTO
The JK Smart BMS is marketed as compatible with multiple lithium chemistries: LiFePO₄ (LFP), standard lithium‑ion (NMC/NCA variants), and LTO (lithium‑titanate). Each chemistry has its own voltage curves and charging behaviors.
For us, that means we can potentially reuse the same style of BMS design across several kinds of battery projects, as long as we configure it correctly.
Why Chemistry Support Matters
Each chemistry has:
- Different nominal and maximum cell voltages
- Different recommended cutoffs and typical SOC curves
- Different behavior in cold or hot conditions
The BMS needs to understand and respect those limits. A LiFePO₄ pack, for instance, is usually charged up to 3.65 V per cell, while some Li‑ion chemistries go up to 4.2 V per cell; LTO has much lower per‑cell voltage but outstanding cycle life.
With a configurable BMS like this, we can set charge and discharge thresholds to suit whichever chemistry we choose, as long as we know the recommended specs from our cell manufacturer.
Supported Voltages and System Sizes
One of the main selling points here is wide support for different series configurations and pack voltages. The product description explicitly mentions support for common pack sizes like 12 V, 24 V, 48 V, and 72 V systems, built from multiple series cells.
Series Configurations and their Typical Use Cases
Typical LiFePO₄ configurations supported include:
- 4S (12 V nominal) – Small 12 V systems (campers, small backup packs)
- 8S (24 V nominal) – Mid‑size setups with smaller inverters, or for efficiency in DC systems
- 16S (48 V nominal) – Very common in off‑grid solar and larger inverters
- 24S (72 V nominal) – Higher‑voltage systems, often for specialized equipment or larger off‑grid arrays
The broader naming “8S 9S 10S 12S 13S 14S 16S 17S 20S 21S 24S” suggests that different versions of this BMS are available for various series counts. We just need to pick the right one for our pack.
Current Ratings and Practical Limits
The details mention support for 100 A–350 A maximum current lifepo₄ battery systems, and some JK models go up to around 600 A when used with storage relays or external contactors. In practical terms:
- For small RV or van builds, 100–150 A may be enough
- For larger inverters (3 kW and up), 200–350 A is more comfortable
- Ultra‑high power systems may use 400 A+ BMS models with separate relays or multiple parallel banks
We should always match the BMS rating not just to our average load, but to worst‑case surge demands and potential fault conditions.
Use Cases: Where This BMS Shines
The JK BMS is aimed squarely at DIY and prosumer‑level projects. It is not a tiny PCB for a laptop battery; it is meant for serious storage, both mobile and stationary.
We can think about where it fits best, based on our own plans.
Off‑Grid Solar and Home Energy Storage
For off‑grid solar users, a 16S (48 V) or 24S (72 V) LiFePO₄ bank is quite common. Here, the JK BMS brings:
- Active balancing to keep high‑capacity cells aligned
- Detailed app monitoring for daily status checks
- Configurable protections to match the charge controller and inverter
This combination makes it attractive for DIY “powerwall” style builds, backyard solar sheds, or even cabin installations, especially when we want to keep costs lower than full turnkey systems but still retain decent intelligence and protection.
RV, Vanlife, and Marine Use
In mobile applications (RVs, vans, boats), the JK BMS can be used for:
- 12 V and 24 V house banks
- Integration with DC‑DC chargers or alternator charging
- Monitoring pack status from a phone rather than pulling covers every time
The low‑temperature cutoff and robust current ratings can be very helpful in cold climates or heavy‑demand marine systems, though we still need to ensure proper ventilation and wiring.
Backup Power and Small Commercial Systems
For backup systems, the BMS needs to stay reliable and predictable. The JK Smart BMS is suitable for:
- UPS‑like setups with LiFePO₄ packs
- Small commercial storage (shops, small offices)
- Workshop battery banks for tool charging or emergency supplies
The active balancing can help these packs cycle regularly without drifting too far apart, and the app interface makes occasional checks quick and simple.
Design and Build Quality
While our evaluation here is based on the feature set and user‑oriented aspects rather than a full teardown, we can still comment on the design philosophy. JK BMS devices are generally known in DIY communities for solid functionality and a practical layout.
Build quality in BMS units matters a lot because they must handle high current, heat, and environmental stresses.
Internal Layout and Cooling Considerations
High‑current BMS devices like this typically include:
- Substantial busbars or thick copper tracks
- MOSFETs or similar switching elements mounted on heatsinks
- Temperature sensors and thermal design to shed heat under heavy load
We should still mount the BMS in a well‑ventilated area, away from flammables, and follow recommended cable sizing. While the internal design is key, our installation will heavily influence how cool and reliable it runs.
Unique Design for Safety and Longevity
The product description highlights a “unique design” and stresses the importance of choosing the correct protection board and applying it appropriately. In practice, that means:
- Picking the correct series count (8S, 16S, 24S, etc.) for our actual pack
- Matching the current rating to our intended load and surge demands
- Wiring it according to the manufacturer diagram, with correct gauge wires and fuses
If we treat the BMS as the core of our system and build the wiring plan around it rather than as an afterthought, we significantly improve both safety and lifespan of our battery bank.
Installation and Setup Experience
For many of us, installation is where theory meets reality. A capable BMS can still be frustrating if it is confusing to wire or configure. JK BMS models are generally aimed at users who are at least somewhat technically inclined, but they try to make the process accessible.
Wiring Considerations and Best Practices
When we install this JK BMS, we will typically:
- Connect the sense leads to each cell terminal in the correct sequence.
- Connect the main positive and negative leads, ensuring cable size matches current.
- Install appropriate fuses or breakers between battery, BMS, and loads/chargers.
- Mount the BMS in a location protected from moisture and excessive heat.
Getting the cell lead order wrong is one of the most common beginner mistakes, so we should double‑check the manual and follow it step‑by‑step. Taking our time at this stage can prevent headaches later.
Initial Configuration via the App
Once the hardware is in place, the app becomes the next crucial tool. Our setup steps may include:
- Selecting the correct battery type (LiFePO₄, Li‑ion, LTO) or setting custom voltage thresholds
- Configuring over‑charge and over‑discharge cut‑off values per cell
- Setting maximum continuous charge and discharge current
- Adjusting balancing parameters such as start voltage and differential trigger
After this, we can run a few charge/discharge cycles while watching the app, ensuring that everything behaves as expected and that protections activate sensibly when we hit boundaries.
Real‑World Performance and User Impressions
While we cannot pull in private reviews here, we can infer typical performance patterns from the feature set and from how similar JK BMS units are generally received in DIY communities.
In real‑world terms, we care about stability, responsiveness, and whether the unit “just works” once configured.
Balancing Behavior under Load
Active balancing at up to around 2 A means:
- When one cell is noticeably higher than the rest at the top of charge, the BMS can actively move energy away from that cell instead of simply bleeding it off.
- Over time, this tends to keep cell voltages more tightly grouped, especially helpful with large parallel groups or packs built from cells of slightly varying health.
Users typically notice that after some cycles, cell deviations shrink, making the battery more predictable and allowing for fuller SOC usage without hitting high‑cell limits too early.
Stability of Protections and Communications
Good BMS performance is also about:
- Not tripping falsely under normal inrush currents (for example, when an inverter starts up)
- Communicating reliably over Bluetooth without constant dropouts
- Resuming normal operation gracefully once a fault clears (for instance, warming back above low‑temperature cut‑off)
From what we know about JK’s ecosystem, these BMS units tend to do reasonably well here, provided that we match them properly to the load and keep firmware updated when possible.
Pros and Cons of the JK Smart BMS
No product is perfect, and a thorough review should discuss both strong points and potential downsides. This helps us decide if it fits our priorities.
Advantages We Get with This BMS
Some clear strengths of this JK BMS include:
- Active balancing with relatively high current – Faster and more efficient equalization than basic passive boards.
- Comprehensive mobile app – Easy, visual access to data and configuration, no special tools needed.
- Wide voltage and chemistry support – Flexible for many different project types, from 12 V LiFePO₄ to higher‑voltage packs.
- Full protection set – Over‑charge, over‑discharge, over‑current, short‑circuit, and low‑temperature protection for safer operation.
- Strong appeal to DIY builders – Designed with customization and visibility in mind.
If we value control, data visibility, and efficient cell usage, these strengths are particularly compelling.
Potential Drawbacks and Limitations
We should also keep in mind:
- Complexity – More features and settings mean more to learn and get right; beginners may feel overwhelmed.
- Dependence on the app – If we dislike using a phone for configuration, this approach might feel less convenient.
- Installation demands – High‑current wiring and cell sense connections require careful work; this is not a plug‑and‑play drop‑in for total novices.
- Physical space – Larger current ratings typically mean a physically larger BMS, so we must plan mounting space accordingly.
As long as we are prepared to spend time on setup and learning, these drawbacks are manageable, but it is good to be realistic about them.
Tips for Getting the Most Out of the JK BMS
To truly benefit from the capabilities of this BMS, we can follow a few guidelines. These come from general best practices for lithium systems and the feature set of the JK.
Configure Conservatively for Long Life
We do not have to push the cells to the limit to enjoy good capacity. We can:
- Set slightly lower max charge voltage per cell than absolute spec (for example, 3.45–3.5 V for LiFePO₄ instead of 3.65 V)
- Set over‑discharge protection at a safe but not overly low level (for example, 2.8–2.9 V per cell)
- Limit maximum continuous current below the advertised maximum of the cells and BMS when possible
These conservative choices can significantly extend cycle life with only a small sacrifice in peak capacity.
Monitor Trends, Not Just Snapshots
The app makes it easy to check in quickly, but the real value comes from noticing trends over time:
- Are certain cells consistently higher or lower at the top or bottom of charge?
- Does the pack reach higher temperatures than expected under normal loads?
- Are we hitting over‑current or low‑temperature cutoffs more often than we expected?
If we see these patterns, we can adjust charging profiles, check for loose connections, or, in the case of a persistently weak cell, plan a replacement before a serious problem arises.
Comparison with Basic BMS Boards
To decide whether this JK Smart BMS suits us, it helps to compare it conceptually with basic, no‑app, passive‑balancing BMS boards often used in lower‑end builds.
What We Gain by Choosing JK’s Smart BMS
Compared to a simple board, we gain:
- Active balancing instead of low‑current passive bleeding
- Bluetooth monitoring, configuration, and fault logging
- Customizable protection thresholds instead of fixed factory presets
- Better adaptability across multiple chemistries and series counts
These add up to a system that is much easier to diagnose and fine‑tune. When we are investing in significant battery capacity, the extra cost of a smarter BMS often pays off in longevity and reduced guesswork.
When a Basic BMS Might Still Be Enough
There are cases where a simpler BMS could be sufficient:
- Tiny packs with low currents and non‑critical loads
- Temporary or experimental builds where long‑term longevity is less important
- Projects where physical space and cost are strict constraints and we accept minimal configurability
In those scenarios, the sophistication of the JK might be unnecessary. For any substantial home, RV, marine, or off‑grid pack, though, the capabilities here are usually worth it.
Safety Considerations We Should Keep in Mind
Even with a capable BMS, lithium battery systems demand careful handling. The JK BMS is a powerful tool, but it does not replace basic safety practices.
Fusing, Wiring, and Mechanical Protection
We should always:
- Use appropriately sized fuses or breakers close to the battery terminals
- Choose cable gauges suitable for maximum continuous and surge currents
- Protect cables from chafing and physical damage
- Secure the battery pack mechanically to prevent vibration or impact damage
The BMS can prevent electrical abuse of the cells, but it cannot compensate for undersized wires or poor physical mounting.
Respecting Voltage and Current Limits
If we choose a BMS model rated up to, say, 200 A continuous, running it constantly right at that limit can cause heat buildup and eventual stress. It is wise to:
- Aim for a margin below the rated maximum in normal operation
- Ensure adequate airflow around the BMS, especially under heavy loads
- Keep environmental temperatures within the BMS operating range
By giving the BMS some headroom, we reduce the risk of thermal or electrical issues over time.
Who Is This JK BMS Best Suited For?
Looking across the features, this JK Smart BMS is especially well‑suited to a few types of users.
Ideal Users and Projects
We will likely appreciate this BMS if we:
- Are building a DIY LiFePO₄, Li‑ion, or LTO battery bank of modest to large size
- Want clear, detailed information about our battery health and behavior
- Are comfortable with (or willing to learn) basic electrical wiring and configuration steps
- Value active balancing for higher‑capacity or multi‑string packs
Off‑grid homeowners, vanlifers, boat owners, and workshop tinkerers who care about data and control are natural fits for this product.
Who Might Want to Look Elsewhere
This BMS may not be the best fit if we:
- Want a fully pre‑built, plug‑and‑play drop‑in battery with zero configuration
- Are building very small, low‑demand packs where smart features are overkill
- Strongly dislike using a smartphone or app for configuration and monitoring
In those circumstances, a pre‑assembled battery or a simpler BMS may better match our expectations and comfort level.
Final Thoughts: Is the JK Smart BMS Worth It?

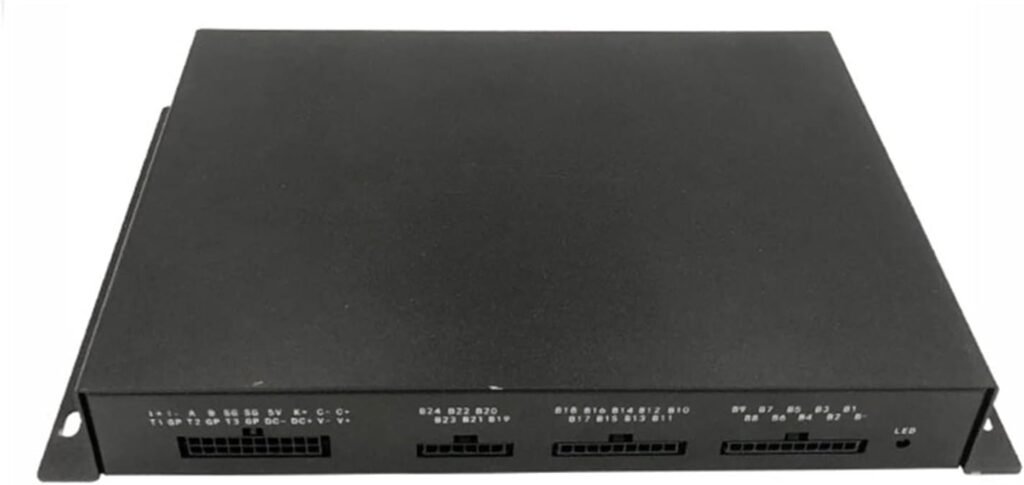

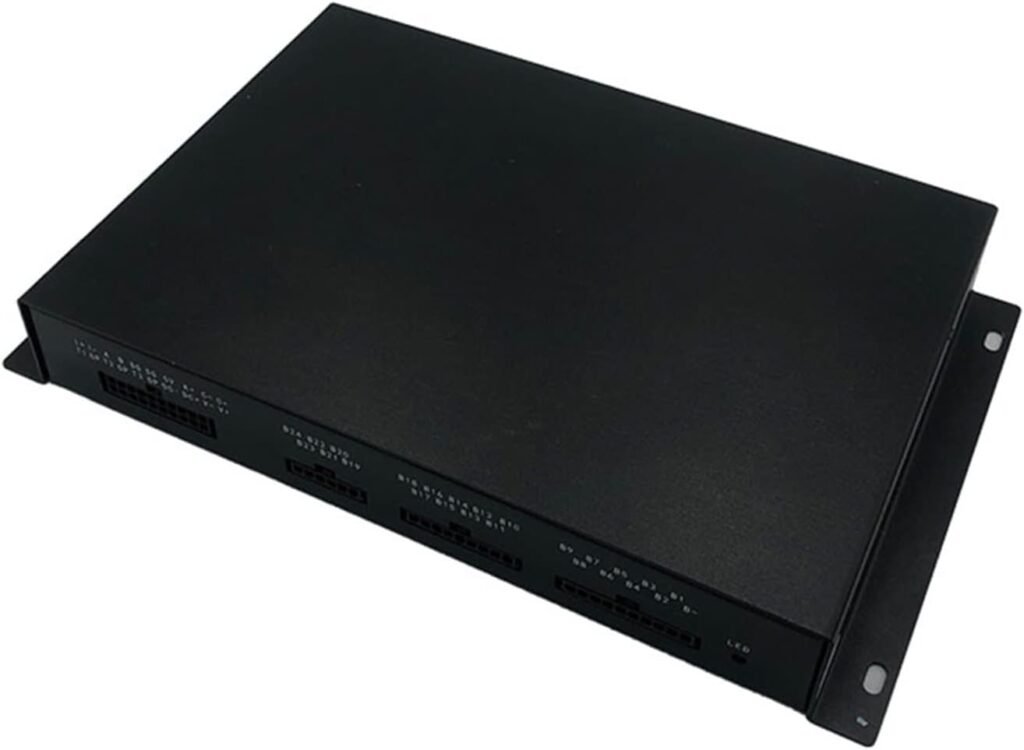

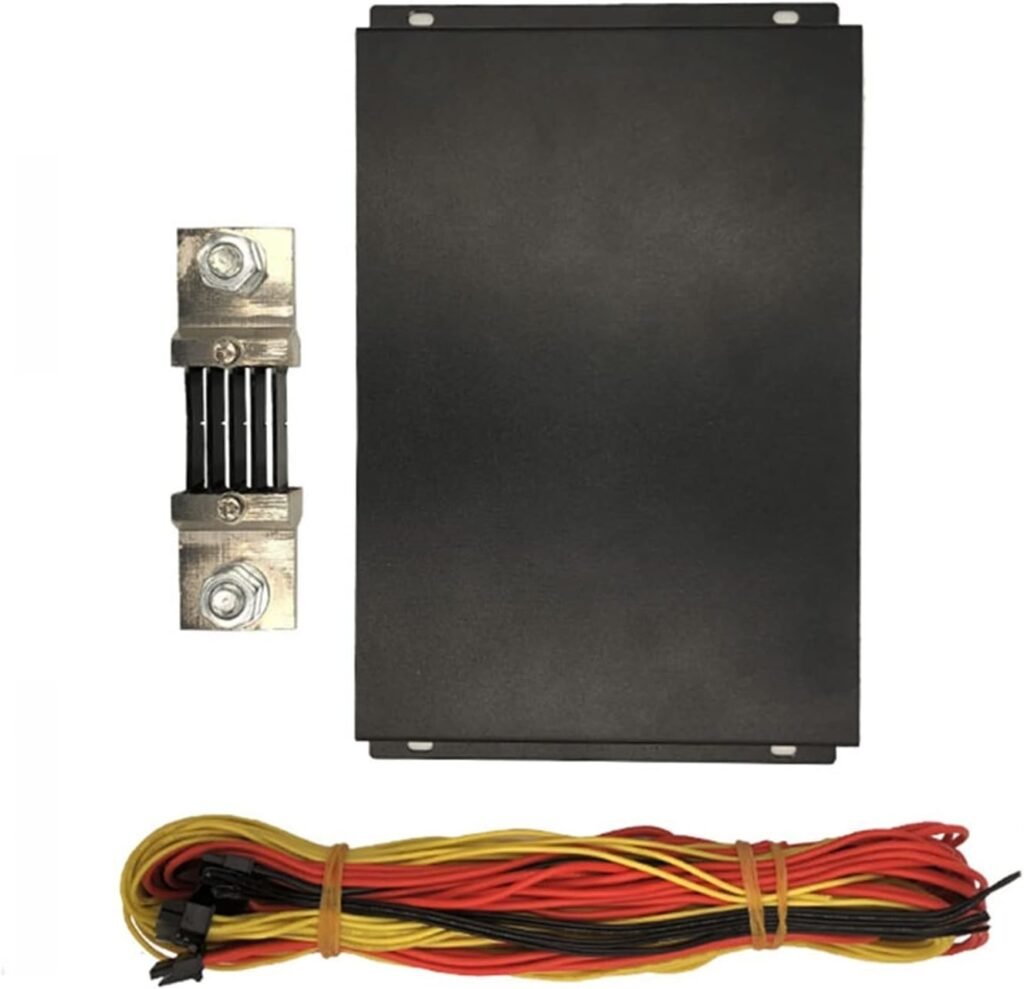

When we step back and look at the “JK BMS Battery Equalizer JK 8S 9S 10S 12S 13S 14S 16S 17S 20S 21S 24S Smart Bms 2A 5A Balance Current Li-Ion LTO Lifepo4 Bms 600A Storage Relay Battery Protection Module (Color : B2A25SRP, Size : JK” as a whole, we see a feature‑rich, configurable, and actively balancing BMS aimed at serious DIY or prosumer installations.
We gain:
- Robust protection functions
- Efficient active balancing with notable current capability
- A dedicated app for real‑time monitoring and configuration
- Flexibility across battery chemistries and system sizes
We do need to invest time in correct installation and thoughtful configuration, and we need to be comfortable managing some complexity. If we are willing to do that, this JK Smart BMS can be a strong foundation for a reliable, long‑lived lithium battery system that we understand and can control from the palm of our hand.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
