JK BMS Battery Equalizer” review

Have we ever wished our DIY battery pack could tell us exactly what it needs, balance itself intelligently, and keep everything safe without constant tinkering?

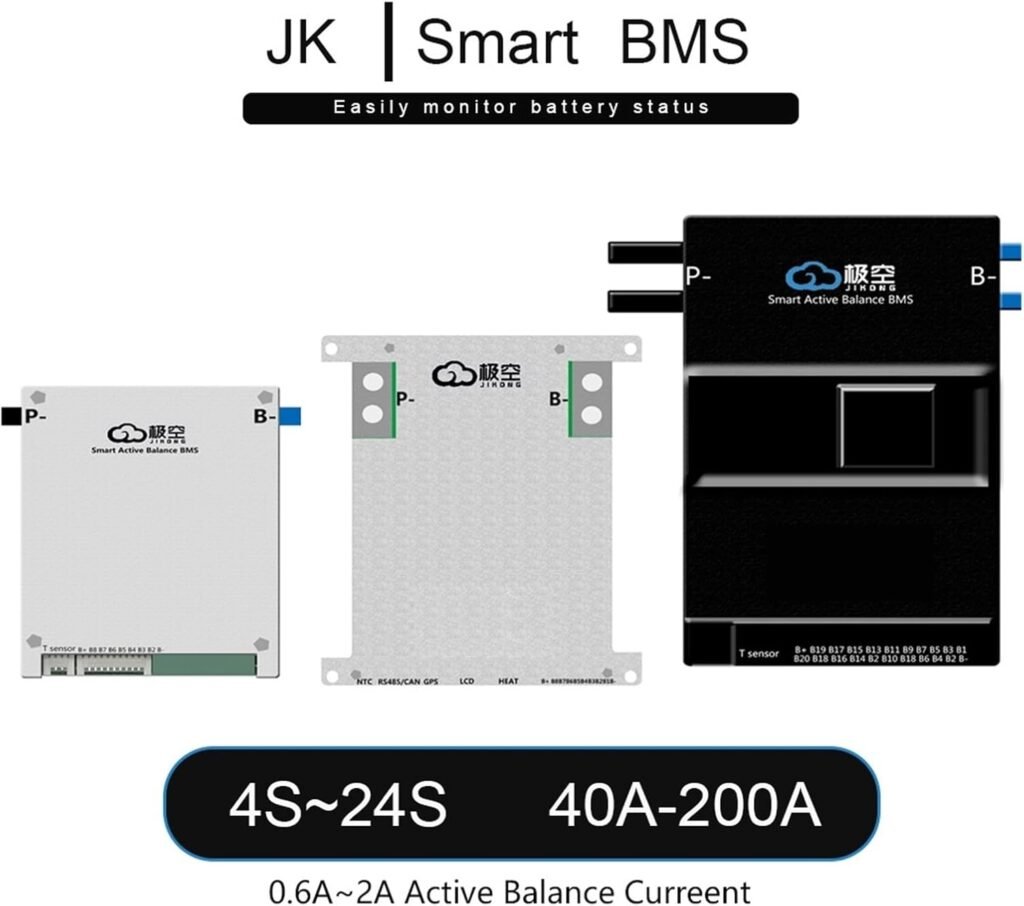

What Is the JK BMS Battery Equalizer and Who Is It For?

When we look at the “JK BMS Battery Equalizer Jk Smart BMS Balance BT 8s 10s 16s 20s 21s 24s Balance Current 60A 80A 100A 120A 150A 200A 600A Liion Lifepo4 Lto Battery Protection Module (Color : B2A20S20P-HC, Si)”, we are clearly dealing with a serious piece of hardware for serious battery systems. This is not just a basic protection board; it is a smart, active balancing BMS aimed at enthusiasts, DIY builders, and professionals.

We see this product fitting well in off‑grid solar setups, RV and camper systems, home backup batteries, small commercial battery banks, and any project where we use Li‑ion, LiFePO4, or LTO cells and want both protection and advanced control.

Key Features at a Glance

Before we go into the details, it helps to sum up what this JK BMS actually offers us. We are dealing with a BMS that couples active balancing with Bluetooth monitoring and a dedicated app, and supports a wide variety of pack sizes.

Here is a simplified breakdown of core features:

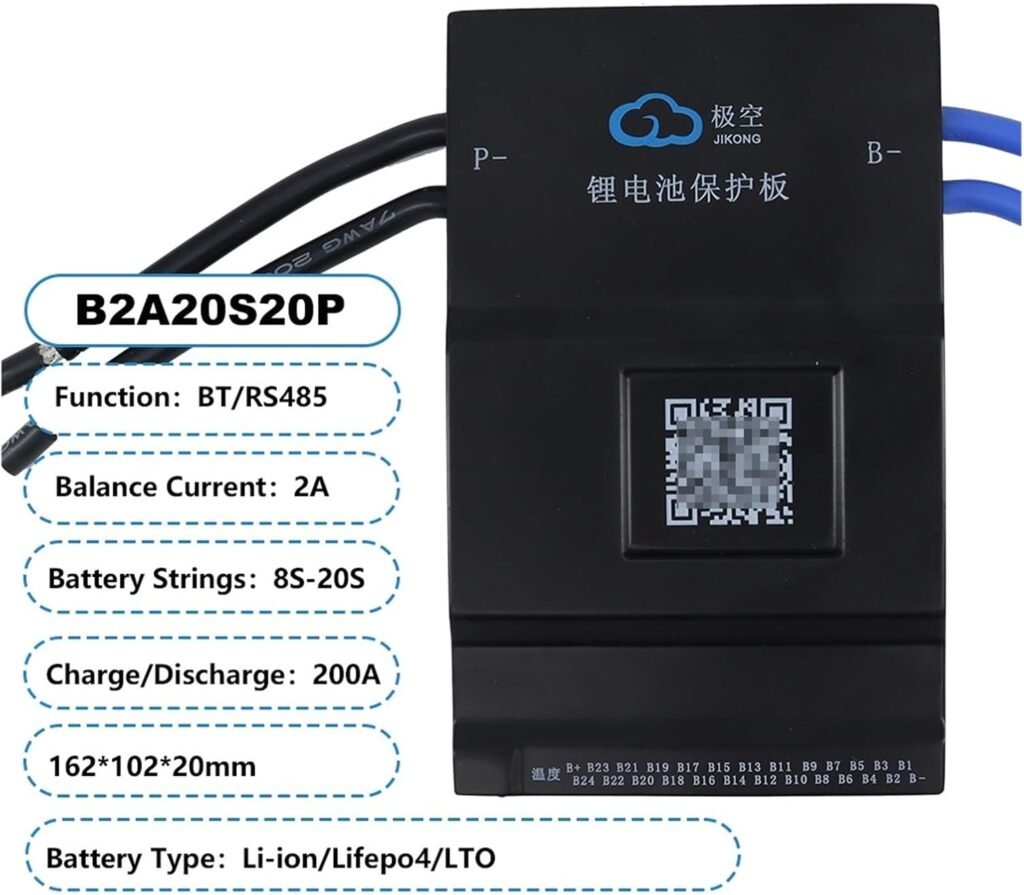

Feature Category	Details
Cell Chemistry Support	Li-ion, LiFePO4, LTO
Series Cell Count	8S, 10S, 16S, 20S, 21S, 24S (common system voltages: 12V, 24V, 48V, 72V)
Rated Current Range	60A, 80A, 100A, 120A, 150A, 200A, up to 600A (depending on version)
Balancing Type	Active balancing
Balancing Current	0.6–2A active balance current
App Support	JK’s own app, Bluetooth communication, real‑time monitoring
Protections	Overcharge, over‑discharge, over‑current, short circuit, low‑temperature charge cutoff
Typical Use Cases	DIY powerwalls, solar storage, RV, marine, off‑grid systems, backup batteries

This combination of high current handling, multi‑chemistry support, and smart active balancing puts the JK BMS in the “advanced DIY and prosumer” category, rather than in the basic hobby level.

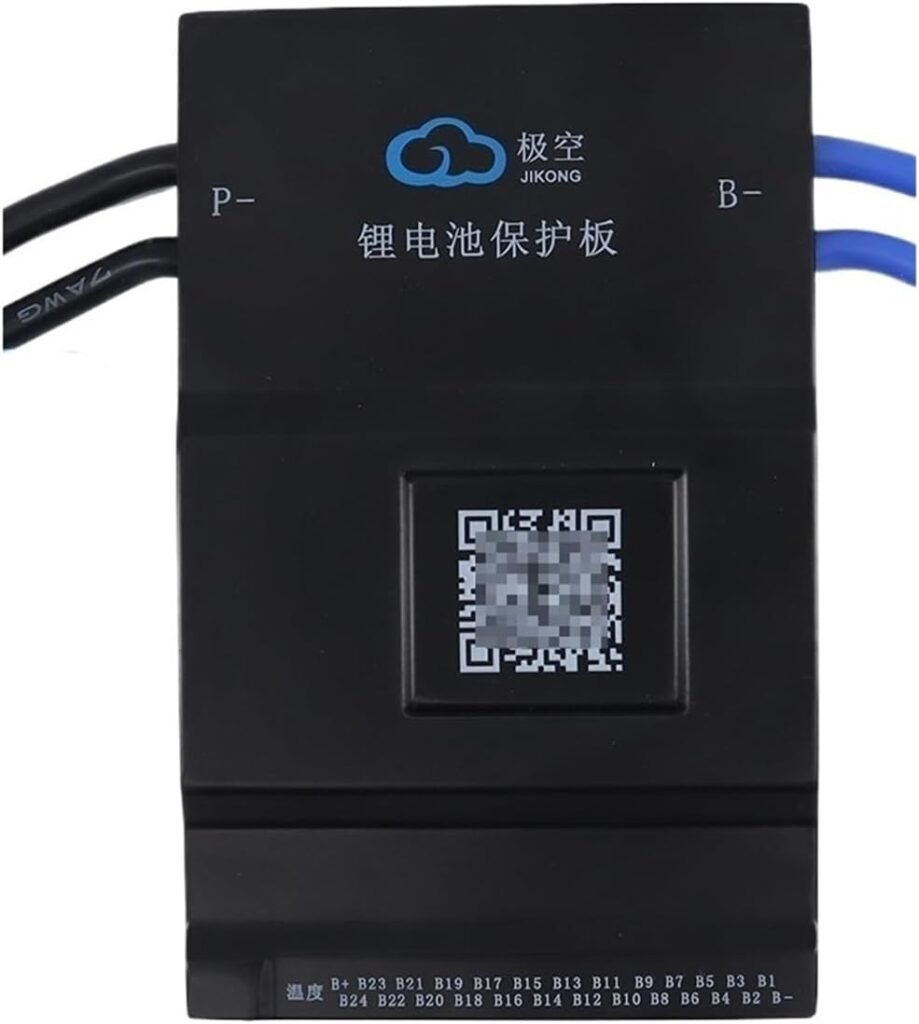

Our First Impressions and Build Quality

When we assess a BMS, we are mostly concerned with build quality, wiring clarity, and how reliable it feels for long‑term projects. The JK BMS Battery Equalizer feels engineered for real‑world use rather than being just a cheap add‑on.

We get a solid, well‑laid‑out board, with clear labeling for cell connections and power lines. The housing and connectors give us confidence that this module is designed to handle substantial current under demanding conditions such as solar charge/discharge cycles and inverter loads.

Supported Battery Configurations and Flexibility

One of the strongest aspects of this JK BMS is how flexible it is regarding cell count and voltage. Instead of being locked into a single configuration, we can adapt it to different pack designs.

Supported Series Counts and System Voltages

The manufacturer notes support for 12V/4S, 24V/8S, 48V/16S, and 72V/24S systems, depending on the specific model. In practice, we can also configure for intermediate series counts like 10S, 20S, or 21S. That lets us match the BMS more precisely to our cell configuration.

For example, if we are building:

• A 4S or 8S LiFePO4 bank for a small 12V or 24V solar system
• A 16S LiFePO4 48V bank for a home energy storage system
• A 20S or 21S Li‑ion pack for higher‑voltage inverter setups
• A 24S pack for 72V systems in specialized or heavy‑duty use

we have options with this JK BMS lineup.

Chemistry Support: Li‑ion, LiFePO4, and LTO

We appreciate that this BMS officially supports multiple chemistries:

• Li‑ion (typical 3.6/3.7 V nominal cells)
• LiFePO4 (3.2 V nominal, popular for solar and RV use)
• LTO (Lithium Titanate, lower voltage per cell but very long cycle life)

For each chemistry, we must adjust the appropriate voltage thresholds in the app, but the core hardware is designed to handle these chemistries safely. That saves us from buying a dedicated BMS for each type of battery, as long as we set the parameters correctly.

Active Balancing and Why It Matters

Balancing is one of the key differences between basic and advanced BMS systems. The JK BMS promotes its “Active Balance” functionality as a major advantage, and we tend to agree.

Passive vs Active Balancing

Basic BMS boards usually use passive balancing, where excess energy from higher‑voltage cells is bled off as heat through resistors. That works but wastes energy and is relatively slow, especially on large packs with high capacity.

Active balancing, which this JK BMS uses, transfers energy from higher‑voltage cells to lower‑voltage cells. Rather than just burning off the excess, it redistributes charge to keep cells closer together.

With active balancing:

• We use more of the total battery capacity because cells stay more closely matched.
• Balancing can be more efficient, especially in larger packs.
• Battery life can be extended because no cell gets chronically over‑stressed versus the others.

Balancing Current: 0.6–2A

JK specifies an active balance current of roughly 0.6–2A. That is significantly higher than many common BMS modules that only balance at a few hundred milliamps.

For us, this means:

• On large capacity cells (e.g., 100Ah or 280Ah LiFePO4), the BMS can correct imbalances more quickly.
• During charge cycles, cells will stay more tightly grouped, reducing time spent in the CV (constant voltage) stage.
• In long‑term operation, we should notice fewer issues with one or two cells drifting too high or too low compared with the pack average.

JK claims efficiency of battery usage up to 99% due to this active balancing approach. While that figure may be theoretical, it illustrates the intent: this module focuses on using almost all the capacity we paid for.

Protection Features and Safety Mechanisms

Safety is the core function of any BMS. The JK BMS Battery Equalizer offers the standard protections we expect, plus temperature‑based logic to protect our pack from cold‑weather abuse.

Core Protection Types

Here are the main protection functions that stand out:

• Overcharge Protection
  The BMS cuts off charging when any cell exceeds a defined maximum voltage. This prevents over‑voltage damage and dramatically reduces the risk of swelling or thermal runaway.

• Over‑Discharge Protection
  When any cell falls below a safe minimum voltage, the BMS disconnects loads to avoid depth‑of‑discharge levels that would shorten battery life.

• Over‑Current Protection
  The module monitors the current flowing through the pack and will shut down if current exceeds defined limits. This protects against wiring faults, stalled motors, or excessive inverter loads that are outside the pack design.

• Short Circuit Protection
  Extremely high, sudden current such as a shorted output will also be detected and cut off quickly, helping to avoid damaged cells, melted wires, or worse.

Low Temperature Charging Cutoff

One important protection that stands out is low‑temperature charging shutdown. Lithium chemistries, especially LiFePO4 and Li‑ion, are sensitive to being charged below freezing temperatures.

With this JK BMS, we can set temperature thresholds so that charging is automatically disabled when our battery is too cold. By doing this, we avoid plating lithium on the anode, which can permanently reduce capacity or cause safety problems. This is particularly important for off‑grid systems deployed in colder climates.

Why Proper Sizing and Model Selection Matter

The product description stresses that choosing the right protection board, and the right application, is critical to battery longevity. We agree wholeheartedly.

We must:

• Match the BMS current rating (60A–600A depending on version) to our maximum continuous and surge loads.
• Match the cell count, chemistry, and voltage thresholds to our actual battery.
• Size our wiring, fuses, and contactors to the same ratings as the BMS so the entire system is consistent.

A well‑sized BMS coupled with proper wiring and fusing is what transforms a pile of cells into a safe, reliable power system.

JK’s Own App and Bluetooth Monitoring

A key selling point of this JK BMS is its dedicated app with Bluetooth communication. Rather than using a generic interface or requiring a separate hardware monitor, we can simply connect via our smartphone.

Real‑Time Monitoring

With the JK app, we typically have access to:

• Pack voltage and current
• State of charge (SOC) estimates
• Individual cell voltages
• Temperatures (cell or pack sensors)
• Balancing status
• Error or alarm flags (over‑voltage, under‑voltage, temperature, etc.)

Having real‑time cell‑level data changes how we operate and maintain our systems. We can:

• Catch a weak or failing cell early by noticing one cell drifting away from the others.
• Adjust our inverter or charger behavior based on what the pack is actually doing.
• Fine‑tune setpoints to maximize cycle life without constantly hooking up a multimeter.

Configuration and Customization

Because the BMS is paired with its own app, we are not locked into default factory thresholds. We can often adjust:

• Charge and discharge cut‑off voltages
• Balance start voltages and trigger conditions
• Current limits
• Temperature cut‑offs for charging and discharging

For advanced users, this level of control is a big advantage. We can tune parameters for different chemistries (LiFePO4 versus Li‑ion, for instance), or for special requirements like long‑life “gentle cycling” where we never fully charge or fully discharge.

Installation Experience and Wiring Considerations

When we install a BMS like this, the main tasks are correct wiring of cell taps, main positive/negative lines, and any temperature sensors or auxiliary connectors. Because JK targets DIY users as well as more advanced builders, wiring diagrams and labels matter.

Cell Connections and Harness

We must connect each series cell (or parallel cell group) to the BMS via the balance lead harness. That means:

• Each cell’s positive terminal gets a dedicated wire going to the BMS in proper sequence.
• The harness order must match the BMS labeling exactly (B1, B2, B3, and so on).
• Parallel cells are grouped and treated as a single “cell” from the BMS perspective.

A mistake in the sequence can damage the BMS, so we should triple‑check the wiring before plugging in the harness. We typically want to:

1. Measure each cell voltages first.
2. Confirm total pack voltage and series count.
3. Match harness wires from negative to positive in correct order.

Main Power Wiring

The JK BMS sits in series with the pack. Usually, we route either the negative or positive main line through the BMS, depending on the design.

We must:

• Use cables sized for our maximum continuous current and surge (e.g., 100A, 200A, or more).
• Install appropriately sized fuses or breakers near the battery to protect against catastrophic faults.
• Keep cable runs as short as practical to minimize voltage drop and heat buildup.

Once installed, the BMS monitors and controls current flow, blocking charge or discharge when needed, while allowing regular operation within set limits.

Performance in Real‑World Use

A spec sheet only tells us part of the story. We also care how the JK BMS behaves in daily runtime—charging, discharging, and long‑term cycling.

Balancing Behavior During Charging

With active balancing and relatively high balance current, we expect this module to keep cell voltages closely matched near the top of charge.

In real‑world operation, that usually means:

• As cells approach peak voltage, the BMS starts shifting energy from higher cells to lower cells.
• The pack reaches a stable top‑of‑charge state with only minor cell‑to‑cell variation.
• We spend less time in the “top‑balance plateau” where chargers sit at constant voltage waiting for the highest cell to catch up.

This more dynamic balancing helps maximize usable capacity and can shorten charge cycles, especially with large, slightly mismatched cells.

Discharge and High Current Loads

Because the JK lineup supports high current ratings, including versions up to 600A, the module is suited for loads like:

• High‑power inverters for home backup or off‑grid systems
• High‑draw 12V or 24V devices (winches, pumps, or large DC loads)
• Motor controllers in some electric mobility applications (with appropriate engineering)

Under these loads, we care about voltage sag, heat generation, and whether the BMS trips prematurely. With correct sizing, the JK BMS should handle rated currents reliably, though we would always size with some margin above our expected maximum continuous load.

Long‑Term Stability and Cell Health

Active balancing and customizable charge/discharge thresholds both contribute to good long‑term behavior. If we set conservative voltage limits (e.g., never fully charging to the absolute maximum per cell and never sinking to the very lowest spec voltage), we can dramatically extend the life of our pack.

The JK BMS assists in that by:

• Keeping cells balanced so none are continuously pushed to higher stress levels.
• Enforcing our chosen limits automatically.
• Recording state of charge and other metrics that help us refine settings over time.

When combined with healthy charging practices and clean wiring, we can expect stable performance over thousands of cycles, particularly with LiFePO4 or LTO chemistries.

Strengths of the JK BMS Battery Equalizer

Let us summarize the key advantages we gain with this product.

Advanced Active Balancing

The strongest point is clearly the active balancing system with 0.6–2A balancing current. This is a substantial upgrade over many budget BMS units that only have weak passive bleed balancing.

We gain:

• Faster correction of cell imbalance
• Better utilization of total pack capacity
• Reduced risk of one cell hitting its limit too early

For large capacity systems, this single feature can justify choosing a JK BMS over cheaper alternatives.

Robust Protection and Multi‑Chemistry Support

We get comprehensive protection (overcharge, over‑discharge, over‑current, short circuit, low‑temperature charging cutoff), along with the ability to handle different lithium chemistries. That versatility allows us to:

• Use LiFePO4 for solar and storage systems.
• Use Li‑ion for compact, higher‑voltage packs.
• Use LTO for installations where extreme cycle life is the priority.

With the app, we can tailor the BMS settings to each of these chemistries without changing hardware.

Bluetooth App and Smart Features

The dedicated JK app with Bluetooth makes a big difference in ease of use. Instead of guessing what the BMS is doing, we can watch it in real time.

We gain:

• Live cell readings and alarm insight
• Easier troubleshooting during setup
• On‑the‑fly parameter tuning without disassembling the system

For any DIY or semi‑professional builder, this visibility is extremely valuable.

Flexibility in Pack Design

By supporting 8S, 10S, 16S, 20S, 21S, 24S configurations and a broad current range (60A to 600A depending on the specific model), the JK BMS can be used in:

• Small 12V or 24V systems with moderate current
• Main 48V LiFePO4 home battery banks
• Larger 72V or higher‑voltage specialty setups

This means we can standardize on one BMS family across multiple projects, simplifying maintenance and spare parts.

Potential Limitations and What We Should Keep in Mind

No product is perfect, and it is worth being realistic about what this JK BMS can and cannot do.

Complexity for Newcomers

Because the JK BMS is highly configurable and supports multiple chemistries and series counts, it is not as “plug and play” as a basic, fixed‑configuration BMS.

We need to be comfortable with:

• Reading wiring diagrams carefully
• Configuring parameters in the app correctly
• Understanding voltage and current limits for our chosen chemistry

For newcomers, this can be a learning curve, but we see it as part of building a proper DIY battery system.

Physical Installation Requirements

High‑current BMS systems like the 150A–600A models demand proper:

• Cable sizing
• Crimping or termination quality
• Mounting, ventilation, and protection from dust or moisture

If we treat the BMS as a small electronic toy and not part of a serious power system, we might run into reliability issues. We should treat it with the same respect we give to an inverter or charge controller.

Compatibility With External Systems

The JK BMS app is a great standalone solution, but if we want to integrate into advanced monitoring systems (for example, Home Assistant, industrial SCADA, or proprietary inverter communication protocols), we may need to do extra work.

In some setups, there are community projects or third‑party tools to interface with JK BMS data, but we should verify integration options if we plan a heavily automated system.

Comparing JK BMS With Generic BMS Units

When we assess value, we like to compare with typical alternatives we might consider.

Generic Passive BMS Boards

Generic boards often:

• Use low‑current passive balancing (maybe 30–100mA).
• Offer limited or no app/monitoring capability.
• Have fixed setpoints or only basic configurability.
• Cost less but lack active cell management.

In contrast, the JK BMS:

• Uses active balancing with more substantial current.
• Offers detailed control and monitoring via app.
• Can be tuned for multiple chemistries and pack configurations.

We pay more, but we gain efficiency, visibility, and better long‑term battery health.

Higher‑End Integrated Systems

On the other side, there are premium BMS offerings aimed at commercial installations. They may include CANBus, automatic integration with inverters, or large‑scale multi‑pack balancing.

The JK BMS does not pretend to be a full enterprise solution, but for many DIY and mid‑scale residential systems, it gives us most of the functionality we actually need at a more approachable price and complexity level.

Use Cases Where the JK BMS Shines

To better picture where this BMS fits, we can consider a few typical scenarios where it stands out.

Off‑Grid Solar Powerwall

We might build a 48V (16S LiFePO4) bank with 200Ah or 280Ah cells to store energy from rooftop solar. Here, the JK BMS can:

• Actively balance large cells that may not be perfectly matched.
• Protect the system from overcharge due to sudden sunnier days than usual.
• Shut off discharge if household loads would pull the pack too low.
• Provide real‑time insight via Bluetooth while we tune charge controllers and inverters.

RV or Camper Energy System

In a mobile setup using 4S or 8S LiFePO4 packs for 12V or 24V, the JK BMS helps with:

• Protecting from over‑discharge when we run appliances, fridges, or inverters.
• Preventing cold‑weather charging damage during winter camping.
• Offering us a quick overview of pack health when we are on the road, via the app.

Workshop Backup or UPS Style System

For a small workshop or home office backup system where we want a battery that supports sudden high loads (like tools, computers, or networking gear), we might use a higher‑current JK BMS.

It will:

• Handle bursts of current for inrush loads.
• Keep the pack balanced efficiently across many cycles.
• Offer easy troubleshooting if any cell starts to behave differently from the rest.

Tips for Getting the Best Out of the JK BMS

To really make the most of the JK BMS Battery Equalizer, we should be intentional about how we configure and maintain our system.

Configure Conservative Voltage Limits

We recommend:

• Charging to slightly below the absolute maximum cell voltage (for example, 3.45–3.5V per cell for LiFePO4 instead of 3.65V).
• Setting discharge cut‑off a bit above the minimum recommended voltage.

These conservative limits reduce stress on each cell and trade a small amount of top‑end capacity for significantly longer cycle life.

Enable and Tune Temperature‑Based Protections

Since the BMS supports low‑temperature charge cutoff, we should:

• Install temperature sensors where they reflect true cell temperature.
• Set realistic thresholds for our climate, especially if our battery is exposed to cold.

This will protect the pack in winter conditions and help it last longer.

Regular App Check‑Ins

We do not have to watch it obsessively, but we should:

• Check cell voltages occasionally, especially after the system has run for a while.
• Watch for any outlier cells that regularly hit high or low limits first.
• Adjust balancing thresholds or pack configuration if we notice persistent imbalance.

The visibility provided by the app is only as useful as we make it, so an occasional quick check goes a long way.

Pros and Cons Summary

To condense our experience and observations, we can summarize the JK BMS Battery Equalizer as follows:

Pros

• Active balancing with substantial balancing current (0.6–2A)
• Bluetooth connectivity with JK’s own app for real‑time monitoring and configuration
• Multiple chemistries supported: Li‑ion, LiFePO4, LTO
• Broad range of supported series counts (8S to 24S depending on model)
• Multiple current ratings available, from around 60A up to 600A versions
• Comprehensive protection: overcharge, over‑discharge, over‑current, short circuit, low‑temp charge cutoff
• Good match for DIY solar, RV, and home backup systems where we want visibility and control

Cons

• More complex to set up than basic fixed‑parameter BMS units
• Requires careful wiring and configuration to avoid issues
• Integration with more advanced external systems may require extra work or research
• Overkill for extremely simple, low‑current setups where basic protection might be enough

Our Overall Verdict

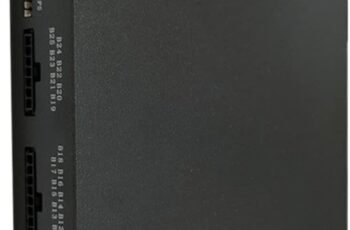

When we look at the “JK BMS Battery Equalizer Jk Smart BMS Balance BT 8s 10s 16s 20s 21s 24s Balance Current 60A 80A 100A 120A 150A 200A 600A Liion Lifepo4 Lto Battery Protection Module (Color : B2A20S20P-HC, Si)” as a whole, we see a sophisticated, feature‑rich BMS aimed at users who care about performance, control, and long‑term reliability.

We appreciate:

• The active balancing capability that significantly improves efficiency and cell health.
• The dedicated JK app with Bluetooth, giving us a clear window into cell‑level data.
• The flexibility to support different chemistries and pack sizes.
• The solid base of safety functions, including low‑temperature charging protection.

If we are building or upgrading a serious lithium battery system—especially for solar, RV, or home energy storage—this JK BMS is a compelling choice. It does require us to be thoughtful about configuration and installation, but in return we gain a highly capable, smart control center for our battery pack.

For simple, low‑power setups, a basic BMS may be enough, but once we are investing in larger cells, higher currents, or long‑term off‑grid reliability, stepping up to a BMS like this is, in our view, a smart and forward‑looking decision.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
