Have we ever wished our battery system could practically take care of itself while we just monitor it from our phone?
What Is the JK BMS Battery Protection Module?
This JK BMS Battery Protection Module is a smart battery management system designed for multi-cell lithium battery packs. We’re talking about a flexible BMS that can handle from 8S up to 24S configurations, with support for different chemistries like Li-ion, LiFePO4, and LTO.
In simple terms, it helps us protect, balance, and monitor our battery pack so we can get high performance, maximum lifespan, and safer operation in one integrated solution.
Key Features at a Glance
This product packs quite a few advanced functions into one compact module. To keep things clear, we can think of it in three main categories: protection, balancing, and intelligence.
It is helpful to see the headline features broken down so we understand what we are actually getting and how each feature affects our daily use.
Summary of Main Features
| Feature Category | Description | Why It Matters for Us |
|---|---|---|
| Cell Configurations | Supports 8S–24S (8, 9, 10, 12, 13, 14, 16, 17, 20, 21, 24 series cells) | Fits many pack sizes without changing the BMS model |
| Battery Chemistry | For Li-ion, LiFePO4, and LTO cells | More flexibility in pack design |
| Active Balancing | 2A or 5A active balance current (model dependent) | Faster, more efficient balancing |
| Max Current Rating | Up to 600A (depends on specific model variant, e.g., B5A25S60P) | Suitable for larger power systems |
| Protections | Over-charge, over-discharge, over-current, short circuit, low-temp charge cutoff | Helps prevent battery damage and unsafe conditions |
| Smart App | JK-developed app with Bluetooth connectivity | Real-time monitoring and configuration from our phone |
| Usage Scope | Can be used for storage systems, high-current packs, DIY projects (within spec limits) | Versatile for many battery projects |
This overview helps us see how flexible and capable the JK BMS is. Next, we break down these features with more details and practical context.
Design and Build Quality
The BMS is arranged as a board module designed to integrate into a battery pack, with connections for multiple series cells and high-current pathways. The “Storage Relay Battery Board Module” terminology signals that this is meant to pair with high-capacity storage setups, like large lithium battery banks.
When we pick a module like this, we care about more than just numbers on paper. We care about the layout, build quality, and how easy it is to integrate safely with our wiring and fusing.

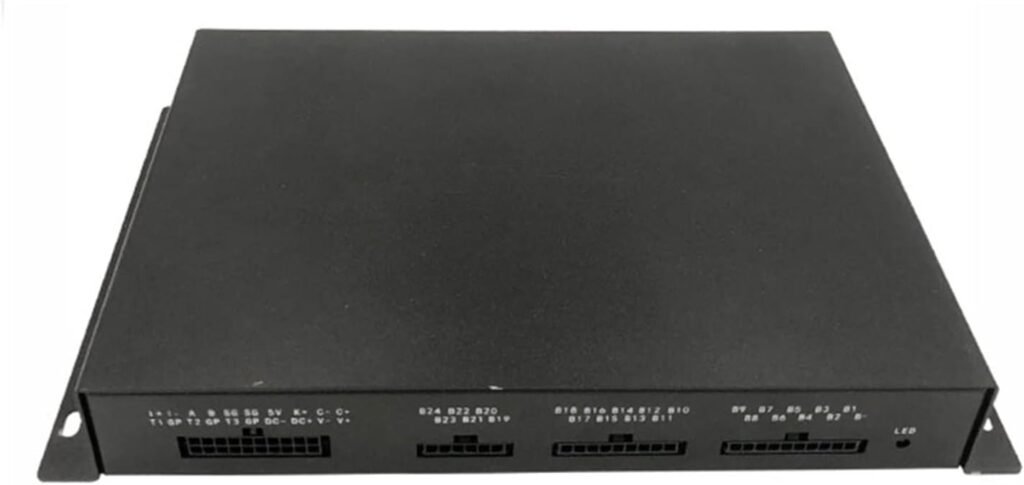

Construction and Layout
We find that JK typically uses clear labeling and robust connection points for both balance leads and main power lines. This is extremely important when we are working with packs up to 24S and currents in the hundreds of amps.
Connectors and board layout are designed with high currents in mind, but we still need to treat installation very seriously: proper cable sizing, crimping, and fusing are essential.
Supported Battery Configurations (8S–24S)
One of the standout strengths of this JK BMS is the flexibility in cell count. Instead of buying different BMS units for different pack sizes, we can configure one unit across a wide range.
This saves us time and money, especially if we expect to upgrade or modify our battery systems later.
Supported Series Counts
We can configure packs with the following series counts:
- 8S
- 9S
- 10S
- 12S
- 13S
- 14S
- 16S
- 17S
- 20S
- 21S
- 24S
This is not just a theoretical number on the box. It means we can adapt the same BMS hardware to different nominal voltages, whether we are building a 24V, 36V, 48V, 60V, or higher voltage system depending on the chemistry and cell count.
Why This Flexibility Matters
We might start with a smaller pack and later expand our system. Instead of replacing the entire BMS, we can adjust our configuration (within the BMS’s supported range) and rewire balance leads accordingly. That makes the JK BMS more future-proof for long-term projects and system growth.
Battery Chemistry Compatibility: Li-ion, LiFePO4, and LTO
The JK BMS supports multiple lithium chemistries: conventional Li-ion (often NMC/NCA-based), LiFePO4, and LTO (Lithium Titanate). Each chemistry has its own nominal and maximum voltage ranges, as well as different charge and discharge behaviors.
This is important because different applications favor different chemistries, and we do not want a BMS locked to just one type.
Differences Between the Chemistries
We can summarize the basic characteristics like this:
| Chemistry | Typical Cell Nominal Voltage | Typical Max Voltage per Cell | Typical Use Case |
|---|---|---|---|
| Li-ion | ~3.6–3.7 V | ~4.2 V | E-bikes, power tools, high-density storage |
| LiFePO4 | ~3.2–3.3 V | ~3.6–3.65 V | Solar storage, backup systems, safe and long cycle life |
| LTO | ~2.3–2.4 V | ~2.7–2.8 V | High cycle life, fast charge/discharge, colder environments |
The JK BMS is configurable for these chemistries, letting us match the cell parameters to the proper cutoffs.
Practical Advantage for Us
If we are experimenting or planning to switch from one chemistry to another in future systems, this compatibility means we can carry some of the same knowledge, workflows, and even components (like the BMS) between projects. It adds genuine flexibility to our builds.
Active Balancing: 2A or 5A for Higher Efficiency
The “JK Active Balance” capability is a major highlight. Unlike passive balancing (which burns excess energy as heat through resistors), active balancing redistributes charge between cells.
This matters quite a bit when we care about pack lifespan, usable capacity, and efficiency, especially in large, high-capacity banks.
How Active Balancing Works for Us
With active balancing, the BMS actively shifts energy from higher-voltage cells to lower-voltage cells. This is more sophisticated and efficient than simply bleeding off energy. JK claims up to 99% battery usage efficiency, which in the real world translates to:
- Better cell-to-cell voltage consistency
- Less wasted energy
- More usable capacity over time
- Reduced risk of cells drifting out of balance and getting overstressed
Available versions of this BMS provide either 2A or 5A balancing current. That is a strong balancing current, especially compared to many typical BMS units with only 50–200 mA passive balancing.
Why High Balancing Current Matters
In large packs with big capacity cells (like 100Ah or more), low balancing currents can take a long time to correct imbalances. A 2A or 5A active balance current can bring a pack into balance much faster.
This is useful:
- After we assemble a fresh pack
- When we replace cells
- When our pack is used heavily and tends to drift more quickly
- In storage systems that must be kept in balance for long periods
Protection Features: Safety at the Core
Battery packs hold a lot of energy, and without proper control, things can go very wrong. The JK BMS is built to protect against several key hazards:
We want our batteries to last, but we also want them not to become a fire or damage risk. That is where these protections are crucial.
Over-Charge Protection
Over-charging cells can be extremely dangerous. It can cause swelling, overheating, and permanent damage. The JK BMS monitors individual cell voltages, cutting off charge when cells reach their set limit.
For us, this means:
- Reduced risk of over-voltage damage
- Longer battery lifespan
- Safer unattended charging (still, we should always follow best practices)
Over-Discharge Protection
If cells are discharged too far, their chemistry can degrade. The BMS cuts off discharge when cell voltages drop below a set threshold, preventing deep discharge damage.
This is critical for longevity, especially with Li-ion and LiFePO4 packs used for deep-cycle storage and off-grid applications.
Over-Current and Short Circuit Protection
Short circuits and very high currents can harm cells, wiring, and equipment. The JK BMS has:
- Over-current protection: trips when current exceeds a set limit
- Short circuit protection: rapid response in case of near-instant, extreme current
With pack currents up to 600A (depending on the specific model like B5A25S60P), this protection is not optional. It is a key part of making such a powerful system manageable.
Low-Temperature Charging Cutoff
Charging lithium batteries at low temperatures can cause plating and permanent capacity loss. The JK BMS includes a low-temperature charging cutoff that prevents charging when cells are too cold.
We find this particularly important for systems used in unheated garages, outdoor enclosures, or colder climates. It is much easier to let the BMS protect the pack than to try to manually micromanage temperature every time.
Smart Control: JK’s Own App and Bluetooth Connectivity
A major perk of this BMS is that it is not just a “black box” that silently protects in the background. It connects via Bluetooth to the JK app so we can monitor and configure our pack parameters from our phone.
That ability changes how we interact with our battery. Instead of guessing, we see real data.
What We Can See in Real Time
The app typically allows us to view:
- Individual cell voltages
- Pack total voltage
- Charge and discharge current
- State of charge estimates (depending on configuration)
- Temperature readings
- Balance status and BMS operational status
With this information, we can catch problems early: a cell drifting too far, unusual current draw, or overheating conditions.

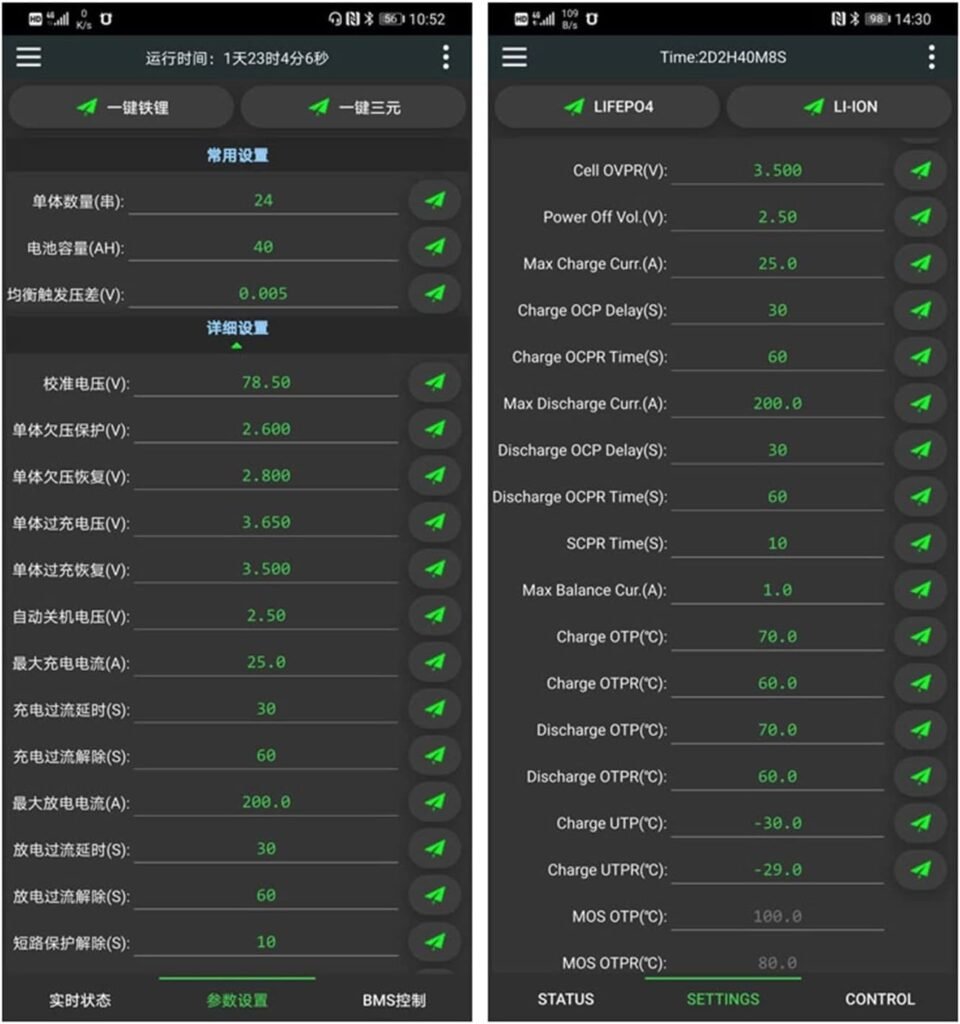

Configuration and Advanced Settings
The JK app is not just for watching—it allows us to adjust certain settings, such as:
- Cell high and low voltage thresholds
- Charge and discharge current protections
- Temperature thresholds, including low-temp charge cutoffs
- Balancing behavior and starting voltage differences
This gives us more control than a fixed-parameter BMS. Of course, we must be careful setting these parameters: incorrect settings can cause poor performance or potential damage. But for advanced users, that flexibility is a big advantage.
Where This BMS Fits Best (Use Cases)
The product details mention “Widely Use” with an emphasis on checking product parameters carefully. We agree—that is vital. Given its high current rating and multi-chemistry, multi-series support, it is designed for:
We can think in terms of projects and systems rather than only numbers.
Ideal Applications
We see this JK BMS fitting particularly well in:
-
Home energy storage / solar battery banks
Large LiFePO4 packs for off-grid or hybrid systems can benefit from 600A capability and active balancing. -
High-current DC storage systems
Systems where strong bursts of current are used for inverters, DC motors, or heavy loads. -
DIY powerwalls and pack builds
Enthusiast projects using 8S–24S configurations, including expansions and modular designs. -
LTO-based storage or specialty packs
Where ultralong cycle life and fast charge characteristics are desired.
Situations Where It May Be Overkill
For small e-bike packs, tiny portable power banks, or very low-current projects, this BMS might be too much—both in terms of cost and capability. In those cases, a simpler and smaller BMS would be more suitable.
Model Variant: B5A25S60P and Current Ratings
The product name includes a variant reference: “B5A25S60P.” While exact decoding can vary by manufacturer conventions, we can infer some characteristics:
- The “5A” likely indicates a 5A balance current model
- The larger current rating is up to 600A, referencing the maximum supported continuous or peak current (model-dependent)
For our purposes, this means we are dealing with a heavy-duty BMS module capable of handling very large packs and demanding loads.
Matching the Right Variant to Our System
We should always match:
- Our pack’s max charge current
- Our pack’s max discharge current
- Our continuous load requirements
- Our inverter or motor controller surge ratings
with the BMS specifications. We must never size a BMS only to typical current—we need to account for surge and continuous max to prevent nuisance trips or overstress.
Safety and Installation Considerations
The product details include a reminder: “Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries.” We strongly agree with that statement.
This BMS is not a plug-and-play toy. It requires proper wiring, understanding of series connections, and attention to safety.
Wiring and Connection Tips
We should always:
- Follow the official JK documentation for wiring sequence
- Carefully connect balance leads in the correct order to avoid damage
- Use appropriately sized cables and high-quality lugs or crimp terminals
- Add suitable fuses or breakers between the pack and load/charger
- Ensure good ventilation or consider heat management if using high currents regularly
Even the best BMS will not save us from bad mechanical or electrical connections, so we treat the installation as seriously as we would treat mains electrical work.
Respecting System Voltage and Energy
A 24S pack, especially with LiFePO4 or Li-ion cells, can reach high voltages and hold significant energy. We must:
- Wear proper safety gear when working on live packs
- Double-check polarity before connecting any leads
- Avoid working alone around high-voltage systems if possible
The BMS is a safety net, but it does not remove the need for good practices.
Performance in Daily Use
The combination of active balancing, strong protection, and app-based monitoring translates into a BMS that feels modern and responsive.
We notice the benefits most in long-term pack stability and reduced manual intervention, especially when running a large, multi-kilowatt storage system or heavy-load application.
Balancing and Capacity Retention
With active balancing up to 2A or 5A, pack cells tend to stay closer in voltage, both at top-of-charge and during discharge. That means:
- We get more of the pack’s capacity before a single weak or over/under voltage cell forces the BMS to cut off.
- The cells are less likely to experience drift leading to chronic undercharge or overcharge of individual cells.
Over many cycles, this can be the difference between a pack that remains strong for years and one that slowly deteriorates after only a few seasons.
Monitoring and Fine-Tuning
Having the JK app and Bluetooth available means we can:
- Log into the pack and see what is happening without dismantling anything
- Adjust thresholds as we optimize for longevity vs. capacity vs. performance
- Detect early signs of issues like one cell that consistently goes high or low
It makes our battery system feel less like a sealed, mysterious box and more like a transparent, manageable component.
Pros and Cons of the JK Smart BMS
To keep our perspective balanced, we should look honestly at what this module does exceptionally well and where we might run into limits or challenges.
This helps us decide if it is the right tool for our project, rather than simply assuming more features means “best” for every situation.
Advantages
-
Wide Series Support (8S–24S)
We do not need multiple models for different voltages. One unit can serve many pack configurations. -
Multi-Chemistry Support (Li-ion, LiFePO4, LTO)
Great for DIY builders and experimenters who might change chemistries over time. -
Active Balancing up to 5A
Very strong balancing performance, especially valuable in large packs with big cells. -
High Current Rating (up to 600A)
Suitable for big inverters and heavy loads, especially in storage and off-grid systems. -
Smart App with Bluetooth
Real-time data and configuration from our phone is a huge usability bonus. -
Comprehensive Protection Set
Over-charge, over-discharge, over-current, short circuit, and low-temp charge cutoff cover the main risk areas.
Potential Drawbacks
-
Complexity
Active balancing and extensive configuration options can be overwhelming if we are new to BMS systems. -
Installation Difficulty
Wiring a high-current 8S–24S BMS is not beginner-friendly. Mistakes can be costly. -
Overkill for Small Packs
For small e-bikes, scooters, or tiny tool packs, this is more capability than we need. -
Dependence on App and Documentation
We rely on the JK app and proper manuals. If documentation is unclear, there can be a learning curve.
Practical Tips Before Buying
The product details themselves urge us to “make sure you look at the product parameters carefully when you buy.” That is wise advice and we should take it seriously.
Before we purchase, we want to verify that this specific JK BMS model (for example, the B5A25S60P) fits our intended system.
Checklist for Compatibility
We can run through this quick checklist:
-
Chemistry Match
- Are we using Li-ion, LiFePO4, or LTO cells that the BMS supports?
- Do the BMS voltage settings align with our cell’s recommended ranges?
-
Series Count
- Does our planned pack fall between 8S and 24S?
- Have we confirmed that we will wire the balance leads correctly for that series count?
-
Current Requirements
- What is our maximum continuous discharge current?
- What are our peak surge currents (for inverters or motors)?
- Does the 600A rating (or our chosen model’s rating) comfortably exceed those?
-
Environment and Temperature
- Will the pack be used in cold conditions?
- Do we need the low-temperature charge cutoff and will we still supplement with a heater or insulation?
-
Monitoring Needs
- Do we want ongoing cell-level visibility and configuration?
- Are we comfortable using a phone app as a primary interface?
Taking a few minutes to answer these questions ensures we are not just buying specs but actually matching the BMS to our real-world needs.
Everyday Usability and Maintenance
Once we have installed the JK BMS, daily life with our battery system can become straightforward. The BMS largely runs itself, but there are a few habits that can keep our system operating at its best.
We treat our battery like we would any critical piece of infrastructure: occasional checks, reasonable operating limits, and awareness of changes over time.
Regular Checks
We can periodically:
- Open the JK app to verify all cell voltages look balanced
- Check temperatures under high load or charging
- Confirm that the pack is not hitting cutoffs unexpectedly (indicating issues)
If something looks off, such as one cell consistently lower than the others or temperatures rising more than expected, we can address it before it becomes a major problem.
Firmware and Configuration Updates
If JK provides firmware updates or adds features to the app, keeping the system updated can improve stability and add options. Also, as we better understand our usage patterns, we might refine voltage and current limits to optimize for:
- Maximum cycle life
- Reduced stress on cells
- Better performance in specific load or charge scenarios
We should log our changes and keep a record of what we adjust and why, so we can roll back if necessary.
How This BMS Affects Battery Lifespan
The product claims improved battery life through active balancing and robust protections, and that is a reasonable expectation when the system is installed and configured correctly.
We can think of battery lifespan in terms of both cycle life (how many times we can charge and discharge) and calendar life (how long until the pack significantly degrades with age).
Reduced Stress Per Cycle
By:
- Avoiding over-charge
- Avoiding over-discharge
- Protecting against high current spikes
- Preventing low-temperature charging
the JK BMS helps us avoid many of the most harmful stressors that shorten battery life. Combined with active balancing to keep cells in sync, this contributes to more uniform aging across cells.
Maximizing Usable Capacity Over Time
As cells drift apart in weaker systems, we often lose capacity because the BMS must stop charging when the first cell tops out and stop discharging when the first cell hits the low limit. If cells are kept better balanced, we use more of the pack’s theoretical capacity for more years.
That is the hidden value in active balancing and good configuration: we are not just avoiding catastrophe; we are also preserving performance.
Who This JK BMS Is Best For
Not every battery user needs—or wants—this level of capability. But for many of us working with serious energy storage, it can be a strong fit.
We can define our ideal user profile to see if we align with it.
Ideal Users
We think this JK BMS suits us well if we:
- Are building or upgrading a medium-to-large lithium battery pack (8S–24S)
- Need high current capacity, potentially up to 600A
- Want visibility into cell-level performance through a phone app
- Value active balancing and maximum efficiency in large packs
- Have at least intermediate comfort with DC wiring or are willing to learn carefully
If we are an off-grid enthusiast, a solar storage builder, or a DIY powerwall project owner, this BMS checks many boxes.
Users Who Might Want Something Simpler
On the other hand, if we are:
- Just powering a small e-bike or tool pack
- New to any kind of electrical work and prefer minimal configuration
- Using very low currents and short packs (like 3S–7S)
we may be better off with a simpler, smaller, and cheaper BMS designed for those specific formats.
Our Overall Verdict on the JK Smart BMS
Putting everything together, the “JK BMS Battery Protection Module JK 8S 9S 10S 12S 13S 14S 16S 17S 20S 21S 24S Smart Bms 2A 5A Balance Current Li-Ion LTO Lifepo4 Bms 600A Storage Relay Battery Board Module (Color: B5A25S60P, Size …)” presents itself as a robust, flexible, and intelligent BMS for modern lithium battery systems.
We get a BMS that:
- Supports a broad range of series counts (8S–24S) and three major chemistries
- Uses active balancing (2A or 5A) to push cell usage efficiency toward 99%
- Provides comprehensive protections: over-charge, over-discharge, over-current, short circuit, low-temp charging cutoff
- Offers a dedicated JK app with Bluetooth for rich real-time visibility and configuration
- Handles high currents up to 600A, suitable for heavy-duty storage and power applications
At the same time, it:
- Requires careful setup and correct parameter configuration
- Is more complex than basic BMS units
- Is best used in larger, more capable packs rather than small, low-current ones
If we are ready to take our battery project seriously—treating it as a long-term, high-value system rather than a disposable pack—this JK BMS gives us the tools to manage it with much greater precision, safety, and insight.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
