JK Smart BMS Balance BT Review

Have we ever wished our DIY battery system felt as robust, smart, and safe as a commercial-grade power solution?

What Is the JK BMS Battery Equalizer and Who Is It For?

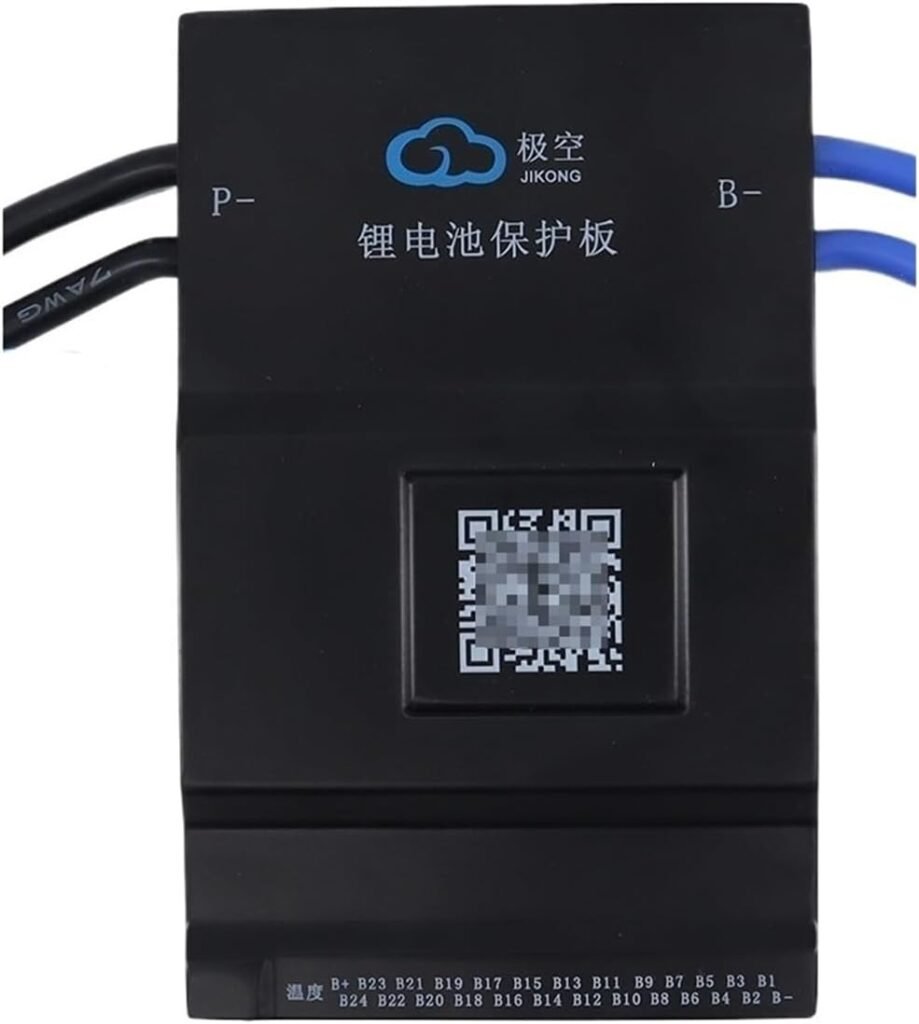

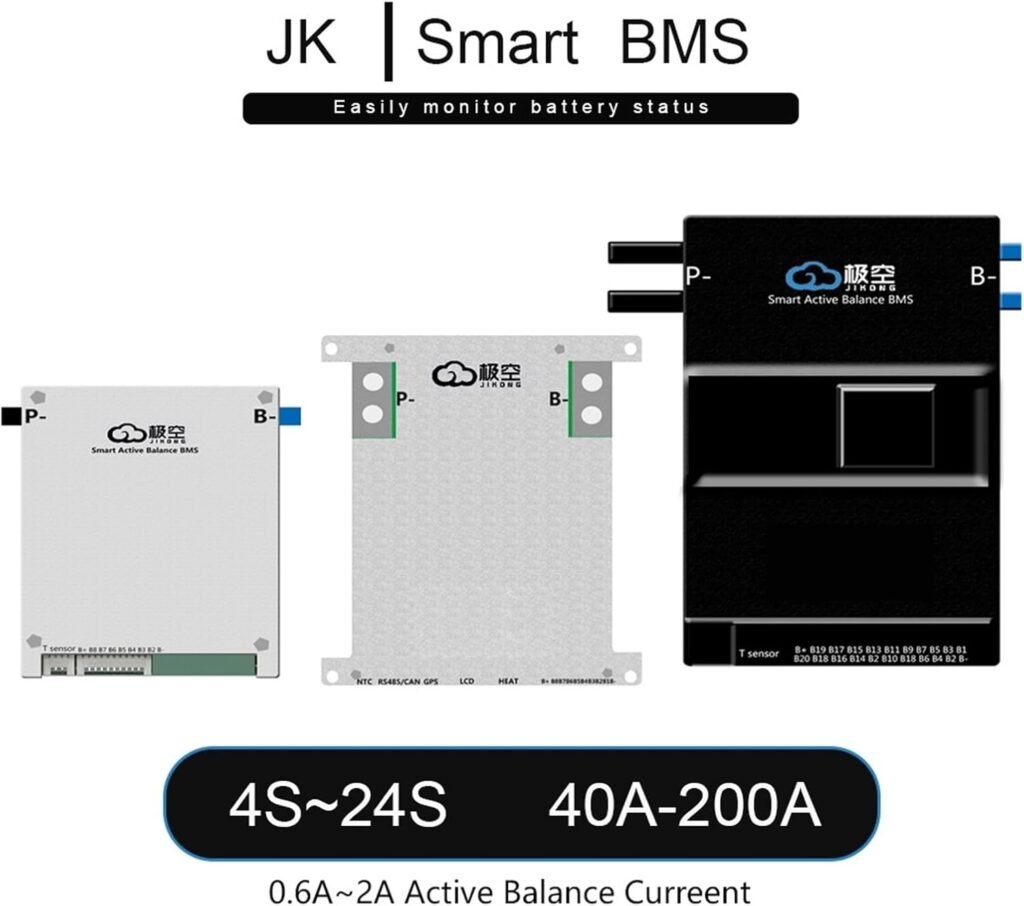

When we look at the JK BMS Battery Equalizer Jk Smart Bms Balance BT 8s 10s 16s 20s 21s 24s Balance Current 60A 80A 100A 120A 150A 200A 600A Liion Lifepo4 Lto Battery (Color : B1A24S15P, Size: BMS), we are clearly in serious DIY and professional territory. This is not a basic protection board; it is a full-featured smart Battery Management System (BMS) with active balancing and Bluetooth connectivity.

We see this unit as a great fit for those of us building or maintaining:

• Home energy storage systems (ESS)
• Off‑grid solar battery banks
• RV and camper battery systems
• Marine and boat power systems
• Backup power and UPS packs
• High-current DIY powerwalls

If we are using Li-ion, LiFePO4, or LTO battery cells, and we want 8S up to 24S series configurations with substantial current handling, this JK BMS is very much in the right performance bracket.

---

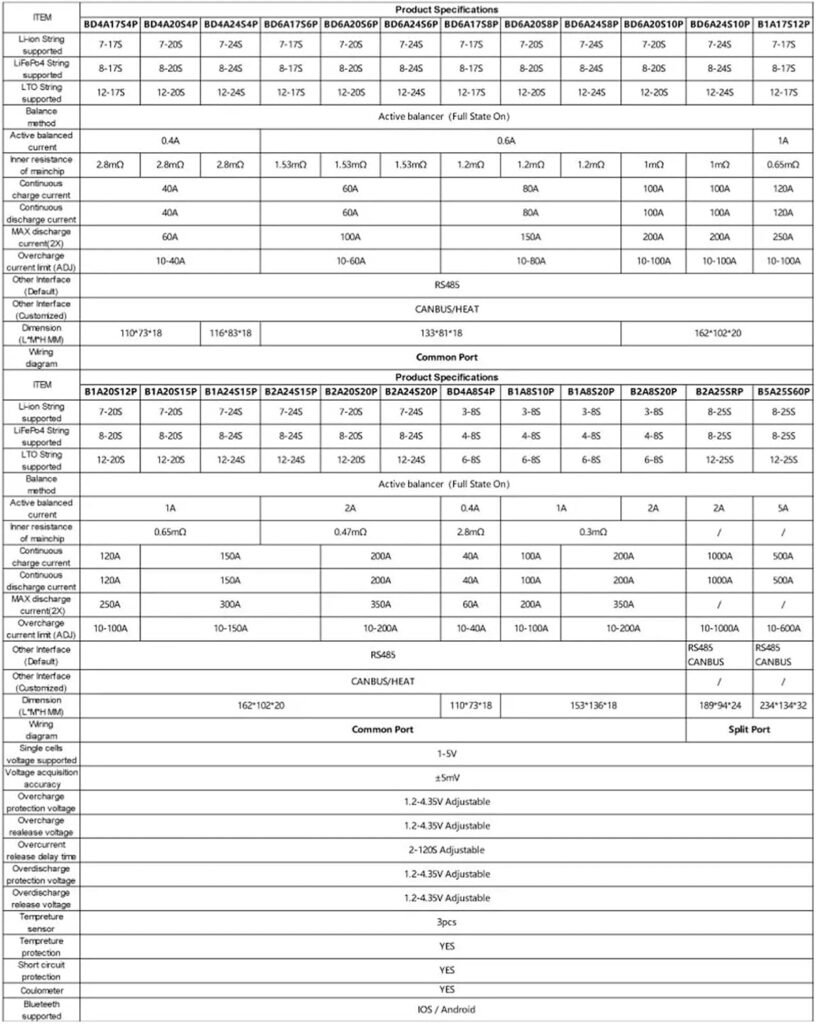

Key Features at a Glance

Before we look deeper, it helps to summarize the most important features. This makes it easier for us to decide if the JK BMS matches our project requirements.

Feature Category	What It Offers
Supported Chemistries	Li-ion, LiFePO4 (LifePo4), LTO
Supported Series Count	8S, 10S, 16S, 20S, 21S, 24S (with versions for 4S/8S/16S/24S use cases)
Typical System Voltages	12V (4S), 24V (8S), 48V (16S), 72V (24S)
Current Ratings	60A, 80A, 100A, 120A, 150A, 200A, up to 600A models
Balancing Type	Active balancing, 0.6–2A balance current
App Support	Proprietary JK app with Bluetooth communication
Protection Functions	Over-charge, over-discharge, over-current, short circuit, low temperature
Typical Use	DIY powerwall, solar, off-grid, RV, marine, backup battery systems

We see right away that this is intended as a high-end smart BMS rather than a simple protective board. The combination of serious current capabilities with active balancing and app control makes it well suited for demanding applications.

---

Design and Build Quality

The JK BMS has a design that clearly shows it was built for more than basic hobby use. Even though we might not always see the internal layout, the specifications and reputation suggest a thoughtful and robust design.

We generally find that the housing is sturdy, the terminals are substantial enough for high current, and the heat management is handled well through layout and, on some models, with additional cooling considerations.

Hardware Layout and Connectors

The physical layout is centered on safe, clear connections. We typically get:

• Heavy-duty terminals for the main battery positive/negative and load paths
• Balancing harness connectors for each series cell
• Temperature sensor inputs
• Communication port / Bluetooth integration (depending on model)

We really appreciate when the labeling and pinouts are clear, and JK’s boards usually come with reasonably intuitive markings. Still, we should always check the wiring diagrams before connecting anything, because high current and wrong wiring can quickly cause damage.

Robustness for High-Current Use

With versions that go from 60A up to 600A, this BMS line is clearly oriented to high load applications. The internal MOSFETs and bus bars must handle sustained current, and from user feedback in the broader JK BMS ecosystem, we see that they generally hold up well when installed correctly with appropriate cabling.

We should always respect the current rating and leave a margin. For example, if we expect regular 150A loads, we might want to choose a 200A model for extra reliability and reduced stress on components.

---

Supported Battery Chemistries and Configurations

The flexibility in chemistry and series configuration is one of the biggest strengths of this JK BMS product. It allows us to build a variety of systems with the same general platform.

LiFePO4, Li-ion, and LTO Support

We often see cheaper BMS units locked to a single chemistry. In contrast, this BMS supports Li-ion, LiFePO4 (often written as LifePo4), and LTO (Lithium Titanate). Each chemistry has its own voltage profile and protection thresholds:

• LiFePO4

  • Nominal cell voltage: ~3.2V
  • Typical full charge: ~3.65V per cell
  • Very popular for solar and powerwall systems due to longevity and safety

• Li-ion (NMC, NCA, etc.)

  • Nominal: ~3.6–3.7V
  • Full charge: ~4.2V per cell
  • Higher energy density, often used for portable applications

• LTO (Lithium Titanate)

  • Nominal: ~2.3–2.4V
  • Full charge: ~2.7–2.8V
  • Exceptional cycle life and low-temperature performance

The JK app and firmware allow us to set appropriate voltage thresholds for whichever chemistry we choose, giving us flexibility without needing different BMS hardware for each type.

Series Configurations: From 4S Up to 24S

Even though the product title highlights 8S, 10S, 16S, 20S, 21S, 24S, the description mentions support for 4S, 8S, 16S, 24S typical battery packs (12V, 24V, 48V, 72V). That means the series count is flexible and depends on the version we have:

• 4S (12V nominal LiFePO4)
  Great for small backup units, portable power boxes, or RV house batteries.

• 8S (24V nominal LiFePO4)
  Common for mid‑size solar systems, golf carts, and light commercial gear.

• 16S (48V nominal LiFePO4)
  Possibly the most popular for home energy storage and off-grid solar.

• 24S (72V nominal)
  Used for higher voltage systems, including certain industrial or e-mobility applications.

We should always confirm the exact model’s supported cell count before buying or wiring. The series configuration usually has its own variant within the JK lineup.

---

Smart Features and JK’s Own App

One of the standout aspects of this BMS is the proprietary JK app and the integrated Bluetooth functionality. This combination moves us away from blind battery management and into continuous, smartphone-available monitoring.

Bluetooth Connectivity

With built‑in BT communication, our phone becomes a live dashboard for the pack. Instead of hooking up a separate meter or logging device, we just connect via the app and see:

• Individual cell voltages
• Pack total voltage
• Charge/discharge current
• State of charge (SOC) estimate
• Temperature readings
• Protection status and alarms

The real-time visibility helps us catch issues early, like a drifting cell or a temperature problem. It also makes initial setup and tuning much easier, because we do not have to guess what the BMS is doing.

JK App Functionality

The JK app is where we interact with the deeper configuration settings. Through it, we can:

• Set over-charge and over-discharge voltage thresholds
• Adjust current limits
• Configure temperature cutoffs (especially low-temperature charge shutdown)
• Control balancing behavior and target voltages
• View historical data or logs (varies by app version)

This level of control is valuable if we wish to optimize for longevity, capacity, or safety. For example, we might:

• Limit top charge voltage to slightly below the chemistry’s maximum to prolong life
• Adjust the minimum discharge threshold to protect the pack from deep cycling
• Tune balancing parameters so that it activates as we prefer near full charge

We appreciate that the app is JK’s own development, not a generic off-brand tool. This usually leads to better compatibility and ongoing improvements.

---

Active Balancing: Why It Matters

The feature that many of us care about most is the JK Active Balance system. Unlike traditional passive BMS units, which bleed excess power from higher cells as heat, active balancing works differently and far more efficiently.

How Active Balancing Works

Active balancing typically transfers charge from higher-voltage cells to lower-voltage ones. Instead of wasting energy as heat on resistors, it shuttles energy between cells to keep them all at similar voltages.

JK specifies 0.6–2A active balance current, which is significantly stronger than the tiny passive balance currents found in many low-cost BMS boards. This stronger current helps equalize cells faster, especially in larger packs with more capacity.

Benefits of Active Balancing for Our Battery

Here is why active balancing is a big upgrade for our DIY and professional battery systems:

• Improved usable capacity
  The pack is only as strong as its weakest cell. If one cell is undercharged or over-discharged compared with the rest, we lose capacity. Active balancing keeps cells aligned, so we use more of the pack’s potential.

• Higher efficiency
  JK mentions that active balancing raises the efficiency of battery usage up to 99%. That means almost no energy is wasted as balancing heat, and more energy is available for our loads.

• Longer battery life
  When cells are kept in closer voltage alignment, none of them is pushed too hard. This equal stress distribution typically leads to longer cycle life and reduced risk of premature cell failure.

• Better performance over time
  Packs tend to drift more as they age, especially if we mix cells or use reclaimed cells. Active balancing helps maintain performance longer, even as cell characteristics naturally diverge.

We see active balancing as one of the strongest reasons to pick this JK BMS over cheaper, simpler BMS products.

---

Core Protection Functions

A BMS has one critical job above all: protecting the battery and our system. The JK Smart BMS covers the essential protection features we expect from a serious unit.

Over-Charge and Over-Discharge Protection

The BMS monitors each cell and the total pack voltage, cutting off charge or discharge when thresholds are exceeded:

• Over-charge protection
  Prevents cells from being pushed above a safe voltage. Overcharging lithium cells can quickly lead to swelling, gas generation, or in worst cases, thermal runaway.

• Over-discharge protection
  Stops the pack from being drained to dangerously low voltages. Deep discharge shortens cell life and can, in some chemistries, cause irreversible capacity loss or cell damage.

We can usually tailor these thresholds via the JK app, making it possible to prioritize longevity by slightly narrowing the voltage window.

Over-Current and Short Circuit Protection

For high current systems, these protections are non-negotiable:

• Over-current protection
  If the load draws more current than the BMS rating or the configured limit, the BMS disconnects to prevent overheating and potential damage to both cells and wiring.

• Short circuit protection
  In the event of a short, current spikes extremely fast. The BMS reacts by cutting off power, greatly reducing the risk of catastrophic failure.

We need to pair this with appropriate fusing and cabling, but having the BMS as an active guardian is essential.

Low Temperature Charge Shutdown

Lithium batteries, particularly LiFePO4 and many Li-ion chemistries, should not be charged at low temperatures (often below 0°C / 32°F), or they may suffer plating and irreversible damage.

This JK BMS includes low temperature charging shutdown, which means:

• It will prevent charge current when cells are too cold.
• It helps protect the pack in winter or in cold climates, especially in RVs, cabins, and outdoor installations.

We can usually monitor and tune this behavior through the app, giving us control that many basic BMS boards lack.

---

Use Cases: Where the JK BMS Really Shines

Because of its flexibility and smart feature set, this BMS fits a broad range of DIY and professional applications. We can tailor it to our specific needs by choosing the right current rating and series configuration.

Home and Off-Grid Solar Systems

For 48V (16S) LiFePO4 powerwalls or similar configurations, the JK BMS is a strong choice:

• Active balancing helps maintain capacity across large cell banks.
• Bluetooth and the app let us quickly check pack status without opening enclosures.
• Over-current and temperature protections add another layer of safety to our off-grid system.

Paired with a suitable inverter and charge controller, this BMS can be the core of a reliable home energy storage setup.

RVs, Campervans, and Marine Power

In mobile environments, we often face vibration, fluctuating temperatures, and varying loads. For 12V (4S) or 24V (8S) packs:

• The JK BMS can manage pack health while we run lights, fridges, inverters, and more.
• Low-temp charge cutoff protects batteries during cold overnight stays.
• Bluetooth monitoring helps us understand exactly how our system behaves while driving or anchored.

We especially like being able to check cell status from the comfort of the cabin via our phone.

Backup Power and UPS Systems

For stationary backup systems, the JK BMS provides:

• Long-term stability through active balancing.
• Clear fault monitoring when the system switches in during outages.
• Protection against unexpected over-current events during start-up surges.

By setting more conservative voltage thresholds, we can build a pack that lasts for many years of occasional backup use.

---

Safety and the “Unique Design” Focus

JK emphasizes that choosing the right protection board and the right application is critical to the longevity of our batteries. That philosophy is very visible in this product’s design and feature set.

Matching the BMS to Our System

For safety and longevity, we need to align:

• BMS current rating with our expected peak and continuous loads
• Series count with our pack configuration (4S/8S/16S/24S, etc.)
• Chemistry settings with our cell type (LiFePO4, Li-ion, LTO)

The JK BMS gives us the tools to adjust these parameters through the app, but we must still do the initial homework: know our pack, know our loads, and choose the appropriate model variant.

Thermal Considerations and Installation Safety

Any high-current BMS can generate heat under stress. Even with efficient MOSFETs and good design, we should:

• Mount the BMS in a well-ventilated location.
• Use adequately sized cabling to reduce resistive heating.
• Consider additional cooling or spacing if we are frequently near the upper current limit.

By giving us strong active balancing and robust protection mechanisms, the JK design helps mitigate risks, but good installation practice remains essential.

---

Ease of Setup and Configuration

We often find that smart BMS units can be intimidating. The JK unit’s Bluetooth and app support go a long way towards making configuration more approachable, especially for those of us doing our first advanced DIY build.

Wiring and Initial Power-Up

The general setup process usually looks like this:

1. Plan the pack: Decide cell count, chemistry, and target capacity.
2. Wire the cells: Build the series/parallel pack, verifying polarity at each step.
3. Connect the balance leads: Attach BMS balance harnesses to each cell tap, following JK’s wiring diagram carefully.
4. Connect main terminals: Hook up the main B+, B−, and load/charge leads using correct cable size and lugs.
5. Attach temperature sensors: Place them where they can accurately represent cell temperature.
6. Power on and check via the app: Verify cell voltages, pack voltage, and any alarms.

We should double-check polarity and series order before connecting the BMS, as incorrect wiring is one of the most common causes of failure.

Using the App for Fine-Tuning

Once wired and powered, we can open the JK app and:

• Confirm each cell voltage is correctly read.
• Set maximum charge voltage and minimum discharge voltage for our chemistry.
• Adjust current limits if needed.
• Configure balancing thresholds and behavior.
• Set temperature cutoffs for charging and discharging.

We see this stage as an opportunity to optimize the system’s lifespan. For example, for LiFePO4, we might:

• Set maximum cell voltage to around 3.45–3.5V instead of 3.65V
• Set minimum cell voltage to around 2.8–3.0V instead of going much lower

These changes can slightly reduce capacity but dramatically increase cycle life.

---

Performance in Real-World Use

While specifications look great on paper, what we really want to understand is how the JK BMS performs in practical, ongoing use.

Balancing Effectiveness Over Time

Active balancing at 0.6–2A is quite strong. In real-world packs with moderate capacity (for example, 100–300Ah per cell group), we typically find:

• Cells remain much closer in voltage once the pack has been cycled a few times under the JK BMS.
• Occasional drift is corrected faster than with passive balancing systems.
• The pack behaves more predictably near full charge, without one cell “spiking” early.

In large powerwall-style packs where cells may vary in age or origin, this becomes a valuable feature, helping maintain performance despite non-perfect cell matching.

Stability Under High Loads

With the right model (e.g., 200A, 300A, or 600A variants), the BMS is able to sustain substantial loads:

• Inverters pulling heavy current during appliance start-up
• Motor loads in e-mobility or marine applications
• Combined household loads in off-grid cabins

As long as we stay within the rating and give the BMS enough cooling, feedback suggests that the units operate reliably under such conditions. We should always leave some margin between our maximum expected current and the BMS’s rating to ensure long-term stability.

Accuracy of Monitoring and Reporting

We rely heavily on monitoring data to make decisions about usage and capacity. The JK app generally provides:

• Accurate cell voltages (within reasonable tolerances)
• A reliable total pack voltage measurement
• Current sensing that is suitable for everyday operation and planning

State of charge (SOC) estimation can depend heavily on calibration and our specific pack, so we often consider it a guide rather than an absolute truth. Still, having consistent data logged from the BMS is far better than trying to manage a large pack blind.

---

Pros and Cons of the JK Smart BMS

To keep our decision-making straightforward, it helps to look at a clear pros and cons overview.

Advantages

• Active Balancing (0.6–2A)
  Provides fast, efficient balancing with minimal wasted energy and better longevity.

• Extensive Protection Features
  Covers over-charge, over-discharge, over-current, short circuit, and low temperature charging.

• Flexible Chemistry Support
  Works with LiFePO4, Li-ion, and LTO, making it a long-term versatile option.

• Smart App and Bluetooth Monitoring
  Real-time phone access to pack status and configuration tools.

• Wide Current and Series Options
  From smaller 60A units up to serious 600A models, and 4S to 24S support depending on variant.

• Suited for DIY and Professional Systems
  Can anchor robust home energy storage and off-grid installations.

Potential Drawbacks

• More Complex Than Simple BMS Units
  The same flexibility and configurability mean we have to spend time understanding settings.

• Requires Careful Installation
  High current and many connections leave little room for errors in wiring or cable sizing.

• Dependent on App for Full Functionality
  While this is a benefit, it also means we rely on a smartphone and software for advanced tuning.

• Price Compared to Basic Boards
  Often higher cost than simple BMS units, though justified by added features and performance.

For those of us who value smart management and pack longevity, the advantages tend to outweigh these downsides, but we should understand what we are getting into.

---

Practical Tips for Getting the Most from the JK BMS

To truly benefit from this product, we can follow some practical best practices in planning, installation, and operation.

Choose the Right Model Variant

We should start by matching the BMS to our use case:

• Chemistry: Confirm LiFePO4, Li-ion, or LTO compatibility and select appropriate presets.
• Series count: 4S/8S/16S/24S depending on our pack design.
• Current rating: Add headroom beyond our worst-case continuous load.

We might aim for a BMS rated for at least 25–50% more current than our normal maximum usage.

Prioritize Clean Wiring and Documentation

When building the pack:

• Keep balance leads tidy, labeled, and protected from abrasion.
• Use correctly crimped or soldered lugs for main current paths.
• Document the layout so future maintenance is easier.

We want to avoid any ambiguity in cell order and polarity, as that is where many mistakes happen.

Use Conservative Voltage Limits for Longevity

If our priority is long life and stable performance:

• Set top-of-charge slightly below maximum cell voltage.
• Avoid discharging to the absolute low limit of the chemistry.
• Consider using the balancing function near the top of charge to keep things aligned.

This approach might reduce usable capacity by a small percentage, but significantly extend pack life.

Monitor Regularly, Especially Early On

During the first weeks of operation:

• Check the app often to ensure that no cells are drifting badly.
• Watch for unusual temperature rises during charge or discharge.
• Verify that protection events (if any) are reasonable, not triggered by misconfigurations.

Once the system proves itself consistent, we can relax monitoring to occasional check-ins.

---

How This BMS Compares to Cheaper Alternatives

Many of us start with simple BMS boards when experimenting. So it makes sense to compare this JK smart BMS to typical lower-end options.

Basic BMS vs. JK Smart BMS

Aspect	Low-Cost Basic BMS	JK Smart BMS with Active Balance
Balancing Type	Passive (low current)	Active (0.6–2A)
Monitoring	Limited or none	Full smartphone app via Bluetooth
Configuration	Fixed or very limited	Extensive app-based configuration
Protection Features	Basic OVP/UVP/over-current	Full, including low-temp charge shutdown
Efficiency	Balancing energy wasted as heat	Balancing transfers energy between cells
Typical Use	Simple small packs	Serious DIY systems, high-current installations

We see that the JK BMS justifies its cost by providing a much more capable, efficient, and user-friendly system. If our goal is a robust battery pack that will last and perform at a high level, the extra features are well worth it.

---

Our Overall Verdict on the JK BMS Battery Equalizer

For those of us building or upgrading serious lithium battery systems, the JK BMS Battery Equalizer Jk Smart Bms Balance BT 8s 10s 16s 20s 21s 24s Balance Current 60A 80A 100A 120A 150A 200A 600A Liion Lifepo4 Lto Battery (Color : B1A24S15P, Size: BMS) stands out as a compelling choice.

We appreciate:

• The active balancing with up to 2A balance current, which significantly improves energy usage and cell longevity.
• The comprehensive protection features, especially low temperature charge shutdown.
• The Bluetooth-enabled app, giving us deep insight and fine control over pack behavior.
• The wide range of supported chemistries and series counts, meaning we can use the same family of products across multiple projects.

On the other hand, we need to be comfortable with:

• A more involved setup and configuration process than a basic BMS.
• The responsibility of correct wiring and parameter tuning for our specific system.

If we value monitoring, efficiency, and long-term reliability in our DIY or professional lithium battery build, this JK Smart BMS is an excellent match. It effectively bridges the gap between hobby-grade boards and commercial systems, giving us powerful tools to manage our energy storage with confidence and control.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
